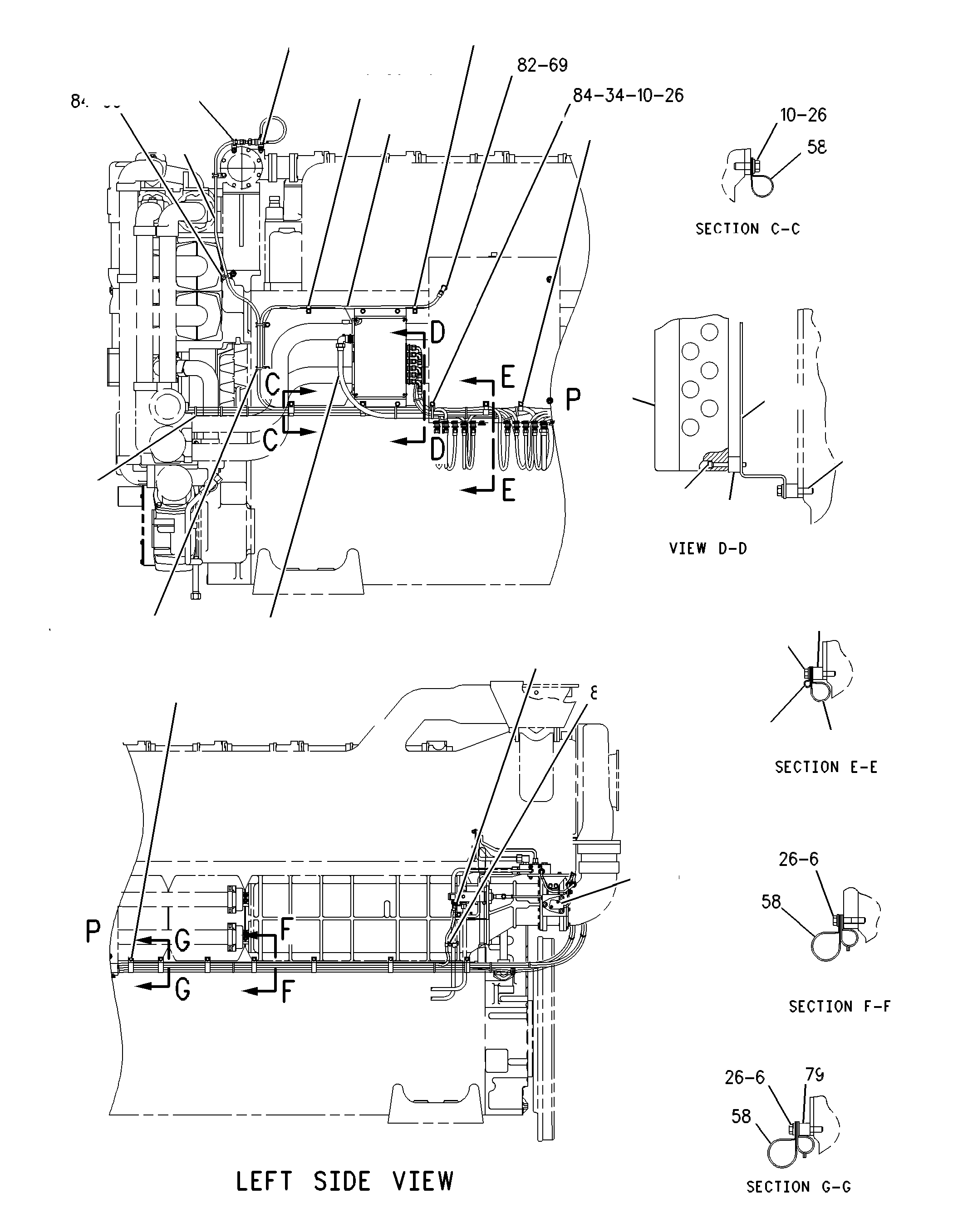

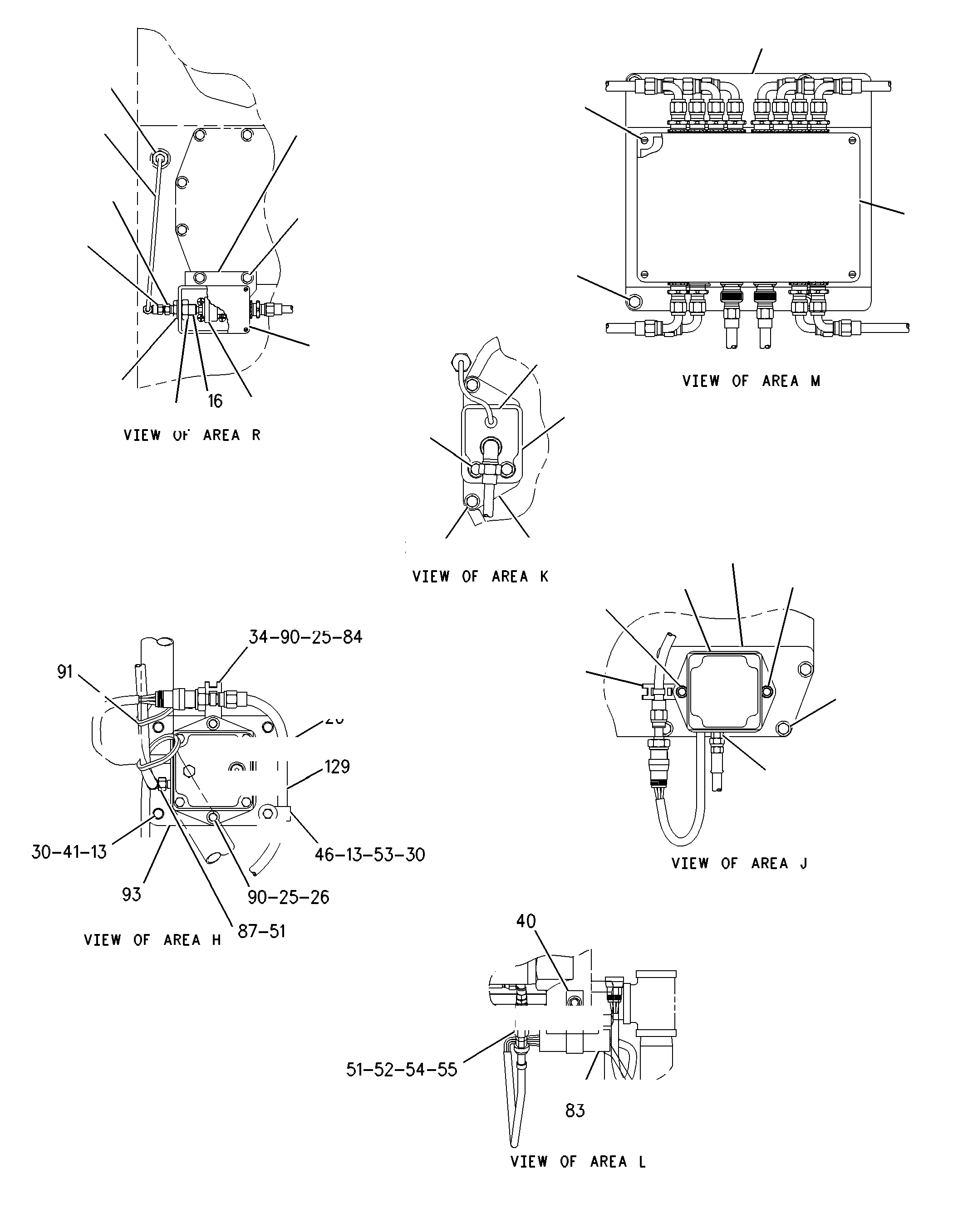

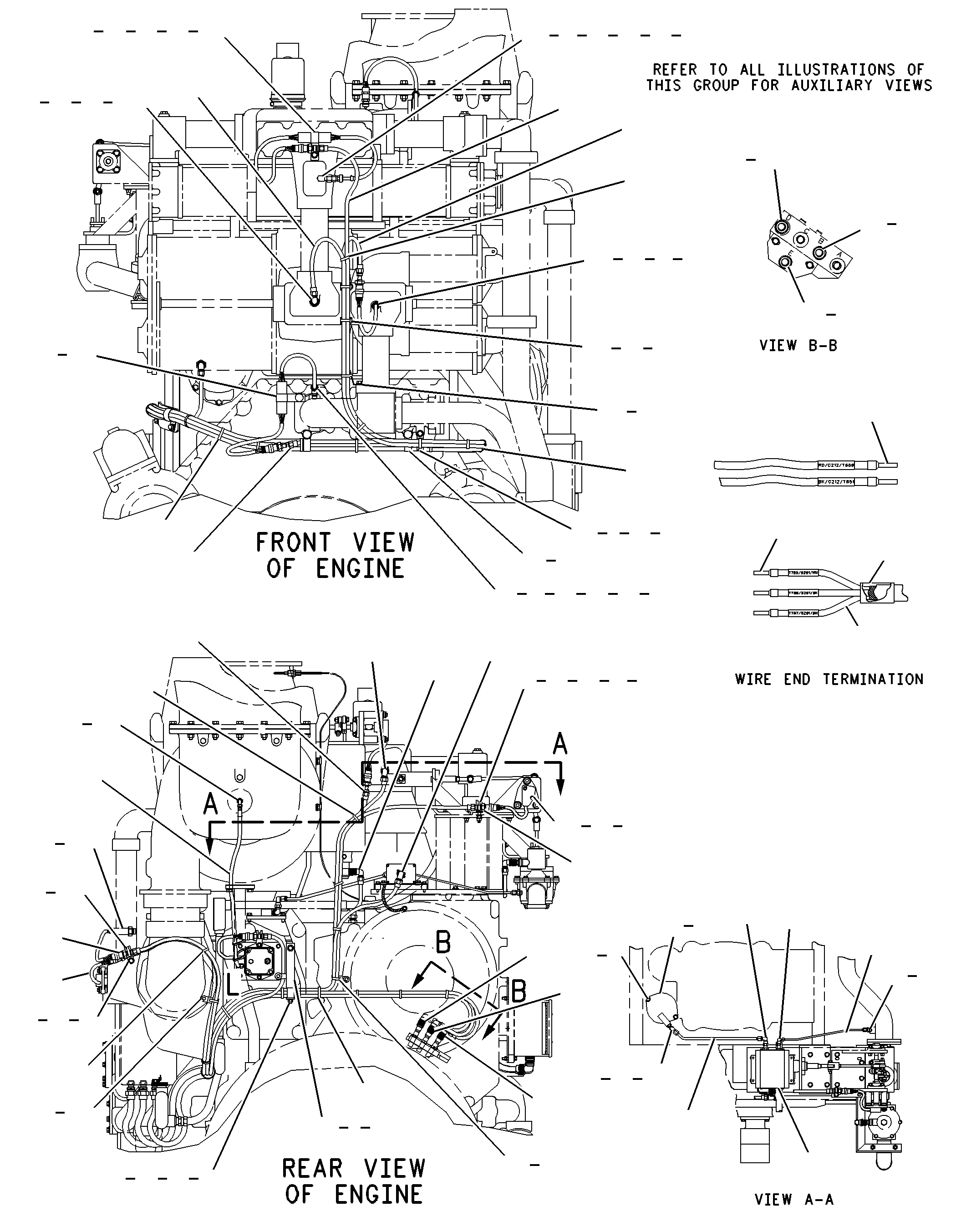

142-5015 WIRING GP-ENGINE (CHG -01B1)G3608-HYDRAX
Group No: 142-5015
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1143 | 1 BOLT (3/8-16X2.5-IN) | 8 | |
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 12 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 2 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 1 | |
| 0S1588 | 5 BOLT (3/8-16X1.25-IN) | 4 | |
| 0S1590 | 6 BOLT (3/8-16X2-IN) | 14 | |
| 0S1591 | 7 BOLT (3/8-16X1.5-IN) | 2 | |
| 0S1594 | 8 BOLT (3/8-16X1-IN) | 15 | |
| 0S1619 | 9 BOLT (3/8-16X3-IN) | 1 | |
| 1A2029 | 10 BOLT (3/8-16X1.125-IN) | 14 | |
| 1B4971 | 11 SPACER (0.406X1X1-IN THK) | 2 | |
| 1S0994 | 12 CLIP (LOOP) | 2 | |
| 2A5546 | 13 BOLT (1/4-20X1.375-IN) | 4 | |
| 2L8075 | 14 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 2N3162 | 15 SCREW-MACHINE (10-24X1.25-IN) | 8 | |
| 2N3478 | 16 SCREW-MACHINE (10-24X0.375-IN) | 4 | |
| 2P1314 | 17 CONNECTOR | 1 | |
| 3B1915 | 18 BOLT (3/8-16X1.375-IN) | 13 | |
| 3E8689 | 19 SENSOR GP-PRESSURE | 1 | |
| 3E9189 | 20 SENSOR GP-PRESSURE | 1 | |
| 3J1907 | 21 SEAL-O-RING | 1 | |
| 3J7352 | 22 CONNECTOR | 1 | |
| 3K0360 | 23 SEAL-O-RING | 1 | |
| 3N1400 | 24 SWITCH AS-PRESSURE | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 3V2431 | 25 WASHER (10.2X16X2-MM THK) | 4 | |
| 3V3308 | 26 WASHER-HARD (10.2X20.5X2.5-MM THK) | 94 | |
| 4B4274 | 27 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 28 CLIP | 4 | |
| 4H1225 | 29 WASHER (11X22X6-MM THK) | 11 | |
| 4J9448 | 30 LUG | 4 | |
| 4L7124 | 31 BOLT (1/4-20X1.25-IN) | 4 | |
| 4N3329 | 32 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 4P7428 | 33 CLIP (LADDER) | 1 | |
| 4P7581 | 34 CLIP (LADDER) | 11 | |
| 4P8134 | 35 CLIP (LADDER) | 5 | |
| 4S1962 | 36 CLIP (LOOP) | 1 | |
| 4S5719 | 37 SPACER (10.31X25X12.7-MM THK) | 5 | |
| 4S6399 | 38 CONNECTOR | 1 | |
| 5B2638 | 39 BOLT (3/8-16X5.25-IN) | 1 | |
| 5N2840 | 40 CLIP | 3 | |
| 5P0537 | 41 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 5P1075 | 42 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 5P7854 | 43 CLIP (LOOP) | 4 | |
| 5P8245 | 44 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 5P8247 | 45 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 5P9297 | 46 CLIP (LOOP) | 17 | |
| 5T4375 | 47 HOSE AS | 1 | |
| 6K9194 | 48 ELBOW | 2 | |
| 6V2313 | 49 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 50 SEAL-O-RING | 1 | |
| 6V5048 | 51 SEAL-O-RING | 7 | |
| 6V5049 | 52 SEAL-O-RING | 8 | |
| 6V7646 | 53 WASHER-HARD (7.2X25X2-MM THK) | 1 | |
| 6V8647 | 54 CONNECTOR | 2 | |
| 6V9601 | 55 ADAPTER | 1 | |
| 6V9872 | 56 CONNECTOR | 2 | |
| 7C9897 | 57 HOSE AS | 1 | |
| 7D1553 | 58 CLIP | 9 | |
| 7D4092 | 59 CLIP | 3 | |
| 7D7233 | 60 CLIP (LOOP) | 8 | |
| 7E2953 | 61 BRACKET | 1 | |
| 7E7731 | 62 MOUNT | 4 | |
| 7J4026 | 63 ELBOW | 1 | |
| 7J8744 | 64 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7K9197 | 65 ELBOW | 2 | |
| 7X1043 | 66 SENSOR GP-TEMPERATURE | 1 | |
| 8C3103 | 67 SEAL-O-RING | 1 | |
| 8L2779 | 68 SEAL-O-RING | 2 | |
| 8L2786 | 69 SEAL-O-RING | 3 | |
| 8L4171 | 70 SENSOR GP-SPEED (ENGINE) | 2 | |
| 8M2770 | 71 CLIP (LOOP) | 4 | |
| 8M2773 | 72 CLIP (LOOP) | 6 | |
| 8S4626 | 73 SPLICE-WIRE | 4 | |
| 8T0788 | 74 ELBOW | 2 | |
| 8T1887 | 75 CLIP (SLOT) | 1 | |
| 8T1888 | 76 CLIP (TAB) | 1 | |
| 8T3285 | 77 ADAPTER | 1 | |
| 8T6342 | 78 TUBE-HEAT SHRINK (3.2-MM DIA) | ||
| 9M4594 | 79 SPACER (0.406X0.875X0.75-IN THK) | 10 | |
| 9M7357 | 80 COUPLING AS | 1 | |
| 9S8752 | 81 NUT-FULL (3/8-16-THD) | 4 | |
| 9W0532 | 82 SENSOR GP-TEMPERATURE | 2 | |
| 9X5272 | 83 SENSOR GP-PRESSURE | 1 | |
| 9X6772 | 84 STRAP-CABLE | 17 | |
| 9X6772 | 85 STRAP-CABLE | ||
| 9Y1925 | 86 BOX AS | 1 | |
| 0307946 | 87 ELBOW | 2 | |
| 0307947 | 88 ADAPTER-ELBOW | 1 | |
| 0308195 | 89 CONNECTOR | 1 | |
| 0532294 | 90 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 4 | |
| 0689941 | 91 WIRE-TIE | 2 | |
| 0919035 | 92 SPACER (11X25X20-MM THK) | 8 | |
| 1007834 | 93 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1007870 | 94 ADAPTER-O-RING | 1 | |
| 1069154 | 95 INSULATOR | 4 | |
| 1072675 | 96 SENSOR AS-SPEED | 1 | |
| 1073952 | 97 SENSOR GP-PRESSURE | 2 | |
| 1077142 | 98 SENSOR GP-PRESSURE | 1 | |
| 1093038 | 99 END-WIRE (16-GA) | 20 | |
| 1108714 | 100 END-WIRE (18-GA) | 115 | |
| 1129273 | 101 SENSOR GP-DETONATION | 4 | |
| 1132039 | 102 TUBE AS | 1 | |
| 1140126 | 103 PLATE | 1 | |
| 1142269 | 104 SENSOR GP-TEMPERATURE | 1 | |
| 1168092 | 105 BRACKET | 1 | |
| 1253747 | 106 HARNESS AS (OIL TEMPERATURE) | 1 | |
| 1253749 | 107 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253751 | 108 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253752 | 109 HARNESS AS (OIL PRESSURE UNFILTERED) | 1 | |
| 1253753 | 110 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253754 | 111 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253756 | 112 HARNESS AS (CRANKCASE PRESSURE) | 1 | |
| 1253771 | 113 HARNESS AS-SENSOR (COMBUSTION) | 2 | |
| 1253772 | 114 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253773 | 115 HARNESS AS-SENSOR (COMBUSTION) | 2 | |
| 1253774 | 116 HARNESS AS-SENSOR (COMBUSTION) | 1 | |
| 1253776 | 117 HARNESS AS (OIL, WATER LEVEL) | 1 | |
| 1253788 | 118 HARNESS AS | 1 | |
| 1253789 | 119 HARNESS AS (FUEL TEMPERATURE) | 1 | |
| 1253790 | 120 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1253791 | 121 HARNESS AS (STARTING AIR SOLENOID) | 1 | |
| 1253792 | 122 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253793 | 123 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 1253794 | 124 HARNESS AS (ENGINE CONTROL MODULE) | 1 | |
| 1253795 | 125 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 1253796 | 126 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253797 | 127 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253798 | 128 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253799 | 129 HARNESS AS (AIR RESTRICTION) | 1 | |
| 1253800 | 130 HARNESS AS (PRESSURE MODULE) | 1 | |
| 1253801 | 131 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253802 | 132 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253804 | 133 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1254587 | 134 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1254588 | 135 PLATE | 4 | |
| 1254589 | 136 PLATE | 1 | |
| 1257859 | 137 BOX GP-JUNCTION | 1 | |
| 1257860 | 138 BRACKET AS | 1 | |
| 1257861 | 139 SEAL | 9 | |
| 1257875 | 140 TUBE-HEAT SHRINK (7.44-MM DIA) | ||
| 1280946 | 141 SENSOR GP-POSITION (EACH INCLUDES) | 3 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1286325 | 142 BUSHING | 1 | |
| 1293543 | 143 BOX GP-JUNCTION (HYDRAX) | 1 | |
| 1297636 | 144 BOX GP-JUNCTION | 1 | |
| 1323125 | 145 COVER AS | 1 | |
| 1331412 | 146 CONTROL GP-ENGINE MONITORING | 1 | |
| 1356656 | 147 HARNESS AS (ACTUATOR) | 1 | |
| 1383132 | 148 BRACKET | 1 | |
| 1402089 | 149 TUBE AS | 1 | |
| 1402090 | 150 TUBE AS | 1 | |
| 1409669 | 151 SWITCH AS-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1425008 | 152 HARNESS AS (FUEL HYDRAX) | 1 | |
| 1425009 | 153 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 1425010 | 154 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 1425011 | 155 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 1425012 | 156 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 1425013 | 157 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 1425014 | 158 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 | |
| 1457982 | 159 SENSOR AS | 1 | |
| 1461807 | 160 HARNESS AS (CIS CAM ANGLE) | 1 | |
| 1461808 | 161 HARNESS AS (CIS CONTROL SIGNALS) | 1 | |
| 1461809 | 162 HARNESS AS (CIS POWER) | 1 | |
| 1466672 | 163 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1466673 | 164 HARNESS AS-SENSOR (DETONATION) | 1 |
