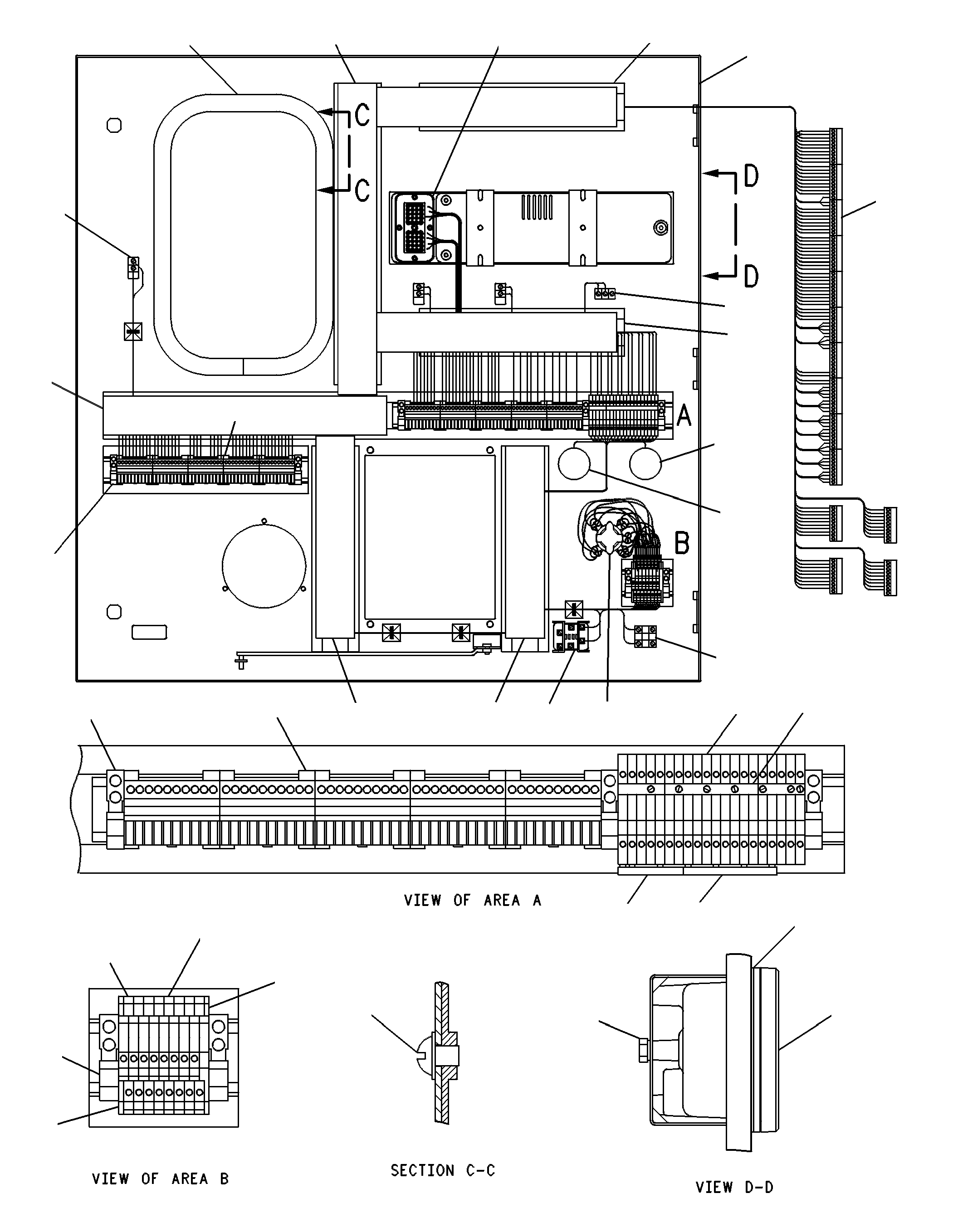

107-9425 PANEL GP-CONTROL (CHG -00)ESS-SINGLE PYRO-SPL
Group No: 107-9425
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9X9681 | 1 DOOR AS-ACCESS | 1 | |
| 9X9566 | LATCH AS | 1 | |
| 4D1836 | 2 SWITCH-TOGGLE | 1 | |
| 7D5939 | 3 SEAL | 4 | |
| 1018915 | 4 DUCT-SLOTTED | 1 | |
| 3E1832 | 5 COVER | 2 | |
| 7E0859 | 6 POTENTIOMETER | 1 | |
| 1J9671 | 7 SEAL-O-RING | 2 | |
| 7E0861 | 8 POTENTIOMETER | 1 | |
| 3E1813 | 9 SWITCH AS-PUSH BUTTON (LIGHTED) | 1 | |
| 3E1814 | LAMP (24-VOLT) | 1 | |
| 3E2148 | 10 SWITCH AS-ROTARY | 1 | |
| 7C4910 | SEAL | 1 | |
| 6D4712 | 11 DIAL | 2 | |
| 1078688 | 12 SWITCH AS | 1 | |
| 3L8187 | LOCKWASHER | 4 | |
| 4B5324 | WASHER (3.9X9.6X1.2-MM THK) | 4 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 4 | |
| 5C9553 | 13 BOLT (M6X1X16-MM) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 3E3592 | 14 COVER | 1 | |
| 3E1827 | DUCT | 1 | |
| 3E9336 | 15 CONTROL GP-ENGINE MONITORING | 1 | |
| 3E3589 | 16 DUCT | 1 | |
| 3E3590 | COVER | 1 | |
| 3E2130 | 17 GASKET | 1 | |
| 9X9676 | 18 TERMINAL | 20 | |
| 3E1834 | 19 COVER | 1 | |
| 3E1828 | DUCT | 1 | |
| 2H8533 | 20 SCREW-MACHINE (10-32X0.25-IN) | 21 | |
| 2W5907 | WASHER (5.16X11.13X0.81-MM THK) | 21 | |
| 9D3721 | 21 SWITCH-TOGGLE (SINGLE POLE) | 3 | |
| 3E0077 | 22 WINDOW | 1 | |
| 5P5906 | 23 SEAL | ||
| 3E1824 | 24 DUCT | 1 | |
| 3E1833 | COVER | 1 | |
| 3E2286 | 25 STRIP-CONTACT | 3 | |
| 3E1825 | 26 DUCT | 1 | |
| 9X9672 | 27 CONNECTOR-PLUG | 14 | |
| 8T9834 | 28 PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3132 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 9X9612 | 29 COVER (SPACER) | 1 | |
| 9X9613 | 30 SPACER (50-MM LGX2.5-MM THK) | 1 | |
| 9X9675 | 31 BRACKET-END | 7 | |
| 9X9674 | 32 TERMINAL | 8 | |
| 3E8586 | 33 CAP | 1 | |
| 3E2244 | 34 BRIDGE-INSERT | 1 | |
| 3E2245 | 35 BRIDGE-INSERT | 1 | |
| 9X9673 | 36 CONNECTOR (BLOCK) | 10 | |
| 9X8551 | CABLE-ELECTRICAL (16-GA)(16 GA) | ||
| 4G2556 | CABLE-SHIELDED (16-GA)(16 GA) | ||
| 3E2357 | WIRE (20-GA)(20 GA) | ||
| 5P5677 | WIRE (18-GA, BLACK) |
