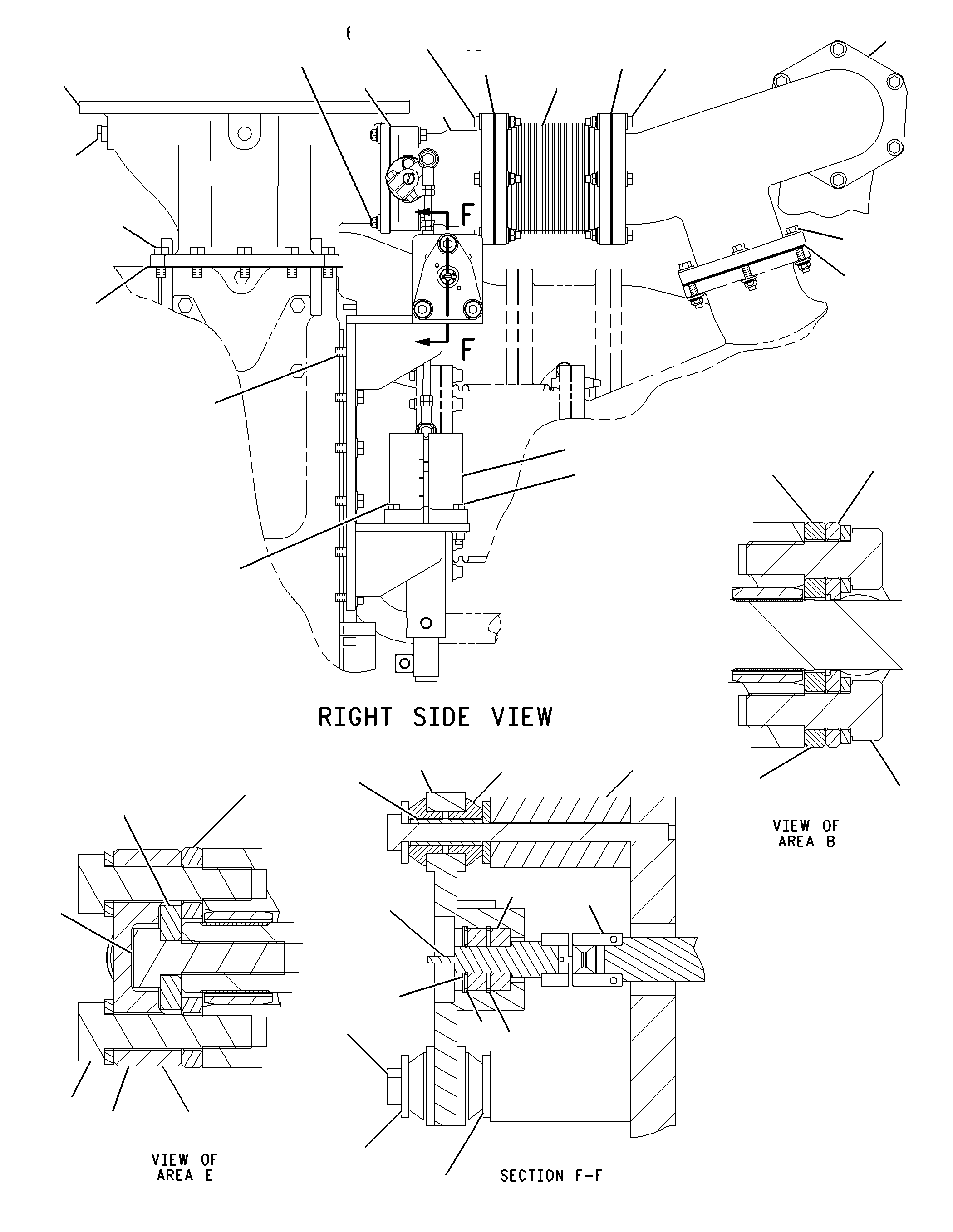

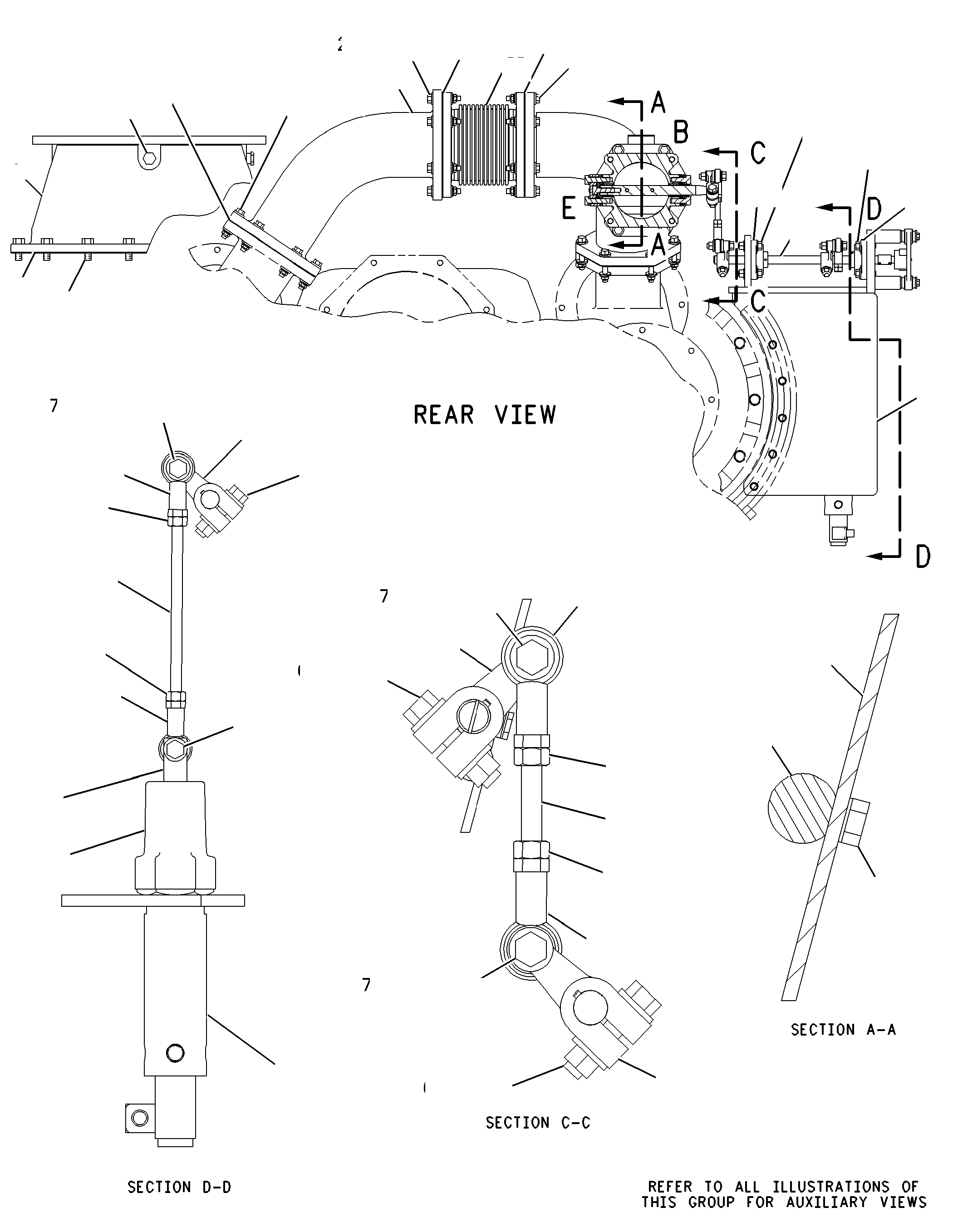

116-4632 BYPASS GP-EXHAUST (CHG -05, -06, -06D1)WASTEGATE
Group No: 116-4632
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S3584 | 5 NUT-FULL (3/8-24 LH-THD) | 2 | |
| 2N2766 | 6 LOCKNUT (3/8-16-THD) | 40 | |
| 2W0439 | 7 GASKET | 2 | |
| 2W4367 | 8 ADAPTER-EXHAUST | 1 | |
| 3S2713 | 9 NUT-FULL (3/8-24-THD) | 2 | |
| 4E2250 | 10 HOUSING | 1 | |
| 4F2753 | 11 LOCKNUT | 1 | |
| 4P0391 | 12 ROD | 1 | |
| 4P0394 | 13 LEVER | 3 | |
| 4P7413 | 14 ELBOW | 1 | |
| 4P7414 | 15 ELBOW | 1 | |
| 5H2532 | 16 KEY-WOODRUFF | 3 | |
| 5L3291 | 17 BEARING AS-BALL | 2 | |
| 5P2755 | 18 BOLT-HIGH TEMPERATURE (3/8-16X2.75-IN) | 4 | |
| 5P9960 | 19 BOLT (1/4-20X0.75-IN) | 2 | |
| 6D3025 | 20 BALL BEARING | 2 | |
| 6V1943 | 21 BOLT-HIGH TEMPERATURE (3/8-16X1.125-IN) | 2 | |
| 6V6753 | 22 BOLT-HIGH TEMPERATURE (3/8-16X1.375-IN) | 1 | |
| 7E0701 | 23 GASKET | 6 | |
| 7E1630 | 24 GASKET | 1 | |
| 7L6443 | 25 BOLT-HIGH TEMPERATURE (3/8-16X2.25-IN) | 36 | |
| 7W9115 | 26 ADAPTER-EXHAUST | 1 | |
| 7W9191 | 27 GASKET | 1 | |
| 8C5607 | 28 MOUNT-ISOLATION | 6 | |
| 8C5608 | 29 SPACER (6.5X9.5X25.4-MM THK) | 3 | |
| 8C7315 | 30 ROD END | 1 | |
| 8C7321 | 31 ROD END | 1 | |
| 8H3390 | 32 NUT-FULL (1-1/2-12-THD) | 1 | |
| 8M2295 | 33 BOLT (3/8-16X1.625-IN) | 2 | |
| 9U3300 | 34 SPACER (7X25X50-MM THK) | 3 | |
| 0399895 | 35 ROD | 1 | |
| 1021694 | 36 PLATE | 1 | |
| 1023457 | 37 COVER | 1 | |
| 1026309 | 38 WASHER-THRUST | 1 | |
| 1026311 | 39 STOP | 1 | |
| 1108314 | 40 WASHER (10.3X18.3X2.66-MM THK) | 4 | |
| 1184736 | 41 SHAFT-WASTEGATE | 1 | |
| 1195927 | 42 SHAFT | 1 | |
| 1195930 | 43 HOUSING AS | 1 | |
| 1195929 | BUSHING | 2 | |
| 1195931 | 44 SPACER | 1 | |
| 1271573 | 45 SHAFT | 1 | |
| 1338501 | 46 COVER AS | 1 | |
| 1419885 | 47 BRACKET AS | 1 | |
| 1763572 | 48 COUPLING GP-SHAFT | 1 | |
| 1763583 | 49 GUARD | 2 | |
| 1763587 | 50 CLEVIS | 1 | |
| 1937879 | 51 BOOT | 1 | |
| 2118175 | 52 ACTUATOR GP-ELECTRONIC (ELECTROHYDRAULIC) | 1 | |
| 2224718 | 53 BELLOWS AS | 2 | |
| 0S1571 | 54 BOLT (3/8-16X1.75-IN) | 6 | |
| 0S1588 | 55 BOLT (3/8-16X1.25-IN) | 5 | |
| 0S1590 | 56 BOLT (3/8-16X2-IN) | 4 | |
| 0S1591 | 57 BOLT (3/8-16X1.5-IN) | 4 | |
| 0S1595 | 58 BOLT (1/2-13X1.25-IN) | 36 | |
| 1190746 | 59 PLUG-PIPE | 5 | |
| 2253769 | 60 ROD END | 1 | |
| 2253770 | 61 ROD END | 1 | |
| 2H3429 | 62 RING-RETAINING | 1 | |
| 2L6726 | 63 RING-RETAINING | 1 | |
| 3V3308 | 64 WASHER-HARD (10.2X20.5X2.5-MM THK) | 29 | |
| 5P8245 | 65 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 6V8675 | 66 BOLT (M12X1.75X35-MM) | 6 | |
| 8C8491 | 67 WASHER-HARD (10.2X22X3-MM THK) | 72 | |
| 8F6302 | 68 BOLT (1/4-20X3.75-IN) | 3 | |
| 8M2337 | 69 WASHER (7.2X24.5X3-MM THK) | 6 | |
| 8M9024 | 70 WASHER-HARD (10.2X22.5X5-MM THK) | 3 | |
| 9S8752 | 71 NUT-FULL (3/8-16-THD) | 14 |
