System And Components

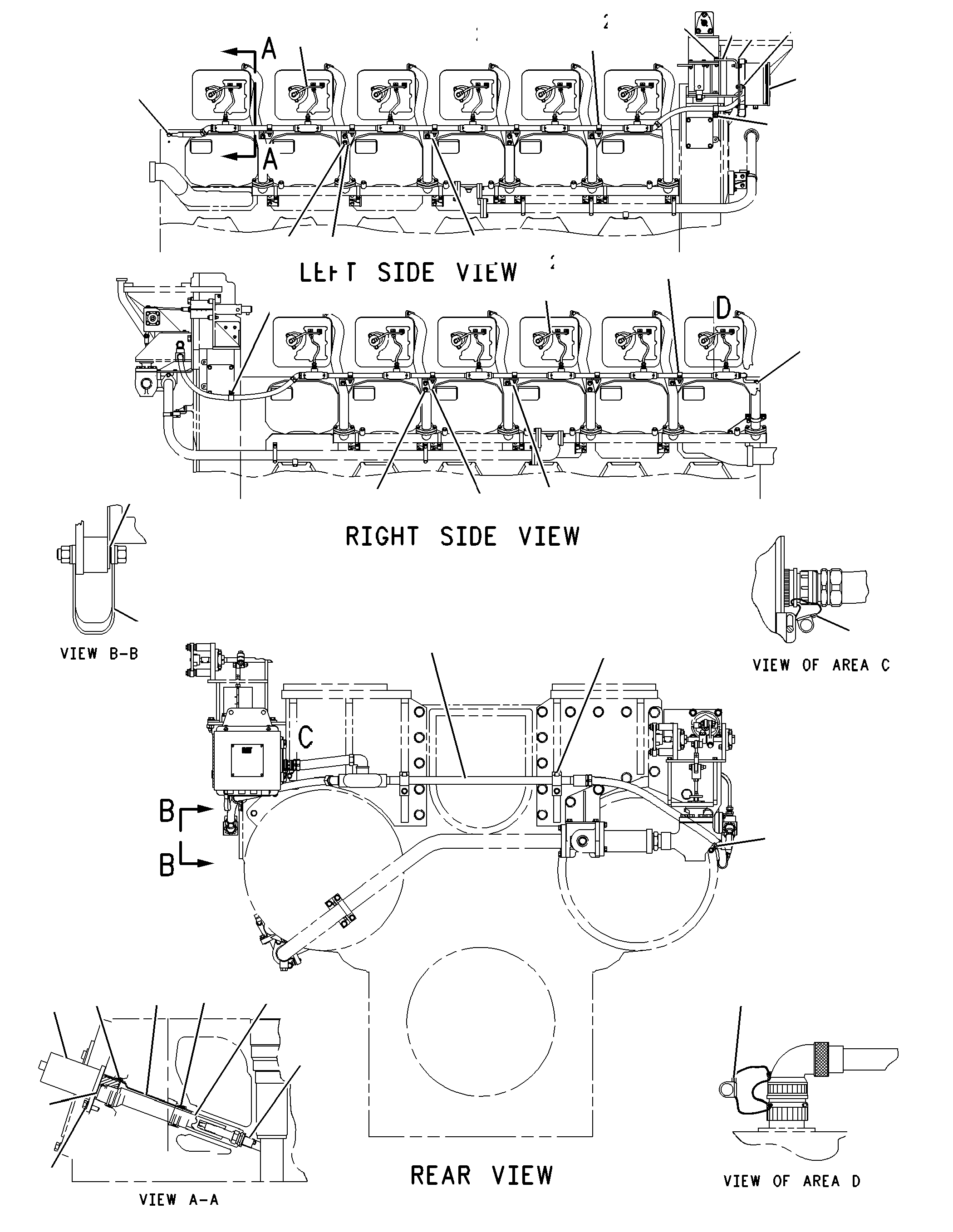

146-4289 IGNITION GP-GAS ENGINE (CHG -07, -07D1)VARIABLE TIMING - G3612
Group No: 146-4289
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S0509 | 1 BOLT (3/8-16X0.75-IN) | 2 | |
| 0S1571 | 2 BOLT (3/8-16X1.75-IN) | 1 | |
| 0S1588 | 3 BOLT (3/8-16X1.25-IN) | 14 | |
| 0S1594 | 4 BOLT (3/8-16X1-IN) | 14 | |
| 4B3388 | 5 BOLT (5/16-18X1.125-IN) | 36 | |
| 0S1620 | 6 BOLT (1/2-13X0.75-IN) | 1 | |
| 3P0650 | 7 SEAL-O-RING | 12 | |
| 3V3308 | 8 WASHER-HARD (10.2X20.5X2.5-MM THK) | 35 | |
| 4P8134 | 9 CLIP (LADDER) | 1 | |
| 4S1962 | 10 CLIP (LOOP) | 1 | |
| 4S5719 | 11 SPACER (10.31X25X12.7-MM THK) | 1 | |
| 5P6025 | 12 LOCKWIRE (3.7M) | ||
| 5P8245 | 13 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 6V3830 | 14 SEAL-O-RING | 12 | |
| 7E3056 | 15 HARNESS AS-WIRING (IGNITION) | 12 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 9D3955 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 7E8362 | 16 TUBE AS | 12 | |
| 7H3937 | 17 LOCKWASHER | 1 | |
| 7W4377 | 18 TRANSFORMER | 12 | |
| 1609912 | 19 SEAL-INTEGRAL | 12 | |
| 8S8158 | 20 SEAL-WIRE | 37 | |
| 8T1895 | 21 CLIP (SLOT) | 12 | |
| 8T1896 | 22 CLIP (TAB) | 12 | |
| 8T7529 | 23 CLIP | 1 | |
| 9L9132 | 24 WASHER-HARD (10.2X25.5X2.5-MM THK) | 14 | |
| 9M1974 | 25 WASHER-HARD (8.8X16X2-MM THK) | 36 | |
| 9S8752 | 26 NUT-FULL (3/8-16-THD) | 16 | |
| 9X6772 | 27 STRAP-CABLE | 1 | |
| 1094328 | 28 BRACKET | 4 | |
| 2074509 | 29 EXTENSION AS | 12 | |
| 1296691 | 30 BRACKET | 6 | |
| 2263811 | 31 BRACKET | 2 | |
| 2263810 | 32 BRACKET | 1 | |
| 1461802 | 33 HARNESS AS-WIRING | 1 | |
| 4G2544 | CONNECTOR-PLUG | 12 | |
| 1428607 | PLUG AS-CONNECTOR (19-PIN) | 1 | |
| 1461815 | 34 STRAP AS | 1 | |
| 1948518 | 35 SPARK PLUG | 12 | |
| 9Y6792 | GASKET-SPARK PLUG | 1 | |
| 2275967 | 36 CONTROL GP-IGNITION | 1 | |
| 2A4639 | 37 BOLT (3/8-16X1.625-IN) | 2 |
