System And Components

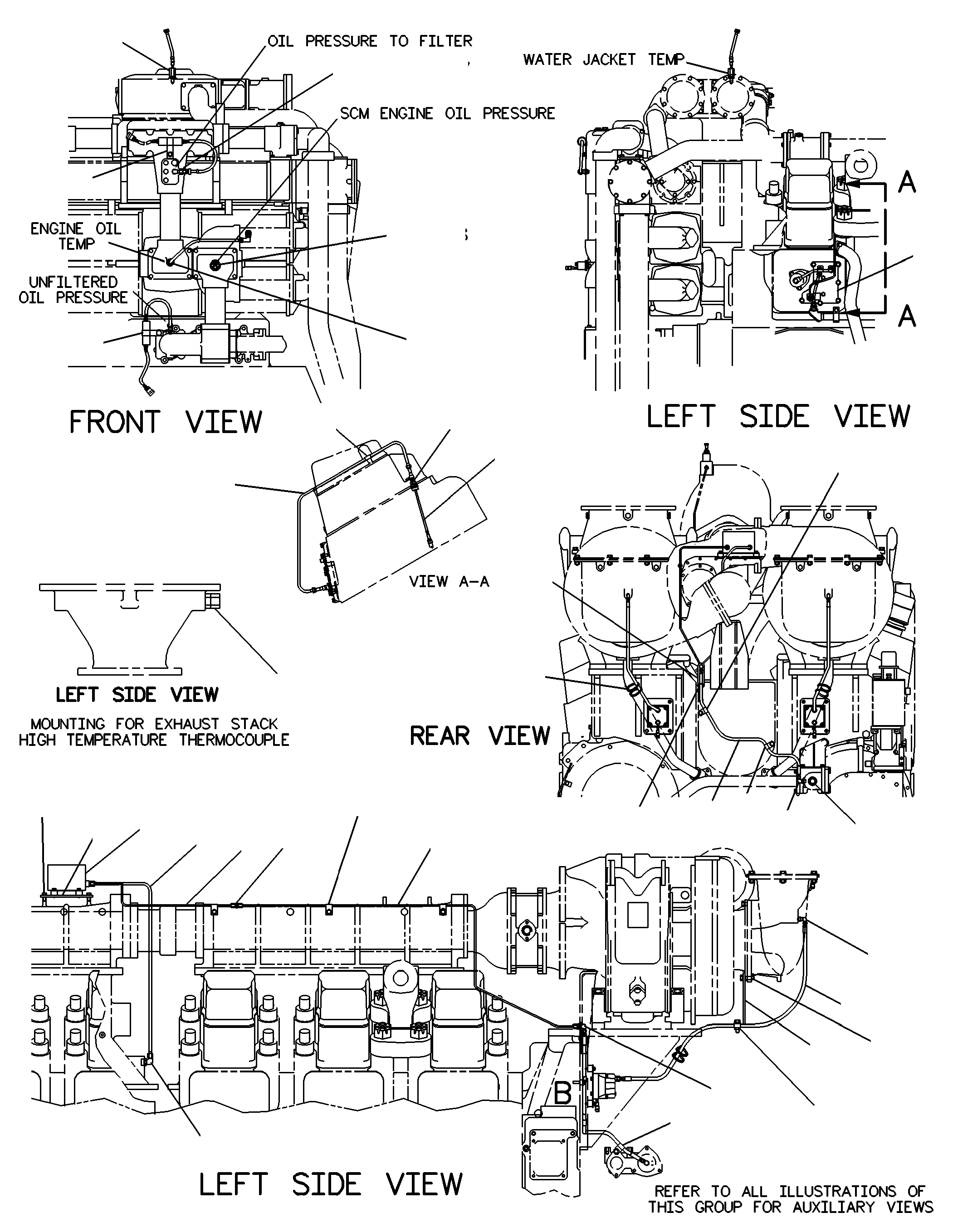

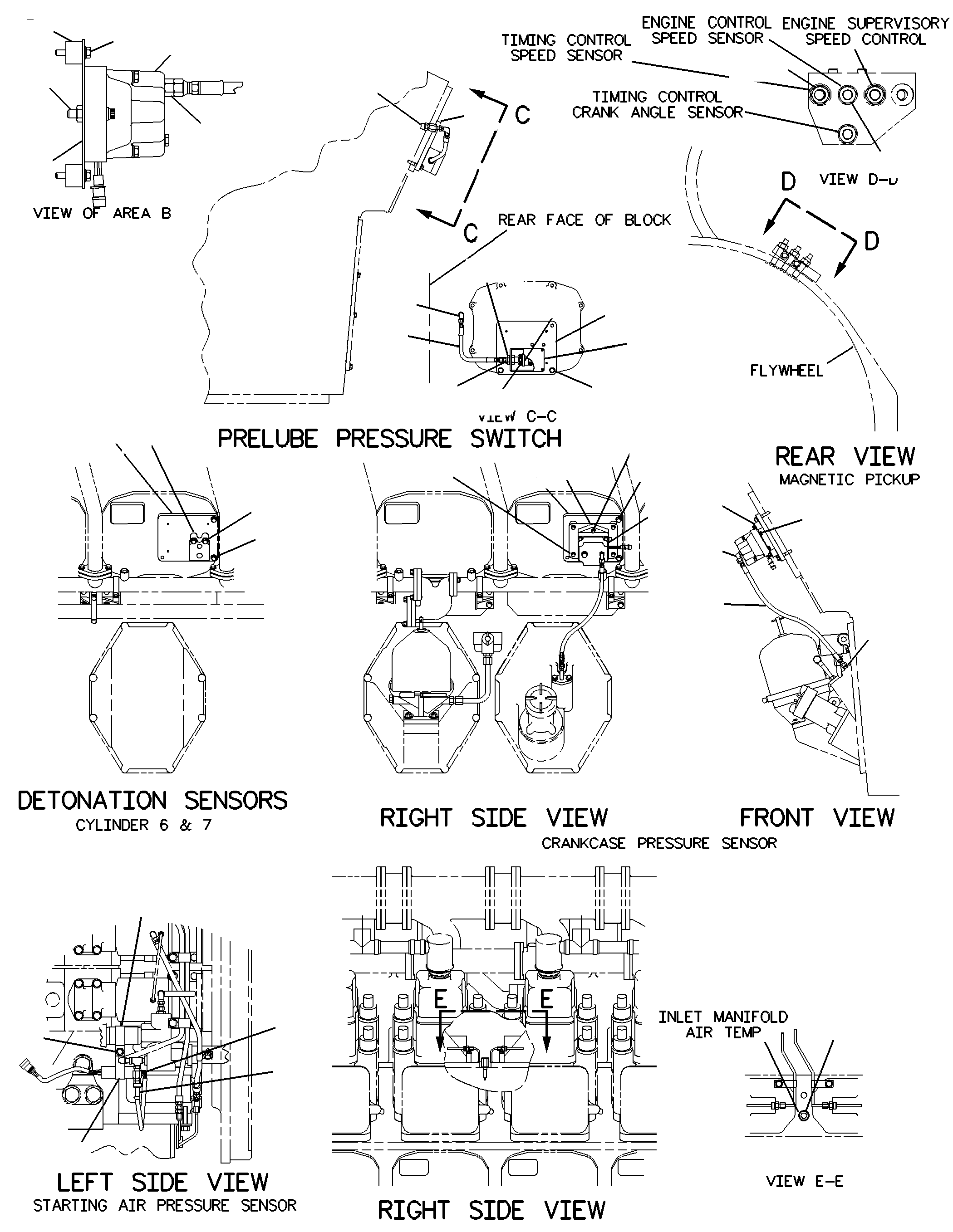

100-6794 SENSOR & MOUNTING GP (CHG -00)
Group No: 100-6794
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5N2840 | 1 CLIP | 2 | |
| 8T3285 | 2 ADAPTER | 1 | |
| 8L2786 | 3 SEAL-O-RING | 2 | |
| 8L2779 | 4 SEAL-O-RING | 2 | |
| 7X1602 | 5 SENSOR AS-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 6V5049 | 6 SEAL-O-RING | 4 | |
| 6V5048 | 7 SEAL-O-RING | 3 | |
| 6V8647 | 8 CONNECTOR | 1 | |
| 8T0788 | 9 ELBOW | 2 | |
| 6V9872 | 10 CONNECTOR | 2 | |
| 5B2638 | 11 BOLT (3/8-16X5.25-IN) | 1 | |
| 7X1043 | 12 SENSOR GP-TEMPERATURE | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 7X6354 | 13 CONTROL GP-ENGINE MONITORING | 12 | |
| 6V5050 | 14 SEAL-O-RING | 12 | |
| 6I3783 | 15 WIRE AS-SENSOR | 12 | |
| 3E6116 | 16 CONTROL GP-ENGINE ELECTRONIC | 12 | |
| 0689941 | 17 WIRE-TIE | 4 | |
| 0S1591 | 18 BOLT (3/8-16X1.5-IN) | 1 | |
| 5M2894 | 19 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 7W9094 | 20 SPACER (11X20X9-MM THK) | 1 | |
| 4P2087 | 21 PLATE | 1 | |
| 3P6048 | 22 HOSE AS | 1 | |
| 9M4136 | 23 SPACER (0.438X0.75X0.5-IN THK) | 2 | |
| 9W0532 | 24 SENSOR GP-TEMPERATURE | 1 | |
| 0S1594 | 25 BOLT (3/8-16X1-IN) | 7 | |
| 3E0166 | 26 CONTROL GP-ENGINE MONITORING | 1 | |
| 5P9298 | 27 CLIP | 3 | |
| 0S1571 | 28 BOLT (3/8-16X1.75-IN) | 2 | |
| 0L2072 | 29 CLIP | 3 | |
| 4P2085 | 30 TUBE AS | 1 | |
| 4P2086 | 31 TUBE AS | 1 | |
| 3J7355 | 32 UNION-FLARED | 1 | |
| 5P9297 | 33 CLIP (LOOP) | 12 | |
| 3N8278 | 34 ADAPTER-SENSOR | 2 | |
| 6I0407 | 35 THERMOCOUPLE | 2 | |
| 7J4026 | 36 ELBOW | 3 | |
| 5T4375 | 37 HOSE AS | 2 | |
| 0S1587 | 38 BOLT (1/2-13X1.75-IN) | 3 | |
| 5P8245 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 2W8739 | 40 BRACKET | 2 | |
| 5K3294 | 41 CLIP | 2 | |
| 0S1595 | 42 BOLT (1/2-13X1.25-IN) | 2 | |
| 1F7958 | 43 NUT-FULL (1/2-13-THD) | 2 | |
| 2P7216 | 44 ELBOW | 1 | |
| 5B3254 | 45 NUT-JAM (7/16-20-THD) | 1 | |
| 7E3160 | 46 PLATE-MOUNTING | 1 | |
| 0054362 | 47 ELBOW | 1 | |
| 6I4183 | 48 TUBE AS | 1 | |
| 0328970 | 49 SEAL-O-RING | 24 | |
| 1007870 | 50 ADAPTER-O-RING | 1 | |
| 1007887 | 51 SENSOR GP-TEMPERATURE | 1 | |
| 3E3530 | 52 SENSOR GP-PRESSURE | 2 | |
| 3V3308 | 53 WASHER-HARD (10.2X20.5X2.5-MM THK) | 1 | |
| 4J9448 | 54 LUG | 12 | |
| 2A5546 | 55 BOLT (1/4-20X1.375-IN) | 8 | |
| 5P0537 | 56 WASHER-HARD (7.2X14.5X2-MM THK) | 12 | |
| 3E9189 | 57 SENSOR GP-PRESSURE | 2 | |
| 7B2742 | 58 BOLT (1/4-20X1.25-IN) | 4 | |
| 1007834 | 59 PLATE AS | 3 | |
| 3J7352 | 60 CONNECTOR | 3 | |
| 3J7354 | 61 SEAL-O-RING | 4 | |
| 0532294 | 62 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 6 | |
| 6V4589 | 63 SEAL-O-RING | 1 | |
| 5P5006 | 64 REDUCER-FLARED | 1 | |
| 7K9197 | 65 ELBOW | 1 | |
| 2W7249 | 66 HOSE AS | 1 | |
| 9M7357 | 67 COUPLING AS | 1 | |
| 7J8744 | 68 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7C0727 | 69 PLATE | 4 | |
| 4S6399 | 70 CONNECTOR | 1 | |
| 4B1229 | 71 SCREW (10-24X12.7-MM) | 4 | |
| 6V7699 | 72 WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 3N1400 | 73 SWITCH AS-PRESSURE | 1 | |
| 0S1590 | 74 BOLT (3/8-16X2-IN) | 8 | |
| 5M2894 | 75 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 9X4836 | 76 SENSOR GP-DETONATION (DETONATION SENSOR) | 2 | |
| 0307946 | 77 ELBOW | 1 | |
| 7C9897 | 78 HOSE AS | 1 | |
| 3E8689 | 79 SENSOR GP-PRESSURE | 1 | |
| 8L4171 | 80 SENSOR GP-SPEED (ENGINE) | 3 | |
| 5P8247 | 81 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 6T4361 | 82 SENSOR GP-SPEED | 1 | |
| 6V9601 | 83 ADAPTER | 1 | |
| 9X5272 | 84 SENSOR GP-PRESSURE | 1 | |
| 9W0532 | 85 SENSOR GP-TEMPERATURE | 1 | |
| 8L2786 | 86 SEAL-O-RING | 1 | |
| 0S1571 | 87 BOLT (3/8-16X1.75-IN) | 4 | |
| 9Y1925 | 88 BOX AS | 1 | |
| 6V5048 | 89 SEAL-O-RING | 1 | |
| 6V8647 | 90 CONNECTOR | 1 | |
| 6V5049 | 91 SEAL-O-RING | 6 | |
| 5N2840 | 92 CLIP | 1 | |
| 7D1553 | 93 CLIP | 1 | |
| 3V3308 | 94 WASHER-HARD (10.2X20.5X2.5-MM THK) | 2 | |
| 9S8752 | 95 NUT-FULL (3/8-16-THD) | 1 | |
| 0S1594 | 96 BOLT (3/8-16X1-IN) | 1 | |
| 9M4584 | 97 CONNECTOR | 1 | |
| 7B2742 | 98 BOLT (1/4-20X1.25-IN) | 4 |
