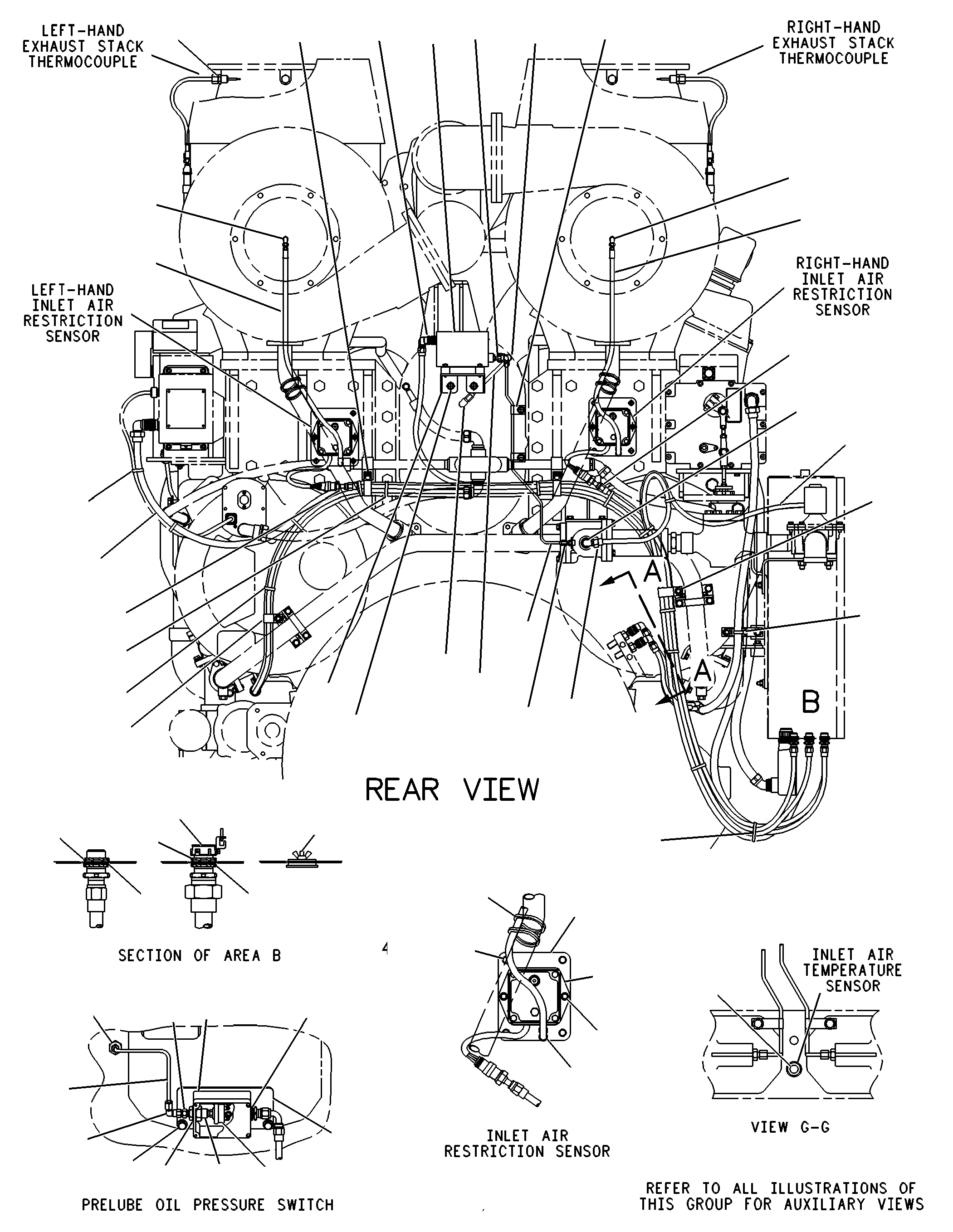

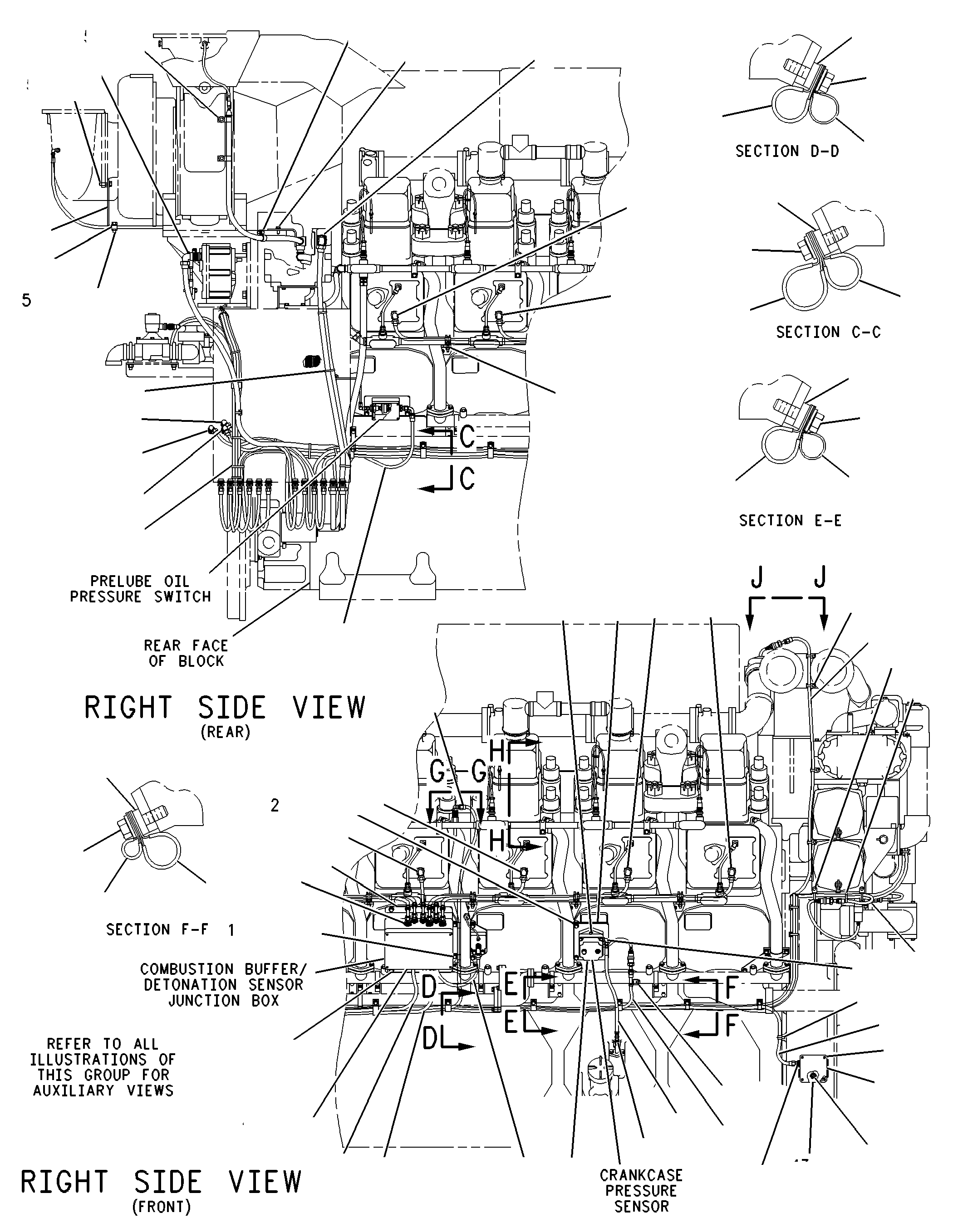

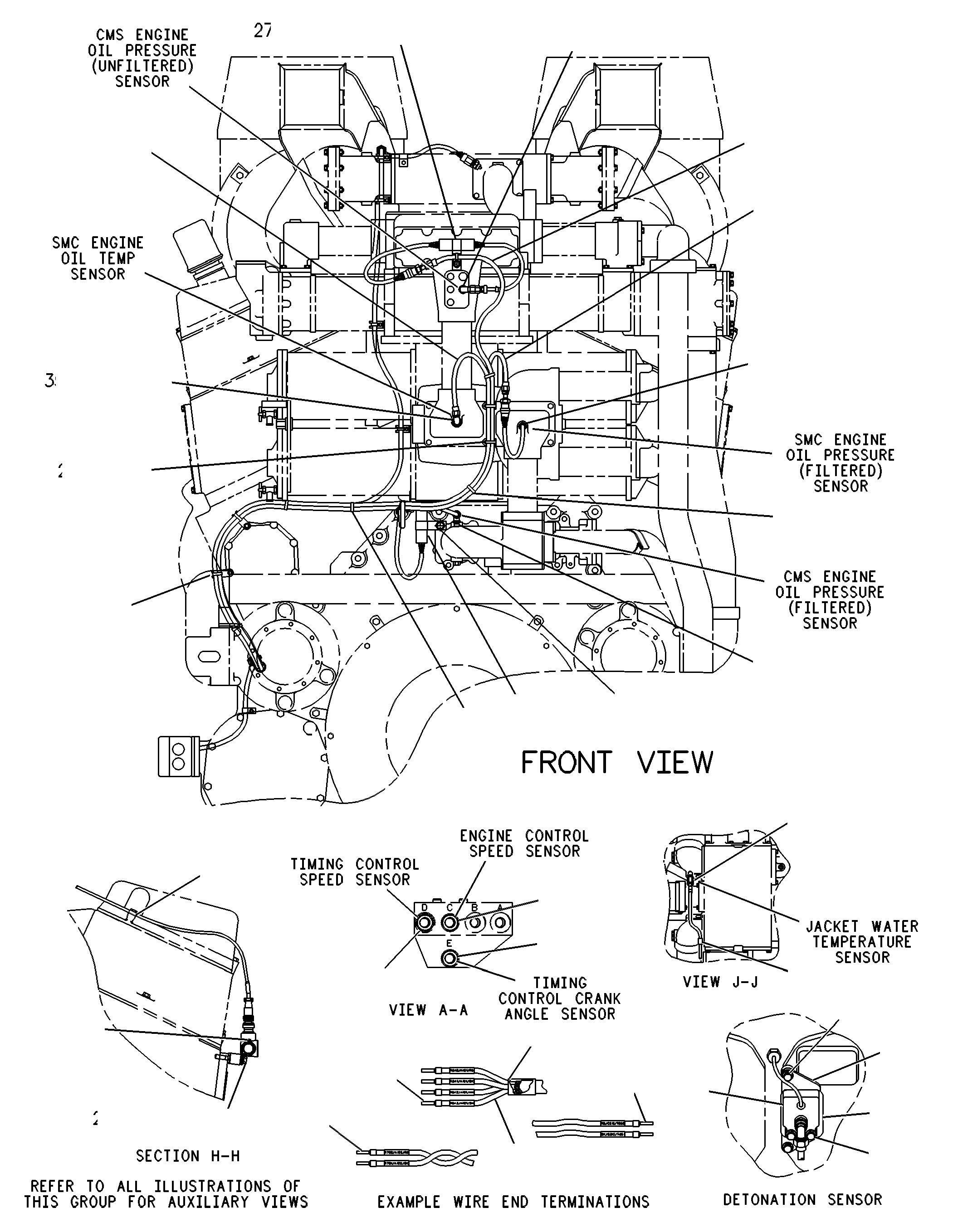

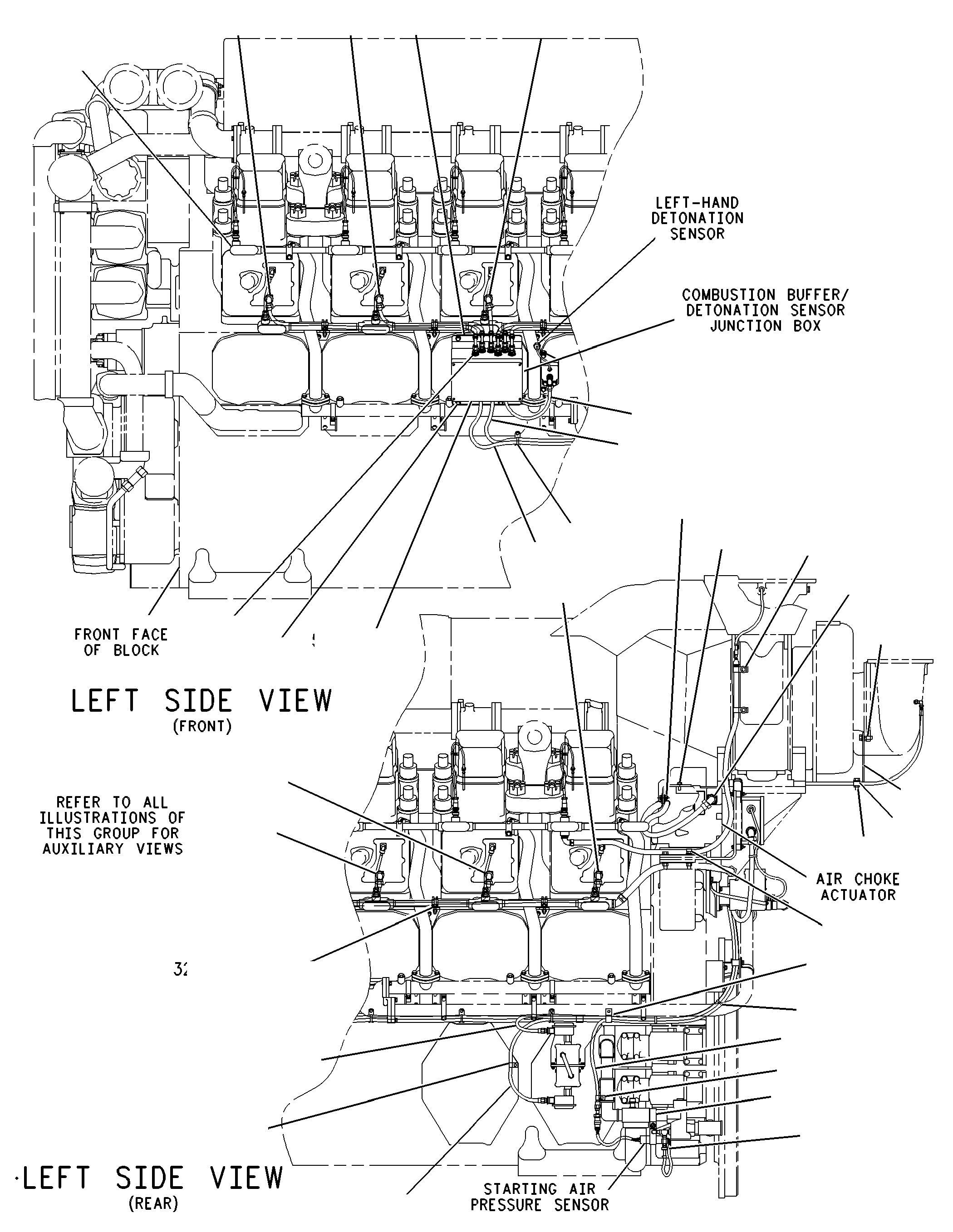

125-3849 WIRING GP-ENGINE (CHG -01)RH SERVICE

Group No: 125-3849
Part NumberPart NameQty
5P82471 WASHER-HARD (17X32X3.5-MM THK)2
4N33292 WASHER (16.25X25.65X0.79-MM)1
8L41713 SENSOR GP-SPEED (ENGINE)2
10726754 SENSOR AS-SPEED (ENGINE SPEED)1
10930385 END-WIRE (16-GA)14
11087146 END-WIRE (18-GA)126
5P60097 TUBE-HEAT SHRINK (9.52-MM DIA)(.2M)
8T63428 TUBE-HEAT SHRINK (3.2-MM DIA)(84CM)
10930399 END-WIRE (12-GA)6
5P929710 CLIP (LOOP)1
0L207011 BOLT (3/8-16X2.25-IN)8
4S571912 SPACER (10.31X25X12.7-MM THK)4
7X104313 SENSOR GP-TEMPERATURE1
8T328514 ADAPTER1
6K817915 CLIP12
8T189516 CLIP (SLOT)10
8T189617 CLIP (TAB)10
124963318 CLIP (SLOT)4
9L913219 WASHER-HARD (10.2X25.5X2.5-MM THK)10
1B497120 SPACER (0.406X1X1-IN THK)10
0T057321 BOLT (3/8-16X2.75-IN)10
125381622 HARNESS AS1
125381823 HARNESS AS1
125381124 HARNESS AS1
9X677225 STRAP-CABLE9
3V330826 WASHER-HARD (10.2X20.5X2.5-MM THK)21
4P813427 CLIP (LADDER)3
9X677228 STRAP-CABLE5
107714229 SENSOR GP-PRESSURE (ENGINE OIL)1
6V864730 CONNECTOR1
6V504831 SEAL-O-RING3
6V504932 SEAL-O-RING5
114226933 SENSOR GP-TEMPERATURE (ENGINE OIL)1
100787034 ADAPTER-O-RING1
8L278635 SEAL-O-RING1
5P824536 WASHER-HARD (13.5X25.5X3-MM THK)1
5N284037 CLIP2
107395238 SENSOR GP-PRESSURE2
6V987239 CONNECTOR2
8T078840 ELBOW2
8L277941 SEAL-O-RING2
5B263842 BOLT (3/8-16X5.25-IN)1
4P758143 CLIP (LADDER)2
106915444 INSULATOR2
125458845 PLATE2
112927346 SENSOR GP-DETONATION (DETONATION)2
0S158747 BOLT (1/2-13X1.75-IN)1
7J40261 ELBOW2
5T43752 HOSE AS2
10242023 CONTROL GP-ENGINE MONITORING1
12538274 HARNESS AS1
7K91975 ELBOW2
6K91946 ELBOW1
10215947 BRACKET AS1
0S15718 BOLT (3/8-16X1.75-IN)4
10215959 TUBE AS1
2P131410 CONNECTOR1
005436211 ELBOW1
102159612 TUBE AS1
9W053213 SENSOR GP-TEMPERATURE2
7D723314 CLIP (LOOP)2
0S159415 BOLT (3/8-16X1-IN)2
0L207216 CLIP2
9M413617 SPACER (0.438X0.75X0.5-IN THK)2
100783418 PLATE AS2
1F0750NUT-WELD (3/8-16-THD)2
125383219 HARNESS AS (AIR RESTRICTION LEFT)1
125383320 HARNESS AS (AIR RESTRICTION RIGHT)1
125382621 HARNESS AS (GAS SHUTOFF VALVE)1
125382822 HARNESS AS1
6B507223 ADAPTER2
7D409224 CLIP1
4S196225 CLIP (LOOP)1
125381426 HARNESS AS1
4P489027 NUT-SPECIAL (1/2-14-THD)30
125785828 LOCKNUT-SEALING30
128632529 BUSHING1
125786130 SEAL3
0S158831 BOLT (3/8-16X1.25-IN)2
053229432 BOLT-12 POINT HEAD (3/8-16X1.75-IN)4
030794633 ELBOW2
3E918934 SENSOR GP-PRESSURE2
5P053735 WASHER-HARD (7.2X14.5X2-MM THK)8
2A554636 BOLT (1/4-20X1.375-IN)8
9X677237 STRAP-CABLE17
3V330838 WASHER-HARD (10.2X20.5X2.5-MM THK)8
9X677239 STRAP-CABLE1
6V504840 SEAL-O-RING2
6V504941 SEAL-O-RING3
8L278642 SEAL-O-RING3
4P758143 CLIP (LADDER)1
4J944844 LUG8
068994145 WIRE-TIE4
030819546 CONNECTOR1
6V458947 SEAL-O-RING1
113203848 TUBE AS1
4S639949 CONNECTOR1
7J874450 WASHER (0.781X0.125X0.075-IN THK)1
9M735751 COUPLING AS1
3N140052 SWITCH AS-PRESSURE (PRELUBE OIL PRESSURE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
2L807553 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
9Y192554 BOX AS1
8T168855 SCREW-MACHINE (10-24X12.7-MM)4
8T032856 WASHER-HARD (5.5X10X1-MM THK)4
130941857 BRACKET1
0S15941 BOLT (3/8-16X1-IN)2
4S19622 CLIP (LOOP)1
4P48903 NUT-SPECIAL (1/2-14-THD)7
12578584 LOCKNUT-SEALING7
12578615 SEAL2
12538106 HARNESS AS1
7D15537 CLIP1
9S87528 NUT-FULL (3/8-16-THD)7
6V96019 ADAPTER1
5P929710 CLIP (LOOP)2
125381911 HARNESS AS1
125382212 HARNESS AS (AIR PRELUBRICATION SOLENOID)1
125382113 HARNESS AS (START AIR SOLENOID)1
8S462614 SPLICE-WIRE4
125384315 HARNESS AS (COMBUSTION BUFFER)2
125384416 HARNESS AS (COMBUSTION BUFFER)2
125384517 HARNESS AS (COMBUSTION BUFFER)1
0S158818 BOLT (3/8-16X1.25-IN)9
1S099419 CLIP (LOOP)1
125384620 HARNESS AS1
129669021 BOX GP-JUNCTION1
2N316222 SCREW-MACHINE (10-24X1.25-IN)4
129668723 BRACKET1
125384224 HARNESS AS (COMBUSTION BUFFER)1
125385025 HARNESS AS1
1A202926 BOLT (3/8-16X1.125-IN)1
125383527 HARNESS AS1
125383728 HARNESS AS1
9X677229 STRAP-CABLE2
3V330830 WASHER-HARD (10.2X20.5X2.5-MM THK)19
4P813431 CLIP (LADDER)9
9X677232 STRAP-CABLE9
6V864733 CONNECTOR1
6V504834 SEAL-O-RING1
6V504935 SEAL-O-RING1
5P824536 WASHER-HARD (13.5X25.5X3-MM THK)5
5N284037 CLIP1
1S101538 CLIP (LOOP)3
8T752939 CLIP1
131071940 BRACKET1
0S158741 BOLT (1/2-13X1.75-IN)1
0S159542 BOLT (1/2-13X1.25-IN)1
1F795843 NUT-FULL (1/2-13-THD)1
5K329444 CLIP1
2W873945 BRACKET1
9X527246 SENSOR GP-PRESSURE1
12538081 HARNESS AS1
12538092 HARNESS AS1
12538253 HARNESS AS1
0S15714 BOLT (3/8-16X1.75-IN)2
0S15945 BOLT (3/8-16X1-IN)5
4S19626 CLIP (LOOP)9
12538247 HARNESS AS1
4P48908 NUT-SPECIAL (1/2-14-THD)8
12578589 LOCKNUT-SEALING8
125786110 SEAL5
125382311 HARNESS AS1
9S875212 NUT-FULL (3/8-16-THD)6
5P929713 CLIP (LOOP)2
0S158814 BOLT (3/8-16X1.25-IN)9
8M277015 CLIP (LOOP)3
1S099416 CLIP (LOOP)1
125384617 HARNESS AS1
2N316218 SCREW-MACHINE (10-24X1.25-IN)8
129668719 BRACKET1
4S571920 SPACER (10.31X25X12.7-MM THK)2
3B191521 BOLT (3/8-16X1.375-IN)9
5P785422 CLIP (LOOP)4
4H122523 WASHER (11X22X6-MM THK)9
1A202924 BOLT (3/8-16X1.125-IN)2
125381325 HARNESS AS1
125383626 HARNESS AS1
125383427 HARNESS AS1
125381228 HARNESS AS1
129668929 BOX GP-JUNCTION1
3E868930 SENSOR GP-PRESSURE1
053229431 BOLT-12 POINT HEAD (3/8-16X1.75-IN)2
030794632 ELBOW1
3J735433 SEAL-O-RING2
7C989734 HOSE AS1
3J735235 CONNECTOR1
125382036 HARNESS AS1
130941737 BRACKET1
125381738 HARNESS AS1
125785939 BOX GP-JUNCTION1
125382940 HARNESS AS1
125381541 HARNESS AS1
0S050942 BOLT (3/8-16X0.75-IN)1
125786043 BRACKET AS1
125383944 HARNESS AS (COMBUSTION BUFFER)2
125384045 HARNESS AS (COMBUSTION BUFFER)2
125384146 HARNESS AS (COMBUSTION BUFFER)1
125383847 HARNESS AS (COMBUSTION BUFFER)1
9X677248 STRAP-CABLE13
3V330849 WASHER-HARD (10.2X20.5X2.5-MM THK)34
4P813450 CLIP (LADDER)10
9X677251 STRAP-CABLE13
5P824552 WASHER-HARD (13.5X25.5X3-MM THK)5
4P758153 CLIP (LADDER)2
1S101554 CLIP (LOOP)2
131071955 BRACKET1
0S158756 BOLT (1/2-13X1.75-IN)1
0S159557 BOLT (1/2-13X1.25-IN)1
1F795858 NUT-FULL (1/2-13-THD)1
5K329459 CLIP1
2W873960 BRACKET1
3S866561 CLIP (LOOP)1
3S866462 CLIP2
