System And Components

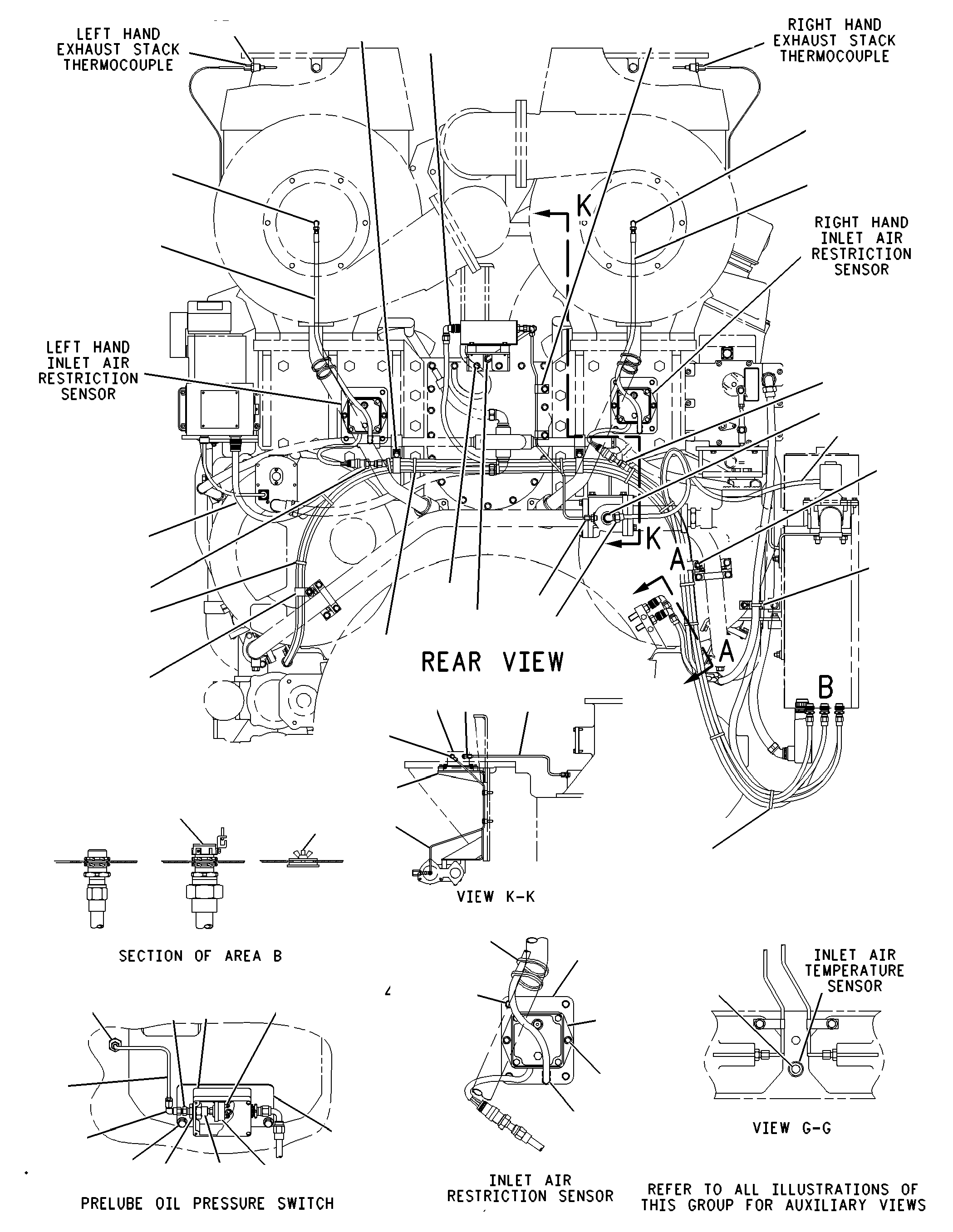

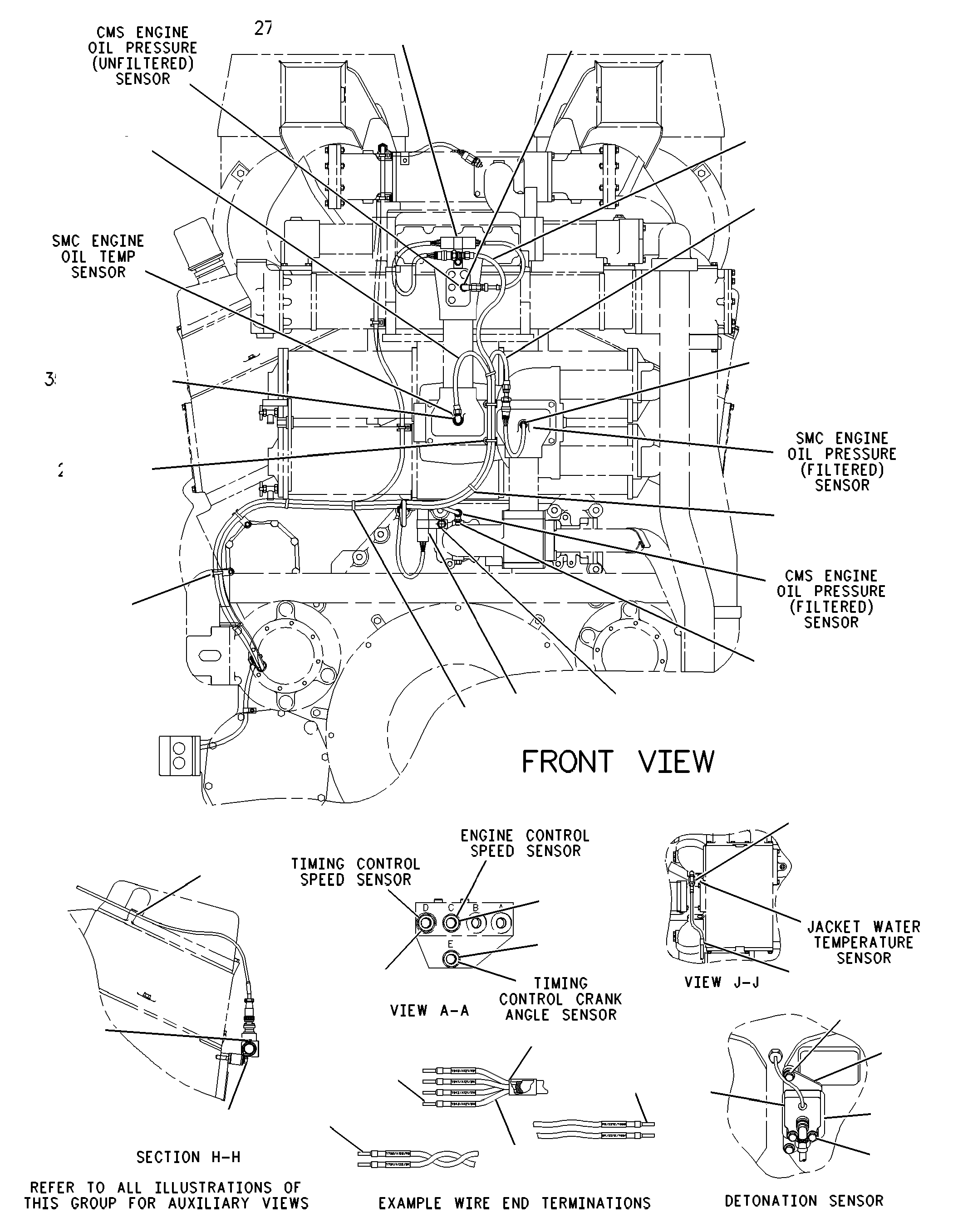

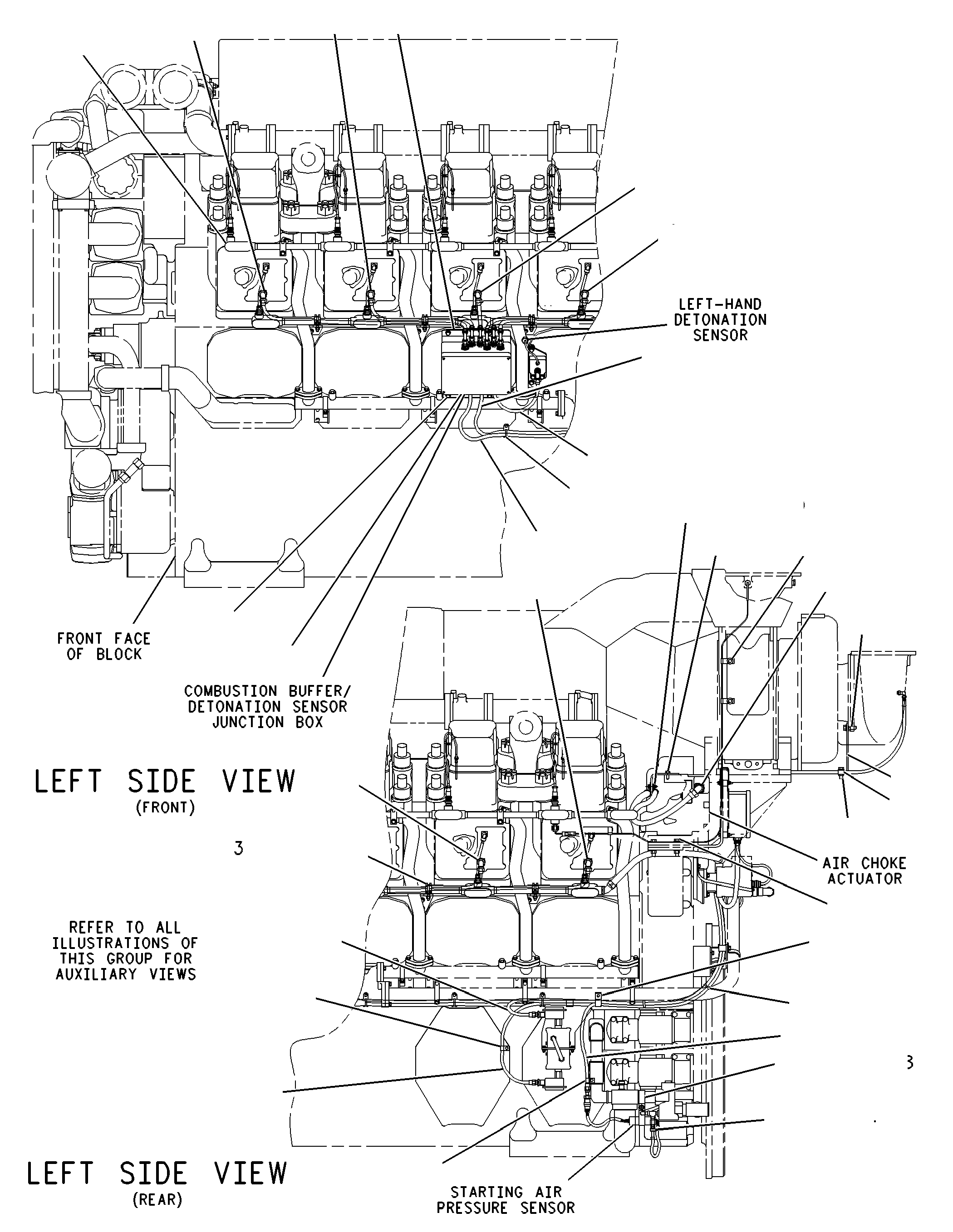

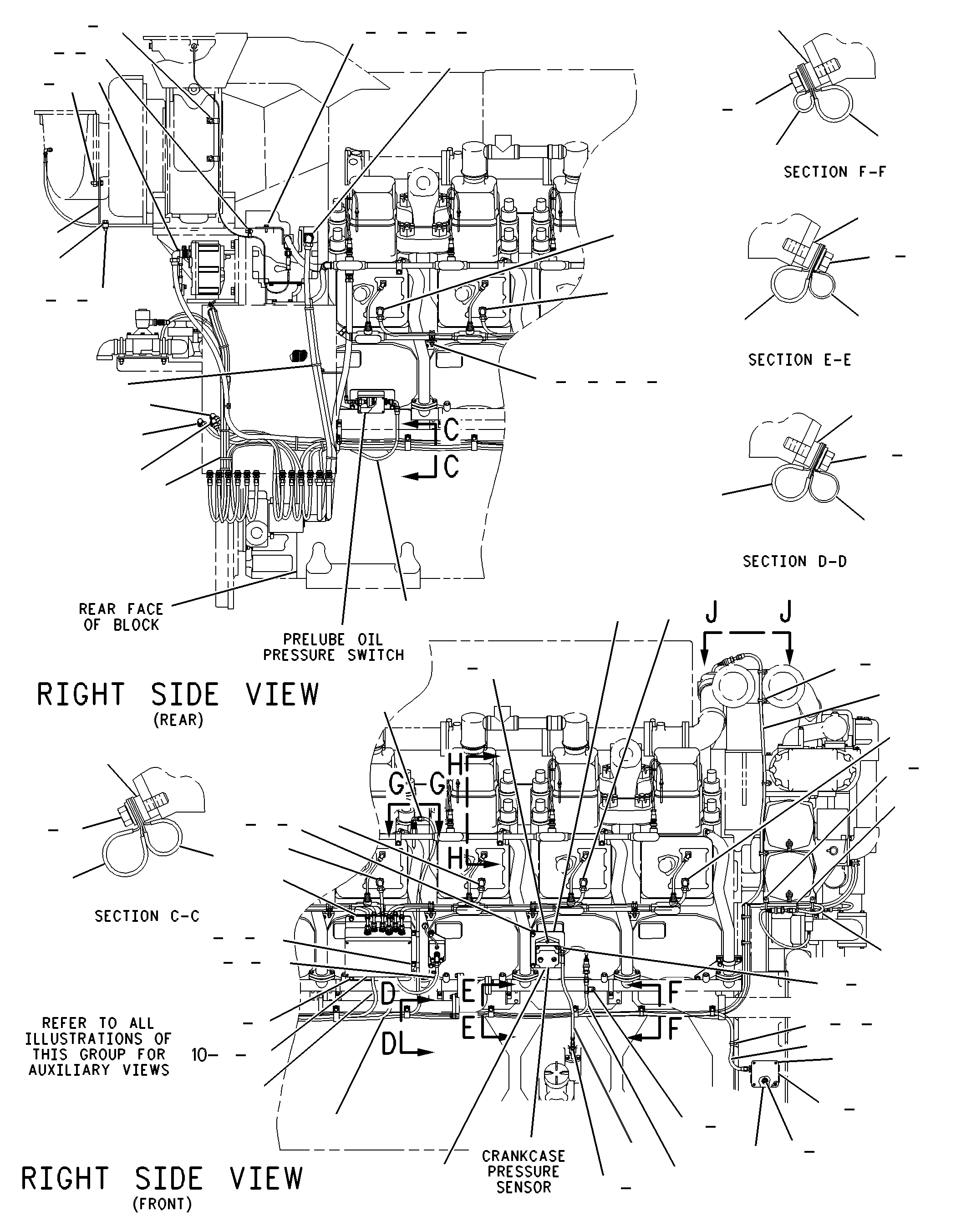

125-3849 WIRING GP-ENGINE (CHG -02)RH SERVICE
Group No: 125-3849
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P8247 | 1 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 4N3329 | 2 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 8L4171 | 3 SENSOR GP-SPEED (ENGINE) | 2 | |
| 1072675 | 4 SENSOR AS-SPEED (ENGINE SPEED) | 1 | |
| 1093038 | 5 END-WIRE (16-GA) | 9 | |
| 1108714 | 6 END-WIRE (18-GA) | 84 | |
| 1257875 | 7 TUBE-HEAT SHRINK (7.44-MM DIA)(.2M) | ||
| 8T6342 | 8 TUBE-HEAT SHRINK (3.2-MM DIA)(84CM) | ||
| 1093039 | 9 END-WIRE (12-GA) | 6 | |
| 5P9297 | 10 CLIP (LOOP) | 1 | |
| 0L2070 | 11 BOLT (3/8-16X2.25-IN) | 4 | |
| 0919035 | 12 SPACER (11X25X20-MM THK) | 4 | |
| 7X1043 | 13 SENSOR GP-TEMPERATURE | 1 | |
| 8T3285 | 14 ADAPTER | 1 | |
| 6K8179 | 15 CLIP | 12 | |
| 8T1895 | 16 CLIP (SLOT) | 10 | |
| 8T1896 | 17 CLIP (TAB) | 10 | |
| 1249633 | 18 CLIP (SLOT) | 4 | |
| 9L9132 | 19 WASHER-HARD (10.2X25.5X2.5-MM THK) | 20 | |
| 1B4971 | 20 SPACER (0.406X1X1-IN THK) | 10 | |
| 0T0573 | 21 BOLT (3/8-16X2.75-IN) | 10 | |
| 1253816 | 22 HARNESS AS | 1 | |
| 1253818 | 23 HARNESS AS | 1 | |
| 1253811 | 24 HARNESS AS | 1 | |
| 9X6772 | 25 STRAP-CABLE | ||
| 3V3308 | 26 WASHER-HARD (10.2X20.5X2.5-MM THK) | 11 | |
| 4P8134 | 27 CLIP (LADDER) | 3 | |
| 9X6772 | 28 STRAP-CABLE | 5 | |
| 1077142 | 29 SENSOR GP-PRESSURE (ENGINE OIL) | 1 | |
| 6V8647 | 30 CONNECTOR | 1 | |
| 6V5048 | 31 SEAL-O-RING | 3 | |
| 6V5049 | 32 SEAL-O-RING | 5 | |
| 1142269 | 33 SENSOR GP-TEMPERATURE (ENGINE OIL) | 1 | |
| 1007870 | 34 ADAPTER-O-RING | 1 | |
| 8L2786 | 35 SEAL-O-RING | 1 | |
| 5P8245 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 5N2840 | 37 CLIP | 2 | |
| 1073952 | 38 SENSOR GP-PRESSURE | 2 | |
| 6V9872 | 39 CONNECTOR | 2 | |
| 8T0788 | 40 ELBOW | 2 | |
| 8L2779 | 41 SEAL-O-RING | 2 | |
| 5B2638 | 42 BOLT (3/8-16X5.25-IN) | 1 | |
| 4P7581 | 43 CLIP (LADDER) | 2 | |
| 1069154 | 44 INSULATOR | 2 | |
| 1254588 | 45 PLATE | 2 | |
| 1129273 | 46 SENSOR GP-DETONATION (DETONATION) | 2 | |
| 0S1587 | 47 BOLT (1/2-13X1.75-IN) | 1 | |
| 0L1143 | 48 BOLT (3/8-16X2.5-IN) | 4 | |
| 7J4026 | 1 ELBOW | 2 | |
| 5T4375 | 2 HOSE AS | 2 | |
| 1331412 | 3 CONTROL GP-ENGINE MONITORING | 1 | |
| 1253827 | 4 HARNESS AS | 1 | |
| 7K9197 | 5 ELBOW | 2 | |
| 6K9194 | 6 ELBOW | 1 | |
| 1021594 | 7 BRACKET AS | 1 | |
| 0S1571 | 8 BOLT (3/8-16X1.75-IN) | 6 | |
| 1365908 | 9 TUBE AS | 1 | |
| 2P1314 | 10 CONNECTOR | 1 | |
| 0308188 | 11 CONNECTOR | 1 | |
| 1365910 | 12 TUBE AS | 1 | |
| 9W0532 | 13 SENSOR GP-TEMPERATURE | 2 | |
| 7D7233 | 14 CLIP (LOOP) | 2 | |
| 0S1594 | 15 BOLT (3/8-16X1-IN) | 2 | |
| 0L2072 | 16 CLIP | 2 | |
| 9M4136 | 17 SPACER (0.438X0.75X0.5-IN THK) | 2 | |
| 1007834 | 18 PLATE AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1253832 | 19 HARNESS AS (AIR RESTRICTION LEFT) | 1 | |
| 1253833 | 20 HARNESS AS (AIR RESTRICTION RIGHT) | 1 | |
| 1253826 | 21 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253828 | 22 HARNESS AS | 1 | |
| 6B5072 | 23 ADAPTER | 2 | |
| 7D4092 | 24 CLIP | 1 | |
| 4S1962 | 25 CLIP (LOOP) | 1 | |
| 1253814 | 26 HARNESS AS | 1 | |
| 2N3478 | 27 SCREW-MACHINE (10-24X0.375-IN) | 4 | |
| 3V2431 | 28 WASHER (10.2X16X2-MM THK) | 4 | |
| 1286325 | 29 BUSHING | 1 | |
| 1257861 | 30 SEAL | 3 | |
| 1309418 | 31 BRACKET | 1 | |
| 5P0076 | 32 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 4 | |
| 0307946 | 33 ELBOW | 2 | |
| 3E9189 | 34 SENSOR GP-PRESSURE | 2 | |
| 5P0537 | 35 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 2A5546 | 36 BOLT (1/4-20X1.375-IN) | 8 | |
| 9X6772 | 37 STRAP-CABLE | ||
| 3V3308 | 38 WASHER-HARD (10.2X20.5X2.5-MM THK) | 8 | |
| 9X6772 | 39 STRAP-CABLE | 1 | |
| 6V5048 | 40 SEAL-O-RING | 2 | |
| 6V5049 | 41 SEAL-O-RING | 3 | |
| 8L2786 | 42 SEAL-O-RING | 3 | |
| 4P7581 | 43 CLIP (LADDER) | 1 | |
| 4J9448 | 44 LUG | 8 | |
| 0689941 | 45 WIRE-TIE | 4 | |
| 0308195 | 46 CONNECTOR | 1 | |
| 6V4589 | 47 SEAL-O-RING | 1 | |
| 1132038 | 48 TUBE AS | 1 | |
| 4S6399 | 49 CONNECTOR | 1 | |
| 7J8744 | 50 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 9M7357 | 51 COUPLING AS | 1 | |
| 3N1400 | 52 SWITCH AS-PRESSURE (PRELUBE OIL PRESSURE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 2L8075 | 53 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 9Y1925 | 54 BOX AS | 1 | |
| 0S1594 | 1 BOLT (3/8-16X1-IN) | 6 | |
| 4S1962 | 2 CLIP (LOOP) | 2 | |
| 0S1571 | 3 BOLT (3/8-16X1.75-IN) | 4 | |
| 9X5272 | 4 SENSOR GP-PRESSURE | 1 | |
| 1257861 | 5 SEAL | 2 | |
| 1253810 | 6 HARNESS AS | 1 | |
| 7D1553 | 7 CLIP | 1 | |
| 9S8752 | 8 NUT-FULL (3/8-16-THD) | 7 | |
| 6V9601 | 9 ADAPTER | 1 | |
| 5P9297 | 10 CLIP (LOOP) | 2 | |
| 1253819 | 11 HARNESS AS | 1 | |
| 1253822 | 12 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253821 | 13 HARNESS AS (START AIR SOLENOID) | 1 | |
| 8S4626 | 14 SPLICE-WIRE | 4 | |
| 1253843 | 15 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253844 | 16 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253845 | 17 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 0S1591 | 18 BOLT (3/8-16X1.5-IN) | 1 | |
| 1S0994 | 19 CLIP (LOOP) | 1 | |
| 1253846 | 20 HARNESS AS | 1 | |
| 1296690 | 21 BOX GP-JUNCTION | 1 | |
| 2N3162 | 22 SCREW-MACHINE (10-24X1.25-IN) | 4 | |
| 1296687 | 23 BRACKET | 1 | |
| 1253842 | 24 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253850 | 25 HARNESS AS | 1 | |
| 1A2029 | 26 BOLT (3/8-16X1.125-IN) | 1 | |
| 1253835 | 27 HARNESS AS | 1 | |
| 1253837 | 28 HARNESS AS | 1 | |
| 9X6772 | 29 STRAP-CABLE | ||
| 3V3308 | 30 WASHER-HARD (10.2X20.5X2.5-MM THK) | 19 | |
| 4P8134 | 31 CLIP (LADDER) | 10 | |
| 9X6772 | 32 STRAP-CABLE | 10 | |
| 6V8647 | 33 CONNECTOR | 1 | |
| 6V5048 | 34 SEAL-O-RING | 1 | |
| 6V5049 | 35 SEAL-O-RING | 1 | |
| 5P8245 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 5N2840 | 37 CLIP | 1 | |
| 4D8948 | 38 CLIP | 3 | |
| 6K8179 | 39 CLIP | 1 | |
| 1310719 | 40 BRACKET | 1 | |
| 0S1587 | 41 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1595 | 42 BOLT (1/2-13X1.25-IN) | 1 | |
| 1F7958 | 43 NUT-FULL (1/2-13-THD) | 1 | |
| 5K3294 | 44 CLIP | 1 | |
| 2W8739 | 45 BRACKET | 1 | |
| 1253808 | 1 HARNESS AS | 1 | |
| 1253809 | 2 HARNESS AS | 1 | |
| 1253825 | 3 HARNESS AS | 1 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 4 | |
| 0S1594 | 5 BOLT (3/8-16X1-IN) | 9 | |
| 4S1962 | 6 CLIP (LOOP) | 9 | |
| 1253824 | 7 HARNESS AS | 1 | |
| 0L2070 | 8 BOLT (3/8-16X2.25-IN) | 2 | |
| 0919035 | 9 SPACER (11X25X20-MM THK) | 2 | |
| 1257861 | 10 SEAL | 5 | |
| 1253823 | 11 HARNESS AS | 1 | |
| 9S8752 | 12 NUT-FULL (3/8-16-THD) | 6 | |
| 5P9297 | 13 CLIP (LOOP) | 2 | |
| 5P0076 | 14 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 2 | |
| 8M2770 | 15 CLIP (LOOP) | 3 | |
| 3V2431 | 16 WASHER (10.2X16X2-MM THK) | 2 | |
| 1253846 | 17 HARNESS AS | 1 | |
| 2N3162 | 18 SCREW-MACHINE (10-24X1.25-IN) | 8 | |
| 1296687 | 19 BRACKET | 1 | |
| 6K8179 | 20 CLIP | 1 | |
| 3B1915 | 21 BOLT (3/8-16X1.375-IN) | 9 | |
| 5P7854 | 22 CLIP (LOOP) | 4 | |
| 4H1225 | 23 WASHER (11X22X6-MM THK) | 9 | |
| 1A2029 | 24 BOLT (3/8-16X1.125-IN) | 2 | |
| 1253813 | 25 HARNESS AS | 1 | |
| 1253836 | 26 HARNESS AS | 1 | |
| 1253834 | 27 HARNESS AS | 1 | |
| 1253812 | 28 HARNESS AS | 1 | |
| 1296689 | 29 BOX GP-JUNCTION | 1 | |
| 3E8689 | 30 SENSOR GP-PRESSURE | 1 | |
| 0352017 | 31 SCREW-BUTTON HEAD (3/8-16X1-IN) | 1 | |
| 0307946 | 32 ELBOW | 1 | |
| 3J7354 | 33 SEAL-O-RING | 2 | |
| 7C9897 | 34 HOSE AS | 1 | |
| 3J7352 | 35 CONNECTOR | 1 | |
| 1253820 | 36 HARNESS AS | 1 | |
| 1309417 | 37 BRACKET | 1 | |
| 1253817 | 38 HARNESS AS | 1 | |
| 1257859 | 39 BOX GP-JUNCTION | 1 | |
| 1253829 | 40 HARNESS AS | 1 | |
| 1253815 | 41 HARNESS AS | 1 | |
| 0S0509 | 42 BOLT (3/8-16X0.75-IN) | 1 | |
| 1257860 | 43 BRACKET AS | 1 | |
| 1253839 | 44 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253840 | 45 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253841 | 46 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253838 | 47 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 9X6772 | 48 STRAP-CABLE | ||
| 3V3308 | 49 WASHER-HARD (10.2X20.5X2.5-MM THK) | 34 | |
| 4P8134 | 50 CLIP (LADDER) | 10 | |
| 9X6772 | 51 STRAP-CABLE | 14 | |
| 5P8245 | 52 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 4P7429 | 53 CLIP (LADDER) | 3 | |
| 4D8948 | 54 CLIP | 3 | |
| 1310719 | 55 BRACKET | 1 | |
| 0S1587 | 56 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1595 | 57 BOLT (1/2-13X1.25-IN) | 1 | |
| 1F7958 | 58 NUT-FULL (1/2-13-THD) | 1 | |
| 5K3294 | 59 CLIP | 1 | |
| 2W8739 | 60 BRACKET | 1 | |
| 3S8665 | 61 CLIP (LOOP) | 1 | |
| 3S8664 | 62 CLIP | 2 |
