System And Components

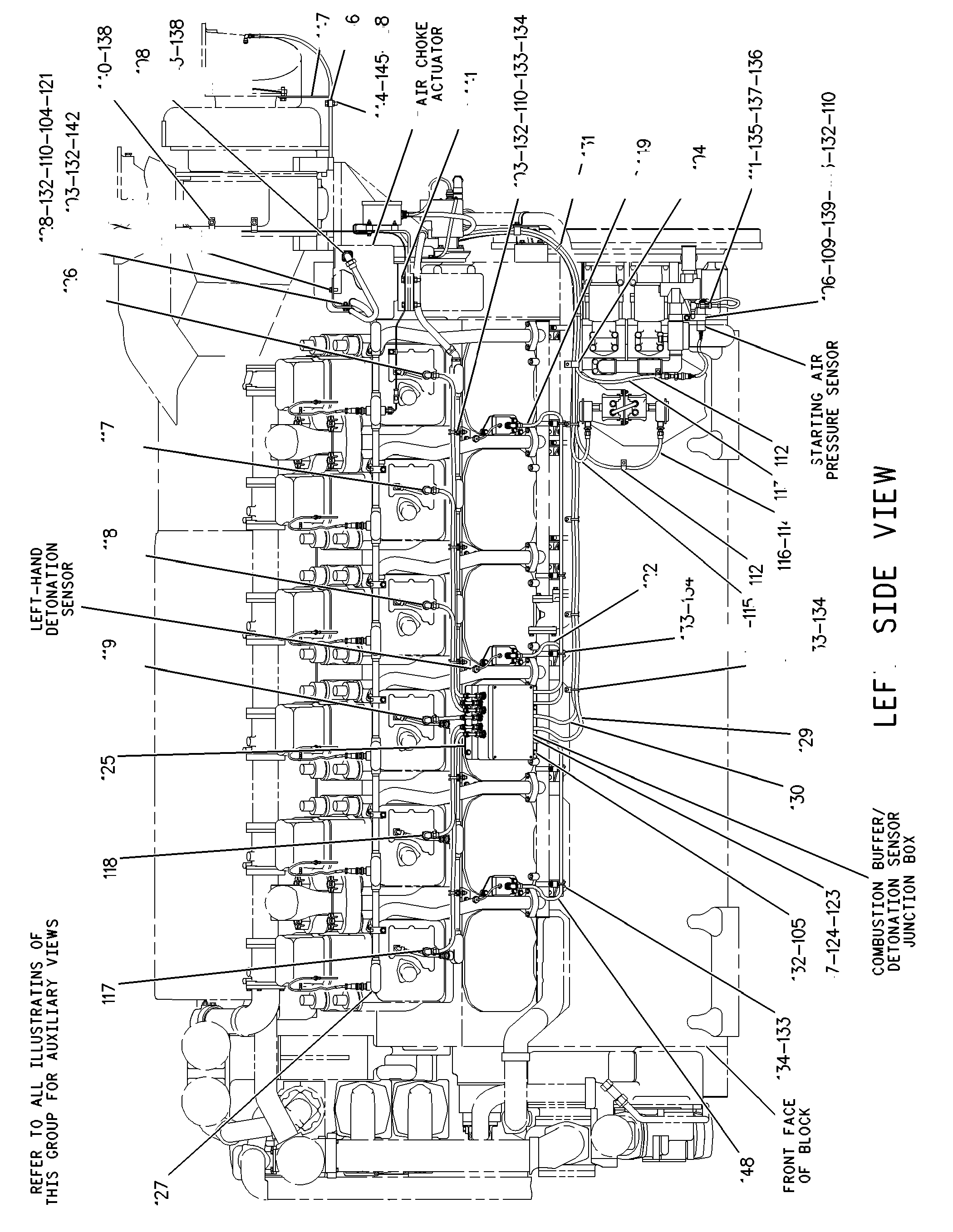

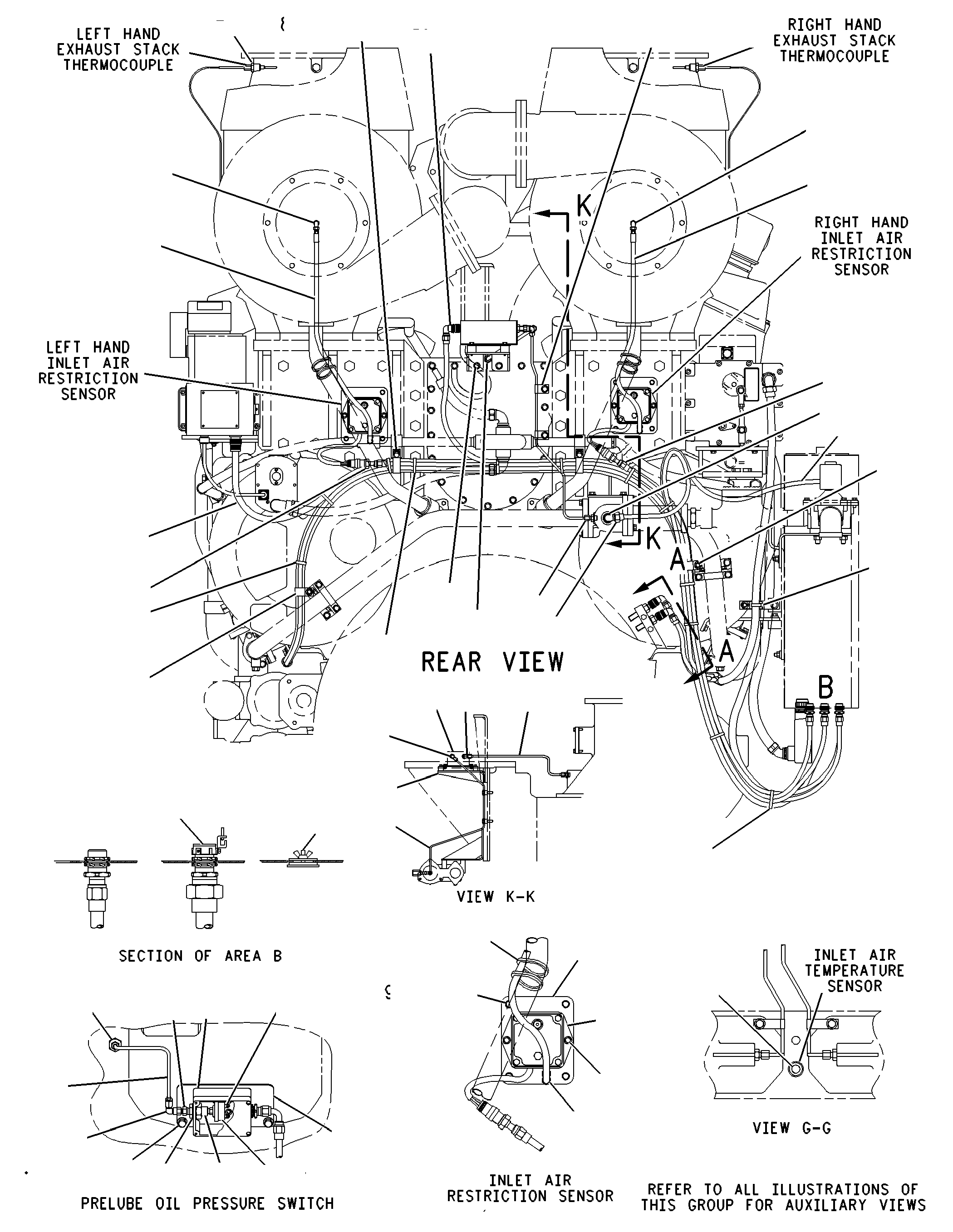

125-3849 WIRING GP-ENGINE (CHG -03)RH SERVICE
Group No: 125-3849
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P8247 | 1 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 4N3329 | 2 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 8L4171 | 3 SENSOR GP-SPEED (ENGINE) | 2 | |
| 1072675 | 4 SENSOR AS-SPEED (ENGINE SPEED) | 1 | |
| 1093038 | 5 END-WIRE (16-GA) | 9 | |
| 1108714 | 6 END-WIRE (18-GA) | 84 | |
| 1257875 | 7 TUBE-HEAT SHRINK (7.44-MM DIA)(.2M) | ||
| 8T6342 | 8 TUBE-HEAT SHRINK (3.2-MM DIA)(84CM) | ||
| 1093039 | 9 END-WIRE (12-GA) | 6 | |
| 5P9297 | 10 CLIP (LOOP) | 1 | |
| 0L2070 | 11 BOLT (3/8-16X2.25-IN) | 12 | |
| 0919035 | 12 SPACER (11X25X20-MM THK) | 12 | |
| 7X1043 | 13 SENSOR GP-TEMPERATURE | 1 | |
| 8T3285 | 14 ADAPTER | 1 | |
| 6K8179 | 15 CLIP | 12 | |
| 8T1895 | 16 CLIP (SLOT) | 10 | |
| 8T1896 | 17 CLIP (TAB) | 10 | |
| 1249633 | 18 CLIP (SLOT) | 4 | |
| 9L9132 | 19 WASHER-HARD (10.2X25.5X2.5-MM THK) | 20 | |
| 1B4971 | 20 SPACER (0.406X1X1-IN THK) | 10 | |
| 0T0573 | 21 BOLT (3/8-16X2.75-IN) | 10 | |
| 1253816 | 22 HARNESS AS | 1 | |
| 1253818 | 23 HARNESS AS | 1 | |
| 1253811 | 24 HARNESS AS | 1 | |
| 9X6772 | 25 STRAP-CABLE | ||
| 3V3308 | 26 WASHER-HARD (10.2X20.5X2.5-MM THK) | 27 | |
| 4P8134 | 27 CLIP (LADDER) | 3 | |
| 9X6772 | 28 STRAP-CABLE | 5 | |
| 1077142 | 29 SENSOR GP-PRESSURE (ENGINE OIL) | 1 | |
| 6V8647 | 30 CONNECTOR | 1 | |
| 6V5048 | 31 SEAL-O-RING | 3 | |
| 6V5049 | 32 SEAL-O-RING | 5 | |
| 1142269 | 33 SENSOR GP-TEMPERATURE (ENGINE OIL) | 1 | |
| 1007870 | 34 ADAPTER-O-RING | 1 | |
| 8L2786 | 35 SEAL-O-RING | 1 | |
| 5P8245 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 5N2840 | 37 CLIP | 2 | |
| 1073952 | 38 SENSOR GP-PRESSURE | 2 | |
| 6V9872 | 39 CONNECTOR | 2 | |
| 8T0788 | 40 ELBOW | 2 | |
| 8L2779 | 41 SEAL-O-RING | 2 | |
| 5B2638 | 42 BOLT (3/8-16X5.25-IN) | 1 | |
| 4P7581 | 43 CLIP (LADDER) | 2 | |
| 1069154 | 44 INSULATOR | 6 | |
| 1254588 | 45 PLATE | 6 | |
| 1129273 | 46 SENSOR GP-DETONATION (DETONATION) | 6 | |
| 0S1587 | 47 BOLT (1/2-13X1.75-IN) | 1 | |
| 0L1143 | 48 BOLT (3/8-16X2.5-IN) | 12 | |
| 7J4026 | 49 ELBOW | 2 | |
| 5T4375 | 50 HOSE AS | 2 | |
| 1331412 | 51 CONTROL GP-ENGINE MONITORING | 1 | |
| 1253827 | 52 HARNESS AS | 1 | |
| 7K9197 | 53 ELBOW | 2 | |
| 6K9194 | 54 ELBOW | 1 | |
| 1021594 | 55 BRACKET AS | 1 | |
| 0S1571 | 56 BOLT (3/8-16X1.75-IN) | 6 | |
| 1365908 | 57 TUBE AS | 1 | |
| 2P1314 | 58 CONNECTOR | 1 | |
| 0308188 | 59 CONNECTOR | 1 | |
| 1365910 | 60 TUBE AS | 1 | |
| 9W0532 | 61 SENSOR GP-TEMPERATURE | 2 | |
| 7D7233 | 62 CLIP (LOOP) | 2 | |
| 0S1594 | 63 BOLT (3/8-16X1-IN) | 2 | |
| 0L2072 | 64 CLIP | 2 | |
| 9M4136 | 65 SPACER (0.438X0.75X0.5-IN THK) | 2 | |
| 1007834 | 66 PLATE AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1253832 | 67 HARNESS AS (AIR RESTRICTION LEFT) | 1 | |
| 1253833 | 68 HARNESS AS (AIR RESTRICTION RIGHT) | 1 | |
| 1253826 | 69 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253828 | 70 HARNESS AS | 1 | |
| 6B5072 | 71 ADAPTER | 2 | |
| 7D4092 | 72 CLIP | 1 | |
| 4S1962 | 73 CLIP (LOOP) | 1 | |
| 1253814 | 74 HARNESS AS | 1 | |
| 2N3478 | 75 SCREW-MACHINE (10-24X0.375-IN) | 4 | |
| 3V2431 | 76 WASHER (10.2X16X2-MM THK) | 4 | |
| 1286325 | 77 BUSHING | 1 | |
| 1257861 | 78 SEAL | 3 | |
| 1309418 | 79 BRACKET | 1 | |
| 5P0076 | 80 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 4 | |
| 0307946 | 81 ELBOW | 2 | |
| 3E9189 | 82 SENSOR GP-PRESSURE | 2 | |
| 5P0537 | 83 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 2A5546 | 84 BOLT (1/4-20X1.375-IN) | 8 | |
| 9X6772 | 85 STRAP-CABLE | ||
| 3V3308 | 86 WASHER-HARD (10.2X20.5X2.5-MM THK) | 8 | |
| 9X6772 | 87 STRAP-CABLE | 1 | |
| 6V5048 | 88 SEAL-O-RING | 2 | |
| 6V5049 | 89 SEAL-O-RING | 3 | |
| 8L2786 | 90 SEAL-O-RING | 3 | |
| 4P7581 | 91 CLIP (LADDER) | 1 | |
| 4J9448 | 92 LUG | 8 | |
| 0689941 | 93 WIRE-TIE | 4 | |
| 0308195 | 94 CONNECTOR | 1 | |
| 6V4589 | 95 SEAL-O-RING | 1 | |
| 1132038 | 96 TUBE AS | 1 | |
| 4S6399 | 97 CONNECTOR | 1 | |
| 7J8744 | 98 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 9M7357 | 99 COUPLING AS | 1 | |
| 3N1400 | 100 SWITCH AS-PRESSURE (PRELUBE OIL PRESSURE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 2L8075 | 101 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 9Y1925 | 102 BOX AS | 1 | |
| 0S1594 | 103 BOLT (3/8-16X1-IN) | 6 | |
| 4S1962 | 104 CLIP (LOOP) | 2 | |
| 0S1571 | 105 BOLT (3/8-16X1.75-IN) | 4 | |
| 9X5272 | 106 SENSOR GP-PRESSURE | 1 | |
| 1257861 | 107 SEAL | 2 | |
| 1253810 | 108 HARNESS AS | 1 | |
| 7D1553 | 109 CLIP | 1 | |
| 9S8752 | 110 NUT-FULL (3/8-16-THD) | 7 | |
| 6V9601 | 111 ADAPTER | 1 | |
| 5P9297 | 112 CLIP (LOOP) | 2 | |
| 1253819 | 113 HARNESS AS | 1 | |
| 1253822 | 114 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253821 | 115 HARNESS AS (START AIR SOLENOID) | 1 | |
| 8S4626 | 116 SPLICE-WIRE | 4 | |
| 1253843 | 117 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253844 | 118 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253845 | 119 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 0S1591 | 120 BOLT (3/8-16X1.5-IN) | 1 | |
| 1S0994 | 121 CLIP (LOOP) | 1 | |
| 1422512 | 122 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 1296690 | 123 BOX GP-JUNCTION | 1 | |
| 2N3162 | 124 SCREW-MACHINE (10-24X1.25-IN) | 4 | |
| 1296687 | 125 BRACKET | 1 | |
| 1253842 | 126 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253850 | 127 HARNESS AS | 1 | |
| 1A2029 | 128 BOLT (3/8-16X1.125-IN) | 1 | |
| 1253835 | 129 HARNESS AS | 1 | |
| 1253837 | 130 HARNESS AS | 1 | |
| 9X6772 | 131 STRAP-CABLE | ||
| 3V3308 | 132 WASHER-HARD (10.2X20.5X2.5-MM THK) | 19 | |
| 4P8134 | 133 CLIP (LADDER) | 14 | |
| 9X6772 | 134 STRAP-CABLE | 14 | |
| 6V8647 | 135 CONNECTOR | 1 | |
| 6V5048 | 136 SEAL-O-RING | 1 | |
| 6V5049 | 137 SEAL-O-RING | 1 | |
| 5P8245 | 138 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 5N2840 | 139 CLIP | 1 | |
| 4D8948 | 140 CLIP | 3 | |
| 6K8179 | 141 CLIP | 1 | |
| 1310719 | 142 BRACKET | 1 | |
| 0S1587 | 143 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1595 | 144 BOLT (1/2-13X1.25-IN) | 1 | |
| 1F7958 | 145 NUT-FULL (1/2-13-THD) | 1 | |
| 5K3294 | 146 CLIP | 1 | |
| 2W8739 | 147 BRACKET | 1 | |
| 1422511 | 148 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 1422513 | 149 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 1253808 | 150 HARNESS AS | 1 | |
| 1253809 | 151 HARNESS AS | 1 | |
| 1253825 | 152 HARNESS AS | 1 | |
| 0S1571 | 153 BOLT (3/8-16X1.75-IN) | 4 | |
| 0S1594 | 154 BOLT (3/8-16X1-IN) | 9 | |
| 4S1962 | 155 CLIP (LOOP) | 9 | |
| 1253824 | 156 HARNESS AS | 1 | |
| 0L2070 | 157 BOLT (3/8-16X2.25-IN) | 2 | |
| 0919035 | 158 SPACER (11X25X20-MM THK) | 2 | |
| 1257861 | 159 SEAL | 5 | |
| 1253823 | 160 HARNESS AS | 1 | |
| 9S8752 | 161 NUT-FULL (3/8-16-THD) | 6 | |
| 5P9297 | 162 CLIP (LOOP) | 2 | |
| 5P0076 | 163 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 2 | |
| 8M2770 | 164 CLIP (LOOP) | 3 | |
| 3V2431 | 165 WASHER (10.2X16X2-MM THK) | 2 | |
| 1422509 | 166 HARNESS AS-SENSOR (DETONATION, RH) | 1 | |
| 2N3162 | 167 SCREW-MACHINE (10-24X1.25-IN) | 8 | |
| 1296687 | 168 BRACKET | 1 | |
| 6K8179 | 169 CLIP | 1 | |
| 3B1915 | 170 BOLT (3/8-16X1.375-IN) | 9 | |
| 5P7854 | 171 CLIP (LOOP) | 4 | |
| 4H1225 | 172 WASHER (11X22X6-MM THK) | 9 | |
| 1A2029 | 173 BOLT (3/8-16X1.125-IN) | 2 | |
| 1253813 | 174 HARNESS AS | 1 | |
| 1253836 | 175 HARNESS AS | 1 | |
| 1253834 | 176 HARNESS AS | 1 | |
| 1253812 | 177 HARNESS AS | 1 | |
| 1296689 | 178 BOX GP-JUNCTION | 1 | |
| 3E8689 | 179 SENSOR GP-PRESSURE | 1 | |
| 0352017 | 180 SCREW-BUTTON HEAD (3/8-16X1-IN) | 1 | |
| 0307946 | 181 ELBOW | 1 | |
| 3J7354 | 182 SEAL-O-RING | 2 | |
| 7C9897 | 183 HOSE AS | 1 | |
| 3J7352 | 184 CONNECTOR | 1 | |
| 1253820 | 185 HARNESS AS | 1 | |
| 1309417 | 186 BRACKET | 1 | |
| 1253817 | 187 HARNESS AS | 1 | |
| 1257859 | 188 BOX GP-JUNCTION | 1 | |
| 1253829 | 189 HARNESS AS | 1 | |
| 1253815 | 190 HARNESS AS | 1 | |
| 0S0509 | 191 BOLT (3/8-16X0.75-IN) | 1 | |
| 1257860 | 192 BRACKET AS | 1 | |
| 1253839 | 193 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253840 | 194 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253841 | 195 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253838 | 196 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 9X6772 | 197 STRAP-CABLE | ||
| 3V3308 | 198 WASHER-HARD (10.2X20.5X2.5-MM THK) | 34 | |
| 4P8134 | 199 CLIP (LADDER) | 14 | |
| 9X6772 | 200 STRAP-CABLE | 18 | |
| 5P8245 | 201 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 4P7429 | 202 CLIP (LADDER) | 3 | |
| 4D8948 | 203 CLIP | 3 | |
| 1310719 | 204 BRACKET | 1 | |
| 0S1587 | 205 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1595 | 206 BOLT (1/2-13X1.25-IN) | 1 | |
| 1F7958 | 207 NUT-FULL (1/2-13-THD) | 1 | |
| 5K3294 | 208 CLIP | 1 | |
| 2W8739 | 209 BRACKET | 1 | |
| 3S8665 | 210 CLIP (LOOP) | 1 | |
| 3S8664 | 211 CLIP | 2 | |
| 1422508 | 212 HARNESS AS-SENSOR (DETONATION, RH) | 1 | |
| 1422510 | 213 HARNESS AS-SENSOR (DETONATION, RH) | 1 |
