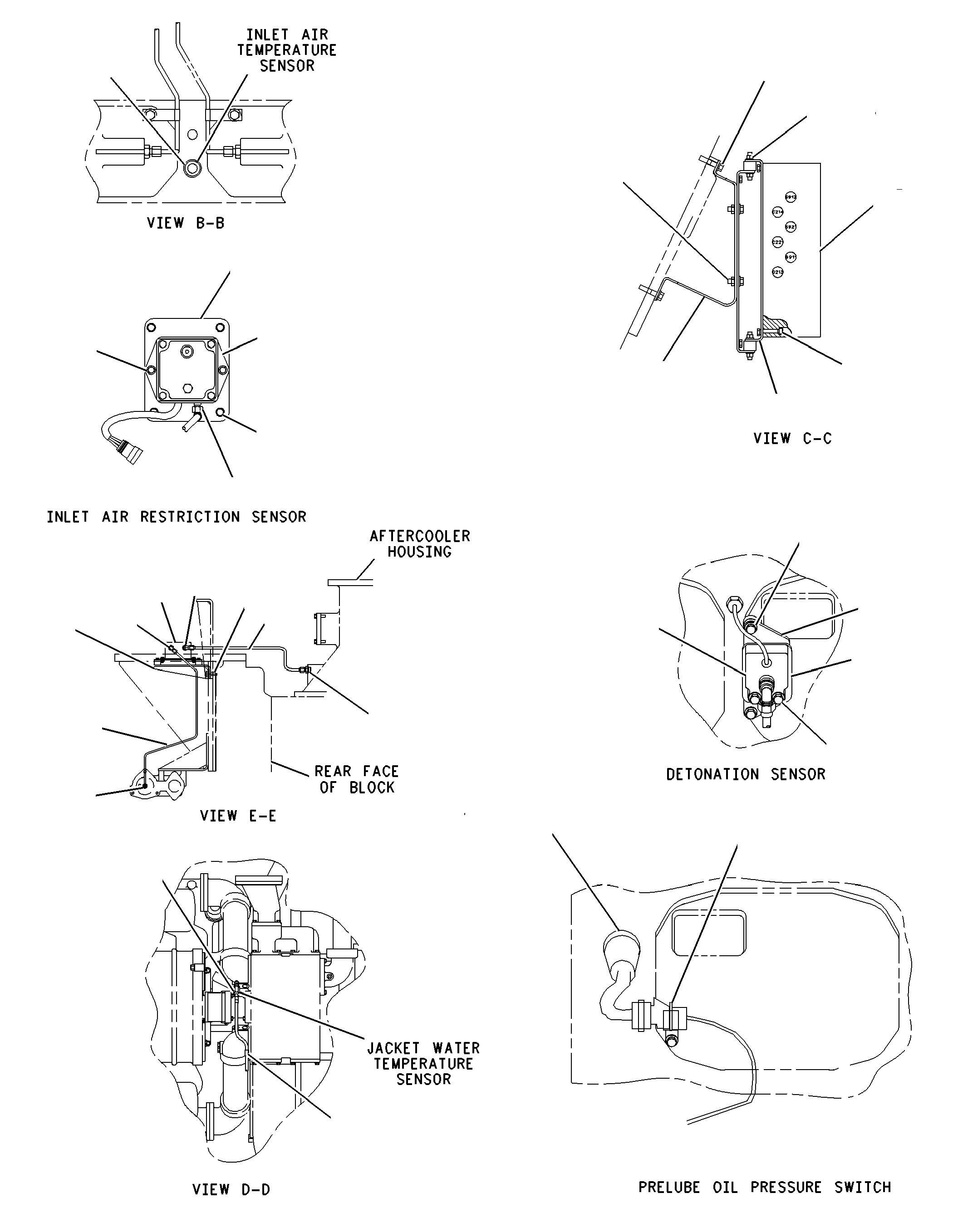

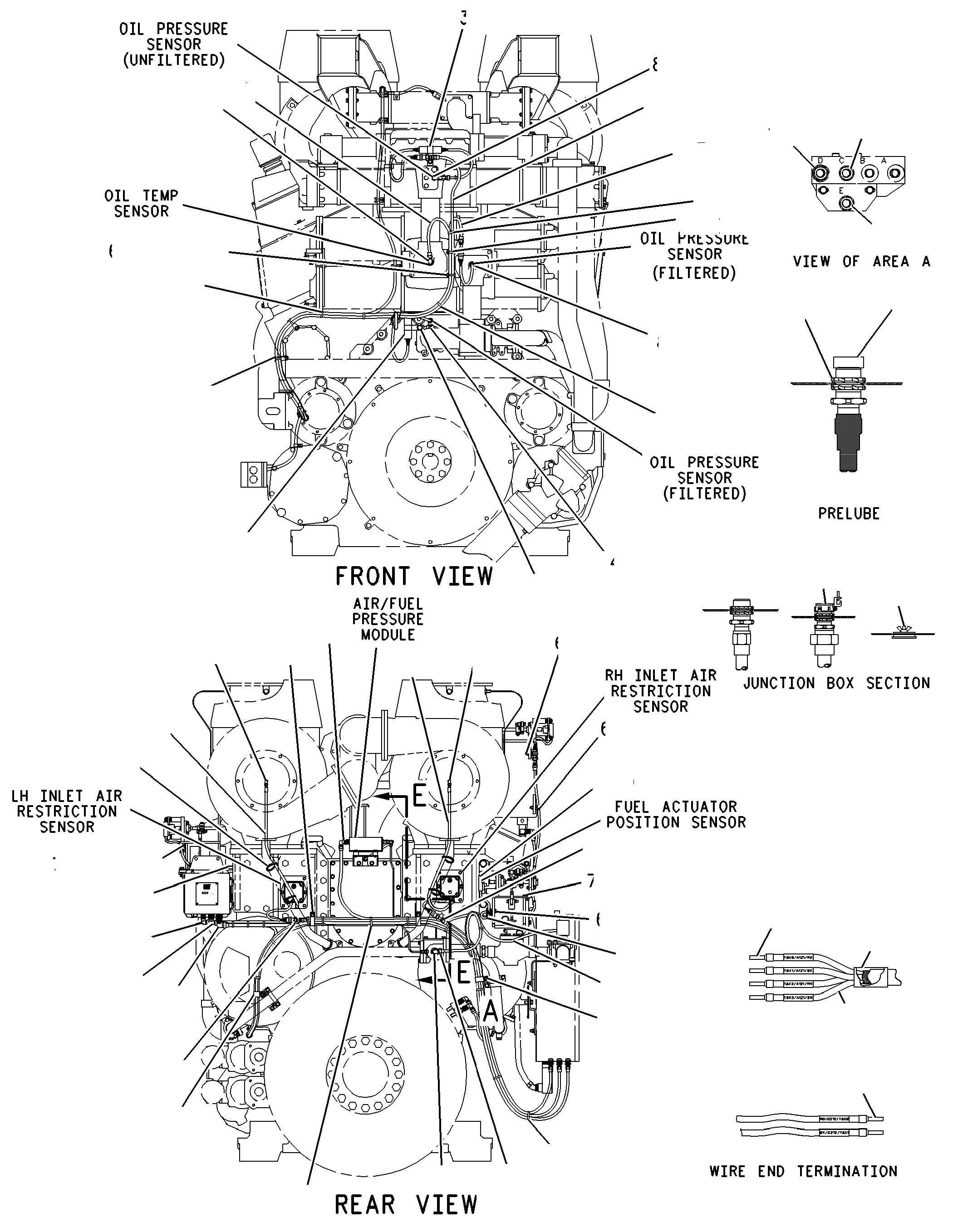

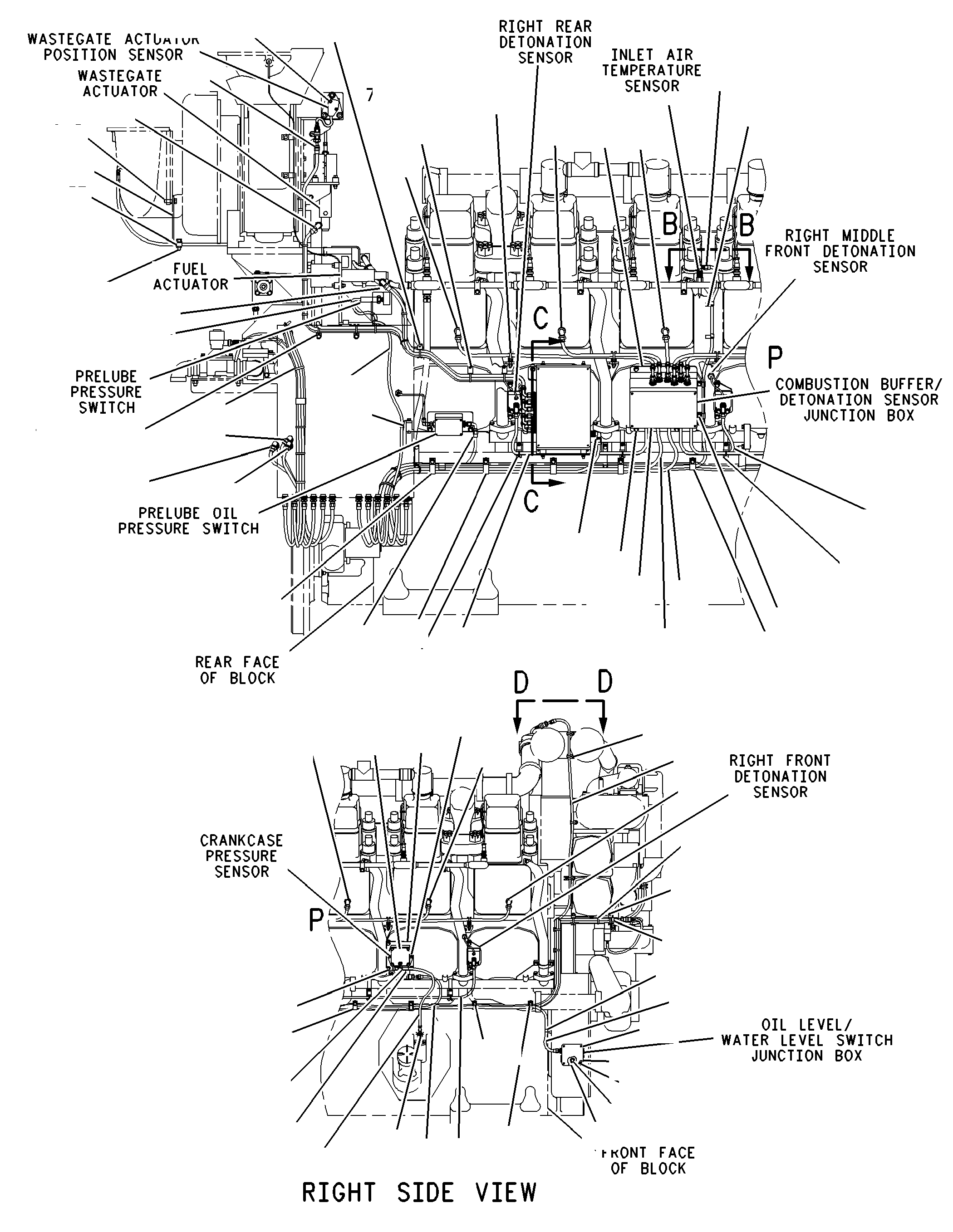

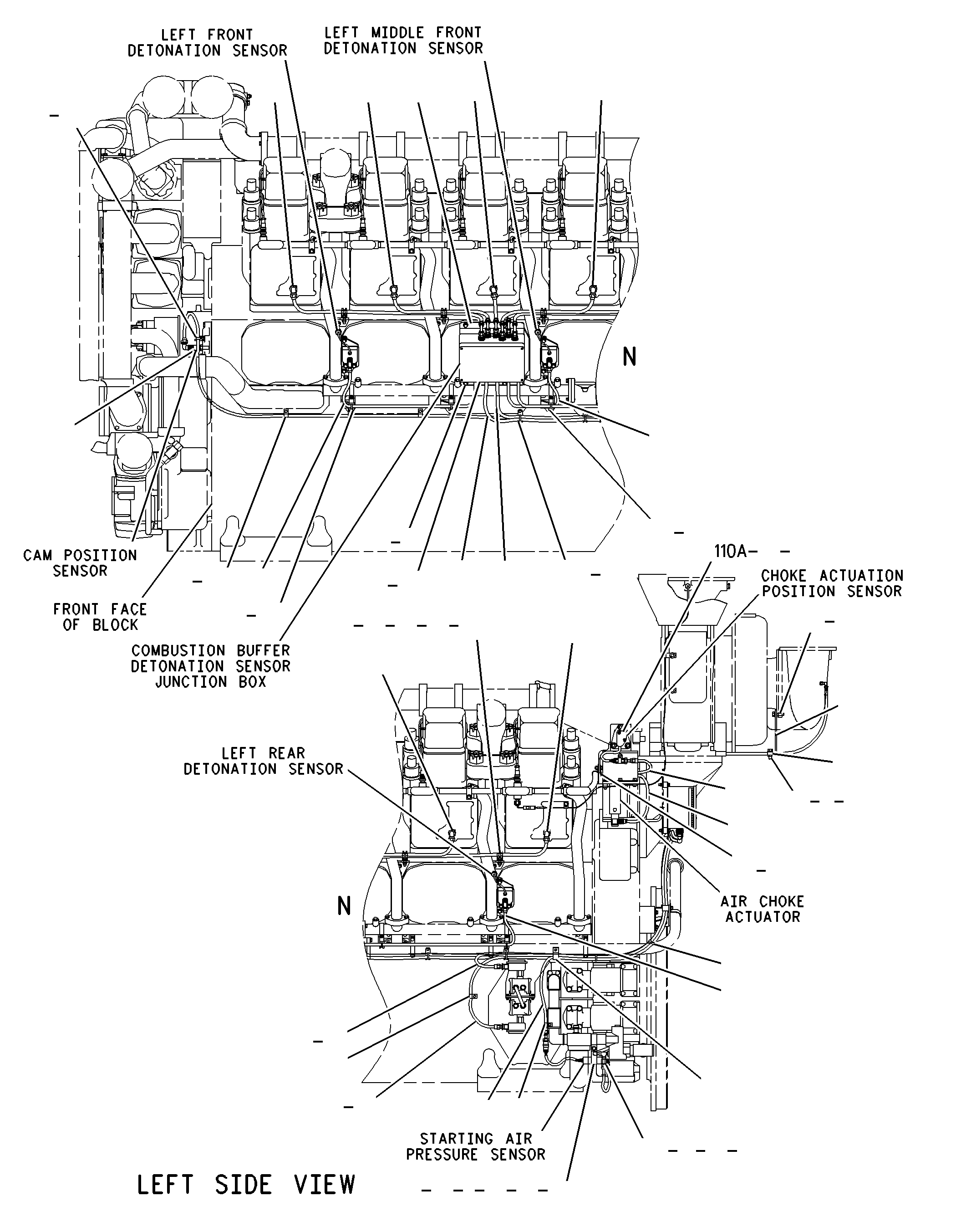

125-3849 WIRING GP-ENGINE (CHG -09 THRU -14)RH SERVICE

Group No: 125-3849
Part NumberPart NameQty
0L11431 BOLT (3/8-16X2.5-IN)12
0L20702 BOLT (3/8-16X2.25-IN)14
0S05093 BOLT (3/8-16X0.75-IN)1
0S15714 BOLT (3/8-16X1.75-IN)14
0S15875 BOLT (1/2-13X1.75-IN)3
0S15886 BOLT (3/8-16X1.25-IN)5
0S15947 BOLT (3/8-16X1-IN)19
0S15958 BOLT (1/2-13X1.25-IN)2
0S16209 BOLT (1/2-13X0.75-IN)2
1A202910 BOLT (3/8-16X1.125-IN)2
1F795811 NUT-FULL (1/2-13-THD)2
2A554612 BOLT (1/4-20X1.375-IN)8
152195913 SWITCH AS-PRESSURE1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8732RECEPTACLE-CONNECTOR (3-PIN)1
9G3695PLUG-SEAL1
2N316214 SCREW-MACHINE (10-24X1.25-IN)12
2P131415 CONNECTOR1
2W873916 BRACKET2
3B191517 BOLT (3/8-16X1.375-IN)9
162027518 SENSOR GP-PRESSURE (CRANKCASE PRESSURE)1
3E918919 SENSOR GP-PRESSURE (INLET AIR)2
3J735220 CONNECTOR1
3K036021 SEAL-O-RING1
3S866422 CLIP2
3S866523 CLIP (LOOP)1
3V243124 WASHER (10.2X16X2-MM THK)6
3V330825 WASHER-HARD (10.2X20.5X2.5-MM THK)95
4B427426 WASHER (5.5X13X1.2-MM THK)6
4D738827 CLIP1
4H122528 WASHER (11X22X6-MM THK)9
4J944829 LUG8
4L712430 BOLT (1/4-20X1.25-IN)4
4N332931 WASHER (16.25X25.65X0.79-MM)3
4P742832 CLIP (LADDER)5
4P758133 CLIP (LADDER)5
4P813434 CLIP (LADDER)36
4S196235 CLIP (LOOP)11
5B263836 BOLT (3/8-16X5.25-IN)1
5K329437 CLIP2
5N284038 CLIP3
5P007639 BOLT-12 POINT HEAD (3/8-16X1.5-IN)6
5P053740 WASHER-HARD (7.2X14.5X2-MM THK)8
5P785441 CLIP (LOOP)3
5P824542 WASHER-HARD (13.5X25.5X3-MM THK)9
5P929743 CLIP (LOOP)11
5S000344 NUT (5/16-18-THD)8
5T437545 HOSE AS2
6K919446 ELBOW1
6V231347 BOLT (M5X0.8X30-MM)6
6V458948 SEAL-O-RING1
6V504849 SEAL-O-RING8
6V504950 SEAL-O-RING9
6V864751 CONNECTOR2
6V960152 ADAPTER1
6V987253 CONNECTOR2
7C989754 HOSE AS1
7D155355 CLIP1
7D409256 CLIP1
7D723357 CLIP (LOOP)2
7J402658 ELBOW2
7K919759 ELBOW1
7X104360 SENSOR GP-TEMPERATURE (JACKET WATER)1
8L277961 SEAL-O-RING2
8L278662 SEAL-O-RING4
8L417163 SENSOR GP-SPEED (ENGINE)(TIMING, CRANKSHAFT)1
8M277064 CLIP (LOOP)3
8S462665 SPLICE-WIRE4
8T078866 ELBOW2
8T328567 ADAPTER1
8T634268 TUBE-HEAT SHRINK (3.2-MM DIA)(84CM)
9M197469 WASHER-HARD (8.8X16X2-MM THK)8
9S875270 NUT-FULL (3/8-16-THD)16
9W053271 SENSOR GP-TEMPERATURE (FUEL)1
9W053271A SENSOR GP-TEMPERATURE (INLET AIR)1
9X349572 CLIP AS4
153396273 SENSOR GP-PRESSURE (STARTING AIR)1
9X677274 STRAP-CABLE36
9X677275 STRAP-CABLE52
030794676 ELBOW3
030818877 CONNECTOR1
3P076478 PLUG1
3S209379 STRAP-CABLE4
091903580 SPACER (11X25X20-MM THK)14
100783481 PLATE AS2
1F0750NUT-WELD (3/8-16-THD)2
100787082 ADAPTER-O-RING1
102159483 BRACKET AS1
106915484 INSULATOR6
193551785 SENSOR GP-SPEED (ENGINE CONTROL)1
164369286 SENSOR GP-PRESSURE (CMS, FILTERED OIL)1
164369286A SENSOR GP-PRESSURE (CMS, UNFILTERED OIL)1
163851687 SENSOR GP-PRESSURE (SCM, FILTERED OIL)1
109303888 END-WIRE (16-GA)7
110871489 END-WIRE (18-GA)84
163441190 SENSOR GP-DETONATION (DETONATION)6
114226991 SENSOR GP-TEMPERATURE (ENGINE OIL)1
125382192 HARNESS AS (START AIR SOLENOID)1
125382293 HARNESS AS (AIR PRELUBRICATION SOLENOID)1
125382694 HARNESS AS (GAS SHUTOFF VALVE)1
125383295 HARNESS AS (AIR RESTRICTION LEFT)1
125383396 HARNESS AS (AIR RESTRICTION RIGHT)1
125383897 HARNESS AS (COMBUSTION BUFFER)1
125383998 HARNESS AS (COMBUSTION BUFFER)2
125384099 HARNESS AS (COMBUSTION BUFFER)2
1253841100 HARNESS AS (COMBUSTION BUFFER)1
1253842101 HARNESS AS (COMBUSTION BUFFER)1
1253843102 HARNESS AS (COMBUSTION BUFFER)2
1253844103 HARNESS AS (COMBUSTION BUFFER)2
1253845104 HARNESS AS (COMBUSTION BUFFER)1
1254588105 PLATE6
1257859106 BOX GP-JUNCTION1
1257860107 BRACKET AS1
1257861108 SEAL6
1257875109 TUBE-HEAT SHRINK (7.44-MM DIA)(18CM)
2192388110 SENSOR GP-POSITION (FUEL ACTUATOR)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
8T8732RECEPTACLE-CONNECTOR (3-PIN)1
2192388110A SENSOR GP-POSITION (CHOKE)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
8T8732RECEPTACLE-CONNECTOR (3-PIN)1
2192388110B SENSOR GP-POSITION (WASTEGATE)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
8T8732RECEPTACLE-CONNECTOR (3-PIN)1
1296689111 BOX GP-JUNCTION1
1286325112 BUSHING1
1296687113 BRACKET2
1296690114 BOX GP-JUNCTION1
1293543115 BOX GP-JUNCTION (HYDRAX)1
1309417116 BRACKET1
1599009117 CONTROL GP-GAS PRESSURE1
1565222118 TUBE AS1
1565220119 TUBE AS1
1409669120 SWITCH AS-PRESSURE (GOVERNOR OIL)1
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)3
8T8731PLUG-CONNECTOR (3-PIN)1
9X1813SLEEVE (21CM)
1416380121 MOUNT-FLEXIBLE4
1422508122 HARNESS AS-SENSOR (DETONATION, RH)1
1422509123 HARNESS AS-SENSOR (DETONATION, RH)1
1422510124 HARNESS AS-SENSOR (DETONATION, RH)1
1422511125 HARNESS AS-SENSOR (DETONATION, LH)1
1422512126 HARNESS AS-SENSOR (DETONATION, LH)1
1422513127 HARNESS AS-SENSOR (DETONATION, LH)1
1457982128 SENSOR AS (CAM POSITION)1
1461810129 HARNESS AS (CIS CAM ANGLE)1
1461811130 HARNESS AS (CIS CONTROL SIGNALS)1
1461812131 HARNESS AS (CIS POWER)1
1470114132 HARNESS AS (ACTUATOR)1
1470115133 HARNESS AS (FUEL HYDRAX)1
1470116134 HARNESS AS (FUEL POSITION SENSOR)1
1470117135 HARNESS AS (CHOKE HYDRAX)1
1470118136 HARNESS AS (CHOKE POSITION SENSOR)1
1470119137 HARNESS AS (WASTEGATE HYDRAX)1
1470120138 HARNESS AS (WASTEGATE POSITION SENSOR)1
1470121139 HARNESS AS (HYDRAX OIL PRESSURE SWITCH)1
1497041140 HARNESS AS (OIL TEMPERATURE)1
1749026141 HARNESS AS-WIRING (ENGINE PRELUBRICATION)1
1497043142 HARNESS AS (AIR TEMPERATURE)1
1497044143 HARNESS AS-SENSOR (AIR TEMPERATURE)1
1497049144 HARNESS AS (JACKET WATER TEMPERATURE)1
1497055145 HARNESS AS (OIL PRESSURE UNFILTERED)1
1497056146 HARNESS AS (OIL PRESSURE FILTERED)1
1497057147 HARNESS AS (OIL PRESSURE FILTERED)1
1497058148 HARNESS AS (STARTING AIR PRESSURE)1
1497059149 HARNESS AS (CRANKCASE PRESSURE)1
1497060150 HARNESS AS (CRANK ANGLE SENSOR)1
1497061151 HARNESS AS (ELECTRONIC CONTROL MODULE)1
1497062152 HARNESS AS (SPEED MAGNETIC PICKUP)1
1497063153 HARNESS AS (PRESSURE MODULE)1
1497067154 HARNESS AS (OIL, WATER LEVEL)1
1497070155 HARNESS AS (COMBUSTION BUFFER-RIGHT)1
1497071156 HARNESS AS (COMBUSTION BUFFER-LEFT)1
1497072157 HARNESS AS-SENSOR (DETONATION, RH)1
1497073158 HARNESS AS-SENSOR (DETONATION, LH)1
1516154159 BRACKET AS2
9F6445NUT-WELD (1/4-20-THD)4
1516155160 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)3
7X1168161 SENSOR-SPEED (TIMING CONTROL)1
8W4755162 NUT-SEALING1
1631209163 BUSHING1
4N5756164 BRACKET1
