System And Components

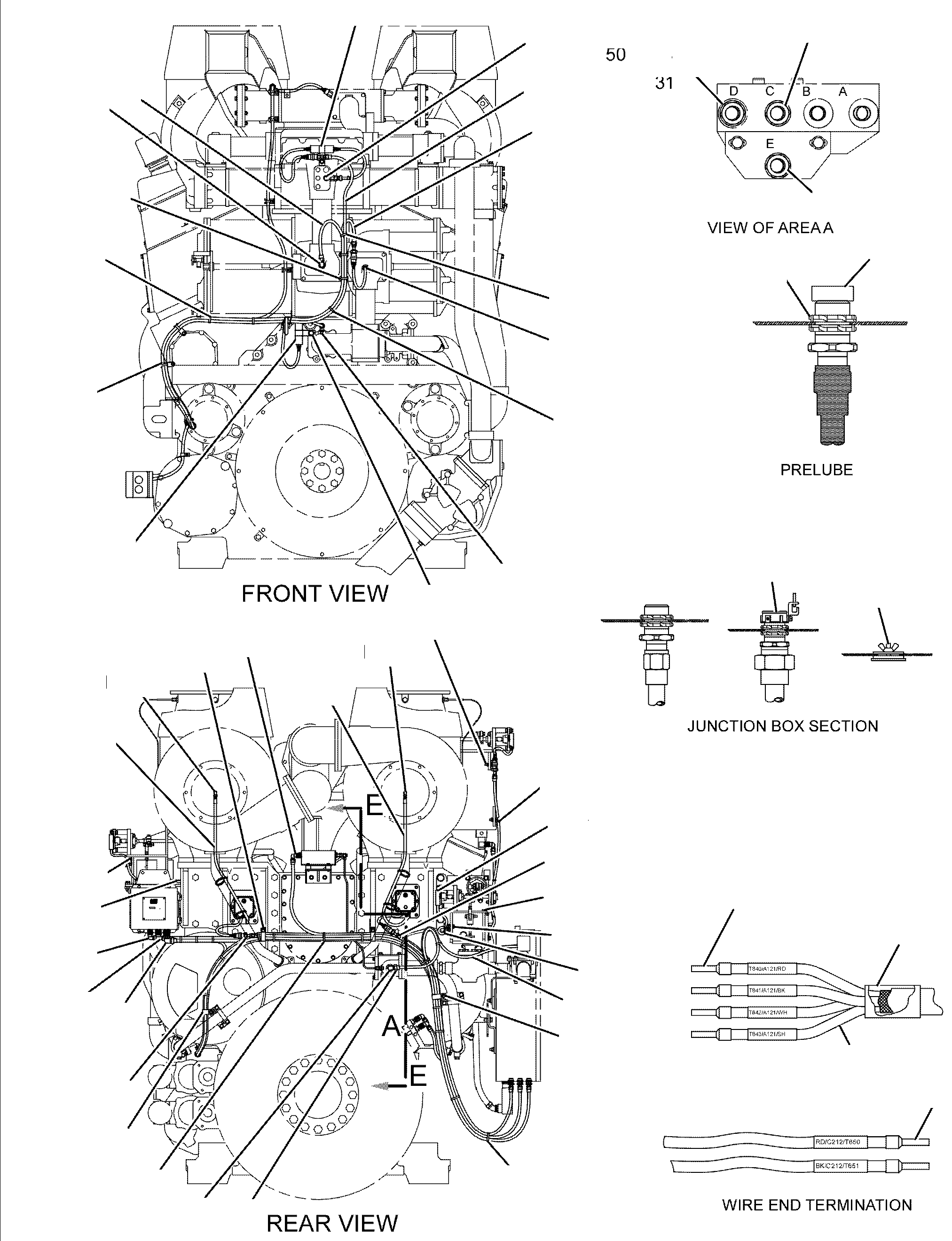

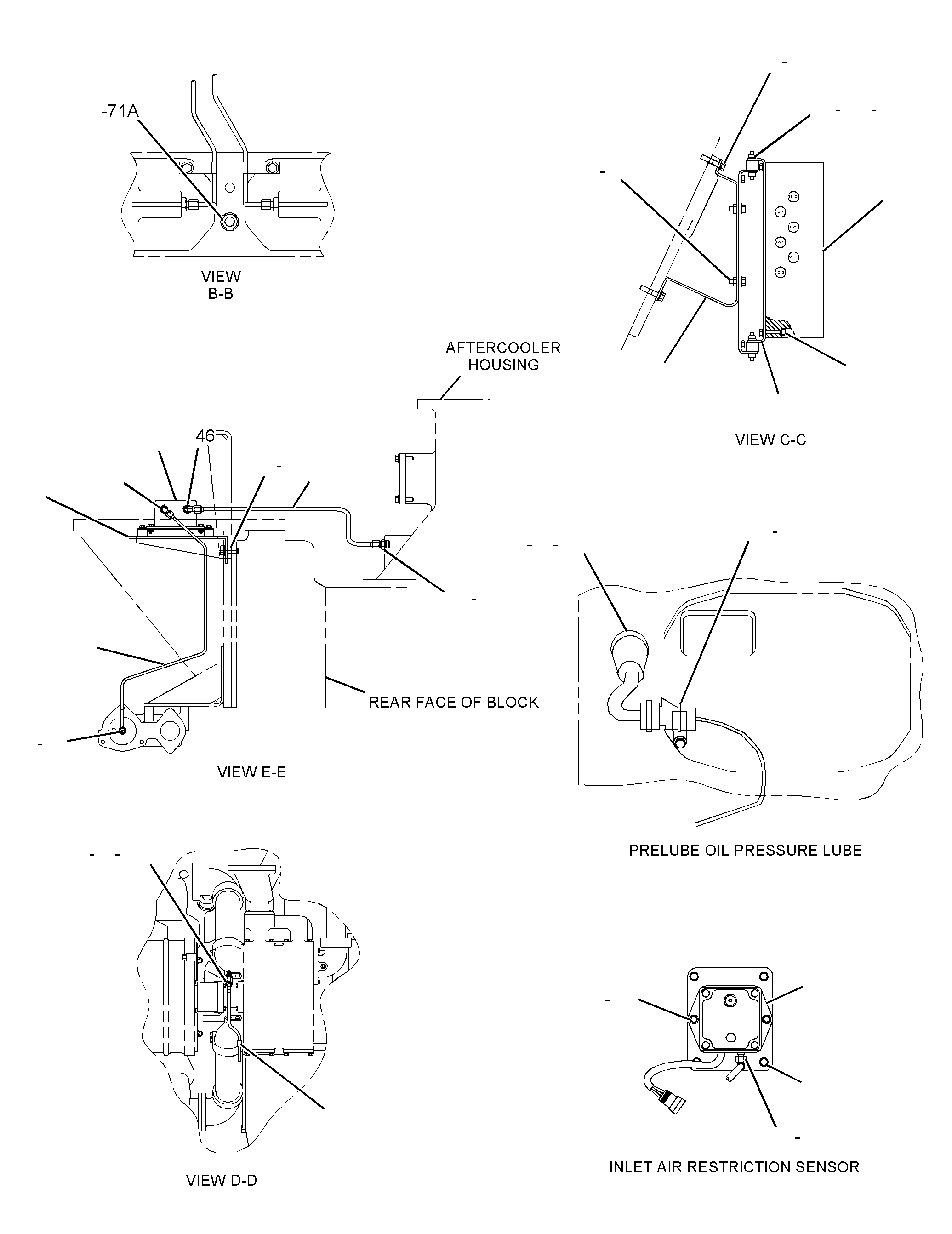

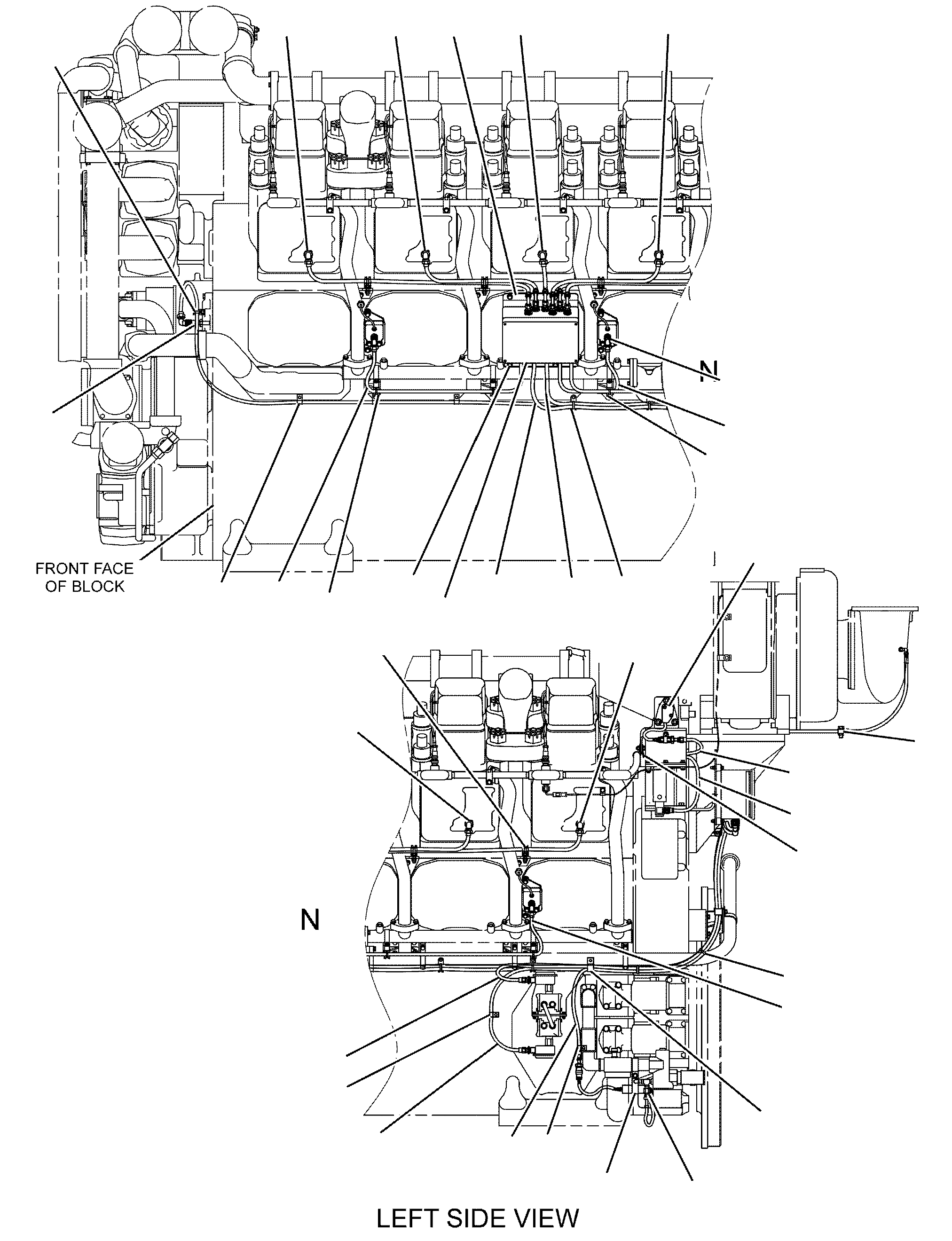

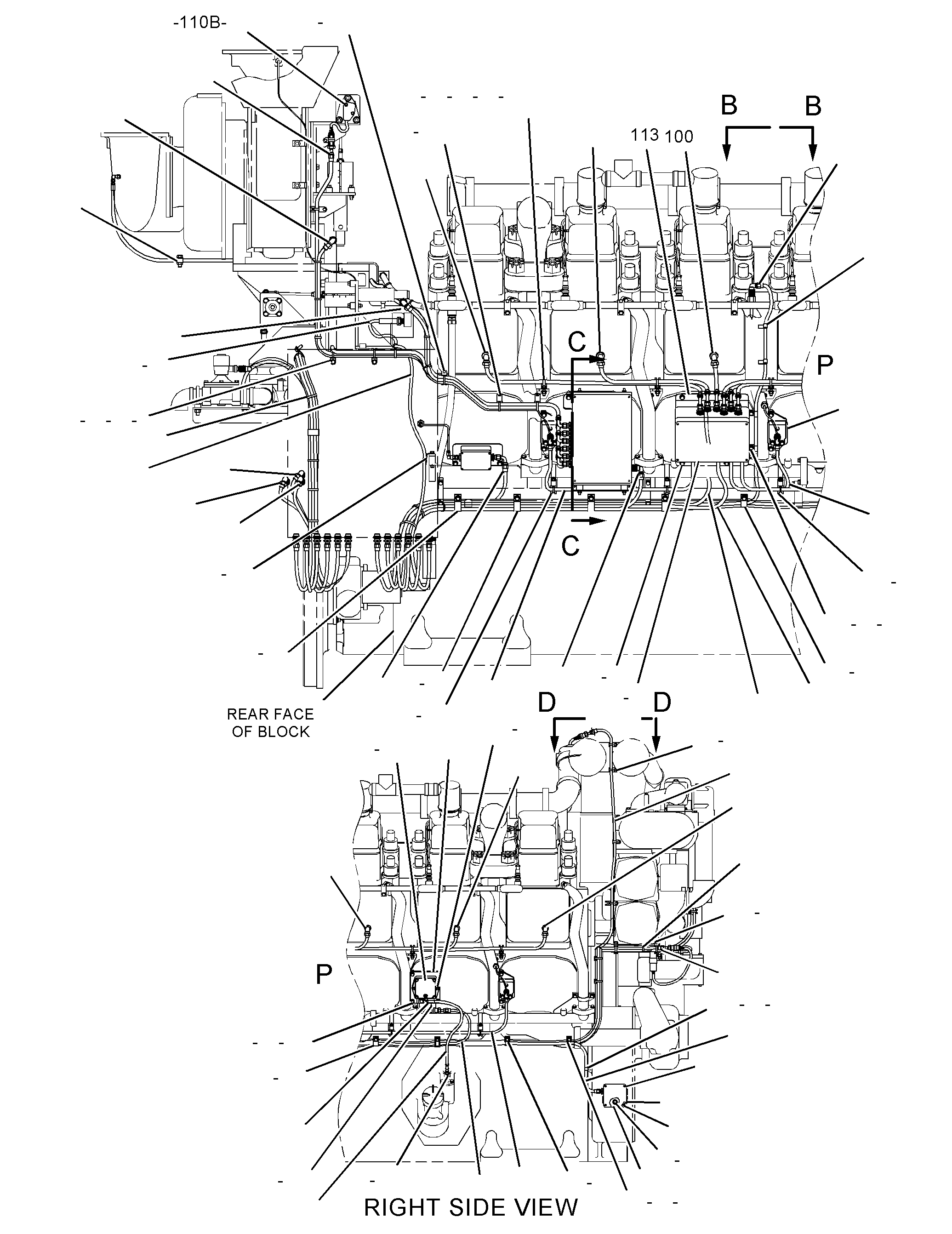

195-3918 WIRING GP-ENGINE (CHG -04, -05)
Group No: 195-3918
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 2 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 1 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 14 | |
| 0S1587 | 5 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1588 | 6 BOLT (3/8-16X1.25-IN) | 5 | |
| 0S1594 | 7 BOLT (3/8-16X1-IN) | 19 | |
| 0S1620 | 9 BOLT (1/2-13X0.75-IN) | 2 | |
| 1A2029 | 10 BOLT (3/8-16X1.125-IN) | 2 | |
| 1521959 | 13 SWITCH AS-PRESSURE (PRELUBE) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 2N3162 | 14 SCREW-MACHINE (10-24X1.25-IN) | 12 | |
| 2P1314 | 15 CONNECTOR | 1 | |
| 3B1915 | 17 BOLT (3/8-16X1.375-IN) | 9 | |
| 1620275 | 18 SENSOR GP-PRESSURE | 1 | |
| 3E9189 | 19 SENSOR GP-PRESSURE | 2 | |
| 3J7352 | 20 CONNECTOR | 1 | |
| 3K0360 | 21 SEAL-O-RING | 1 | |
| 3S8664 | 22 CLIP | 2 | |
| 3S8665 | 23 CLIP (LOOP) | 1 | |
| 3V2431 | 24 WASHER (10.2X16X2-MM THK) | 6 | |
| 3V3308 | 25 WASHER-HARD (10.2X20.5X2.5-MM THK) | 72 | |
| 4B4274 | 26 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 27 CLIP | 1 | |
| 4H1225 | 28 WASHER (11X22X6-MM THK) | 9 | |
| 4L7124 | 30 BOLT (1/4-20X1.25-IN) | 4 | |
| 4N3329 | 31 WASHER (16.25X25.65X0.79-MM) | 3 | |
| 4P7428 | 32 CLIP (LADDER) | 5 | |
| 4P7581 | 33 CLIP (LADDER) | 11 | |
| 4P8134 | 34 CLIP (LADDER) | 36 | |
| 4S1962 | 35 CLIP (LOOP) | 11 | |
| 5B2638 | 36 BOLT (3/8-16X5.25-IN) | 1 | |
| 6D3479 | 37 CLIP (LOOP) | 2 | |
| 5N2840 | 38 CLIP | 3 | |
| 5P0076 | 39 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 6 | |
| 5P0537 | 40 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 5P7854 | 41 CLIP (LOOP) | 3 | |
| 5P8245 | 42 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 5P9297 | 43 CLIP (LOOP) | 11 | |
| 5S0003 | 44 NUT (5/16-18-THD) | 8 | |
| 5T4375 | 45 HOSE AS | 2 | |
| 6K9194 | 46 ELBOW | 1 | |
| 6V2313 | 47 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 48 SEAL-O-RING | 1 | |
| 6V5048 | 49 SEAL-O-RING | 8 | |
| 6V5049 | 50 SEAL-O-RING | 7 | |
| 6V8647 | 51 CONNECTOR | 2 | |
| 6V9601 | 52 ADAPTER | 1 | |
| 6V9872 | 53 CONNECTOR | 2 | |
| 7C9897 | 54 HOSE AS | 1 | |
| 7D1553 | 55 CLIP | 1 | |
| 7D4092 | 56 CLIP | 1 | |
| 7D7233 | 57 CLIP (LOOP) | 2 | |
| 2N8037 | 58 ELBOW | 2 | |
| 7K9197 | 59 ELBOW | 1 | |
| 7X1043 | 60 SENSOR GP-TEMPERATURE (JACKET WATER) | 1 | |
| 8L2779 | 61 SEAL-O-RING | 2 | |
| 8L2786 | 62 SEAL-O-RING | 4 | |
| 8L4171 | 63 SENSOR GP-SPEED (ENGINE)(TIMING, CRANKSHAFT) | 1 | |
| 8M2770 | 64 CLIP (LOOP) | 3 | |
| 8S4626 | 65 SPLICE-WIRE | 4 | |
| 8T0788 | 66 ELBOW | 2 | |
| 8T3285 | 67 ADAPTER | 1 | |
| 8T6342 | 68 TUBE-HEAT SHRINK (3.2-MM DIA)(84-CM) | ||
| 9M1974 | 69 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 9S8752 | 70 NUT-FULL (3/8-16-THD) | 17 | |
| 9W0532 | 71 SENSOR GP-TEMPERATURE (FUEL) | 1 | |
| 9W0532 | 71A SENSOR GP-TEMPERATURE (INLET AIR) | 1 | |
| 9X3495 | 72 CLIP AS | 5 | |
| 9X5272 | 73 SENSOR GP-PRESSURE (AIR START) | 1 | |
| 9X6772 | 74 STRAP-CABLE | ||
| 9X6772 | 75 STRAP-CABLE | 59 | |
| 0307946 | 76 ELBOW | 3 | |
| 0308188 | 77 CONNECTOR | 1 | |
| 3P0764 | 78 PLUG | 1 | |
| 0919035 | 80 SPACER (11X25X20-MM THK) | 2 | |
| 1007870 | 82 ADAPTER-O-RING | 1 | |
| 2502954 | 83 BRACKET AS | 1 | |
| 1935517 | 85 SENSOR GP-SPEED (ENGINE CONTROL) | 1 | |
| 1643692 | 86 SENSOR GP-PRESSURE (CMS, FILTERED OIL) | 1 | |
| 1643692 | 86A SENSOR GP-PRESSURE (CMS, UNFILTERED OIL) | 1 | |
| 1638516 | 87 SENSOR GP-PRESSURE (SCM, FILTERED OIL) | 1 | |
| 1093038 | 88 END-WIRE (16-GA) | 7 | |
| 1108714 | 89 END-WIRE (18-GA) | 84 | |
| 1634411 | 90 SENSOR GP-DETONATION | 6 | |
| 1142269 | 91 SENSOR GP-TEMPERATURE (ENGINE OIL) | 1 | |
| 1253821 | 92 HARNESS AS (START AIR SOLENOID) | 1 | |
| 1253822 | 93 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253826 | 94 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 8L8422 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 1253832 | 95 HARNESS AS (AIR RESTRICTION LEFT) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 2007943 | 96 HARNESS AS | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1253838 | 97 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253839 | 98 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253840 | 99 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253841 | 100 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253842 | 101 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253843 | 102 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253844 | 103 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1253845 | 104 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1257859 | 106 BOX GP-JUNCTION | 1 | |
| 1257860 | 107 BRACKET AS | 1 | |
| 1257861 | 108 SEAL | 6 | |
| 1257875 | 109 TUBE-HEAT SHRINK (7.44-MM DIA)(18-CM) | ||
| 1618931 | 110 SENSOR GP-POSITION (FUEL ACTUATOR) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 110A SENSOR GP-POSITION (CHOKE ACTUATOR) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 110B SENSOR GP-POSITION (WASTE GATE ACTUATOR) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1296689 | 111 BOX GP-JUNCTION | 1 | |
| 1286325 | 112 BUSHING | 1 | |
| 1296687 | 113 BRACKET | 2 | |
| 1296690 | 114 BOX GP-JUNCTION | 1 | |
| 1293543 | 115 BOX GP-JUNCTION (HYDRAX) | 1 | |
| 1309417 | 116 BRACKET | 1 | |
| 2428824 | 117 SENSOR GP-PRESSURE | 1 | |
| 2R6806 | CONNECTOR | 1 | |
| 3J7352 | CONNECTOR | 1 | |
| 6V5048 | SEAL-O-RING | 1 | |
| 6V5049 | SEAL-O-RING | 1 | |
| 1565222 | 118 TUBE AS | 1 | |
| 2001919 | 119 TUBE AS | 1 | |
| 1409669 | 120 SWITCH AS-PRESSURE (HYDRAX) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (21-CM) | ||
| 1416380 | 121 MOUNT-FLEXIBLE | 4 | |
| 1422508 | 122 HARNESS AS-SENSOR (DETONATION, RH)(FRONT) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1422509 | 123 HARNESS AS-SENSOR (DETONATION, RH)(MIDDLE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1422510 | 124 HARNESS AS-SENSOR (DETONATION, RH)(REAR) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1422511 | 125 HARNESS AS-SENSOR (DETONATION, LH)(FRONT) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1422512 | 126 HARNESS AS-SENSOR (DETONATION, LH)(MIDDLE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1422513 | 127 HARNESS AS-SENSOR (DETONATION, LH)(REAR) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1457982 | 128 SENSOR AS (CAMSHAFT) | 1 | |
| 1461810 | 129 HARNESS AS (CIS CAM ANGLE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1461811 | 130 HARNESS AS (CIS CONTROL SIGNALS) | 1 | |
| 6Y6814 | CONNECTOR | 1 | |
| 7D1962 | PLUG AS-CONNECTOR (10-PIN) | 1 | |
| 1461812 | 131 HARNESS AS (CIS POWER) | 1 | |
| 8L8424 | CONNECTOR | 1 | |
| 1470114 | 132 HARNESS AS (ACTUATOR) | 1 | |
| 7D1962 | PLUG AS-CONNECTOR (10-PIN) | 1 | |
| 1470115 | 133 HARNESS AS (FUEL HYDRAX) | 1 | |
| 4P3857 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 1470116 | 134 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1470117 | 135 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 3E6448 | PLUG AS-CONNECTOR | 1 | |
| 1470118 | 136 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1470119 | 137 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 4P3857 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 1470120 | 138 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1470121 | 139 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1497041 | 140 HARNESS AS (OIL TEMPERATURE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | ||
| 1749026 | 141 HARNESS AS-WIRING (ENGINE PRELUBRICATION) | 1 | |
| 5D5569 | CONNECTOR | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(7-CM) | ||
| 1497043 | 142 HARNESS AS (AIR TEMPERATURE)(INLET AIR) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1497044 | 143 HARNESS AS-SENSOR (AIR TEMPERATURE)(FUEL TEMPERATURE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1497049 | 144 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1497055 | 145 HARNESS AS (OIL PRESSURE UNFILTERED) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1497056 | 146 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1497057 | 147 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1497058 | 148 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1497059 | 149 HARNESS AS (CRANKCASE PRESSURE) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1497060 | 150 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 8L8422 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 1497061 | 151 HARNESS AS (ELECTRONIC CONTROL MODULE) | 1 | |
| 4G2544 | CONNECTOR-PLUG | 1 | |
| 1497062 | 152 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 8L8422 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 1497063 | 153 HARNESS AS (PRESSURE MODULE) | 1 | |
| 8T9605 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1497067 | 154 HARNESS AS (OIL, WATER LEVEL) | 1 | |
| 1497070 | 155 HARNESS AS (COMBUSTION BUFFER-RIGHT) | 1 | |
| 9D5424 | CONNECTOR | 1 | |
| 1497071 | 156 HARNESS AS (COMBUSTION BUFFER-LEFT) | 1 | |
| 9D5424 | CONNECTOR | 1 | |
| 1497072 | 157 HARNESS AS-SENSOR (DETONATION, RH) | 1 | |
| 9X4385 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1497073 | 158 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 9X4385 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 1516154 | 159 BRACKET AS | 2 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 4 | |
| 1516155 | 160 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 3 | |
| 7X1168 | 161 SENSOR-SPEED (TIMING CONTROL) | 1 | |
| 8W4755 | 162 NUT-SEALING | 1 | |
| 1631209 | 163 BUSHING | 1 | |
| 5P5008 | 164 REDUCER | 2 | |
| 2010624 | 165 ADAPTER | 2 | |
| 0S1616 | BOLT (1/4-20X1-IN) | 4 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 9S8750 | NUT-FULL (1/4-20-THD) | 4 |
