System And Components

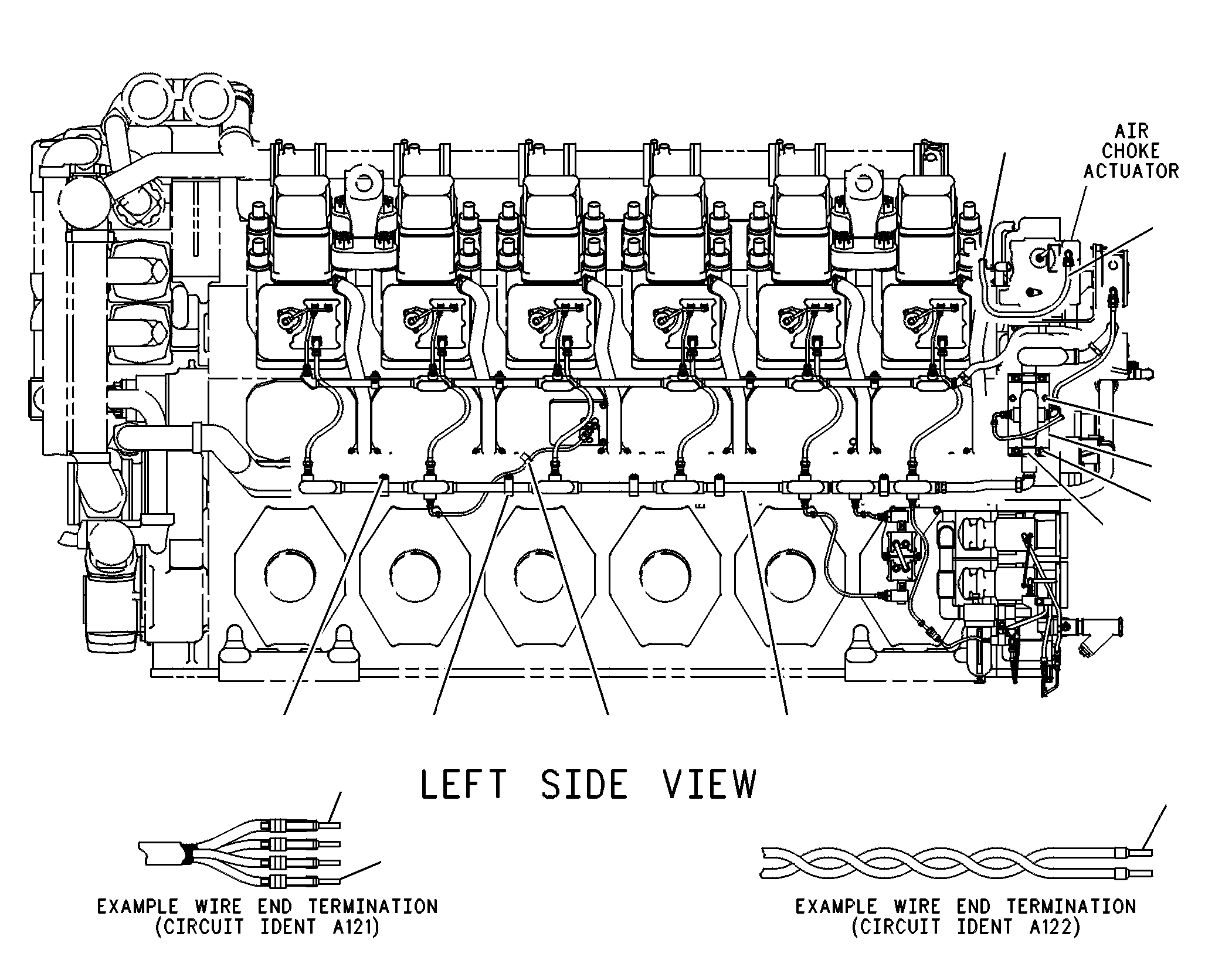

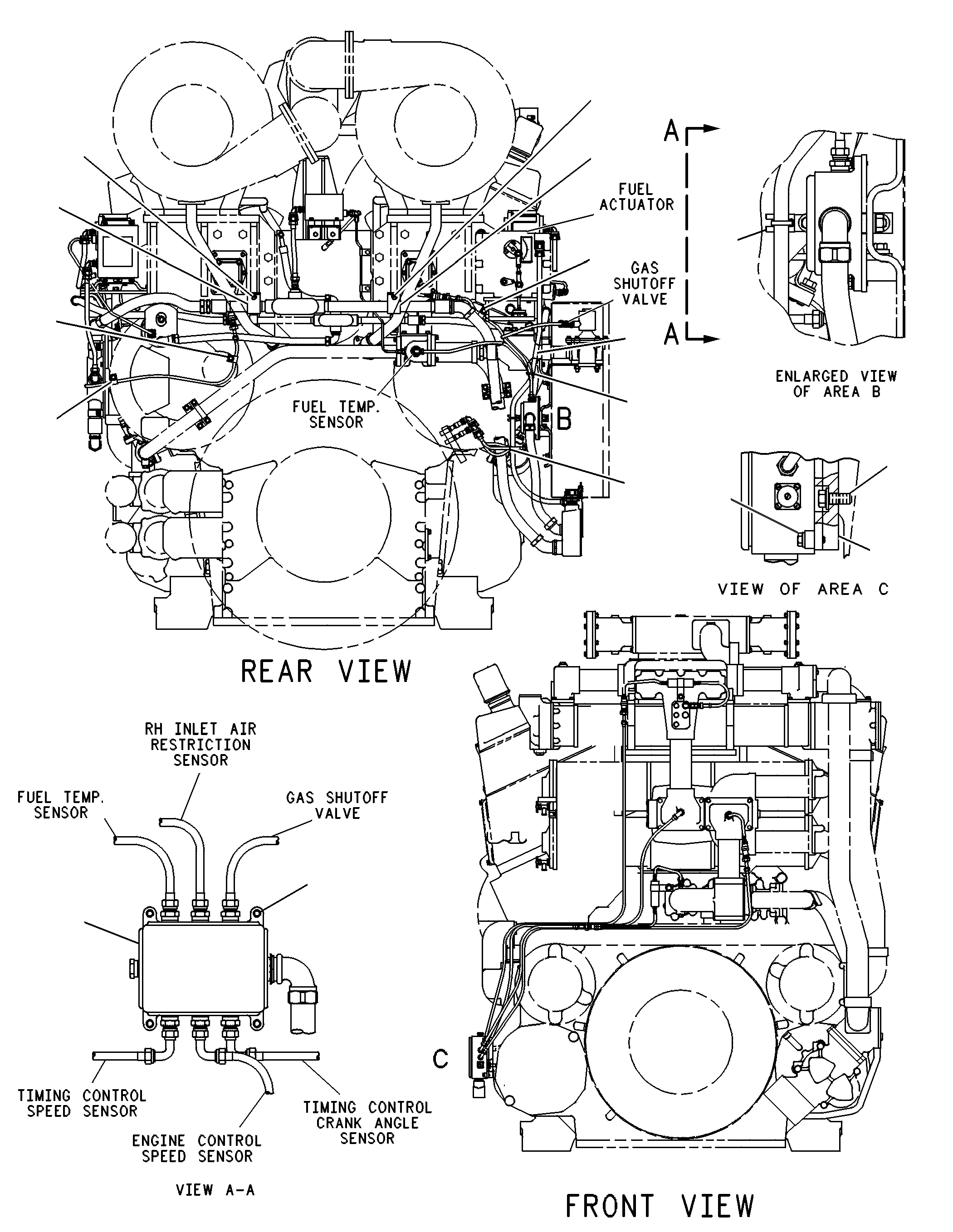

104-3715 WIRING GP-SENSOR (CHG -04, -04D1)PART OF 109-5621 COMPONENT GP, 106-8117, 106-8119 SCHEMATIC & COMPONENT GP
Group No: 104-3715
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S0994 | 1 CLIP (LOOP) | 2 | |
| 1143621 | 2 HARNESS AS | 1 | |
| 1120931 | 3 HARNESS AS-WIRING | 1 | |
| 5P9297 | 4 CLIP (LOOP) | 8 | |
| 0S1588 | 5 BOLT (3/8-16X1.25-IN) | 5 | |
| 1089528 | 6 CLIP (SLOT) | 5 | |
| 1089529 | 7 CLIP (TAB) | 5 | |
| 9L9132 | 8 WASHER-HARD (10.2X25.5X2.5-MM THK) | 5 | |
| 8L8413 | 9 STRAP-CABLE (WHITE) | 3 | |
| 3B1915 | 1 BOLT (3/8-16X1.375-IN) | 2 | |
| 6K4934 | 2 CLIP (SLOT) | 5 | |
| 6K4935 | 3 CLIP (TAB) | 5 | |
| 1071867 | 4 HARNESS AS-WIRING | 1 | |
| 1071349 | 5 PLATE AS | 1 | |
| 1039397 | 6 CLAMP | 2 | |
| 4P8134 | 7 CLIP (LADDER) | 1 | |
| 9X6772 | 8 STRAP-CABLE | 1 | |
| 3V3308 | 9 WASHER-HARD (10.2X20.5X2.5-MM THK) | 6 | |
| 5P9297 | 10 CLIP (LOOP) | 1 | |
| 0S0509 | 11 BOLT (3/8-16X0.75-IN) | 4 | |
| 0S1588 | 12 BOLT (3/8-16X1.25-IN) | 5 | |
| 9L9132 | 13 WASHER-HARD (10.2X25.5X2.5-MM THK) | 5 | |
| 1120920 | 14 HARNESS AS-WIRING | 1 | |
| 1105194 | 15 END-WIRE (14-GA) | 24 | |
| 1105193 | 16 END-WIRE (16-GA) | 84 | |
| 1093039 | 17 END-WIRE (12-GA) | 6 | |
| 9X6772 | 1 STRAP-CABLE | 1 | |
| 1071865 | 2 HARNESS AS-WIRING | 1 | |
| 1143360 | 3 BRACKET AS | 1 | |
| 4F7957 | 4 BOLT (1/4-20X0.875-IN) | 4 | |
| 3V3308 | 5 WASHER-HARD (10.2X20.5X2.5-MM THK) | 2 | |
| 1120919 | 6 HARNESS AS-WIRING | 1 | |
| 4P7581 | 7 CLIP (LADDER) | 1 | |
| 5P9297 | 8 CLIP (LOOP) | 3 | |
| 0S1615 | 9 BOLT (1/4-20X0.75-IN) | 4 | |
| 5P0537 | 10 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 8L8413 | 11 STRAP-CABLE (WHITE) | 1 | |
| 1S9593 | 12 STRAP-CABLE | 2 | |
| 9L9132 | 13 WASHER-HARD (10.2X25.5X2.5-MM THK) | 2 | |
| 0S1594 | 14 BOLT (3/8-16X1-IN) | 4 | |
| 1089528 | 15 CLIP (SLOT) | 2 | |
| 1089529 | CLIP (TAB) | 2 |
