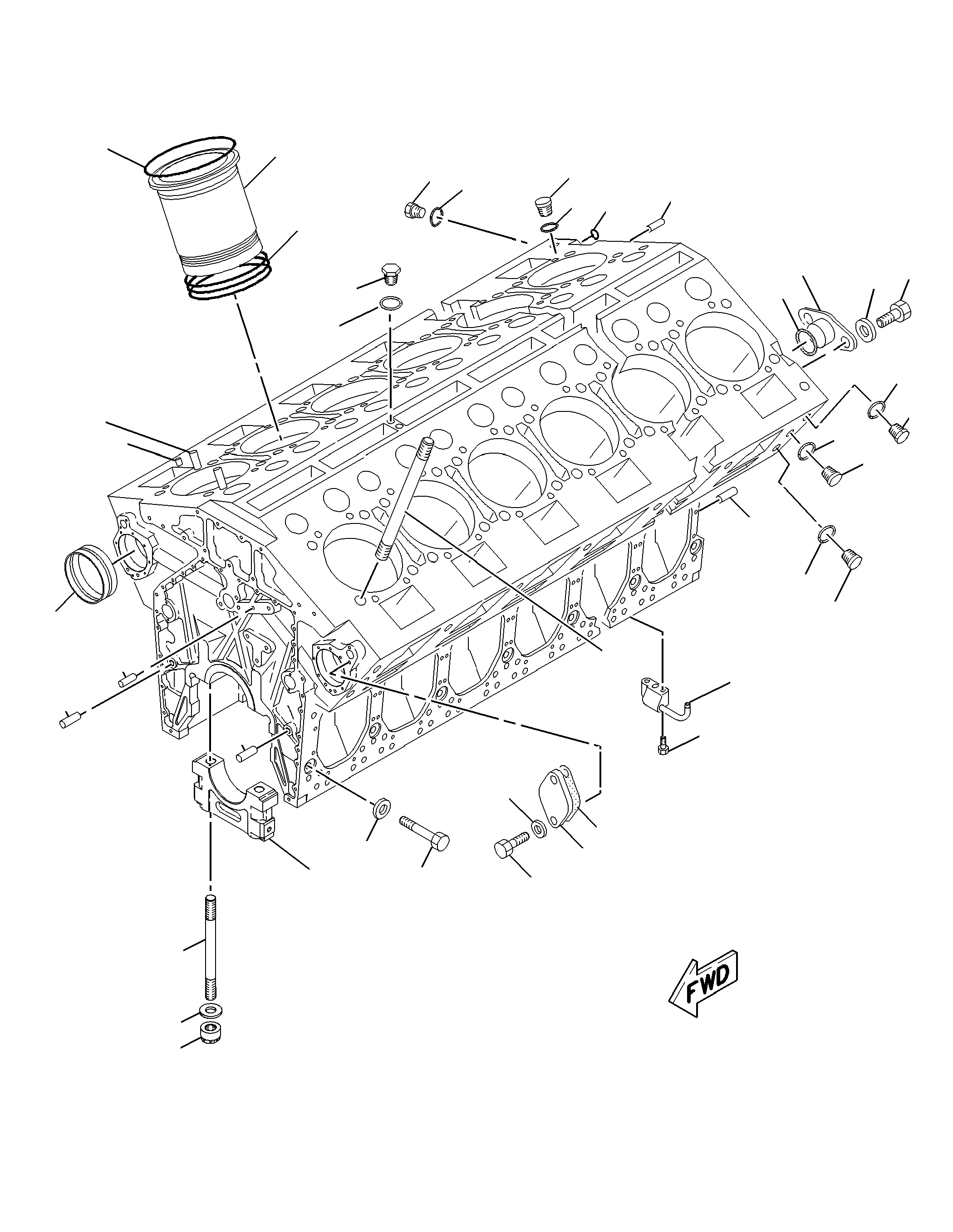

4P-4206 CYLINDER BLOCK GP (CHG -00 THRU -03, 4P-4205-01)

Group No: 4P-4206
Part NumberPart NameQty
1W01211 STUD-TAPERLOCK18
1W01232 NUT (2-12-THD)18
1W01223 WASHER (52X110X12-MM THK)18
3S70794 BOLT (1-1/4-12X9.5-IN)18
4K06845 WASHER-HARD (34X55X6-MM THK)18
6V36026 SEAL-O-RING16
7C50447 LINER-CYLINDER BLOCK16
8T90478 SEAL-O-RING48
1W01059 BEARING-CAMSHAFT18
6V353910 DOWEL32
6V353811 DOWEL35
6V354012 DOWEL2
0S159413 BOLT (3/8-16X1-IN)8
6V395514 SEAL-O-RING3
9S800515 PLUG (3/4-16-THD)3
8L278616 SEAL-O-RING3
3V330817 WASHER-HARD (10.2X20.5X2.5-MM THK)8
4W628318 JET AS-PISTON COOLING16
1W7117DOWEL-HOLLOW2
0T057319 BOLT (3/8-16X2.75-IN)32
7E840020 STUD-TAPERLOCK64
7N232821 DOWEL2
9S800622 PLUG (7/8-14-THD)23
6V458923 SEAL-O-RING23
1W104924 PLUG2
3P065625 SEAL-O-RING2
124183626 CAP AS-BEARING (CRANKSHAFT)9
6V3538DOWEL1
1W196027 GASKET2
4B314028 COVER2
