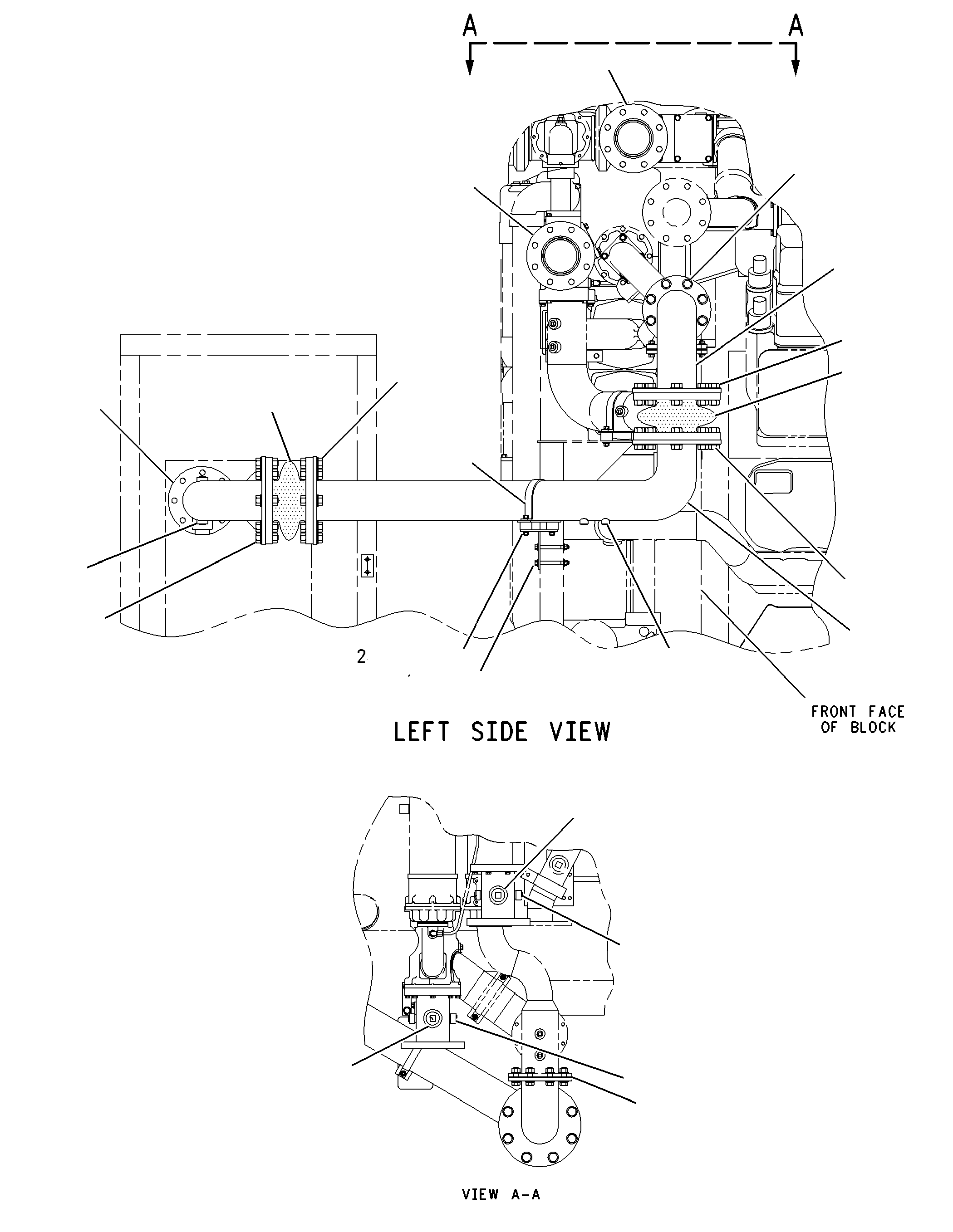

124-2800 LINES GP-WATER (CHG -00, -01)

Group No: 124-2800
Part NumberPart NameQty
8S91911 BOLT (3/8-16X4-IN)2
2J35062 NUT-FULL (3/4-10-THD)32
3V33083 WASHER-HARD (10.2X20.5X2.5-MM THK)4
4K03674 NUT-FULL (5/8-11-THD)8
5P82475 WASHER-HARD (17X32X3.5-MM THK)16
5P82486 WASHER-HARD (20X36.5X3.5-MM THK)32
8T67607 PLUG-PIPE (1-1/2-11-1/2 NPT)3
8T67628 PLUG-PIPE (1/2-14-THD)9
9S87529 NUT-FULL (3/8-16-THD)6
9X888010 BOLT (5/8-11X2-IN)8
111255611 GASKET1
9X888512 BOLT (3/4-10X2.25-IN)32
111255513 PIPE AS1
123902014 TUBE AS1
116865415 CONNECTION-FLEXIBLE2
117773016 PIPE AS-INLET1
123902117 TUBE AS1
123902218 TUBE AS1
130024619 BRACKET AS1
7L825620 CLAMP-TUBE1
7C217621 GASKET1
5M289422 WASHER-HARD (10.2X18.5X2.5-MM THK)4
8D873423 PLATE1
9W436124 MOUNT-FLEXIBLE2
