System And Components

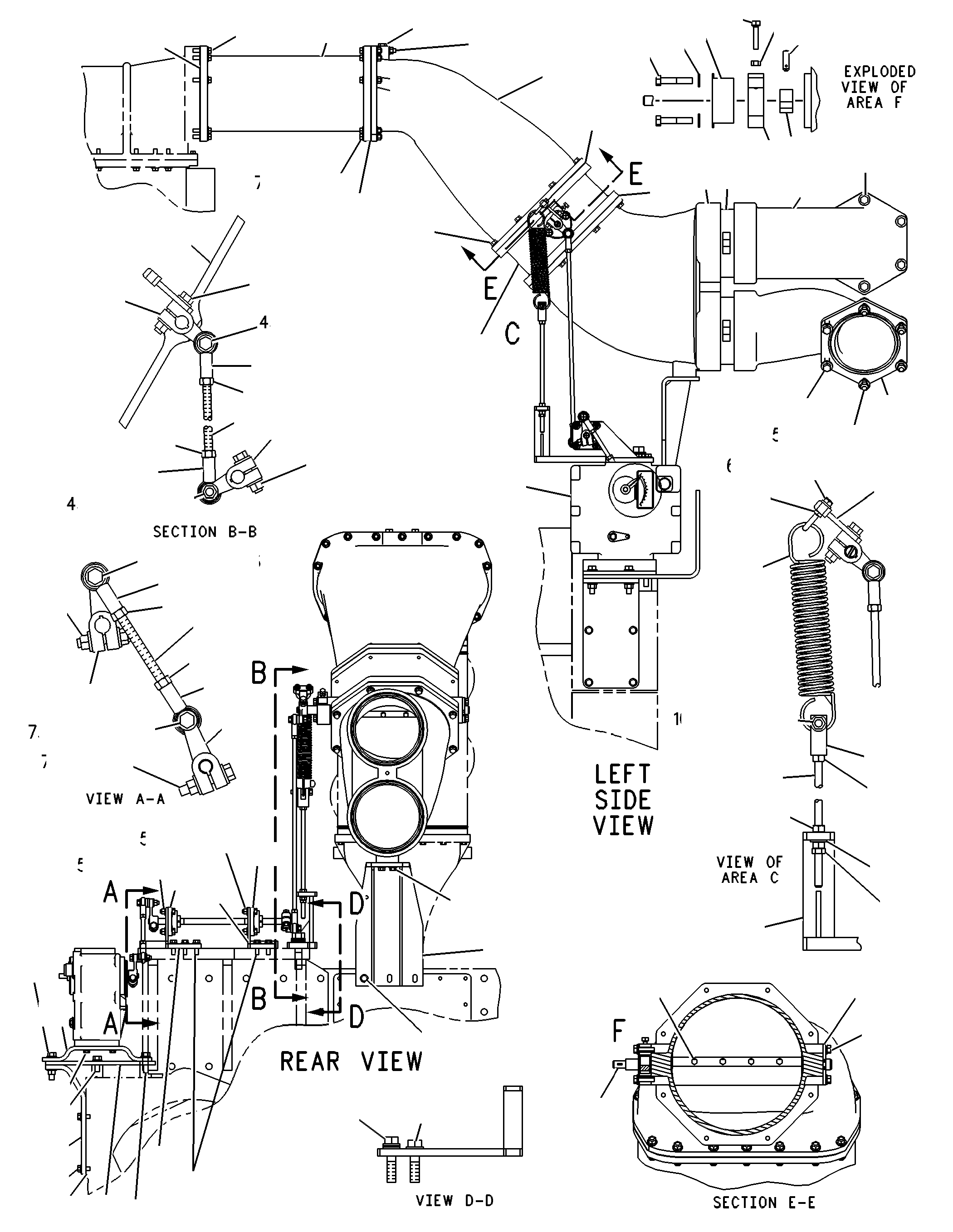

131-0526 LINES GP-AIR (CHG -01 THRU -03)TWO STAGE AFTERCOOLER
Group No: 131-0526
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1B4427 | 1 NUT-JAM (1/4-20-THD) | 2 | |
| 1S3584 | 2 NUT-FULL (3/8-24 LH-THD) | 2 | |
| 2W4766 | 3 GASKET | 2 | |
| 3S2713 | 4 NUT-FULL (3/8-24-THD) | 5 | |
| 4P0340 | 5 GASKET | 1 | |
| 4P0394 | 6 LEVER | 2 | |
| 4W7392 | 7 PIPE | 2 | |
| 4W7515 | 8 ELBOW (LH) | 1 | |
| 4W7516 | 9 ELBOW (RH) | 1 | |
| 5G4313 | 10 SPACER (10.34X15.88X12-MM THK) | 1 | |
| 5H2532 | 11 KEY-WOODRUFF | 3 | |
| 5L3291 | 12 BEARING AS-BALL | 2 | |
| 6I0581 | 13 ACTUATOR GP-ELECTRONIC | 1 | |
| 6I0733 | 14 HOUSING AS | 1 | |
| 6V5041 | SEAL-LIP TYPE | 2 | |
| 7E6553 | BUSHING | 2 | |
| 6I1641 | 15 PLATE | 1 | |
| 6I1642 | 16 PLATE | 1 | |
| 6I1643 | 17 COVER AS | 1 | |
| 6I1644 | 18 WASHER-THRUST | 1 | |
| 6I2520 | 19 LEVER | 1 | |
| 6I2522 | 20 LEVER | 1 | |
| 6I4236 | 21 BRACKET AS | 1 | |
| 6I4237 | 22 BRACKET AS | 1 | |
| 7C1178 | 23 CLEVIS | 1 | |
| 7C8454 | 24 PLATE-BUTTERFLY | 1 | |
| 7W6340 | 25 GASKET | 2 | |
| 7X7874 | 26 ROD END | 2 | |
| 7X7875 | 27 ROD END | 2 | |
| 0321768 | 28 SETSCREW (3/8-16-THD) | 1 | |
| 1010128 | 29 BRACKET | 1 | |
| 1010129 | 30 SHAFT | 1 | |
| 1010130 | 31 COVER-SUPPORT | 1 | |
| 1010131 | 32 BRACKET-MOUNTING | 1 | |
| 1010243 | 33 ROD | 1 | |
| 1102964 | 34 BRACKET AS | 1 | |
| 1190952 | 35 SPRING | 1 | |
| 1233856 | 36 ADAPTER | 1 | |
| 1249765 | 37 ADAPTER | 1 | |
| 1249766 | 38 ADAPTER | 1 | |
| 1340505 | 39 ROD | 1 | |
| 1340507 | 40 ROD-THREADED | 1 | |
| 1174549 | 41 BRACKET AS | 1 | |
| 1347955 | 42 BRACKET AS | 1 | |
| 1349441 | 43 SHAFT | 1 | |
| 0315085 | 44 BOLT-LOCKING (1/4-20X1-IN)(1/4-20X1IN) | 4 | |
| 0S1571 | 45 BOLT (3/8-16X1.75-IN) | 4 | |
| 0S1587 | 46 BOLT (1/2-13X1.75-IN) | 4 | |
| 0S1588 | 47 BOLT (3/8-16X1.25-IN) | 18 | |
| 0S1590 | 48 BOLT (3/8-16X2-IN) | 22 | |
| 0S1591 | 49 BOLT (3/8-16X1.5-IN) | 17 | |
| 0S1594 | 50 BOLT (3/8-16X1-IN) | 6 | |
| 0S1595 | 51 BOLT (1/2-13X1.25-IN) | 1 | |
| 0T0065 | 52 BOLT (3/8-16X3.5-IN) | 1 | |
| 1A9579 | 53 BOLT (5/16-18X1.5-IN) | 1 | |
| 1F7958 | 54 NUT-FULL (1/2-13-THD) | 12 | |
| 2A4639 | 55 BOLT (3/8-16X1.625-IN) | 16 | |
| 2D6235 | 56 LOCKNUT (1/4-20-THD) | 2 | |
| 3V3308 | 57 WASHER-HARD (10.2X20.5X2.5-MM THK) | 110 | |
| 5P0537 | 58 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 5P1076 | 59 WASHER-HARD (13.5X30X4-MM THK) | 22 | |
| 5P8245 | 60 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 5P8248 | 61 WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 5S0003 | 62 NUT (5/16-18-THD) | 1 | |
| 6V2317 | 63 BOLT (M8X1.25X30-MM) | 4 | |
| 6V5049 | 64 SEAL-O-RING | 2 | |
| 6V5095 | 65 SEAL-O-RING | 8 | |
| 6V5102 | 66 SEAL-O-RING | 2 | |
| 8M9024 | 67 WASHER-HARD (10.2X22.5X5-MM THK) | 6 | |
| 9L0945 | 68 U-BOLT | 1 | |
| 9L7712 | 69 NUT (3/8-24-THD) | 1 | |
| 9M1974 | 70 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 9S1366 | 71 BOLT (1/2-13X2.5-IN) | 2 | |
| 9S4191 | 72 PLUG (9/16-18-THD) | 2 | |
| 9S8752 | 73 NUT-FULL (3/8-16-THD) | 33 | |
| 9X8873 | 74 BOLT (1/2-13X2.25-IN) | 10 | |
| 9X8887 | 75 BOLT (3/4-10X3-IN) | 1 | |
| 9X8888 | 76 BOLT (3/4-10X3.25-IN) | 1 |
