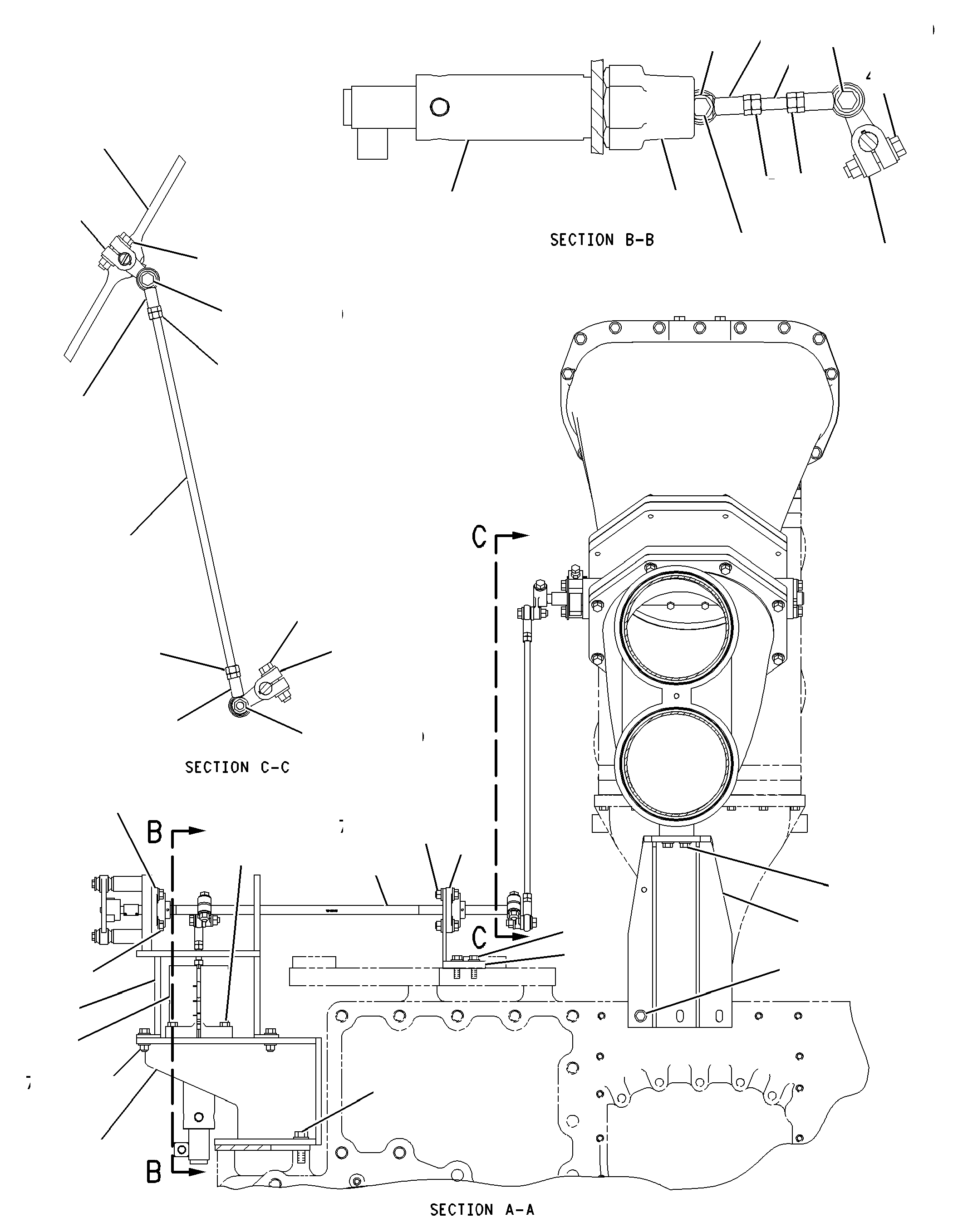

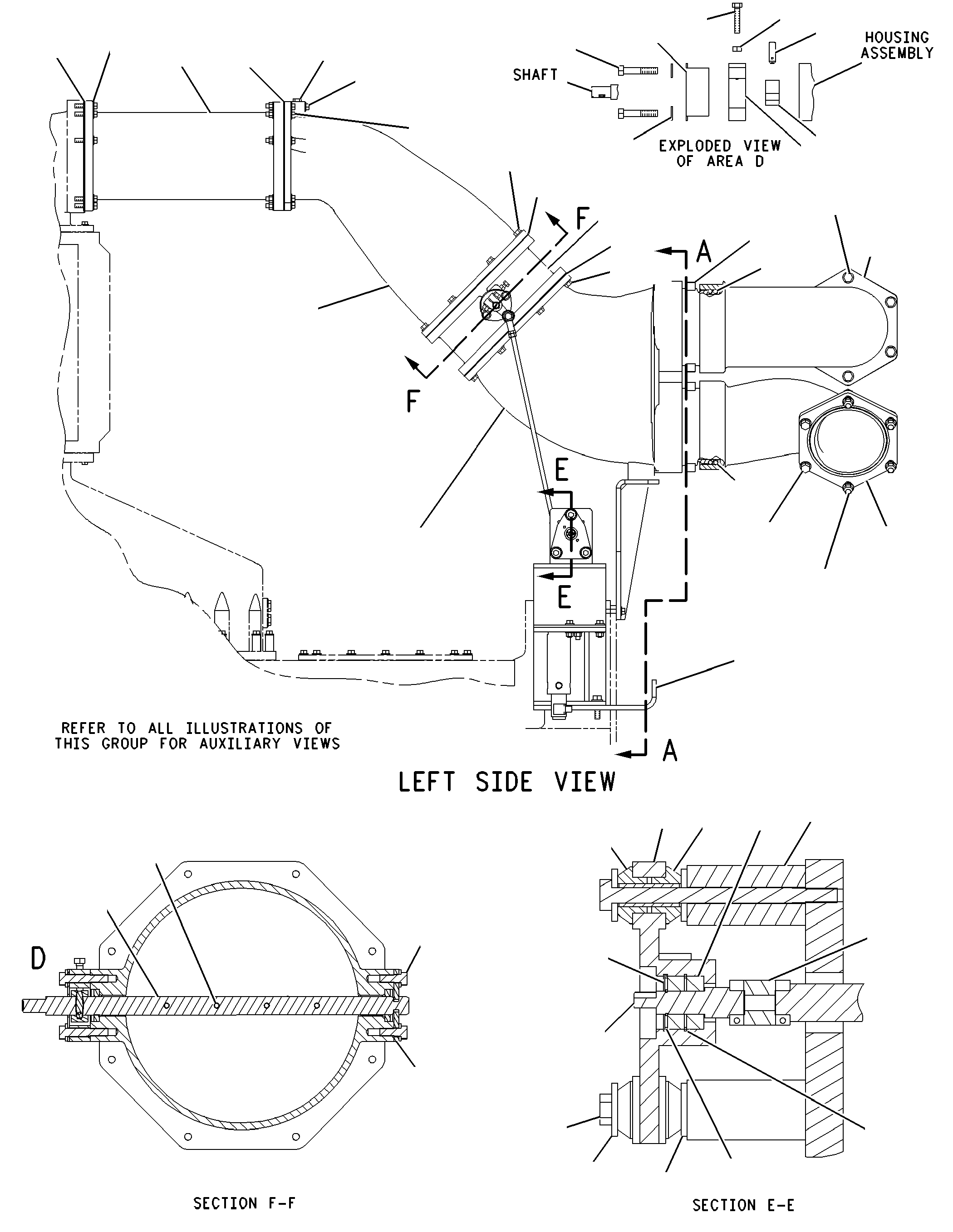

147-5090 LINES GP-AIR (CHG -04, -05, -05D1, -05D2)TWO STAGE, G3616
Group No: 147-5090
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S3584 | 1 NUT-FULL (3/8-24 LH-THD) | 2 | |
| 2W4766 | 2 GASKET | 2 | |
| 3S2713 | 3 NUT-FULL (3/8-24-THD) | 2 | |
| 4E2250 | 4 HOUSING | 1 | |
| 4P0394 | 5 LEVER | 3 | |
| 4W7392 | 6 PIPE | 2 | |
| 4W7515 | 7 ELBOW (LH) | 1 | |
| 4W7516 | 8 ELBOW (RH) | 1 | |
| 5H2532 | 9 KEY-WOODRUFF | 3 | |
| 5L3291 | 10 BEARING AS-BALL | 2 | |
| 6D3025 | 11 BALL BEARING | 2 | |
| 6I0733 | 12 HOUSING AS | 1 | |
| 6V5041 | SEAL-LIP TYPE | 2 | |
| 7E6553 | BUSHING | 2 | |
| 6I1641 | 13 PLATE | 1 | |
| 6I1642 | 14 PLATE | 1 | |
| 6I1643 | 15 COVER AS | 1 | |
| 6I1644 | 16 WASHER-THRUST | 1 | |
| 7C8454 | 17 PLATE-BUTTERFLY | 1 | |
| 7E1630 | 18 GASKET | 1 | |
| 7W6340 | 19 GASKET | 2 | |
| 8C5607 | 20 MOUNT-ISOLATION | 6 | |
| 8C5608 | 21 SPACER (6.5X9.5X25.4-MM THK) | 3 | |
| 8C7315 | 22 ROD END | 2 | |
| 8C7321 | 23 ROD END | 2 | |
| 8H3390 | 24 NUT-FULL (1-1/2-12-THD) | 1 | |
| 9U3300 | 25 SPACER (7X25X50-MM THK) | 3 | |
| 0321768 | 26 SETSCREW (3/8-16-THD) | 1 | |
| 1183842 | 27 BRACKET AS | 1 | |
| 1183843 | 28 SHAFT | 1 | |
| 1223360 | 29 BRACKET | 1 | |
| 1233856 | 30 ADAPTER | 1 | |
| 1249765 | 31 ADAPTER | 1 | |
| 1249766 | 32 ADAPTER | 1 | |
| 1271573 | 33 SHAFT | 1 | |
| 1347955 | 34 BRACKET AS | 1 | |
| 1349441 | 35 SHAFT | 1 | |
| 1450039 | 36 BRACKET AS | 1 | |
| 1450040 | 37 BRACKET AS | 1 | |
| 1450041 | 38 ROD | 1 | |
| 1475092 | 39 ROD | 1 | |
| 1763572 | 40 COUPLING GP-SHAFT | 1 | |
| 1763583 | 41 GUARD | 2 | |
| 1763587 | 42 CLEVIS | 1 | |
| 1937879 | 43 BOOT | 1 | |
| 2118175 | 44 ACTUATOR GP-ELECTRONIC (ELECTROHYDRAULIC) | 1 | |
| 0315085 | 45 BOLT-LOCKING (1/4-20X1-IN) | 4 | |
| 0L2070 | 46 BOLT (3/8-16X2.25-IN) | 15 | |
| 0S1571 | 47 BOLT (3/8-16X1.75-IN) | 22 | |
| 0S1587 | 48 BOLT (1/2-13X1.75-IN) | 3 | |
| 0S1588 | 49 BOLT (3/8-16X1.25-IN) | 14 | |
| 0S1590 | 50 BOLT (3/8-16X2-IN) | 5 | |
| 0S1591 | 51 BOLT (3/8-16X1.5-IN) | 17 | |
| 0S1594 | 52 BOLT (3/8-16X1-IN) | 6 | |
| 0T0065 | 53 BOLT (3/8-16X3.5-IN) | 1 | |
| 1A1460 | 54 BOLT (1/2-13X2-IN) | 10 | |
| 1A9579 | 55 BOLT (5/16-18X1.5-IN) | 1 | |
| 1F7958 | 56 NUT-FULL (1/2-13-THD) | 10 | |
| 2H3429 | 57 RING-RETAINING | 1 | |
| 2L6726 | 58 RING-RETAINING | 1 | |
| 3V3308 | 59 WASHER-HARD (10.2X20.5X2.5-MM THK) | 79 | |
| 5M2894 | 60 WASHER-HARD (10.2X18.5X2.5-MM THK) | 32 | |
| 5P8245 | 61 WASHER-HARD (13.5X25.5X3-MM THK) | 23 | |
| 5S0003 | 62 NUT (5/16-18-THD) | 1 | |
| 6V5049 | 63 SEAL-O-RING | 2 | |
| 6V5095 | 64 SEAL-O-RING | 8 | |
| 6V5102 | 65 SEAL-O-RING | 2 | |
| 8F6302 | 66 BOLT (1/4-20X3.75-IN) | 3 | |
| 8M2337 | 67 WASHER (7.2X24.5X3-MM THK) | 6 | |
| 8M9024 | 68 WASHER-HARD (10.2X22.5X5-MM THK) | 3 | |
| 9S4191 | 69 PLUG (9/16-18-THD) | 2 | |
| 9S8752 | 70 NUT-FULL (3/8-16-THD) | 33 |
