System And Components

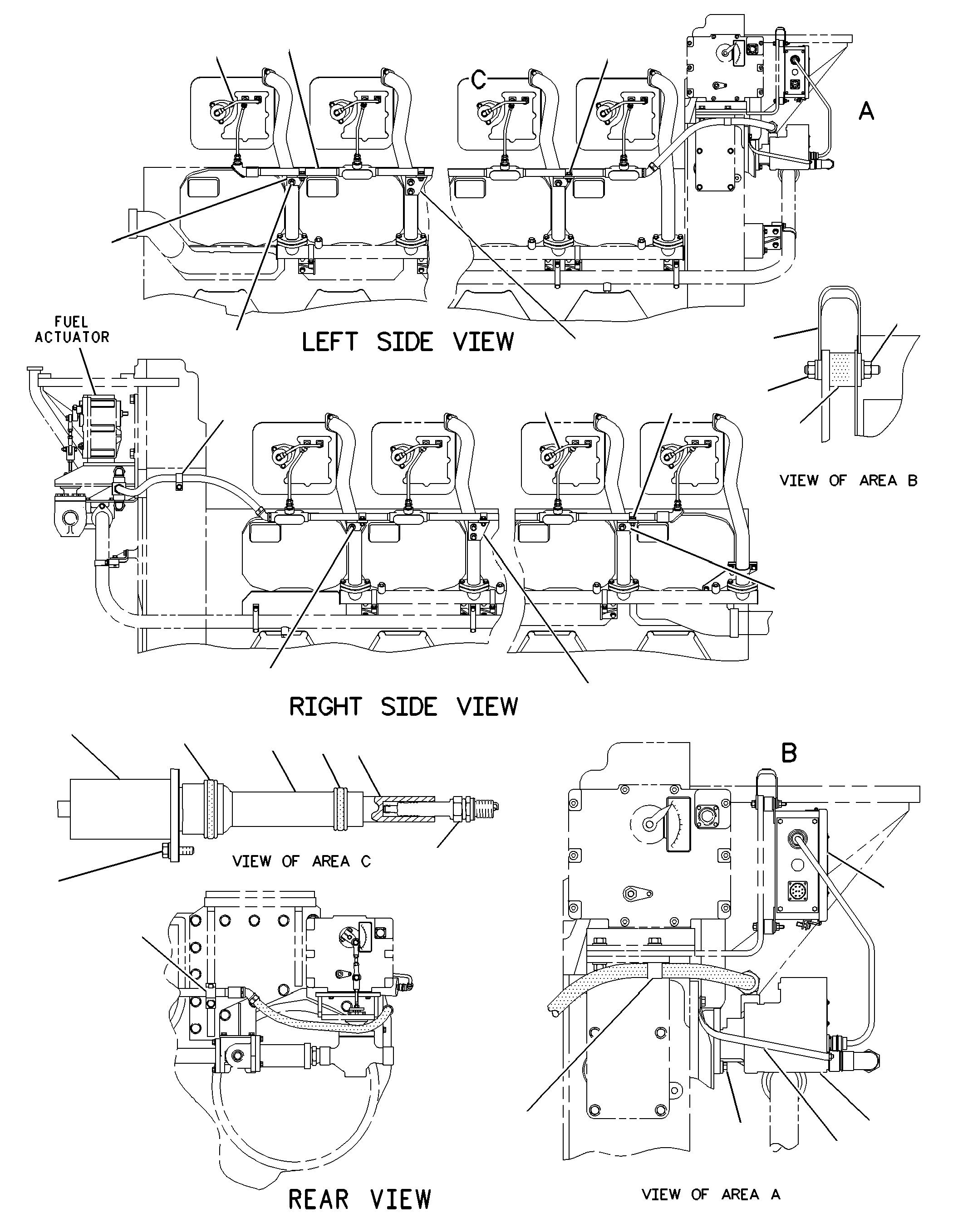

7C-0450 IGNITION GP-GAS ENGINE (CHG -07 THRU -11, -11A1-11B1 THRU -13, -13D1)VARIABLE TIMING
Group No: 7C-0450
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W4377 | 1 TRANSFORMER | 16 | |
| 7W5215 | GASKET | 16 | |
| 0S1618 | 2 BOLT (5/16-18X1-IN) | 48 | |
| 9M1974 | WASHER-HARD (8.8X16X2-MM THK) | 48 | |
| 1H3338 | 3 LOCKWASHER | 1 | |
| 7E3056 | 4 HARNESS AS-WIRING (IGNITION) | 16 | |
| 7E1531 | 5 HARNESS AS | 1 | |
| 3P0650 | 6 SEAL-O-RING | 16 | |
| 7E8362 | 7 TUBE AS | 16 | |
| 1238641 | 8 EXTENSION AS | 16 | |
| 6V3830 | 9 SEAL-O-RING | 16 | |
| 1418951 | 10 SPARK PLUG | 16 | |
| 0S1591 | 11 BOLT (3/8-16X1.5-IN) | 3 | |
| 8M9024 | WASHER-HARD (10.2X22.5X5-MM THK) | 3 | |
| 7C8882 | 12 MAGNETO GP | 1 | |
| 6V1196 | SEAL-O-RING | 1 | |
| 0S1594 | 13 BOLT (3/8-16X1-IN) | 18 | |
| 1094328 | 14 BRACKET | 4 | |
| 1455642 | 15 BOX AS-CONTROL | 1 | |
| 1084070 | HARNESS AS | 1 | |
| 7E3222 | 16 MOUNT-FLEXIBLE | 4 | |
| 9S8750 | 17 NUT-FULL (1/4-20-THD) | 8 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 9L9132 | 18 WASHER-HARD (10.2X25.5X2.5-MM THK) | 46 | |
| 7X6034 | 19 STRAP AS-GROUND | 1 | |
| 9S8752 | 20 NUT-FULL (3/8-16-THD) | 14 | |
| 3B1915 | BOLT (3/8-16X1.375-IN) | 14 | |
| 8S0023 | CLIP (SLOT) | 14 | |
| 8S0024 | CLIP (TAB) | 14 | |
| 2D7134 | 21 STRAP AS | 1 | |
| 1296691 | 22 BRACKET | 10 | |
| 7C4355 | 23 CLIP | 2 | |
| 8T1890 | 24 CLIP (TAB) | 2 | |
| 8T1895 | 25 CLIP (SLOT) | 2 |
