System And Components

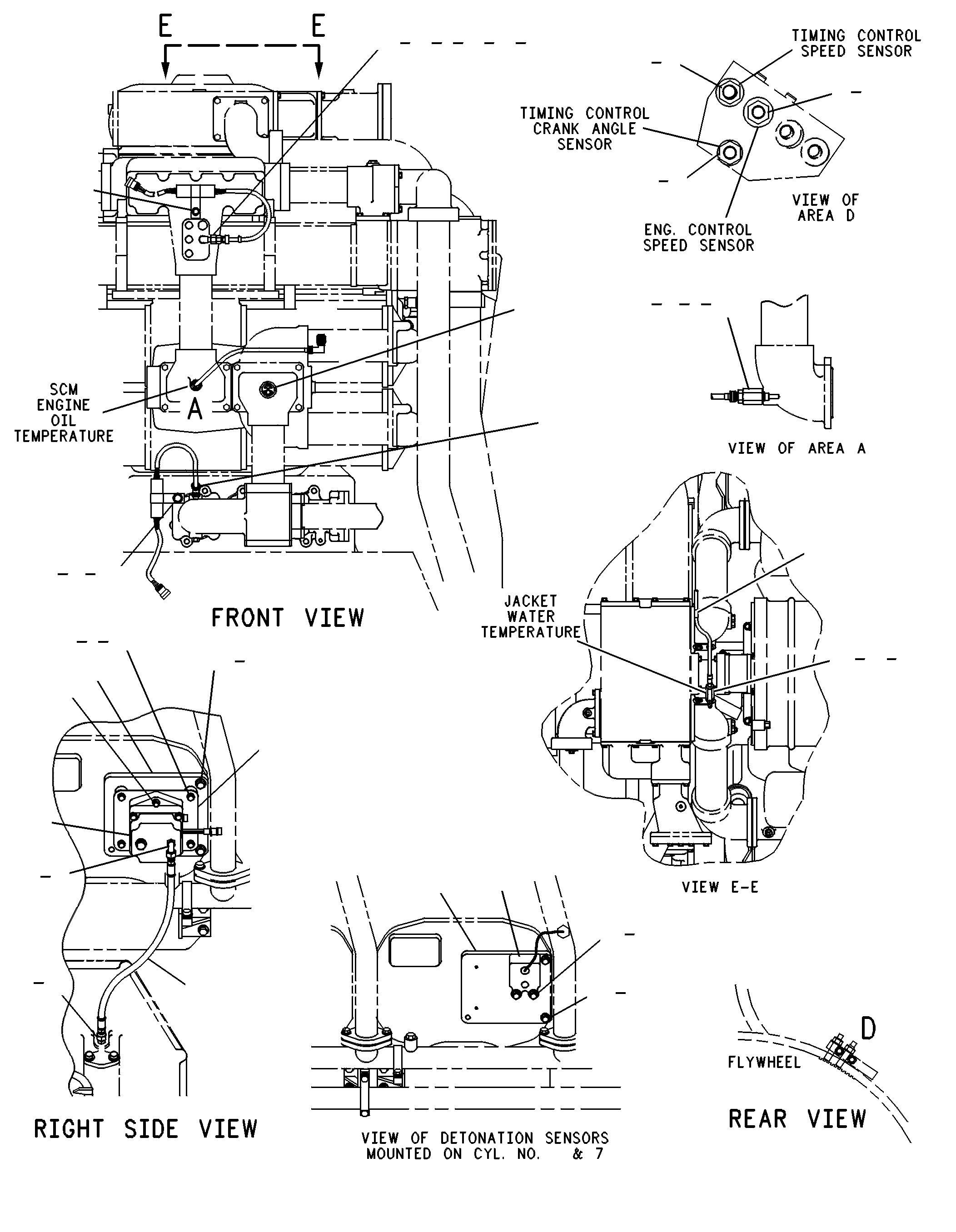

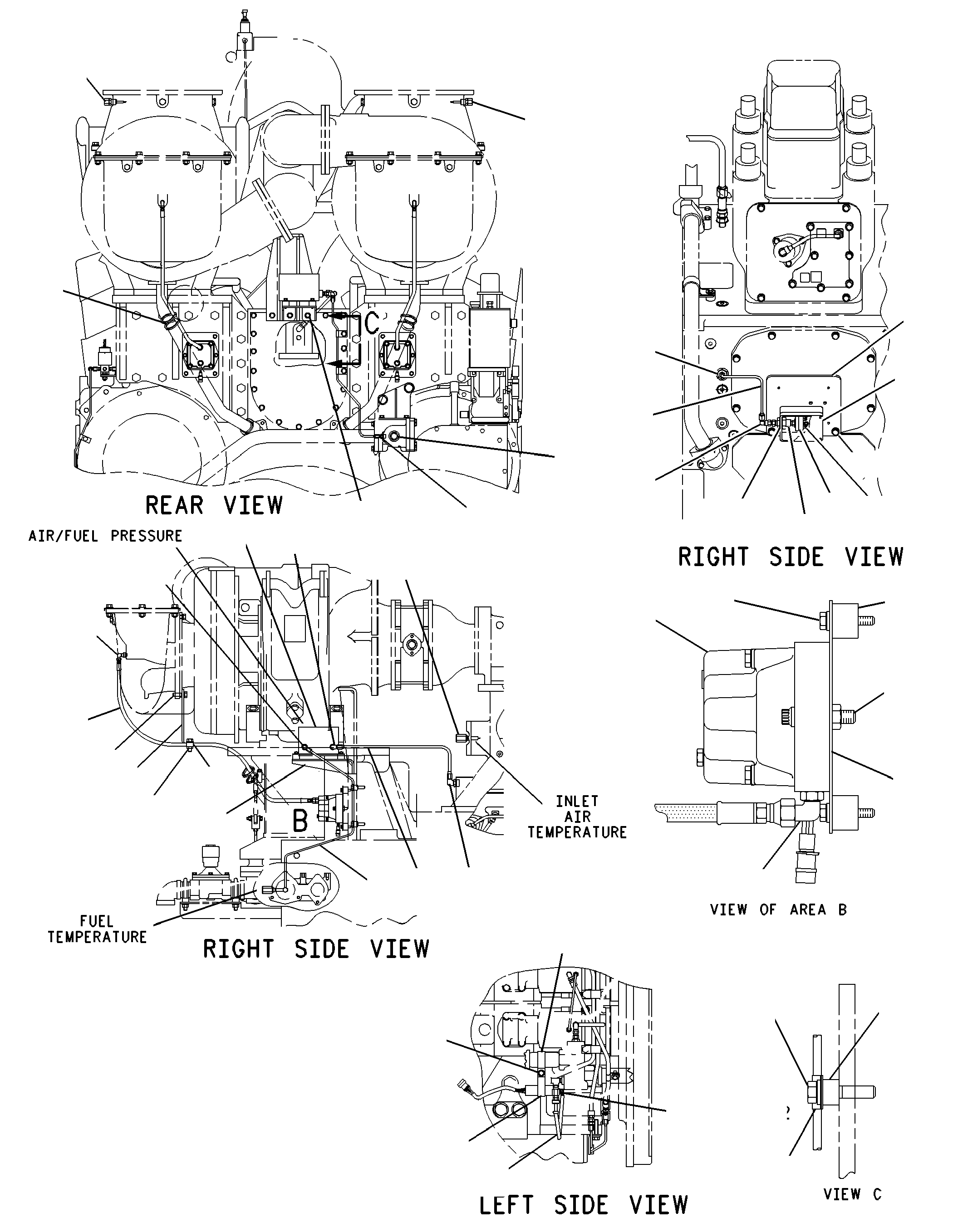

117-7599 SENSOR & MOUNTING GP (CHG -01, -02, -02D1)PART OF 117-5308 SCHEMATIC & COMPONENT GP
Group No: 117-7599
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V5048 | 1 SEAL-O-RING | 3 | |
| 8L4171 | 2 SENSOR GP-SPEED (ENGINE) | 2 | |
| 6V5049 | 3 SEAL-O-RING | 5 | |
| 3E8689 | 4 SENSOR GP-PRESSURE (OIL PRESS) | 1 | |
| 5P8247 | 5 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 4J9448 | 6 LUG | 4 | |
| 5P0537 | 7 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 0307946 | 8 ELBOW | 1 | |
| 3J7354 | 9 SEAL-O-RING | 2 | |
| 6V8647 | 10 CONNECTOR | 1 | |
| 1072675 | 11 SENSOR AS-SPEED | 1 | |
| 1073952 | 12 SENSOR GP-PRESSURE | 1 | |
| 8L2786 | 13 SEAL-O-RING | 1 | |
| 1007834 | 14 PLATE AS | 1 | |
| 7C9897 | 15 HOSE AS | 1 | |
| 7B2742 | 16 BOLT (1/4-20X1.25-IN) | 4 | |
| 5P8245 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0S1587 | 18 BOLT (1/2-13X1.75-IN) | 1 | |
| 3J7352 | 19 CONNECTOR | 1 | |
| 8T0788 | 20 ELBOW | 2 | |
| 1007870 | 21 ADAPTER-O-RING | 1 | |
| 0532294 | 22 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 2 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 0L2070 | 23 BOLT (3/8-16X2.25-IN) | 2 | |
| 4S5719 | SPACER (10.31X25X12.7-MM THK) | 2 | |
| 4N3329 | 24 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 0S1590 | 25 BOLT (3/8-16X2-IN) | 4 | |
| 1159143 | 26 SENSOR GP-TEMPERATURE | 1 | |
| 8T3285 | 27 ADAPTER | 1 | |
| 7C0727 | 28 PLATE | 3 | |
| 1129273 | 29 SENSOR GP-DETONATION (DETONATION SENSOR) | 2 | |
| 1077142 | 30 SENSOR GP-PRESSURE (SCM OIL) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (11 CM) | ||
| 7X1043 | 31 SENSOR GP-TEMPERATURE | 1 | |
| 1073952 | 32 SENSOR GP-PRESSURE | 1 | |
| 0S1571 | 33 BOLT (3/8-16X1.75-IN) | 4 | |
| 5P9297 | 34 CLIP (LOOP) | 17 | |
| 3V3308 | 35 WASHER-HARD (10.2X20.5X2.5-MM THK) | 11 | |
| 6V9872 | 36 CONNECTOR | 2 | |
| 8L2779 | 37 SEAL-O-RING | 2 | |
| 5N2840 | 38 CLIP | 2 | |
| 5B2638 | 39 BOLT (3/8-16X5.25-IN) | 1 | |
| 3N8278 | 40 ADAPTER-SENSOR | 2 | |
| 6I0407 | 41 THERMOCOUPLE | 2 | |
| 6V5048 | 42 SEAL-O-RING | 1 | |
| 6V9601 | 43 ADAPTER | 1 | |
| 6V5049 | 44 SEAL-O-RING | 4 | |
| 4J9448 | 45 LUG | 8 | |
| 9S8752 | 46 NUT-FULL (3/8-16-THD) | 1 | |
| 0S1594 | BOLT (3/8-16X1-IN) | 1 | |
| 5P0537 | 47 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 3J7354 | 48 SEAL-O-RING | 2 | |
| 6V8647 | 49 CONNECTOR | 1 | |
| 8L2786 | 50 SEAL-O-RING | 3 | |
| 1007834 | 51 PLATE AS | 2 | |
| 9X5272 | 52 SENSOR GP-PRESSURE (STARTING AIR PRESSURE) | 1 | |
| 5T4375 | 53 HOSE AS | 2 | |
| 0689941 | 54 WIRE-TIE | 4 | |
| 5K3294 | 55 CLIP | 2 | |
| 1F7958 | 56 NUT-FULL (1/2-13-THD) | 2 | |
| 0S1595 | BOLT (1/2-13X1.25-IN) | 2 | |
| 5P8245 | 57 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2W8739 | 58 BRACKET | 2 | |
| 9W0532 | 59 SENSOR GP-TEMPERATURE (INLET AIR TEMPERATURE) | 1 | |
| 0S1587 | 60 BOLT (1/2-13X1.75-IN) | 2 | |
| 3E9189 | 61 SENSOR GP-PRESSURE (EXHAUST STACK TEMP) | 2 | |
| 0307946 | 62 ELBOW | 2 | |
| 7J4026 | 63 ELBOW | 2 | |
| 9M4136 | 64 SPACER (0.438X0.75X0.5-IN THK) | 2 | |
| 7K9197 | 65 ELBOW | 2 | |
| 6V4589 | 66 SEAL-O-RING | 1 | |
| 0S1571 | 67 BOLT (3/8-16X1.75-IN) | 6 | |
| 3V3308 | 68 WASHER-HARD (10.2X20.5X2.5-MM THK) | 8 | |
| 5N2840 | 69 CLIP | 1 | |
| 7D1553 | 70 CLIP | 1 | |
| 2A5546 | 71 BOLT (1/4-20X1.375-IN) | 8 | |
| 0532294 | 72 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 4 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 0L2072 | 73 CLIP | 2 | |
| 2P1314 | 74 CONNECTOR | 1 | |
| 6K9194 | 75 ELBOW | 1 | |
| 0054362 | 76 ELBOW | 1 | |
| 1021596 | 77 TUBE AS | 1 | |
| 1021595 | 78 TUBE AS | 1 | |
| 1021594 | 79 BRACKET AS | 1 | |
| 3N1400 | 80 SWITCH AS-PRESSURE | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 4B1229 | 81 SCREW (10-24X12.7-MM) | 4 | |
| 4S6399 | 82 CONNECTOR | 1 | |
| 6V7699 | 83 WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 7C0727 | 84 PLATE | 1 | |
| 7J8744 | 85 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 9M7357 | 86 COUPLING AS | 1 | |
| 9Y1925 | 87 BOX AS | 1 | |
| 0308195 | 88 CONNECTOR | 1 | |
| 1132038 | 89 TUBE AS | 1 | |
| 9W0532 | 90 SENSOR GP-TEMPERATURE | 1 | |
| 1024202 | 91 CONTROL GP-ENGINE MONITORING (AIR FUEL PRESSURE) | 1 |
