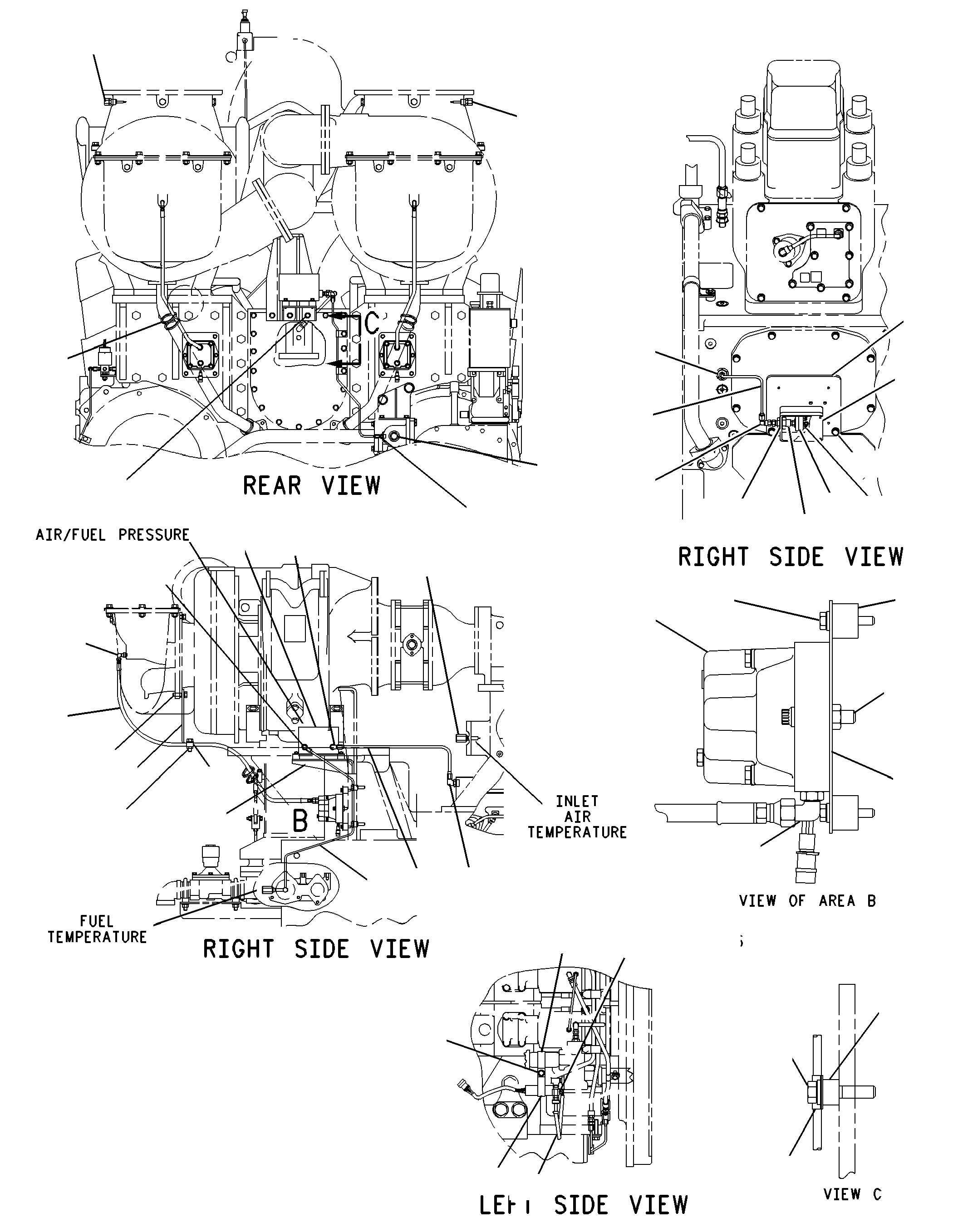

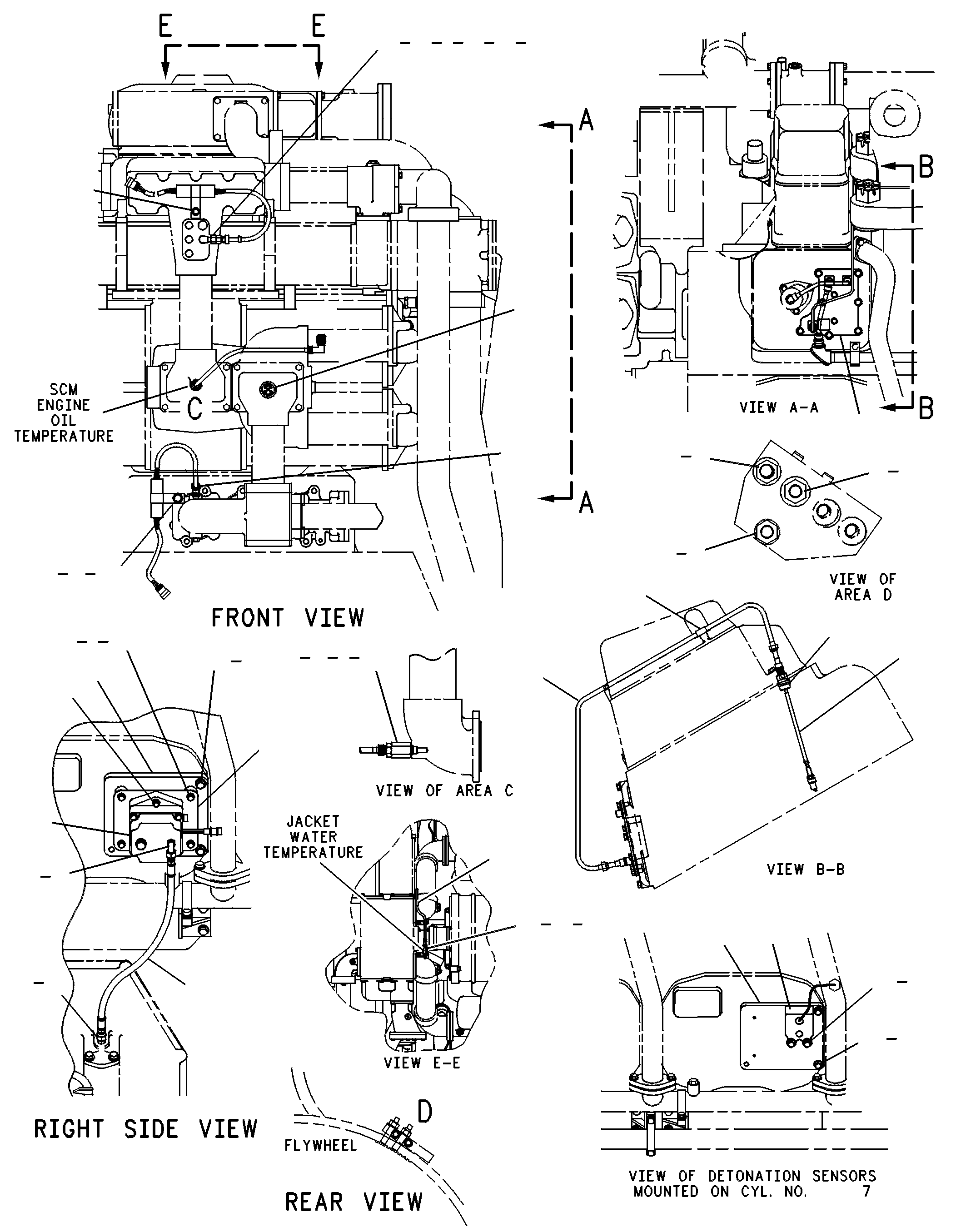

7E-1791 SENSOR & MOUNTING GP (CHG -07, -07D1)PART OF 106-8120, 108-5755 SCHEMATIC & COMPONENT GP
Group No: 7E-1791
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V5048 | 1 SEAL-O-RING | 3 | |
| 8L4171 | 2 SENSOR GP-SPEED (ENGINE) | 2 | |
| 6V5049 | 3 SEAL-O-RING | 5 | |
| 3E8689 | 4 SENSOR GP-PRESSURE (OIL) | 1 | |
| 5P8247 | 5 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 4J9448 | 6 LUG | 4 | |
| 5P0537 | 7 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 0307946 | 8 ELBOW | 1 | |
| 3J7354 | 9 SEAL-O-RING | 2 | |
| 6V8647 | 10 CONNECTOR | 1 | |
| 1072675 | 11 SENSOR AS-SPEED | 1 | |
| 1073952 | 12 SENSOR GP-PRESSURE (CMS ENGINE-UNFILTERED) | 1 | |
| 8L2786 | 13 SEAL-O-RING | 1 | |
| 1007834 | 14 PLATE AS | 1 | |
| 7C9897 | 15 HOSE AS | 1 | |
| 7B2742 | 16 BOLT (1/4-20X1.25-IN) | 4 | |
| 5P8245 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0S1587 | 18 BOLT (1/2-13X1.75-IN) | 1 | |
| 3J7352 | 19 CONNECTOR | 1 | |
| 8T0788 | 20 ELBOW | 2 | |
| 1007870 | 21 ADAPTER-O-RING | 1 | |
| 7X6354 | 22 CONTROL GP-ENGINE MONITORING (COMBUSTION SENSOR) | 16 | |
| 6V5050 | 23 SEAL-O-RING | 16 | |
| 6I3783 | 24 WIRE AS-SENSOR | 16 | |
| 0328970 | SEAL-O-RING | 32 | |
| 0S1590 | 25 BOLT (3/8-16X2-IN) | 4 | |
| 1159143 | 26 SENSOR GP-TEMPERATURE | 1 | |
| 8T3285 | 27 ADAPTER | 1 | |
| 7C0727 | 28 PLATE | 3 | |
| 9X4836 | 29 SENSOR GP-DETONATION (DETONATION SENSOR) | 2 | |
| 1077142 | 30 SENSOR GP-PRESSURE (SCM OIL) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (11 CM) | ||
| 7X1043 | 31 SENSOR GP-TEMPERATURE (JACKET WATER TEMP SENSOR) | 1 | |
| 3E6116 | 32 CONTROL GP-ENGINE ELECTRONIC (COMBUSTION BUFFER) | 16 | |
| 0S1571 | 33 BOLT (3/8-16X1.75-IN) | 4 | |
| 5P9297 | 34 CLIP (LOOP) | 17 | |
| 3V3308 | 35 WASHER-HARD (10.2X20.5X2.5-MM THK) | 11 | |
| 6V9872 | 36 CONNECTOR | 2 | |
| 8L2779 | 37 SEAL-O-RING | 2 | |
| 5N2840 | 38 CLIP | 2 | |
| 5B2638 | 39 BOLT (3/8-16X5.25-IN) | 1 | |
| 0532294 | 40 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 2 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 0L2070 | 41 BOLT (3/8-16X2.25-IN) | 2 | |
| 4S5719 | SPACER (10.31X25X12.7-MM THK) | 2 | |
| 4N3329 | 42 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 1073952 | 43 SENSOR GP-PRESSURE (CMS ENGINE-FILTERED) | 1 | |
| 3N8278 | 44 ADAPTER-SENSOR | 2 | |
| 6I0407 | 45 THERMOCOUPLE | 2 | |
| 6V5048 | 46 SEAL-O-RING | 1 | |
| 6V9601 | 47 ADAPTER | 1 | |
| 6V5049 | 48 SEAL-O-RING | 4 | |
| 4J9448 | 49 LUG | 8 | |
| 9S8752 | 50 NUT-FULL (3/8-16-THD) | 1 | |
| 0S1594 | BOLT (3/8-16X1-IN) | 1 | |
| 5P0537 | 51 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 3J7354 | 52 SEAL-O-RING | 2 | |
| 6V8647 | 53 CONNECTOR | 1 | |
| 8L2786 | 54 SEAL-O-RING | 3 | |
| 1007834 | 55 PLATE AS | 2 | |
| 9X5272 | 56 SENSOR GP-PRESSURE (STARTING AIR PRESSURE) | 1 | |
| 5T4375 | 57 HOSE AS | 2 | |
| 0689941 | 58 WIRE-TIE | 4 | |
| 5K3294 | 59 CLIP | 2 | |
| 1F7958 | 60 NUT-FULL (1/2-13-THD) | 2 | |
| 0S1595 | BOLT (1/2-13X1.25-IN) | 2 | |
| 5P8245 | 61 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2W8739 | 62 BRACKET | 2 | |
| 9W0532 | 63 SENSOR GP-TEMPERATURE (INLET AIR TEMPERATURE) | 1 | |
| 0S1587 | 64 BOLT (1/2-13X1.75-IN) | 2 | |
| 3E9189 | 65 SENSOR GP-PRESSURE (EXHAUST STACK TEMP) | 2 | |
| 0307946 | 66 ELBOW | 2 | |
| 7J4026 | 67 ELBOW | 2 | |
| 9M4136 | 68 SPACER (0.438X0.75X0.5-IN THK) | 2 | |
| 7K9197 | 69 ELBOW | 2 | |
| 6V4589 | 70 SEAL-O-RING | 1 | |
| 0S1571 | 71 BOLT (3/8-16X1.75-IN) | 6 | |
| 3V3308 | 72 WASHER-HARD (10.2X20.5X2.5-MM THK) | 8 | |
| 5N2840 | 73 CLIP | 1 | |
| 7D1553 | 74 CLIP | 1 | |
| 2A5546 | 75 BOLT (1/4-20X1.375-IN) | 8 | |
| 0532294 | 76 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 4 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 0L2072 | 77 CLIP | 2 | |
| 2P1314 | 78 CONNECTOR | 1 | |
| 6K9194 | 79 ELBOW | 1 | |
| 0054362 | 80 ELBOW | 1 | |
| 1021596 | 81 TUBE AS | 1 | |
| 1021595 | 82 TUBE AS | 1 | |
| 1021594 | 83 BRACKET AS | 1 | |
| 3N1400 | 84 SWITCH AS-PRESSURE (PRELUBE PRESSURE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 4B1229 | 85 SCREW (10-24X12.7-MM) | 4 | |
| 4S6399 | 86 CONNECTOR | 1 | |
| 6V7699 | 87 WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 7C0727 | 88 PLATE | 1 | |
| 7J8744 | 89 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 9M7357 | 90 COUPLING AS | 1 | |
| 9Y1925 | 91 BOX AS | 1 | |
| 0308195 | 92 CONNECTOR | 1 | |
| 1132038 | 93 TUBE AS | 1 | |
| 9W0532 | 94 SENSOR GP-TEMPERATURE (FUEL TEMP SENSOR) | 1 | |
| 3E0166 | 95 CONTROL GP-ENGINE MONITORING (AIR FUEL PRESSURE) | 1 |
