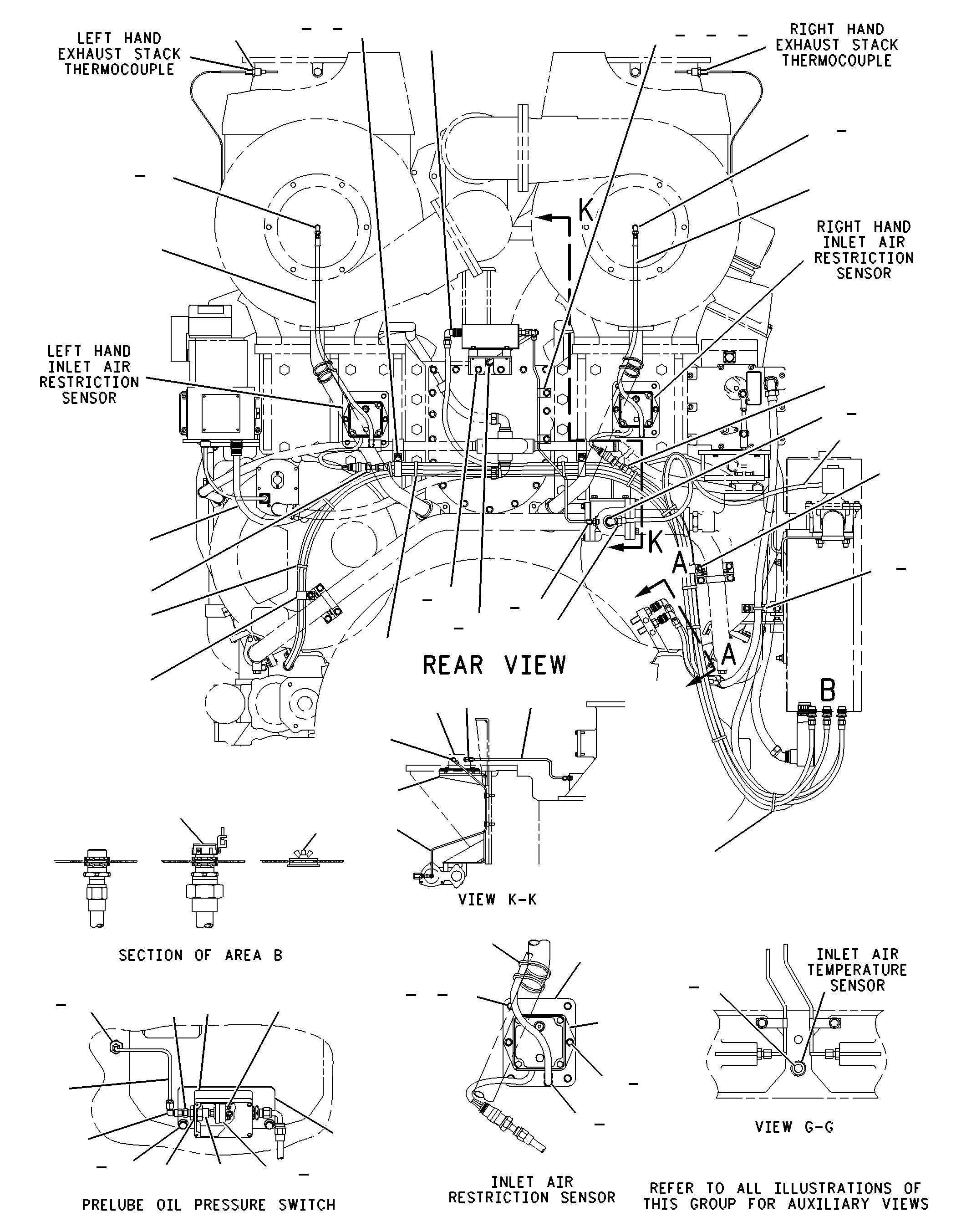

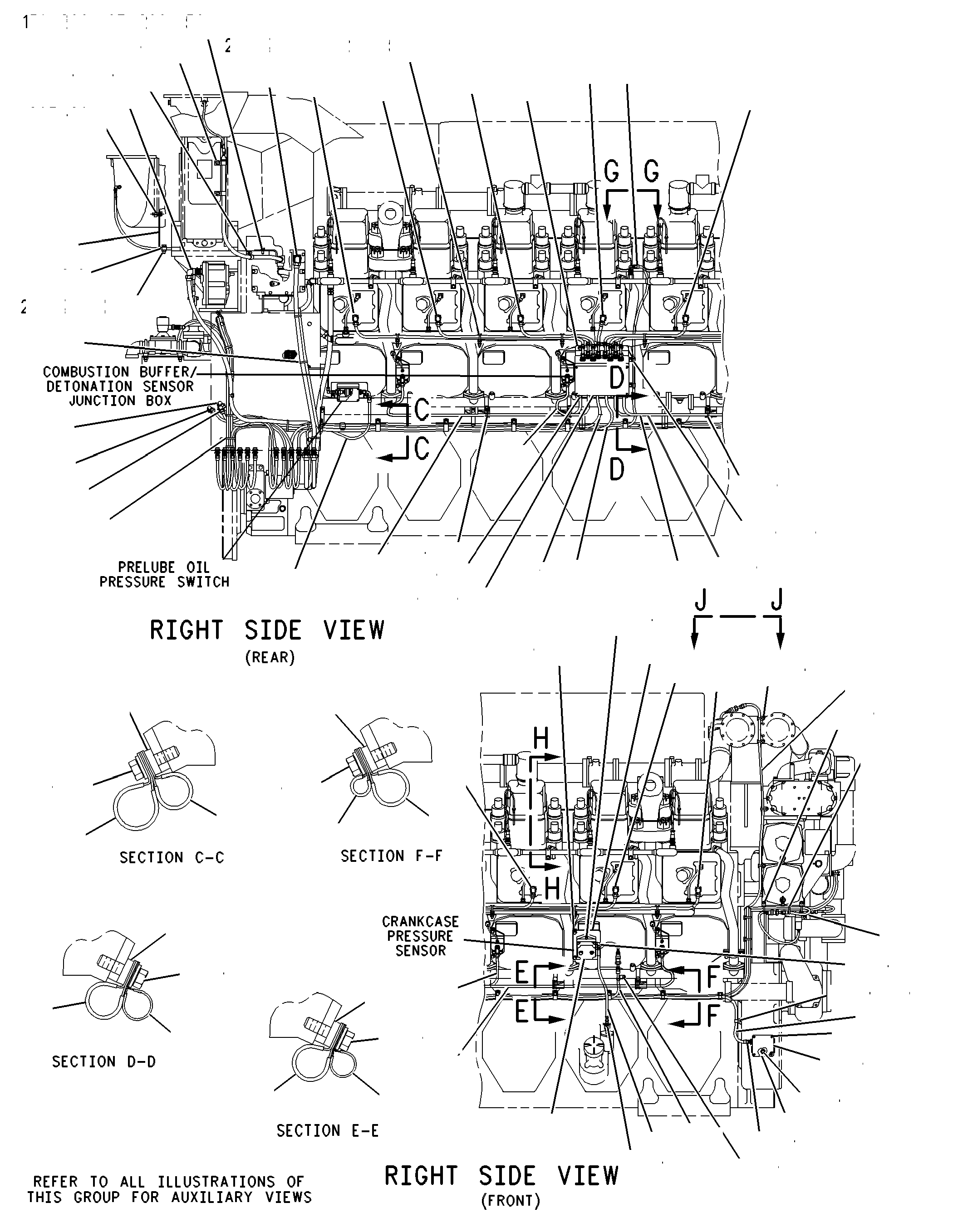

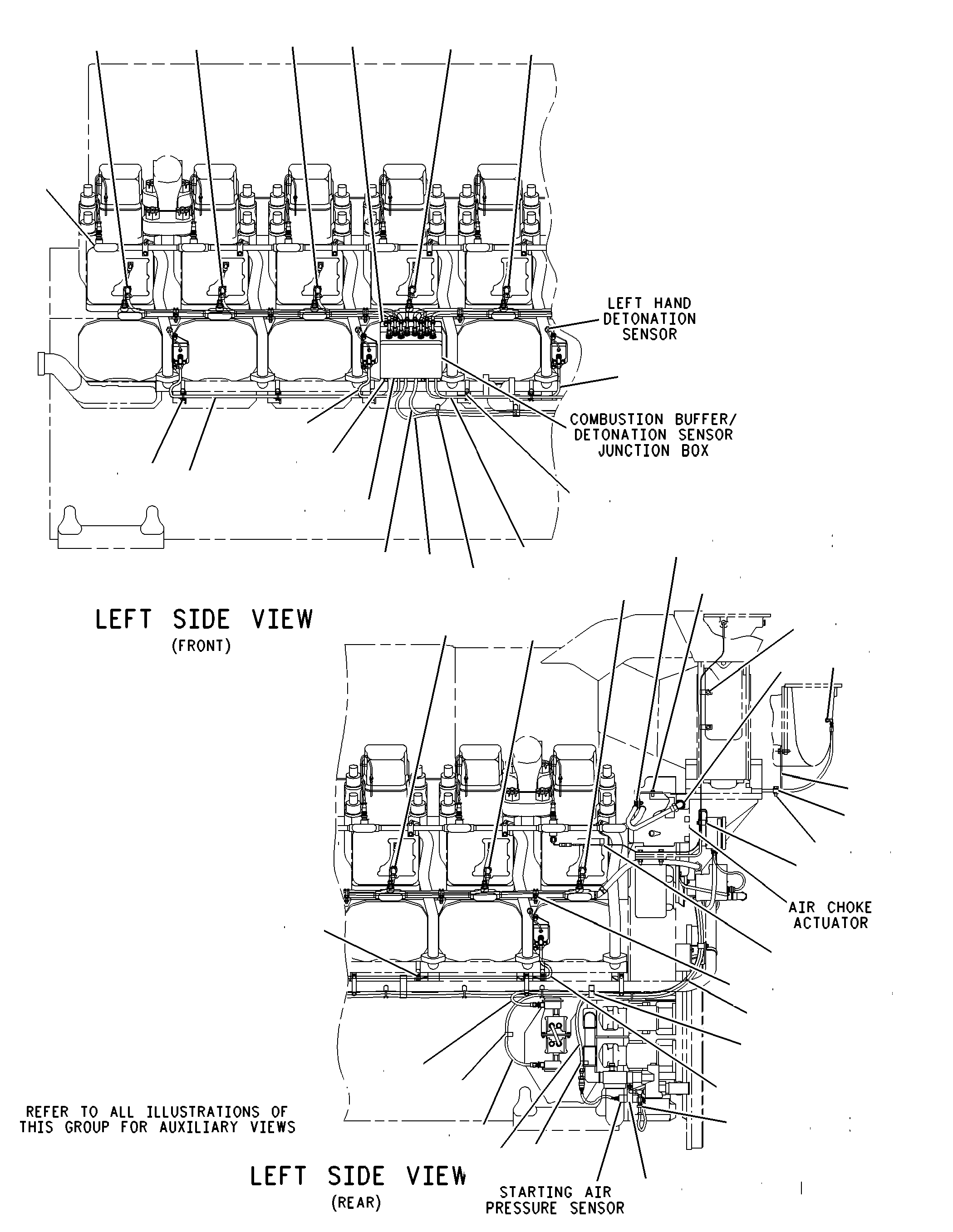

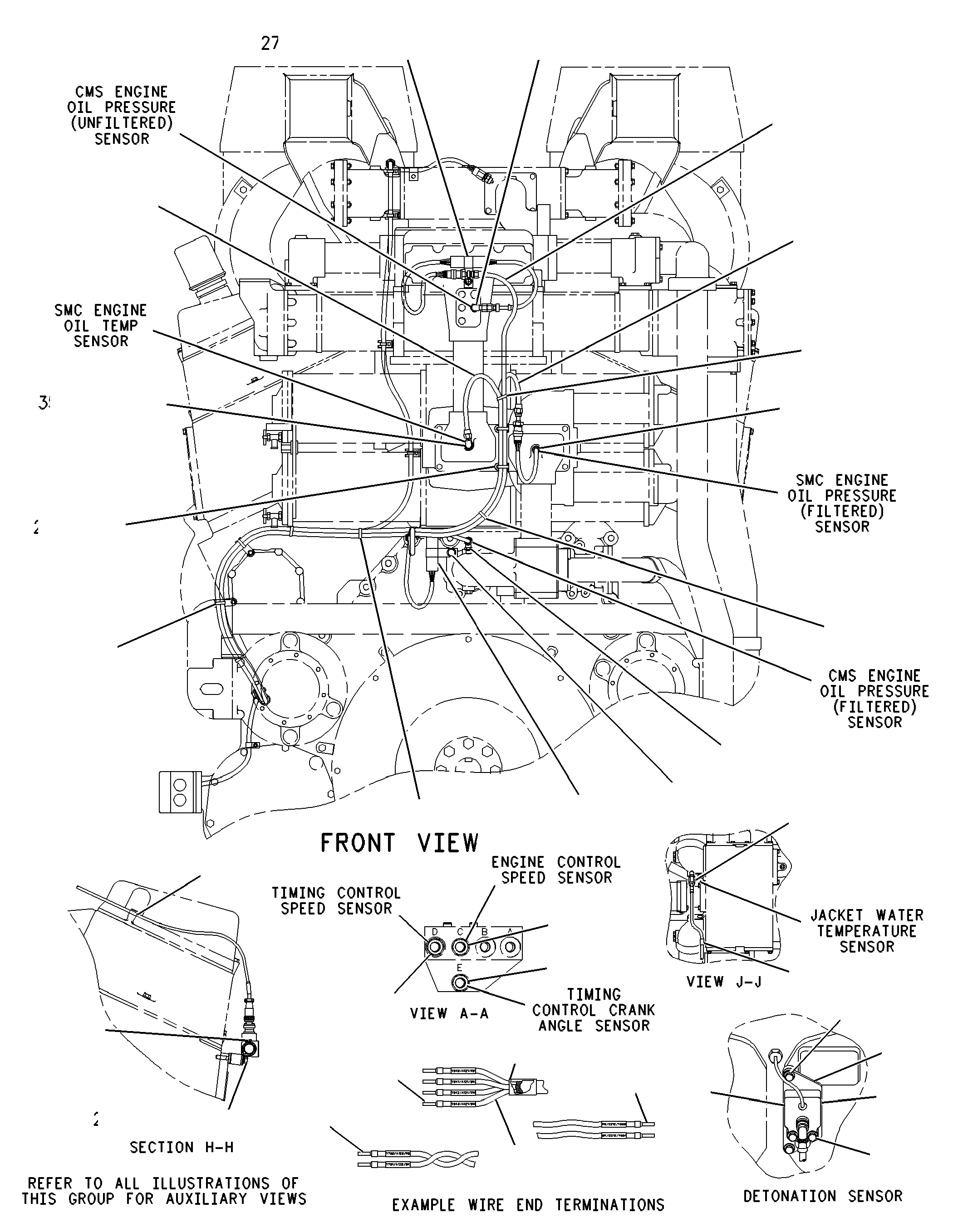

125-3875 WIRING GP-ENGINE (CHG -03A2, -03B1, -03B2)PART OF 117-5308 SCHEMATIC & COMPONENT GP

Group No: 125-3875
Part NumberPart NameQty
5P82471 WASHER-HARD (17X32X3.5-MM THK)2
4N33292 WASHER (16.25X25.65X0.79-MM)1
8L41713 SENSOR GP-SPEED (ENGINE)2
10726754 SENSOR AS-SPEED (ENGINE SPEED)1
10930385 END-WIRE (16-GA)9
11087146 END-WIRE (18-GA)84
12578757 TUBE-HEAT SHRINK (7.44-MM DIA)
8T63428 TUBE-HEAT SHRINK (3.2-MM DIA)
10930399 END-WIRE (12-GA)6
5P929710 CLIP (LOOP)1
0L207011 BOLT (3/8-16X2.25-IN)16
091903512 SPACER (11X25X20-MM THK)16
7X104313 SENSOR GP-TEMPERATURE1
8T328514 ADAPTER1
6K817915 CLIP16
8T189516 CLIP (SLOT)14
8T189617 CLIP (TAB)14
124963318 CLIP (SLOT)6
9L913219 WASHER-HARD (10.2X25.5X2.5-MM THK)14
1B497120 SPACER (0.406X1X1-IN THK)14
0T057321 BOLT (3/8-16X2.75-IN)14
125385422 HARNESS AS1
125385623 HARNESS AS1
125385124 HARNESS AS1
9X677225 STRAP-CABLE9
3V330826 WASHER-HARD (10.2X20.5X2.5-MM THK)49
4P813427 CLIP (LADDER)3
9X677228 STRAP-CABLE5
107714229 SENSOR GP-PRESSURE (ENGINE OIL)1
6V864730 CONNECTOR1
6V504831 SEAL-O-RING3
6V504932 SEAL-O-RING5
114226933 SENSOR GP-TEMPERATURE (ENGINE OIL)1
100787034 ADAPTER-O-RING1
8L278635 SEAL-O-RING1
5P824536 WASHER-HARD (13.5X25.5X3-MM THK)1
5N284037 CLIP2
107395238 SENSOR GP-PRESSURE2
6V987239 CONNECTOR2
8T078840 ELBOW2
8L277941 SEAL-O-RING2
5B263842 BOLT (3/8-16X5.25-IN)1
4P758143 CLIP (LADDER)2
106915444 INSULATOR8
125458845 PLATE8
112927346 SENSOR GP-DETONATION (DETONATION)8
0S158747 BOLT (1/2-13X1.75-IN)1
0L114348 BOLT (3/8-16X2.5-IN)16
7J402649 ELBOW2
5T437550 HOSE AS2
133141251 CONTROL GP-ENGINE MONITORING1
125382752 HARNESS AS1
7K919753 ELBOW2
6K919454 ELBOW1
102159455 BRACKET AS1
0S157156 BOLT (3/8-16X1.75-IN)6
136591057 TUBE AS1
2P131458 CONNECTOR1
030818859 CONNECTOR1
136590860 TUBE AS1
9W053261 SENSOR GP-TEMPERATURE2
7D723362 CLIP (LOOP)2
0S159463 BOLT (3/8-16X1-IN)2
0L207264 CLIP2
9M413665 SPACER (0.438X0.75X0.5-IN THK)2
100783466 PLATE AS2
1F0750NUT-WELD (3/8-16-THD)2
125383267 HARNESS AS (AIR RESTRICTION LEFT)1
125383368 HARNESS AS (AIR RESTRICTION RIGHT)1
125382669 HARNESS AS (GAS SHUTOFF VALVE)1
125382870 HARNESS AS1
6B507271 ADAPTER2
7D409272 CLIP1
4S196273 CLIP (LOOP)1
125381474 HARNESS AS1
3V243175 WASHER (10.2X16X2-MM THK)4
2N347876 SCREW-MACHINE (10-24X0.375-IN)4
128632577 BUSHING1
125786178 SEAL3
130941879 BRACKET1
5P007680 BOLT-12 POINT HEAD (3/8-16X1.5-IN)4
030794681 ELBOW2
3E918982 SENSOR GP-PRESSURE2
5P053783 WASHER-HARD (7.2X14.5X2-MM THK)8
2A554684 BOLT (1/4-20X1.375-IN)8
9X677285 STRAP-CABLE15
3V330886 WASHER-HARD (10.2X20.5X2.5-MM THK)8
9X677287 STRAP-CABLE1
6V504888 SEAL-O-RING2
6V504989 SEAL-O-RING3
8L278690 SEAL-O-RING3
4P758191 CLIP (LADDER)1
4J944892 LUG8
068994193 WIRE-TIE4
030819594 CONNECTOR1
6V458995 SEAL-O-RING1
113203896 TUBE AS1
4S639997 CONNECTOR1
7J874498 WASHER (0.781X0.125X0.075-IN THK)1
9M735799 COUPLING AS1
3N1400100 SWITCH AS-PRESSURE (PRELUBE OIL PRESSURE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
2L8075101 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
9Y1925102 BOX AS1
0S1594103 BOLT (3/8-16X1-IN)8
4S1962104 CLIP (LOOP)2
0S1591105 BOLT (3/8-16X1.5-IN)1
6K8179106 CLIP2
1257861107 SEAL2
1253810108 HARNESS AS1
7D1553109 CLIP1
9S8752110 NUT-FULL (3/8-16-THD)9
6V9601111 ADAPTER1
5P9297112 CLIP (LOOP)2
1253819113 HARNESS AS1
1253822114 HARNESS AS (AIR PRELUBRICATION SOLENOID)1
1253821115 HARNESS AS (START AIR SOLENOID)1
8S4626116 SPLICE-WIRE4
1253843117 HARNESS AS (COMBUSTION BUFFER)2
1253844118 HARNESS AS (COMBUSTION BUFFER)2
1253845119 HARNESS AS (COMBUSTION BUFFER)1
0S1571120 BOLT (3/8-16X1.75-IN)4
1S0994121 CLIP (LOOP)1
1422507122 HARNESS AS-SENSOR (DETONATION)1
1253877123 BOX GP-JUNCTION1
2N3162124 SCREW-MACHINE (10-24X1.25-IN)4
1296687125 BRACKET1
1253842126 HARNESS AS (COMBUSTION BUFFER)2
1253876127 HARNESS AS1
1A2029128 BOLT (3/8-16X1.125-IN)1
1253860129 HARNESS AS1
1253862130 HARNESS AS1
9X6772131 STRAP-CABLE2
3V3308132 WASHER-HARD (10.2X20.5X2.5-MM THK)23
4P8134133 CLIP (LADDER)19
9X6772134 STRAP-CABLE19
6V8647135 CONNECTOR1
6V5048136 SEAL-O-RING1
6V5049137 SEAL-O-RING1
5P8245138 WASHER-HARD (13.5X25.5X3-MM THK)5
5N2840139 CLIP1
4D8948140 CLIP2
1253865141 HARNESS AS (COMBUSTION BUFFER)1
1310719142 BRACKET1
0S1587143 BOLT (1/2-13X1.75-IN)1
0S1595144 BOLT (1/2-13X1.25-IN)1
1F7958145 NUT-FULL (1/2-13-THD)1
5K3294146 CLIP1
2W8739147 BRACKET1
9X5272148 SENSOR GP-PRESSURE1
1422504149 HARNESS AS-SENSOR (DETONATION)1
1422505150 HARNESS AS-SENSOR (DETONATION)1
1422506151 HARNESS AS-SENSOR (DETONATION)1
1253808152 HARNESS AS1
1253809153 HARNESS AS1
1253825154 HARNESS AS1
0L2070155 BOLT (3/8-16X2.25-IN)2
0S1594156 BOLT (3/8-16X1-IN)12
4S1962157 CLIP (LOOP)12
1253824158 HARNESS AS1
0352017159 SCREW-BUTTON HEAD (3/8-16X1-IN)1
3V2431160 WASHER (10.2X16X2-MM THK)2
1257861161 SEAL5
1253823162 HARNESS AS1
9S8752163 NUT-FULL (3/8-16-THD)8
5P9297164 CLIP (LOOP)2
0S1571165 BOLT (3/8-16X1.75-IN)4
8M2770166 CLIP (LOOP)3
6K8179167 CLIP1
1422503168 HARNESS AS-SENSOR (DETONATION)1
2N3162169 SCREW-MACHINE (10-24X1.25-IN)8
1296687170 BRACKET1
0919035171 SPACER (11X25X20-MM THK)2
3B1915172 BOLT (3/8-16X1.375-IN)12
5P7854173 CLIP (LOOP)5
4H1225174 WASHER (11X22X6-MM THK)12
1A2029175 BOLT (3/8-16X1.125-IN)2
1253852176 HARNESS AS1
1253861177 HARNESS AS1
1253859178 HARNESS AS1
1253812179 HARNESS AS1
1297636180 BOX GP-JUNCTION1
3E8689181 SENSOR GP-PRESSURE1
5P0076182 BOLT-12 POINT HEAD (3/8-16X1.5-IN)2
0307946183 ELBOW1
3J7354184 SEAL-O-RING2
7C9897185 HOSE AS1
3J7352186 CONNECTOR1
1253857187 HARNESS AS1
1309417188 BRACKET1
1253855189 HARNESS AS1
1257859190 BOX GP-JUNCTION1
1253858191 HARNESS AS1
1253853192 HARNESS AS1
0S0509193 BOLT (3/8-16X0.75-IN)1
1257860194 BRACKET AS1
1253839195 HARNESS AS (COMBUSTION BUFFER)2
1253840196 HARNESS AS (COMBUSTION BUFFER)2
1253841197 HARNESS AS (COMBUSTION BUFFER)1
1253863198 HARNESS AS (COMBUSTION BUFFER)1
9X6772199 STRAP-CABLE13
3V3308200 WASHER-HARD (10.2X20.5X2.5-MM THK)41
4P8134201 CLIP (LADDER)18
9X6772202 STRAP-CABLE22
5P8245203 WASHER-HARD (13.5X25.5X3-MM THK)5
4P7429204 CLIP (LADDER)3
4D8948205 CLIP2
1310719206 BRACKET1
0S1587207 BOLT (1/2-13X1.75-IN)1
0S1595208 BOLT (1/2-13X1.25-IN)1
1F7958209 NUT-FULL (1/2-13-THD)1
5K3294210 CLIP1
2W8739211 BRACKET1
3S8665212 CLIP (LOOP)1
3S8664213 CLIP4
1253864214 HARNESS AS (COMBUSTION BUFFER)2
1422500215 HARNESS AS-SENSOR (DETONATION)1
1422501216 HARNESS AS-SENSOR (DETONATION)1
1422502217 HARNESS AS-SENSOR (DETONATION)1
