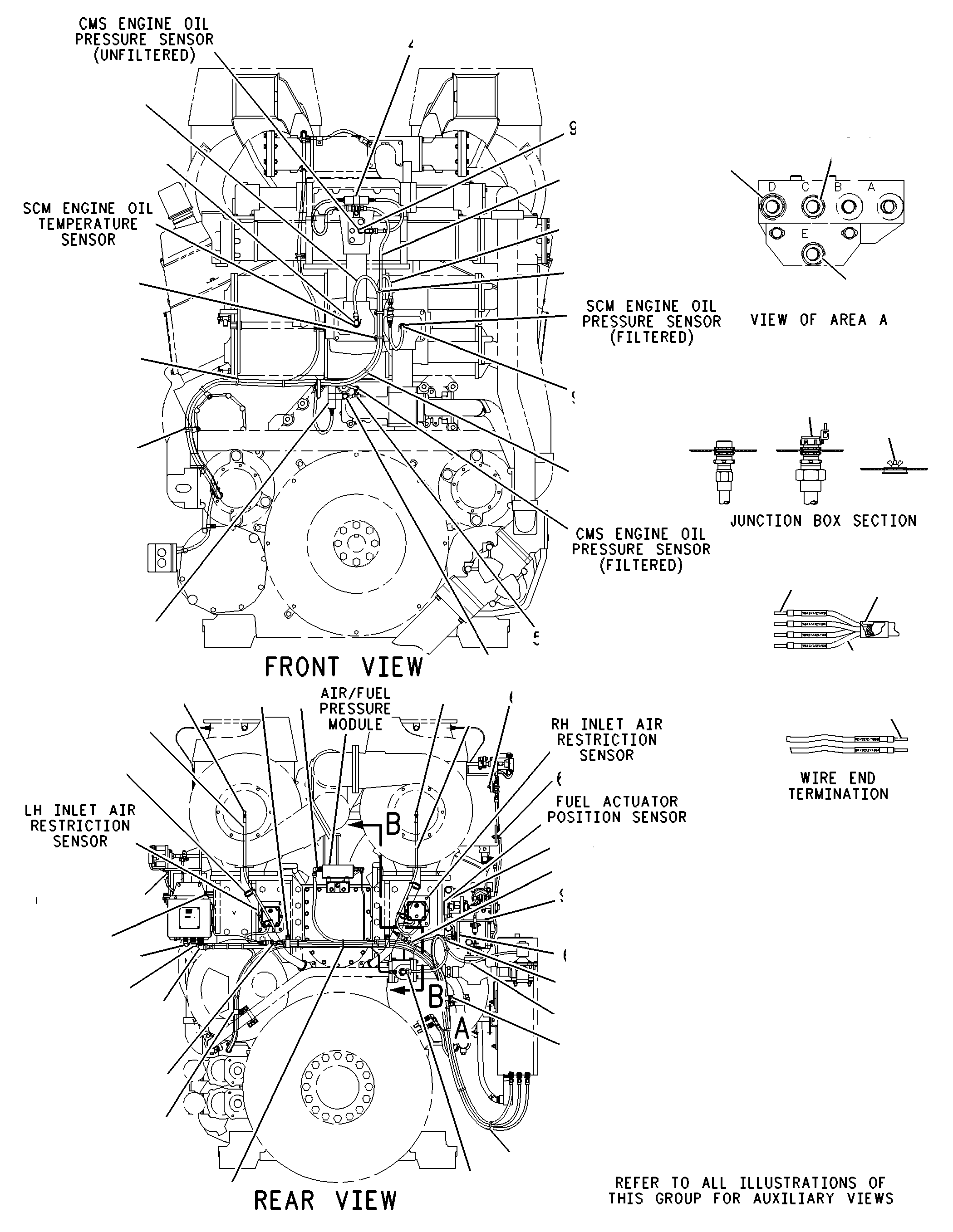

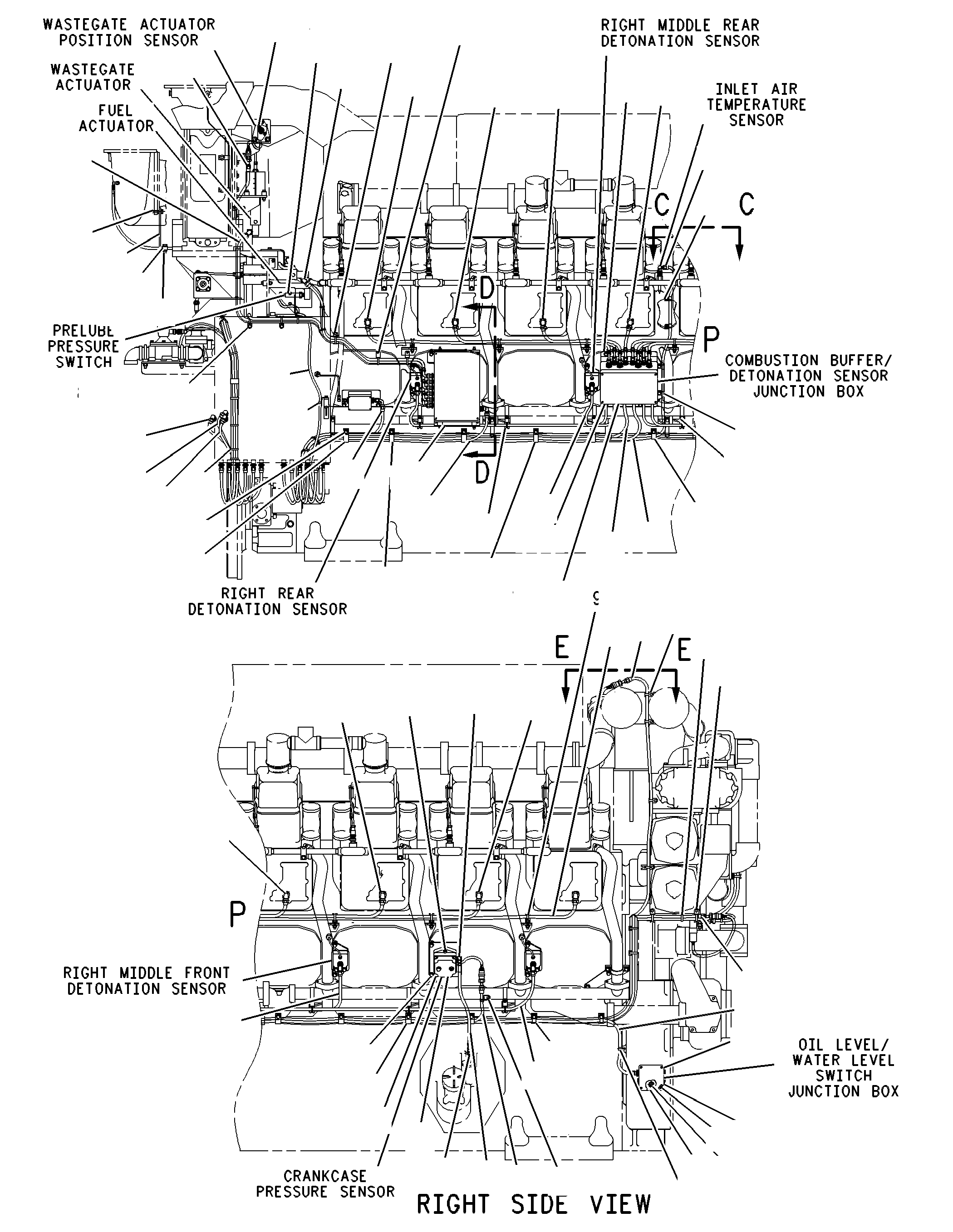

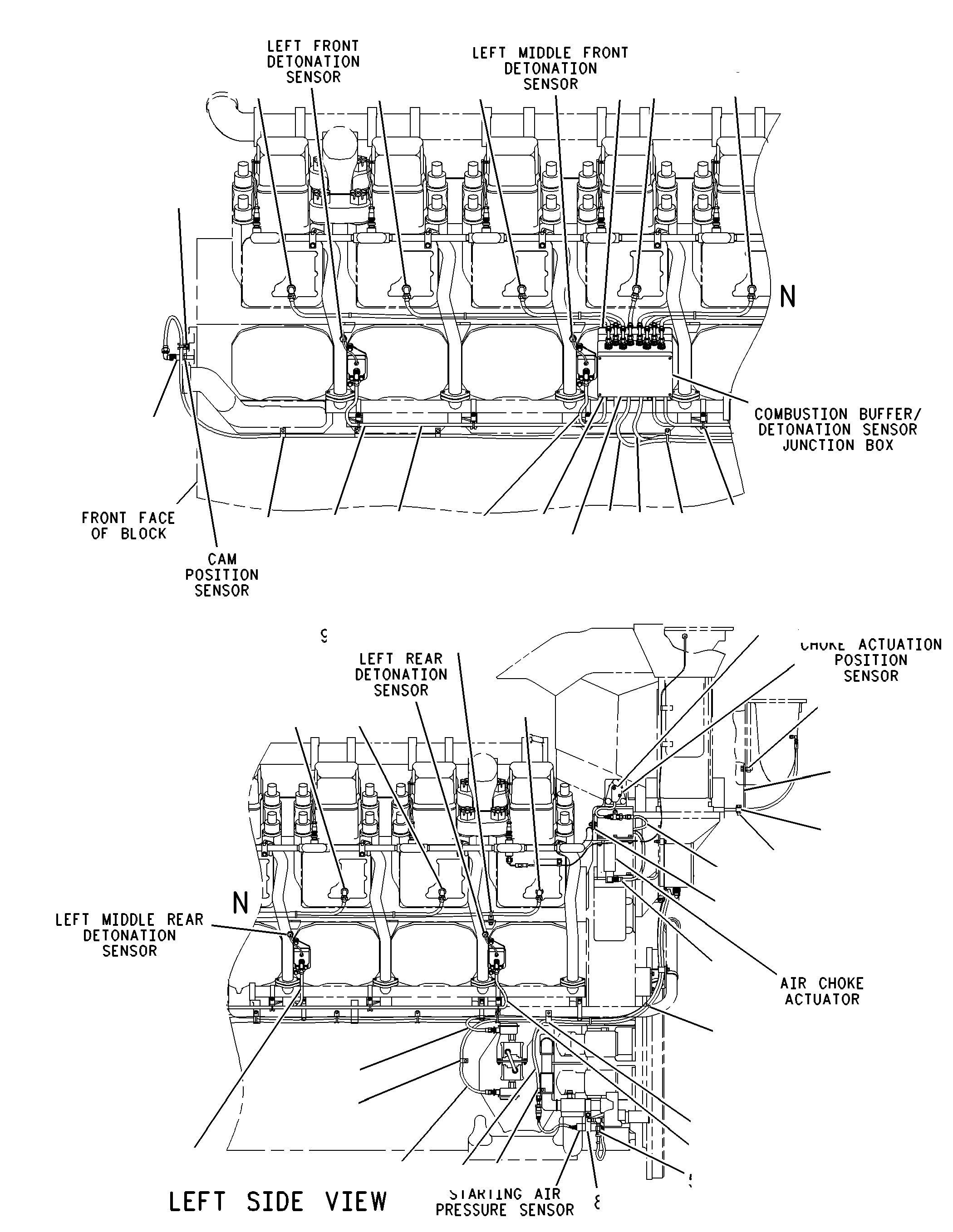

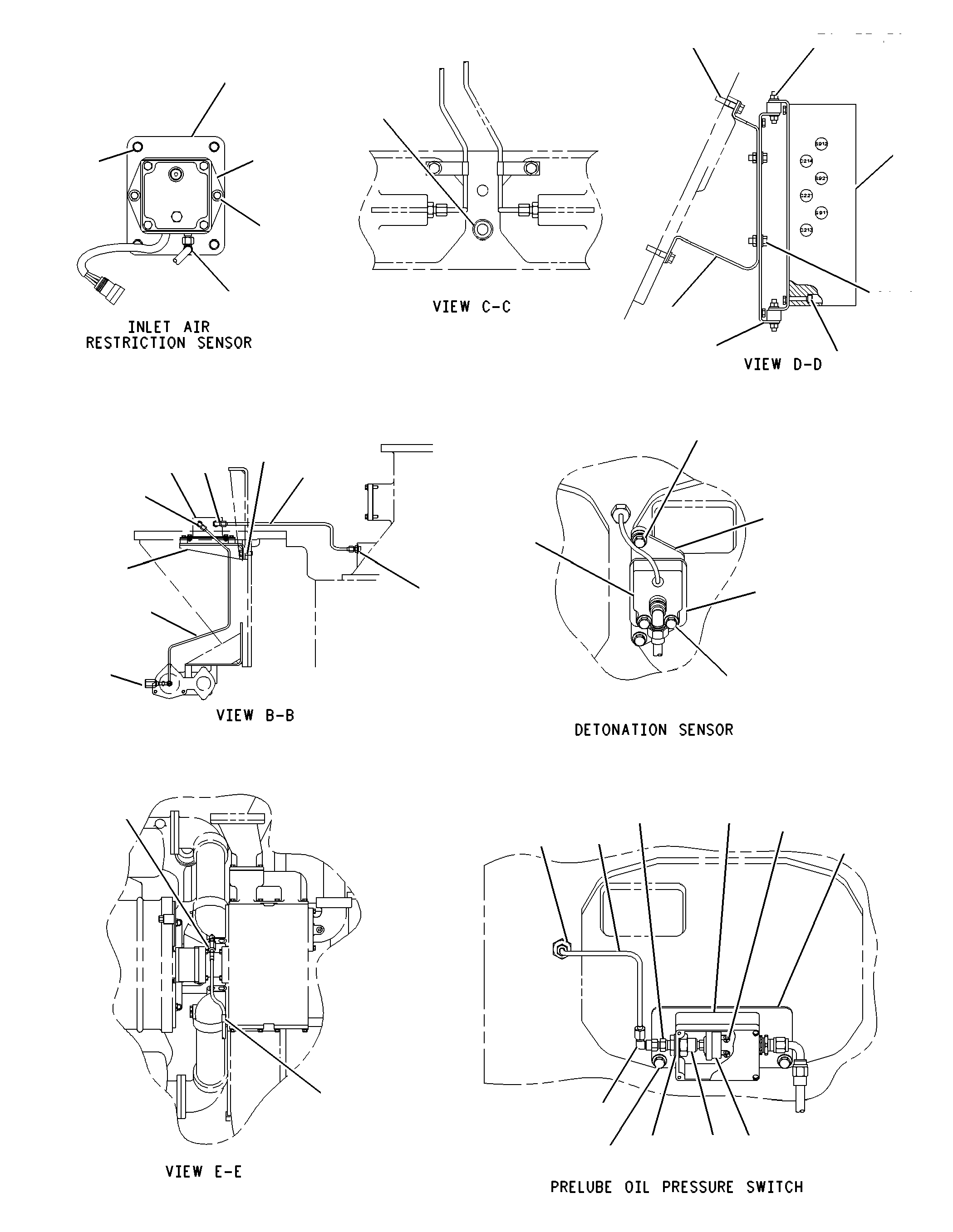

125-3875 WIRING GP-ENGINE (CHG -04A1, -04B1, -05)
Group No: 125-3875
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1143 | 1 BOLT (3/8-16X2.5-IN) | 16 | |
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 18 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 1 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 16 | |
| 0S1587 | 5 BOLT (1/2-13X1.75-IN) | 3 | |
| 0S1588 | 6 BOLT (3/8-16X1.25-IN) | 4 | |
| 1516155 | 7 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 3 | |
| 0S1595 | 8 BOLT (1/2-13X1.25-IN) | 2 | |
| 0S1594 | 9 BOLT (3/8-16X1-IN) | 23 | |
| 0S1620 | 10 BOLT (1/2-13X0.75-IN) | 2 | |
| 1A2029 | 11 BOLT (3/8-16X1.125-IN) | 2 | |
| 1F7958 | 12 NUT-FULL (1/2-13-THD) | 2 | |
| 2A5546 | 13 BOLT (1/4-20X1.375-IN) | 8 | |
| 2L8075 | 14 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 2N3162 | 15 SCREW-MACHINE (10-24X1.25-IN) | 12 | |
| 2N3478 | 16 SCREW-MACHINE (10-24X0.375-IN) | 4 | |
| 2P1314 | 17 CONNECTOR | 1 | |
| 2W8739 | 18 BRACKET | 2 | |
| 3B1915 | 19 BOLT (3/8-16X1.375-IN) | 12 | |
| 3E8689 | 20 SENSOR GP-PRESSURE | 1 | |
| 3E9189 | 21 SENSOR GP-PRESSURE | 2 | |
| 3K0360 | 22 SEAL-O-RING | 1 | |
| 3J7352 | 23 CONNECTOR | 1 | |
| 3J7354 | 24 SEAL-O-RING | 2 | |
| 3N1400 | 25 SWITCH AS-PRESSURE | 1 | |
| 3S8664 | 26 CLIP | 4 | |
| 3S8665 | 27 CLIP (LOOP) | 1 | |
| 3V2431 | 28 WASHER (10.2X16X2-MM THK) | 6 | |
| 3V3308 | 29 WASHER-HARD (10.2X20.5X2.5-MM THK) | 115 | |
| 4B4274 | 30 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 31 CLIP | 1 | |
| 4H1225 | 32 WASHER (11X22X6-MM THK) | 12 | |
| 4J9448 | 33 LUG | 8 | |
| 4L7124 | 34 BOLT (1/4-20X1.25-IN) | 4 | |
| 4N3329 | 35 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 4P7428 | 36 CLIP (LADDER) | 5 | |
| 4P7581 | 37 CLIP (LADDER) | 5 | |
| 4P8134 | 38 CLIP (LADDER) | 47 | |
| 4S1962 | 39 CLIP (LOOP) | 14 | |
| 4S6399 | 40 CONNECTOR | 1 | |
| 5B2638 | 41 BOLT (3/8-16X5.25-IN) | 1 | |
| 5K3294 | 42 CLIP | 2 | |
| 5N2840 | 43 CLIP | 3 | |
| 5P0076 | 44 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 6 | |
| 5P0537 | 45 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 5P7854 | 46 CLIP (LOOP) | 4 | |
| 5P8245 | 47 WASHER-HARD (13.5X25.5X3-MM THK) | 9 | |
| 5P8247 | 48 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 5P9297 | 49 CLIP (LOOP) | 10 | |
| 5S0003 | 50 NUT (5/16-18-THD) | 8 | |
| 5T4375 | 51 HOSE AS | 2 | |
| 6K9194 | 52 ELBOW | 1 | |
| 6V2313 | 53 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 54 SEAL-O-RING | 1 | |
| 6V5048 | 55 SEAL-O-RING | 6 | |
| 6V5049 | 56 SEAL-O-RING | 9 | |
| 6V8647 | 57 CONNECTOR | 2 | |
| 6V9601 | 58 ADAPTER | 1 | |
| 6V9872 | 59 CONNECTOR | 2 | |
| 7C9897 | 60 HOSE AS | 1 | |
| 7D1553 | 61 CLIP | 1 | |
| 7D4092 | 62 CLIP | 1 | |
| 7D7233 | 63 CLIP (LOOP) | 2 | |
| 7J4026 | 64 ELBOW | 2 | |
| 7J8744 | 65 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7K9197 | 66 ELBOW | 2 | |
| 7X1043 | 67 SENSOR GP-TEMPERATURE | 1 | |
| 8L2779 | 68 SEAL-O-RING | 2 | |
| 8L2786 | 69 SEAL-O-RING | 4 | |
| 8L4171 | 70 SENSOR GP-SPEED (ENGINE) | 2 | |
| 8M2770 | 71 CLIP (LOOP) | 3 | |
| 8S4626 | 72 SPLICE-WIRE | 4 | |
| 8T0788 | 73 ELBOW | 2 | |
| 8T3285 | 74 ADAPTER | 1 | |
| 8T6342 | 75 TUBE-HEAT SHRINK (3.2-MM DIA) | ||
| 9M1974 | 76 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 9M7357 | 77 COUPLING AS | 1 | |
| 9S8752 | 78 NUT-FULL (3/8-16-THD) | 20 | |
| 9W0532 | 79 SENSOR GP-TEMPERATURE | 2 | |
| 9X3495 | 80 CLIP AS | 3 | |
| 8C3334 | RIVET-TUBULAR | 2 | |
| 9X5272 | 81 SENSOR GP-PRESSURE | 1 | |
| 9X6772 | 82 STRAP-CABLE | ||
| 9X6772 | 83 STRAP-CABLE | 60 | |
| 9Y1925 | 84 BOX AS | 1 | |
| 0307946 | 85 ELBOW | 3 | |
| 0308195 | 86 CONNECTOR | 1 | |
| 0308188 | 87 CONNECTOR | 1 | |
| 0689941 | 88 WIRE-TIE | 4 | |
| 0919035 | 89 SPACER (11X25X20-MM THK) | 18 | |
| 1007834 | 90 PLATE AS | 2 | |
| 1007870 | 91 ADAPTER-O-RING | 1 | |
| 1021594 | 92 BRACKET AS | 1 | |
| 1069154 | 93 INSULATOR | 8 | |
| 1072675 | 94 SENSOR AS-SPEED | 1 | |
| 1073952 | 95 SENSOR GP-PRESSURE | 2 | |
| 1077142 | 96 SENSOR GP-PRESSURE | 1 | |
| 1093038 | 97 END-WIRE (16-GA) | 9 | |
| 1108714 | 98 END-WIRE (18-GA) | 84 | |
| 1129273 | 99 SENSOR GP-DETONATION | 8 | |
| 1132038 | 100 TUBE AS | 1 | |
| 1142269 | 101 SENSOR GP-TEMPERATURE | 1 | |
| 1253821 | 102 HARNESS AS (START AIR SOLENOID) | 1 | |
| 1253822 | 103 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253826 | 104 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253832 | 105 HARNESS AS (AIR RESTRICTION LEFT) | 1 | |
| 1253833 | 106 HARNESS AS (AIR RESTRICTION RIGHT) | 1 | |
| 1253839 | 107 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253840 | 108 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253841 | 109 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253842 | 110 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253843 | 111 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253844 | 112 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253845 | 113 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253863 | 114 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253864 | 115 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253865 | 116 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253877 | 117 BOX GP-JUNCTION | 1 | |
| 1254588 | 118 PLATE | 8 | |
| 1257859 | 119 BOX GP-JUNCTION | 1 | |
| 1257860 | 120 BRACKET AS | 1 | |
| 1257861 | 121 SEAL | 8 | |
| 1257875 | 122 TUBE-HEAT SHRINK (7.44-MM DIA) | ||
| 1280946 | 123 SENSOR GP-POSITION | 3 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1286325 | 124 BUSHING | 1 | |
| 1296687 | 125 BRACKET | 2 | |
| 1297636 | 126 BOX GP-JUNCTION | 1 | |
| 1309417 | 127 BRACKET | 1 | |
| 1309418 | 128 BRACKET | 1 | |
| 1331412 | 129 CONTROL GP-ENGINE MONITORING | 1 | |
| 1502517 | 130 TUBE AS | 1 | |
| 1365910 | 131 TUBE AS | 1 | |
| 1409669 | 132 SWITCH AS-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1416380 | 133 MOUNT-FLEXIBLE | 4 | |
| 1422500 | 134 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422501 | 135 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422502 | 136 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422503 | 137 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422504 | 138 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422505 | 139 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422506 | 140 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422507 | 141 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1457982 | 142 SENSOR AS | 1 | |
| 1461811 | 143 HARNESS AS (CIS CONTROL SIGNALS) | 1 | |
| 1461812 | 144 HARNESS AS (CIS POWER) | 1 | |
| 1461813 | 145 HARNESS AS (CIS CAM ANGLE) | 1 | |
| 1470115 | 146 HARNESS AS (FUEL HYDRAX) | 1 | |
| 1470116 | 147 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 1470117 | 148 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 1470118 | 149 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 1470119 | 150 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 1470120 | 151 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 1470121 | 152 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 | |
| 1497042 | 153 HARNESS AS | 1 | |
| 1497044 | 154 HARNESS AS-SENSOR (AIR TEMPERATURE) | 1 | |
| 1497058 | 155 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1497060 | 156 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 1497061 | 157 HARNESS AS (ELECTRONIC CONTROL MODULE) | 1 | |
| 1497062 | 158 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 1497063 | 159 HARNESS AS (PRESSURE MODULE) | 1 | |
| 1497074 | 160 HARNESS AS-WIRING (OIL TEMPERATURE) | 1 | |
| 1497075 | 161 HARNESS AS-WIRING (AIR TEMPERATURE) | 1 | |
| 1497076 | 162 HARNESS AS-WIRING (JACKET WATER TEMPERATURE) | 1 | |
| 1497078 | 163 HARNESS AS-WIRING (OIL PRESSURE UNFILTERED) | 1 | |
| 1497079 | 164 HARNESS AS-WIRING (OIL PRESSURE FILTERED) | 1 | |
| 1497080 | 165 HARNESS AS-WIRING (OIL PRESSURE FILTERED) | 1 | |
| 1497081 | 166 HARNESS AS-WIRING (CRANKCASE PRESSURE) | 1 | |
| 1497082 | 167 HARNESS AS-WIRING (OIL, WATER LEVEL) | 1 | |
| 1497083 | 168 HARNESS AS-WIRING (COMBUSTION BUFFER-RIGHT) | 1 | |
| 1497084 | 169 HARNESS AS-WIRING (COMBUSTION BUFFER-LEFT) | 1 | |
| 1497085 | 170 HARNESS AS-SENSOR (DETONATION, RH) | 1 | |
| 1497086 | 171 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 1516154 | 172 BRACKET AS | 2 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 4 | |
| 1293543 | 173 BOX GP-JUNCTION (HYDRAX) | 1 | |
| 1470114 | 174 HARNESS AS (ACTUATOR) | 1 |
