System And Components

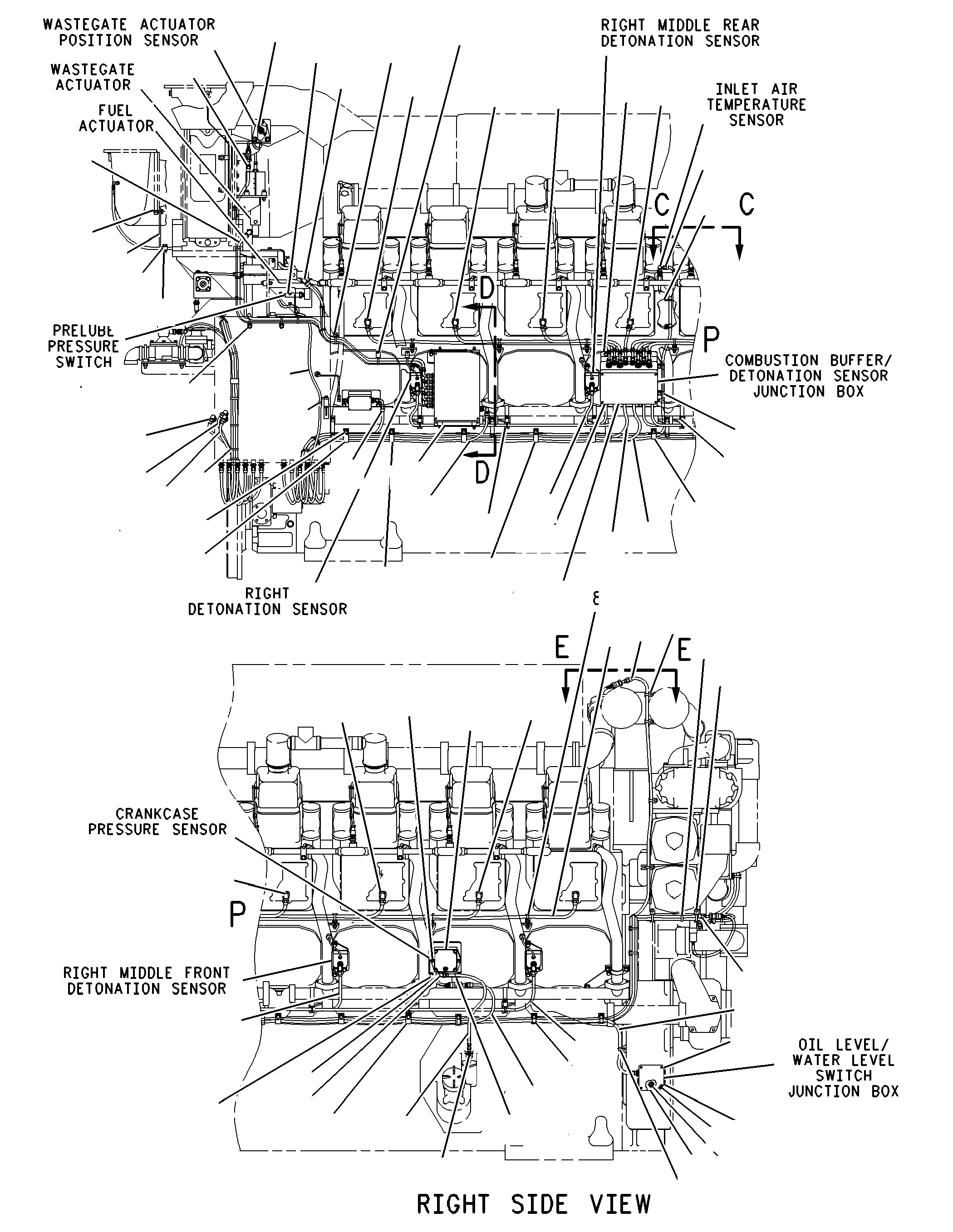

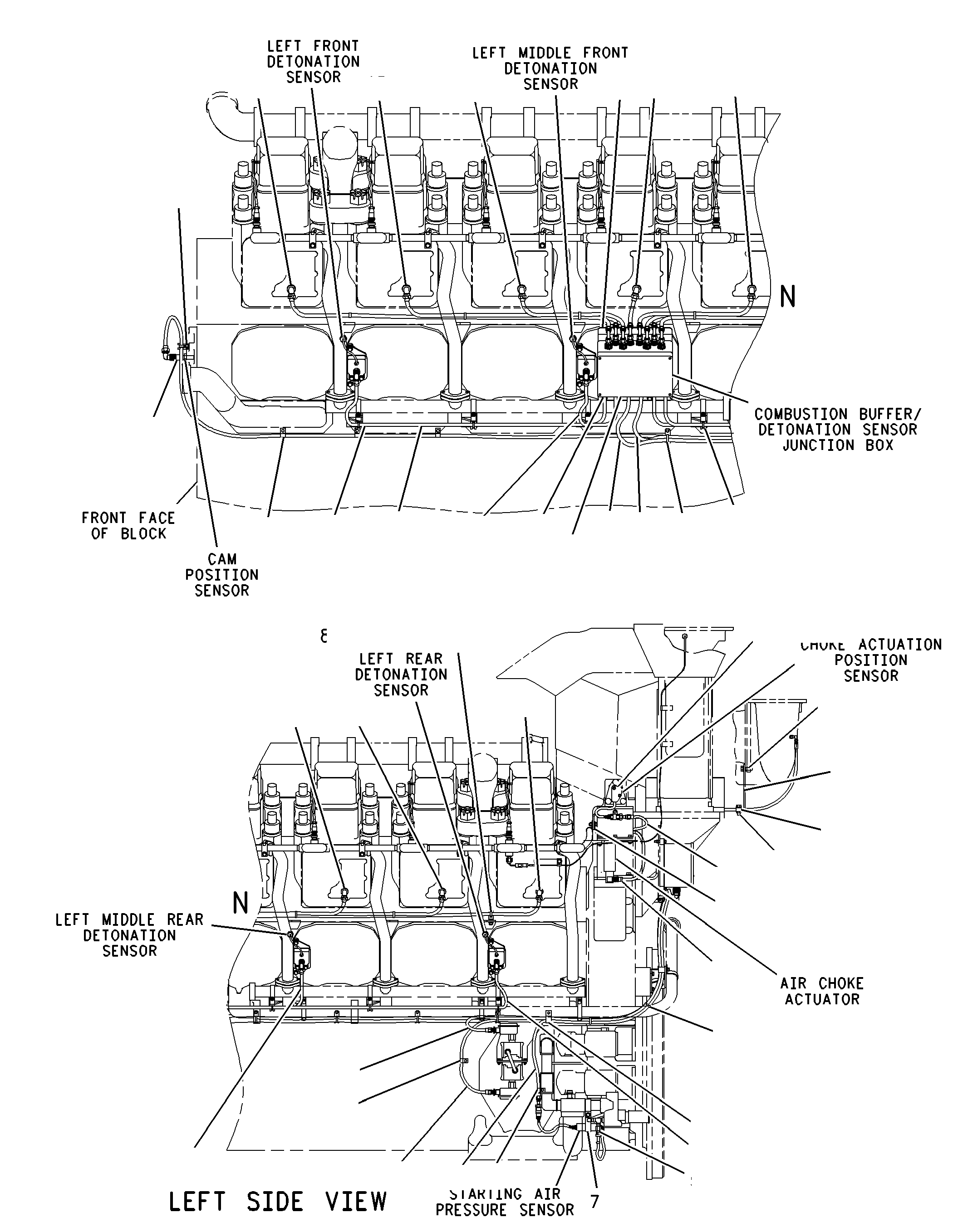

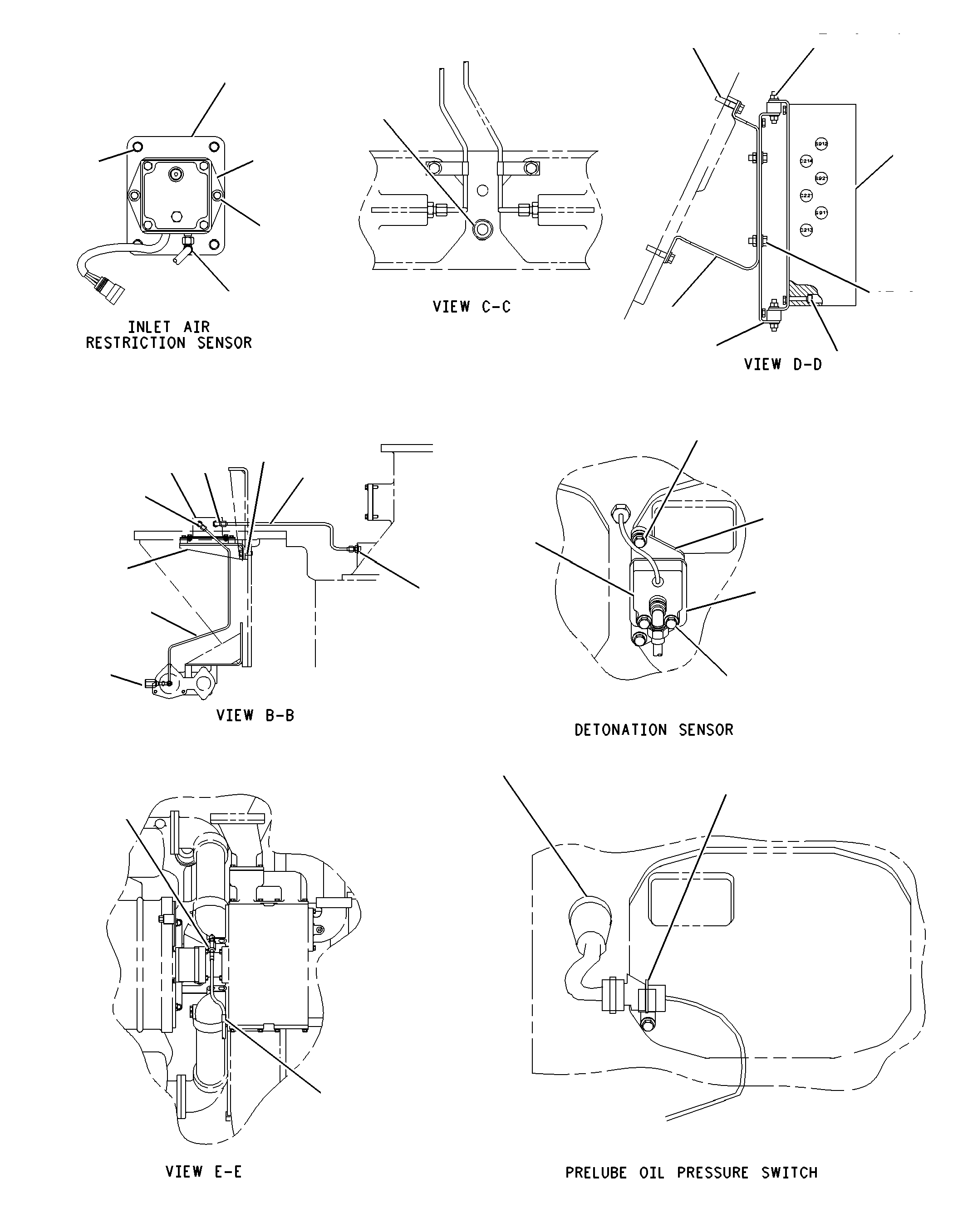

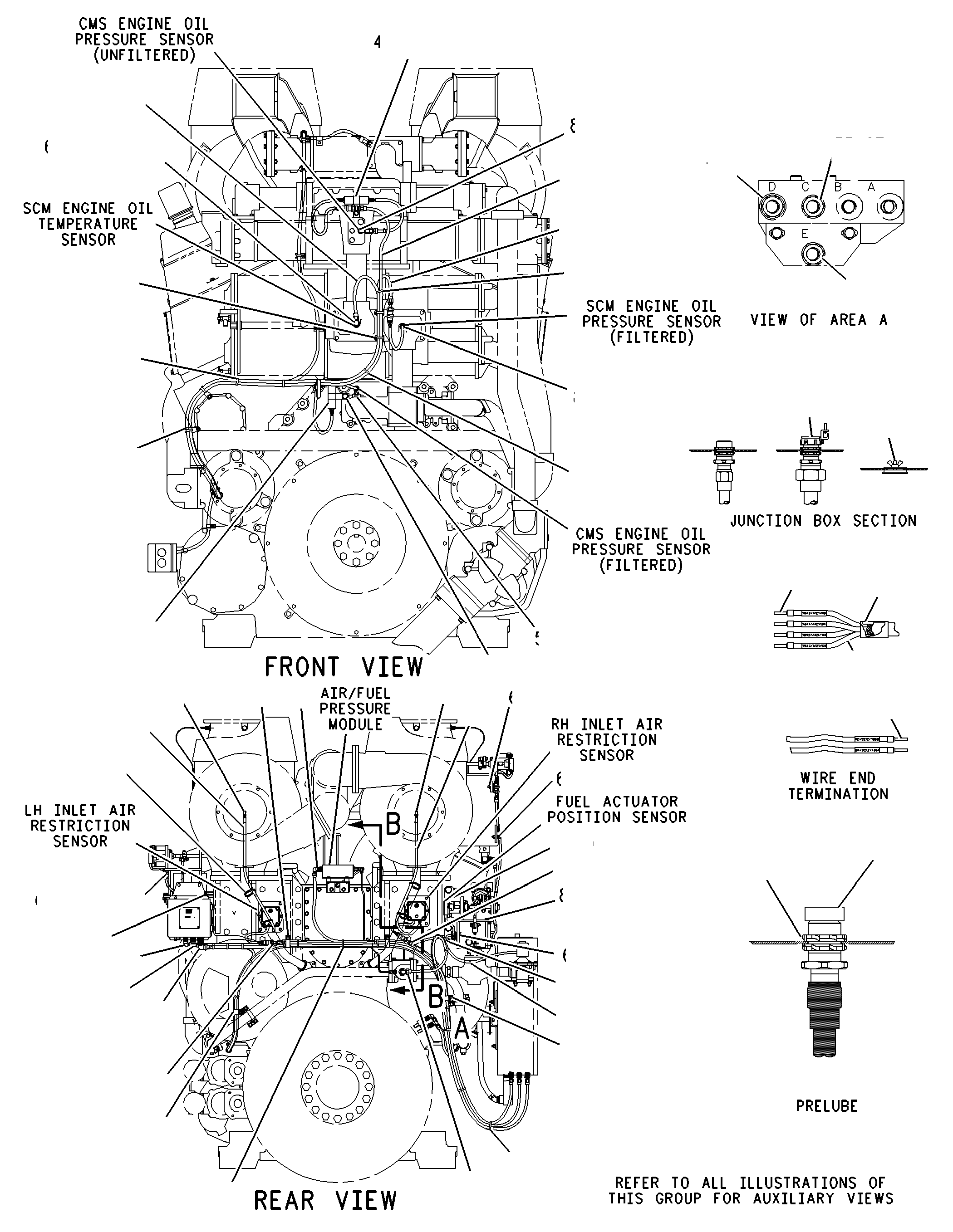

125-3875 WIRING GP-ENGINE (CHG -09 THRU -13)
Group No: 125-3875
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1143 | 1 BOLT (3/8-16X2.5-IN) | 16 | |
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 18 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 1 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 14 | |
| 0S1587 | 5 BOLT (1/2-13X1.75-IN) | 3 | |
| 0S1588 | 6 BOLT (3/8-16X1.25-IN) | 4 | |
| 0S1595 | 7 BOLT (1/2-13X1.25-IN) | 2 | |
| 0S1594 | 8 BOLT (3/8-16X1-IN) | 23 | |
| 0S1620 | 9 BOLT (1/2-13X0.75-IN) | 2 | |
| 1A2029 | 10 BOLT (3/8-16X1.125-IN) | 2 | |
| 1F7958 | 11 NUT-FULL (1/2-13-THD) | 2 | |
| 2A5546 | 12 BOLT (1/4-20X1.375-IN) | 8 | |
| 8W4755 | 13 NUT-SEALING | 1 | |
| 2N3162 | 14 SCREW-MACHINE (10-24X1.25-IN) | 12 | |
| 1631209 | 15 BUSHING | 1 | |
| 2P1314 | 16 CONNECTOR | 1 | |
| 2W8739 | 17 BRACKET | 2 | |
| 3B1915 | 18 BOLT (3/8-16X1.375-IN) | 12 | |
| 1620275 | 19 SENSOR GP-PRESSURE (CRANKCASE PRESSURE) | 1 | |
| 3E9189 | 20 SENSOR GP-PRESSURE (INLET AIR) | 2 | |
| 3K0360 | 21 SEAL-O-RING | 1 | |
| 3J7352 | 22 CONNECTOR | 1 | |
| 1521959 | 23 SWITCH AS-PRESSURE (PRELUBRICATION) | 1 | |
| 3S8664 | 24 CLIP | 4 | |
| 3S8665 | 25 CLIP (LOOP) | 1 | |
| 3V2431 | 26 WASHER (10.2X16X2-MM THK) | 6 | |
| 3V3308 | 27 WASHER-HARD (10.2X20.5X2.5-MM THK) | 113 | |
| 4B4274 | 28 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 29 CLIP | 1 | |
| 4H1225 | 30 WASHER (11X22X6-MM THK) | 12 | |
| 4J9448 | 31 LUG | 8 | |
| 4L7124 | 32 BOLT (1/4-20X1.25-IN) | 4 | |
| 4N3329 | 33 WASHER (16.25X25.65X0.79-MM) | 3 | |
| 4P7428 | 34 CLIP (LADDER) | 5 | |
| 4P7581 | 35 CLIP (LADDER) | 5 | |
| 4P8134 | 36 CLIP (LADDER) | 46 | |
| 4S1962 | 37 CLIP (LOOP) | 14 | |
| 5B2638 | 38 BOLT (3/8-16X5.25-IN) | 1 | |
| 5K3294 | 39 CLIP | 2 | |
| 5N2840 | 40 CLIP | 3 | |
| 5P0076 | 41 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 6 | |
| 5P0537 | 42 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 5P7854 | 43 CLIP (LOOP) | 4 | |
| 5P8245 | 44 WASHER-HARD (13.5X25.5X3-MM THK) | 9 | |
| 5P9297 | 45 CLIP (LOOP) | 10 | |
| 5S0003 | 46 NUT (5/16-18-THD) | 8 | |
| 5T4375 | 47 HOSE AS | 2 | |
| 6K9194 | 48 ELBOW | 1 | |
| 6V2313 | 49 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 50 SEAL-O-RING | 1 | |
| 6V5048 | 51 SEAL-O-RING | 8 | |
| 6V5049 | 52 SEAL-O-RING | 9 | |
| 6V8647 | 53 CONNECTOR | 2 | |
| 6V9601 | 54 ADAPTER | 1 | |
| 6V9872 | 55 CONNECTOR | 2 | |
| 7C9897 | 56 HOSE AS | 1 | |
| 7D1553 | 57 CLIP | 1 | |
| 7D4092 | 58 CLIP | 1 | |
| 7D7233 | 59 CLIP (LOOP) | 2 | |
| 7J4026 | 60 ELBOW | 2 | |
| 7K9197 | 61 ELBOW | 1 | |
| 7X1043 | 62 SENSOR GP-TEMPERATURE (JACKET WATER) | 1 | |
| 8L2779 | 63 SEAL-O-RING | 2 | |
| 8L2786 | 64 SEAL-O-RING | 4 | |
| 8L4171 | 65 SENSOR GP-SPEED (ENGINE)(TIMING, CRANKSHAFT) | 1 | |
| 8M2770 | 66 CLIP (LOOP) | 3 | |
| 8S4626 | 67 SPLICE-WIRE | 4 | |
| 8T0788 | 68 ELBOW | 2 | |
| 8T3285 | 69 ADAPTER | 1 | |
| 8T6342 | 70 TUBE-HEAT SHRINK (3.2-MM DIA) | ||
| 9M1974 | 71 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 9S8752 | 72 NUT-FULL (3/8-16-THD) | 20 | |
| 9W0532 | 73 SENSOR GP-TEMPERATURE (FUEL) | 1 | |
| 9W0532 | 73A SENSOR GP-TEMPERATURE (INLET AIR) | 1 | |
| 9X3495 | 74 CLIP AS | 4 | |
| 9X5272 | 75 SENSOR GP-PRESSURE (AIR START) | 1 | |
| 9X6772 | 76 STRAP-CABLE | ||
| 9X6772 | 77 STRAP-CABLE | 61 | |
| 0307946 | 78 ELBOW | 3 | |
| 3P0764 | 79 PLUG | 1 | |
| 0308188 | 80 CONNECTOR | 1 | |
| 3S2093 | 81 STRAP-CABLE | 4 | |
| 0919035 | 82 SPACER (11X25X20-MM THK) | 18 | |
| 1007834 | 83 PLATE AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1007870 | 84 ADAPTER-O-RING | 1 | |
| 1021594 | 85 BRACKET AS | 1 | |
| 1069154 | 86 INSULATOR | 8 | |
| 1935517 | 87 SENSOR GP-SPEED (ENGINE CONTROL) | 1 | |
| 1643692 | 88 SENSOR GP-PRESSURE (CMS, FILTERED OIL) | 1 | |
| 1643692 | 88A SENSOR GP-PRESSURE (CMS, UNFILTERED OIL) | 1 | |
| 1638516 | 89 SENSOR GP-PRESSURE (SCM, FILTERED OIL) | 1 | |
| 1093038 | 90 END-WIRE (16-GA) | 7 | |
| 1108714 | 91 END-WIRE (18-GA) | 84 | |
| 1634411 | 92 SENSOR GP-DETONATION | 8 | |
| 1142269 | 93 SENSOR GP-TEMPERATURE (ENGINE OIL) | 1 | |
| 1253821 | 94 HARNESS AS (START AIR SOLENOID) | 1 | |
| 1253822 | 95 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253826 | 96 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253832 | 97 HARNESS AS (AIR RESTRICTION LEFT) | 1 | |
| 1253833 | 98 HARNESS AS (AIR RESTRICTION RIGHT) | 1 | |
| 1253839 | 99 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253840 | 100 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253841 | 101 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253842 | 102 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253843 | 103 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253844 | 104 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253845 | 105 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253863 | 106 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253864 | 107 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253865 | 108 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253877 | 109 BOX GP-JUNCTION | 1 | |
| 1254588 | 110 PLATE | 8 | |
| 1257859 | 111 BOX GP-JUNCTION | 1 | |
| 1257860 | 112 BRACKET AS | 1 | |
| 1257861 | 113 SEAL | 8 | |
| 1257875 | 114 TUBE-HEAT SHRINK (7.44-MM DIA) | ||
| 1618931 | 115 SENSOR GP-POSITION (FUEL ACTUATOR) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 115A SENSOR GP-POSITION (CHOKE) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 115B SENSOR GP-POSITION (WASTE GATE) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1286325 | 116 BUSHING | 1 | |
| 1296687 | 117 BRACKET | 2 | |
| 1297636 | 118 BOX GP-JUNCTION | 1 | |
| 1309417 | 119 BRACKET | 1 | |
| 1599009 | 120 CONTROL GP-GAS PRESSURE | 1 | |
| 1565222 | 121 TUBE AS | 1 | |
| 1565220 | 122 TUBE AS | 1 | |
| 1409669 | 123 SWITCH AS-PRESSURE (HYDRAX) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (21CM) | ||
| 1416380 | 124 MOUNT-FLEXIBLE | 4 | |
| 1422500 | 125 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422501 | 126 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422502 | 127 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422503 | 128 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422504 | 129 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422505 | 130 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422506 | 131 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1422507 | 132 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1457982 | 133 SENSOR AS (CAMSHAFT) | 1 | |
| 1461811 | 134 HARNESS AS (CIS CONTROL SIGNALS) | 1 | |
| 1461812 | 135 HARNESS AS (CIS POWER) | 1 | |
| 1461813 | 136 HARNESS AS (CIS CAM ANGLE) | 1 | |
| 1470115 | 137 HARNESS AS (FUEL HYDRAX) | 1 | |
| 1470116 | 138 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 1470117 | 139 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 1470118 | 140 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 1470119 | 141 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 1470120 | 142 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 1470121 | 143 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 | |
| 1749026 | 144 HARNESS AS-WIRING (ENGINE PRELUBRICATION) | 1 | |
| 1497044 | 145 HARNESS AS-SENSOR (AIR TEMPERATURE) | 1 | |
| 1497058 | 146 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1497060 | 147 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 1497061 | 148 HARNESS AS (ELECTRONIC CONTROL MODULE) | 1 | |
| 1497062 | 149 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 1497063 | 150 HARNESS AS (PRESSURE MODULE) | 1 | |
| 1497074 | 151 HARNESS AS-WIRING (OIL TEMPERATURE) | 1 | |
| 1497075 | 152 HARNESS AS-WIRING (AIR TEMPERATURE) | 1 | |
| 1497076 | 153 HARNESS AS-WIRING (JACKET WATER TEMPERATURE) | 1 | |
| 1497078 | 154 HARNESS AS-WIRING (OIL PRESSURE UNFILTERED) | 1 | |
| 1497079 | 155 HARNESS AS-WIRING (OIL PRESSURE FILTERED) | 1 | |
| 1497080 | 156 HARNESS AS-WIRING (OIL PRESSURE FILTERED) | 1 | |
| 1497081 | 157 HARNESS AS-WIRING (CRANKCASE PRESSURE) | 1 | |
| 1497082 | 158 HARNESS AS-WIRING (OIL, WATER LEVEL) | 1 | |
| 1497083 | 159 HARNESS AS-WIRING (COMBUSTION BUFFER-RIGHT) | 1 | |
| 1497084 | 160 HARNESS AS-WIRING (COMBUSTION BUFFER-LEFT) | 1 | |
| 1497085 | 161 HARNESS AS-SENSOR (DETONATION, RH) | 1 | |
| 1497086 | 162 HARNESS AS-SENSOR (DETONATION, LH) | 1 | |
| 1516154 | 163 BRACKET AS | 2 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 4 | |
| 1516155 | 164 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 3 | |
| 1293543 | 165 BOX GP-JUNCTION (HYDRAX) | 1 | |
| 1470114 | 166 HARNESS AS (ACTUATOR) | 1 | |
| 7X1168 | 167 SENSOR-SPEED (TIMING CONTROL) | 1 |
