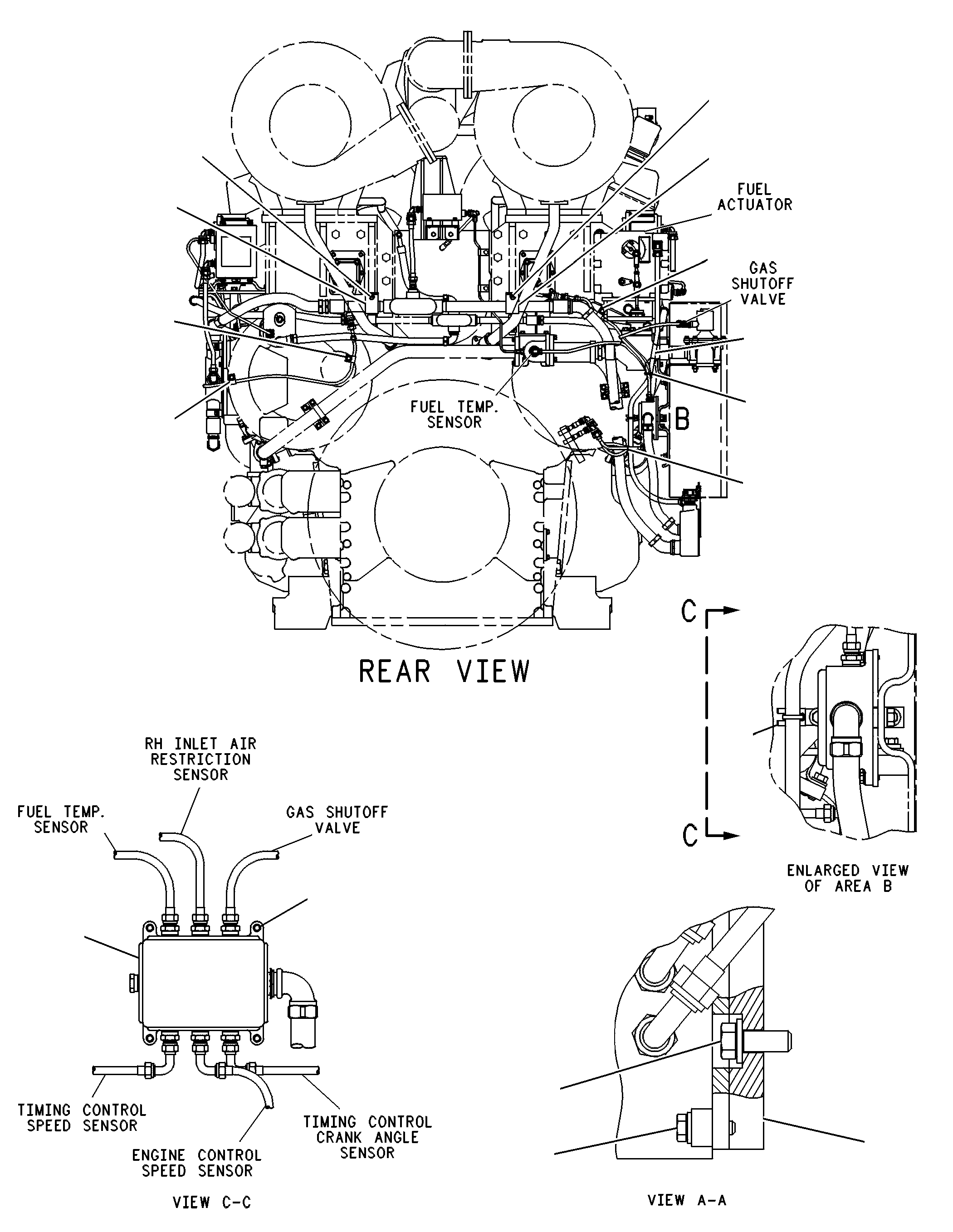

104-3638 WIRING GP-SENSOR (CHG -04, -04D1)G3616

Group No: 104-3638
Part NumberPart NameQty
1S09941 CLIP (LOOP)2
11436222 HARNESS AS1
11209313 HARNESS AS-WIRING1
5P92974 CLIP (LOOP)8
0S15885 BOLT (3/8-16X1.25-IN)7
10895286 CLIP (SLOT)7
10895297 CLIP (TAB)7
9L91328 WASHER-HARD (10.2X25.5X2.5-MM THK)7
8L84139 STRAP-CABLE (WHITE)3
3B19151 BOLT (3/8-16X1.375-IN)2
6K49342 CLIP (SLOT)7
6K49353 CLIP (TAB)7
10507744 HARNESS AS-WIRING1
10713495 PLATE AS1
10393976 CLAMP2
4P81347 CLIP (LADDER)1
11209208 HARNESS AS-WIRING1
3V33089 WASHER-HARD (10.2X20.5X2.5-MM THK)6
5P929710 CLIP (LOOP)1
0S050911 BOLT (3/8-16X0.75-IN)4
0S158812 BOLT (3/8-16X1.25-IN)7
9L913213 WASHER-HARD (10.2X25.5X2.5-MM THK)7
9X677214 STRAP-CABLE1
110519415 END-WIRE (14-GA)24
110519316 END-WIRE (16-GA)84
109303917 END-WIRE (12-GA)6
4P75811 CLIP (LADDER)1
10718652 HARNESS AS-WIRING1
4F79573 BOLT (1/4-20X0.875-IN)4
9X67724 STRAP-CABLE1
3V33085 WASHER-HARD (10.2X20.5X2.5-MM THK)2
5P05376 WASHER-HARD (7.2X14.5X2-MM THK)8
11433607 BRACKET AS1
5P92978 CLIP (LOOP)3
0S16159 BOLT (1/4-20X0.75-IN)4
108952810 CLIP (SLOT)2
1089529CLIP (TAB)2
112091911 HARNESS AS-WIRING1
0S159412 BOLT (3/8-16X1-IN)4
9L913213 WASHER-HARD (10.2X25.5X2.5-MM THK)2
1S959314 STRAP-CABLE2
8L841315 STRAP-CABLE (WHITE)1
