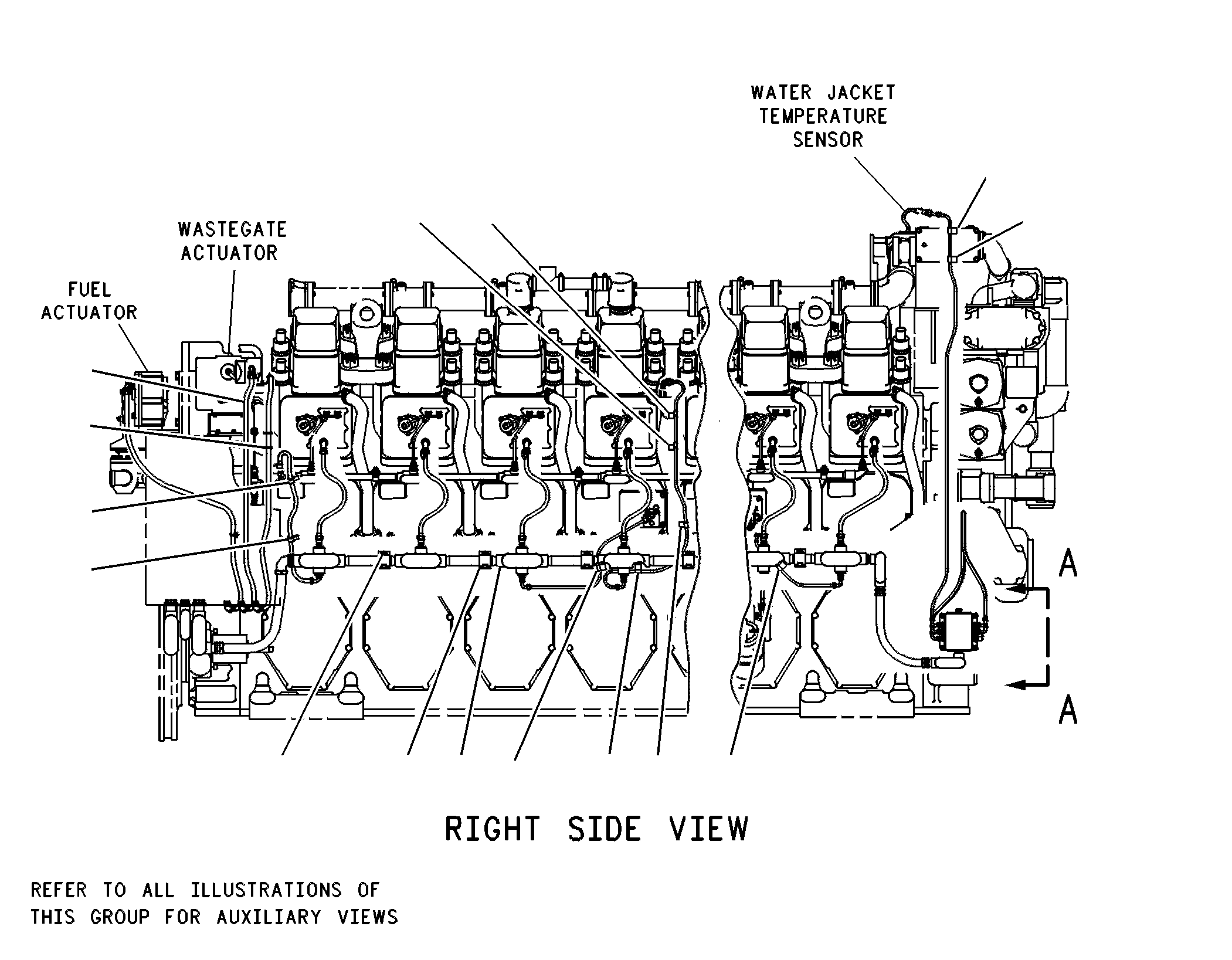

Assembly
100%

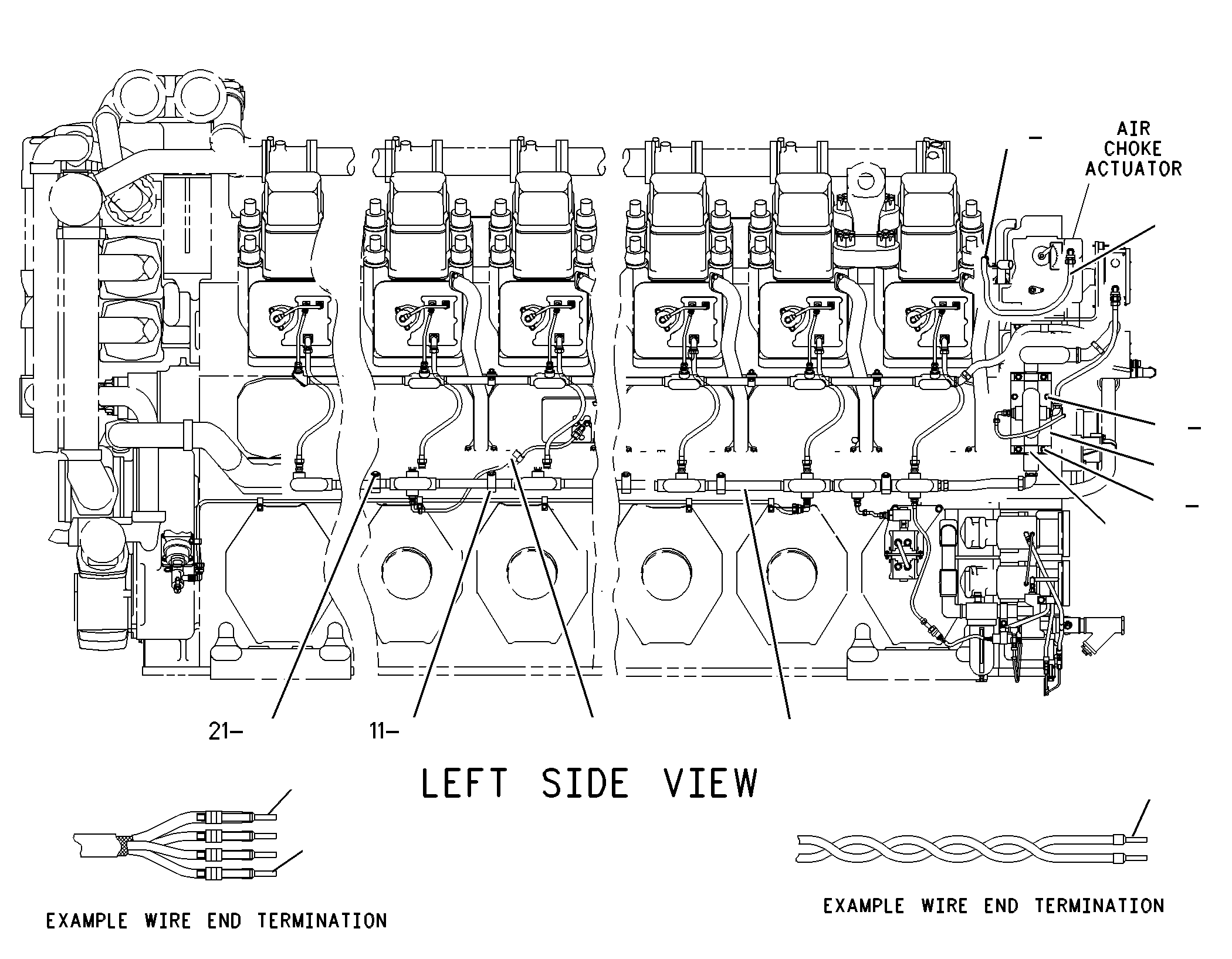

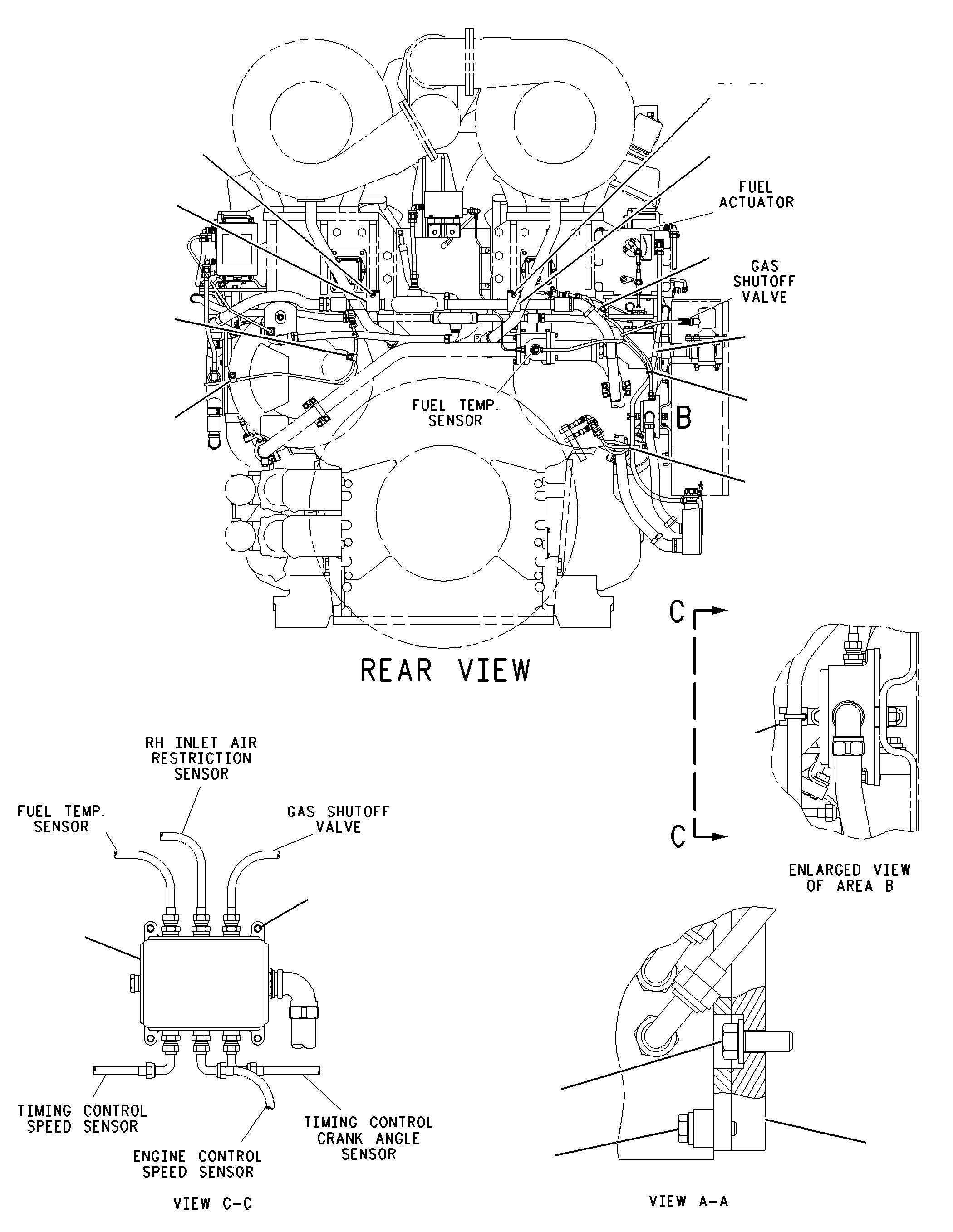

120-9785 WIRING GP-SENSOR (CHG -00, -00D1)

Group No: 120-9785
Part NumberPart NameQty
1S09941 CLIP (LOOP)2
11436222 HARNESS AS1
11209313 HARNESS AS-WIRING1
5P92974 CLIP (LOOP)8
0S15885 BOLT (3/8-16X1.25-IN)7
10895286 CLIP (SLOT)7
10895297 CLIP (TAB)7
9L91328 WASHER-HARD (10.2X25.5X2.5-MM THK)7
8L84139 STRAP-CABLE (WHITE)3
3B191510 BOLT (3/8-16X1.375-IN)2
6K493411 CLIP (SLOT)7
6K493512 CLIP (TAB)7
120977913 HARNESS AS-WIRING1
107134914 PLATE AS1
103939715 CLAMP2
4P813416 CLIP (LADDER)1
112092017 HARNESS AS-WIRING1
3V330818 WASHER-HARD (10.2X20.5X2.5-MM THK)6
5P929719 CLIP (LOOP)1
0S050920 BOLT (3/8-16X0.75-IN)4
0S158821 BOLT (3/8-16X1.25-IN)7
9L913222 WASHER-HARD (10.2X25.5X2.5-MM THK)7
9X677223 STRAP-CABLE1
110519424 END-WIRE (14-GA)24
110519325 END-WIRE (16-GA)84
109303926 END-WIRE (12-GA)6
4P758127 CLIP (LADDER)1
107186528 HARNESS AS-WIRING1
4F795729 BOLT (1/4-20X0.875-IN)4
9X677230 STRAP-CABLE1
3V330831 WASHER-HARD (10.2X20.5X2.5-MM THK)2
5P053732 WASHER-HARD (7.2X14.5X2-MM THK)8
114336033 BRACKET AS1
5P929734 CLIP (LOOP)3
0S161535 BOLT (1/4-20X0.75-IN)4
108952836 CLIP (SLOT)2
1089529CLIP (TAB)2
112091937 HARNESS AS-WIRING1
0S159438 BOLT (3/8-16X1-IN)4
9L913239 WASHER-HARD (10.2X25.5X2.5-MM THK)2
1S959340 STRAP-CABLE2
8L841341 STRAP-CABLE (WHITE)1
