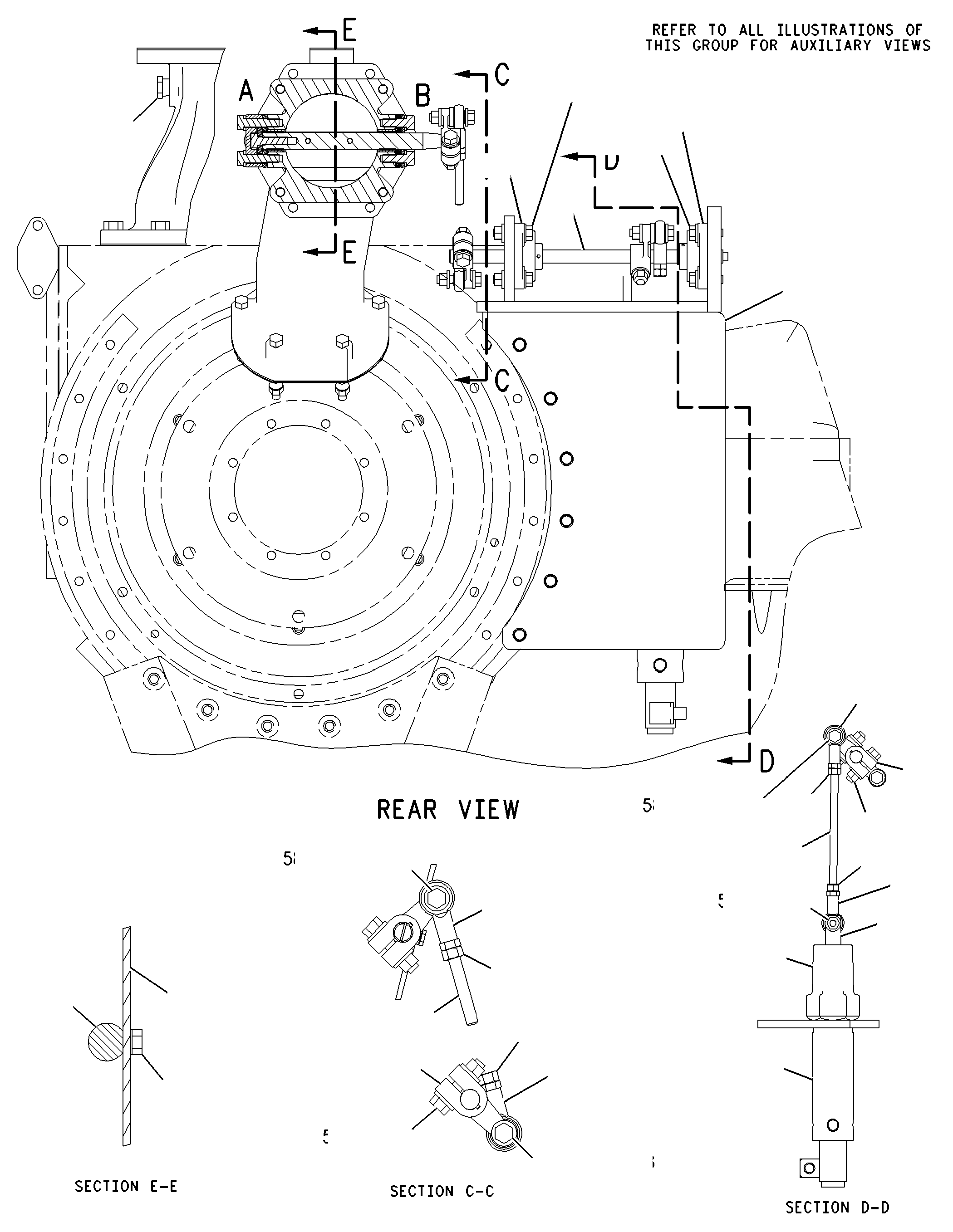

219-9930 BYPASS GP-EXHAUST (CHG -00)Type 1

Group No: 219-9930
Part NumberPart NameQty
1S35842 NUT-FULL (3/8-24 LH-THD)2
2W04393 GASKET1
3H66304 BOLT (3/8-16X3.25-IN)6
3S27135 NUT-FULL (3/8-24-THD)2
4F27536 LOCKNUT1
4P03917 ROD1
4P03948 LEVER3
5H25329 KEY-WOODRUFF3
5L329110 BEARING AS-BALL2
5P275511 BOLT-HIGH TEMPERATURE (3/8-16X2.75-IN)4
5P996012 BOLT (1/4-20X0.75-IN)2
6I252713 ELBOW-EXHAUST1
6V194314 BOLT-HIGH TEMPERATURE (3/8-16X1.125-IN)2
6V675315 BOLT-HIGH TEMPERATURE (3/8-16X1.375-IN)1
7C836316 GASKET1
7E070117 GASKET2
7E294618 COVER1
7L644319 BOLT-HIGH TEMPERATURE (3/8-16X2.25-IN)12
7W911520 ADAPTER-EXHAUST1
7W919121 GASKET1
8C731522 ROD END1
8C732123 ROD END1
8H339024 NUT-FULL (1-1/2-12-THD)1
8M229525 BOLT (3/8-16X1.625-IN)2
039989526 ROD1
102169427 PLATE1
102345728 COVER1
102630929 WASHER-THRUST1
102631130 STOP1
110831431 WASHER (10.3X18.3X2.66-MM THK)4
118473632 SHAFT-WASTEGATE1
119592733 SHAFT1
119593034 HOUSING AS1
1195929BUSHING2
119593135 SPACER1
123571736 BELLOWS AS1
133850137 COVER AS1
141988538 BRACKET AS1
176358339 GUARD2
176358740 CLEVIS1
193787941 BOOT1
196952942 ACTUATOR GP-ELECTRONIC1
0S157143 BOLT (3/8-16X1.75-IN)6
0S158845 BOLT (3/8-16X1.25-IN)5
0S159046 BOLT (3/8-16X2-IN)4
0S159147 BOLT (3/8-16X1.5-IN)4
0S159548 BOLT (1/2-13X1.25-IN)18
119074649 PLUG-PIPE2
173747651 ROD END1
173747752 ROD END1
2N276653 LOCKNUT (3/8-16-THD)22
3V330854 WASHER-HARD (10.2X20.5X2.5-MM THK)29
5P824555 WASHER-HARD (13.5X25.5X3-MM THK)6
6V867556 BOLT (M12X1.75X35-MM)6
8C849157 WASHER-HARD (10.2X22X3-MM THK)24
8M902458 WASHER-HARD (10.2X22.5X5-MM THK)3
9S875259 NUT-FULL (3/8-16-THD)14
