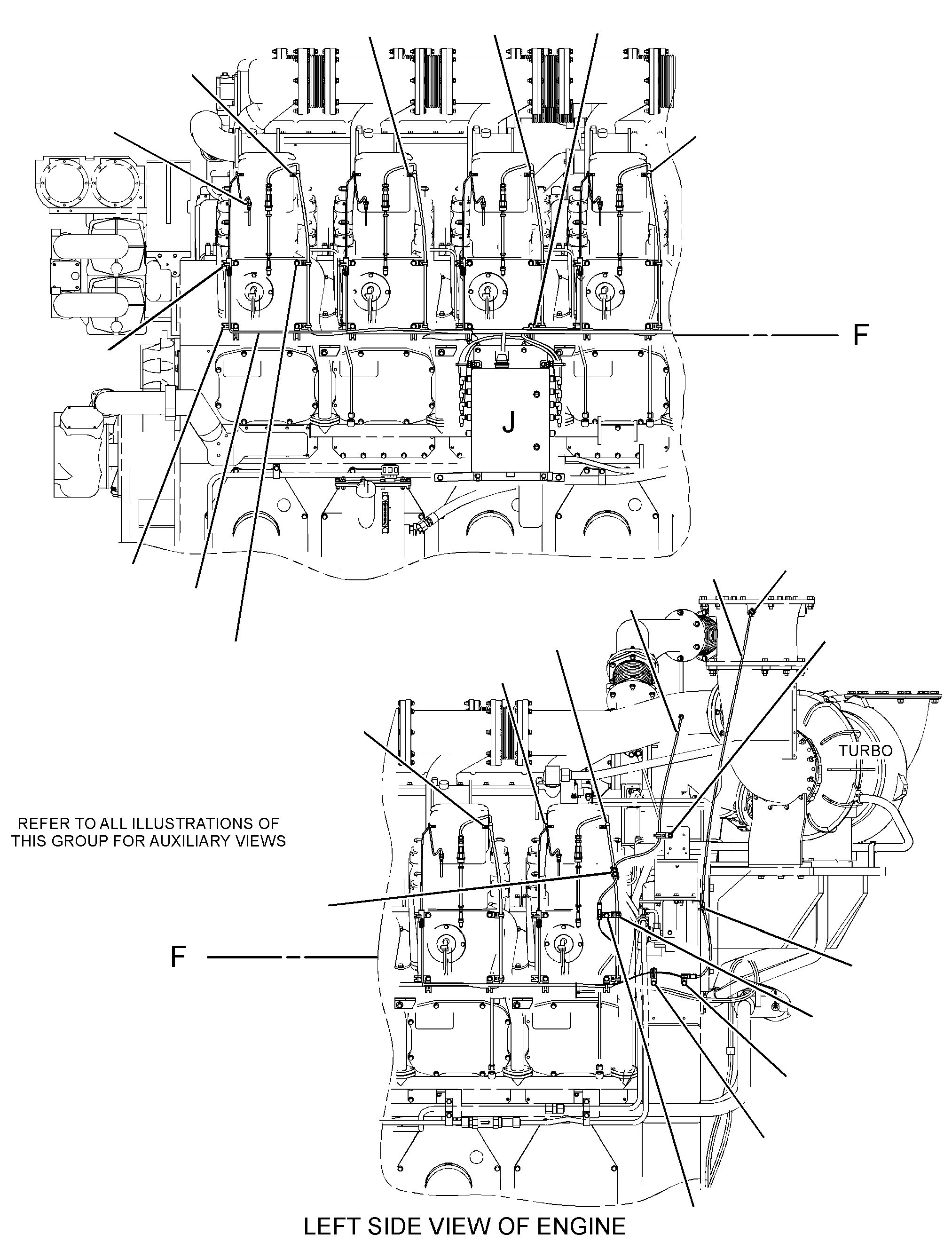

195-6245 SENSOR GP-COMBUSTION (CHG -12)

Group No: 195-6245

Part Number	Part Name	Qty
3S2093	1 STRAP-CABLE	9
5N2126	2 CONNECTOR (THERMOCOUPLE)	2
7G1239	3 SPACER (10.5X19X4.5-MM THK)	1
0910081	4 SPACER (10.5X20X10-MM THK)	1
9X6772	5 STRAP-CABLE	79
1160118	6 CLIP	3
1288831	7 BRACKET	1
1364605	8 EXTENSION AS	12

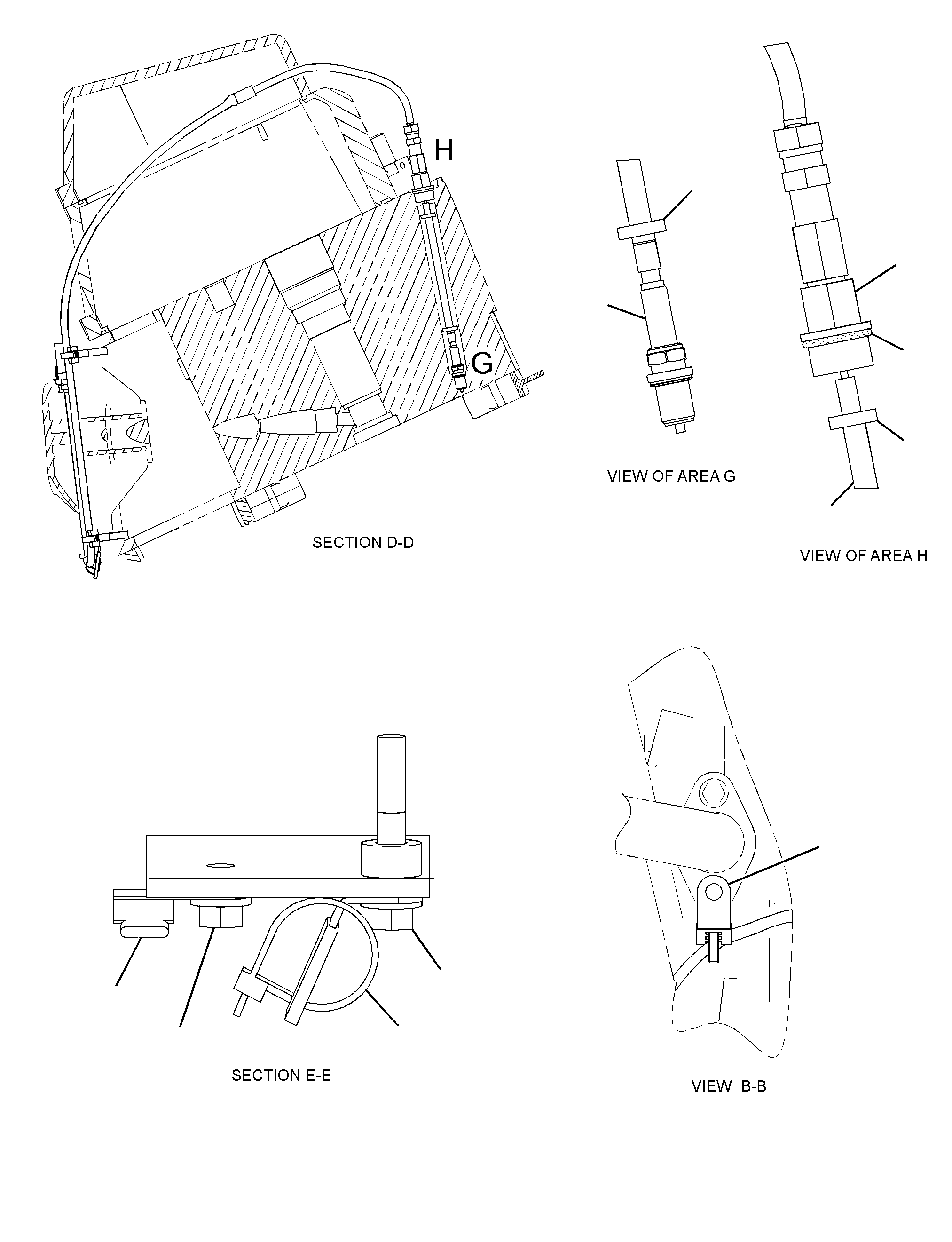

1593219	9 SENSOR-COMBUSTION	12
1083515	GASKET-PLUG	1
1884926	10 CONNECTOR AS	12
1924329	11 BRACKET	10
2345895	12 CAP	4
2715584	13 CLIP	24
3104795	14 SENSOR GP-TEMPERATURE (TURBOCHARGER OUTLET)	2
3104796	15 SENSOR GP-TEMPERATURE (TURBOCHARGER INLET)	2
3149486	16 CABLE AS (COMBUSTION SENSOR)	2
3149487	17 CABLE AS (COMBUSTION SENSOR)	2
3149488	18 CABLE AS (COMBUSTION SENSOR)	2
3149490	19 CABLE AS (COMBUSTION SENSOR)	2
3149491	20 CABLE AS (COMBUSTION SENSOR)	2
3149492	21 CABLE AS (COMBUSTION SENSOR)	2
1893769	SEAL-O-RING	1

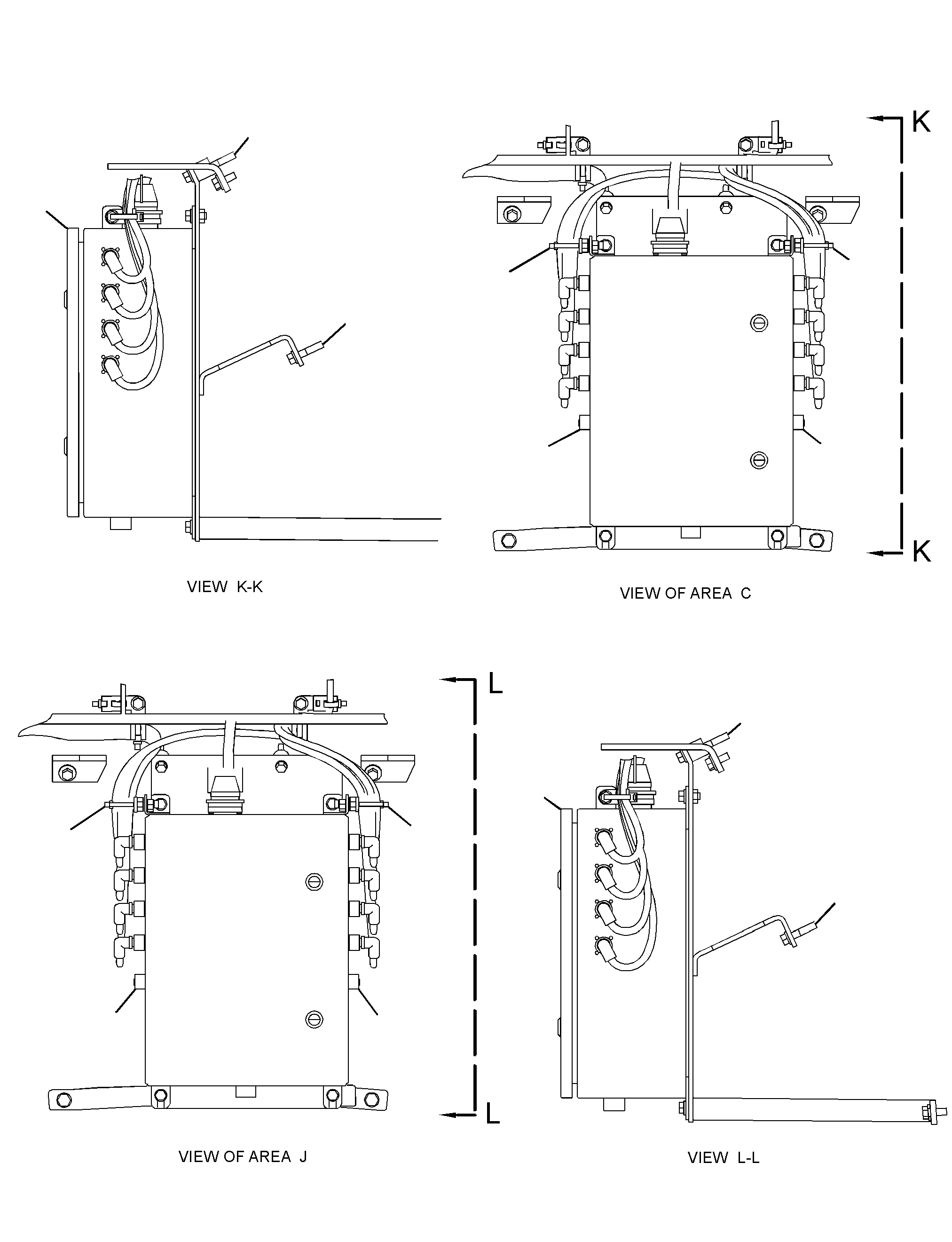

3247875	22 BOX GP-CONTROL	2
3247882	23 MOUNTING GP-CONTROL	2
3832984	24 SENSOR GP-TEMPERATURE (THERMOCOUPLE)	12
5923073	SENSOR GP-TEMPERATURE (THERMOCOUPLE)	1
3393560	25 HARNESS AS-SENSOR (COMBUSTION, TEMP, LH)	1
3393561	26 HARNESS AS-SENSOR (COMBUSTION, TEMP, RH)	1
0L2070	27 BOLT (3/8-16X2.25-IN)	1
1653931	28 BOLT (3/8-16X1.75-IN)	47
1653928	29 BOLT (3/8-16-THD)	1
0S1594	30 BOLT (3/8-16X1-IN)	12
0S1620	31 BOLT (1/2-13X0.75-IN)	2
1255356	32 DISC-INSULATOR	24
3V3308	33 WASHER-HARD (10.2X20.5X2.5-MM THK)	62
4F4879	34 BOLT (3/8-16X0.5-IN)	1
4P7428	35 CLIP (LADDER)	2
4P7581	36 CLIP (LADDER)	25
4P8134	37 CLIP (LADDER)	3
5M2894	38 WASHER-HARD (10.2X18.5X2.5-MM THK)	2
5P8245	39 WASHER-HARD (13.5X25.5X3-MM THK)	2
5P9297	40 CLIP (LOOP)	12
6B5072	41 ADAPTER	2
6V2686	42 CLIP	12
6V5050	43 SEAL-O-RING	12
9L9132	44 WASHER-HARD (10.2X25.5X2.5-MM THK)	10
9S8752	45 NUT-FULL (3/8-16-THD)	1
2264813	KIT-FASTENER	1
