System And Components

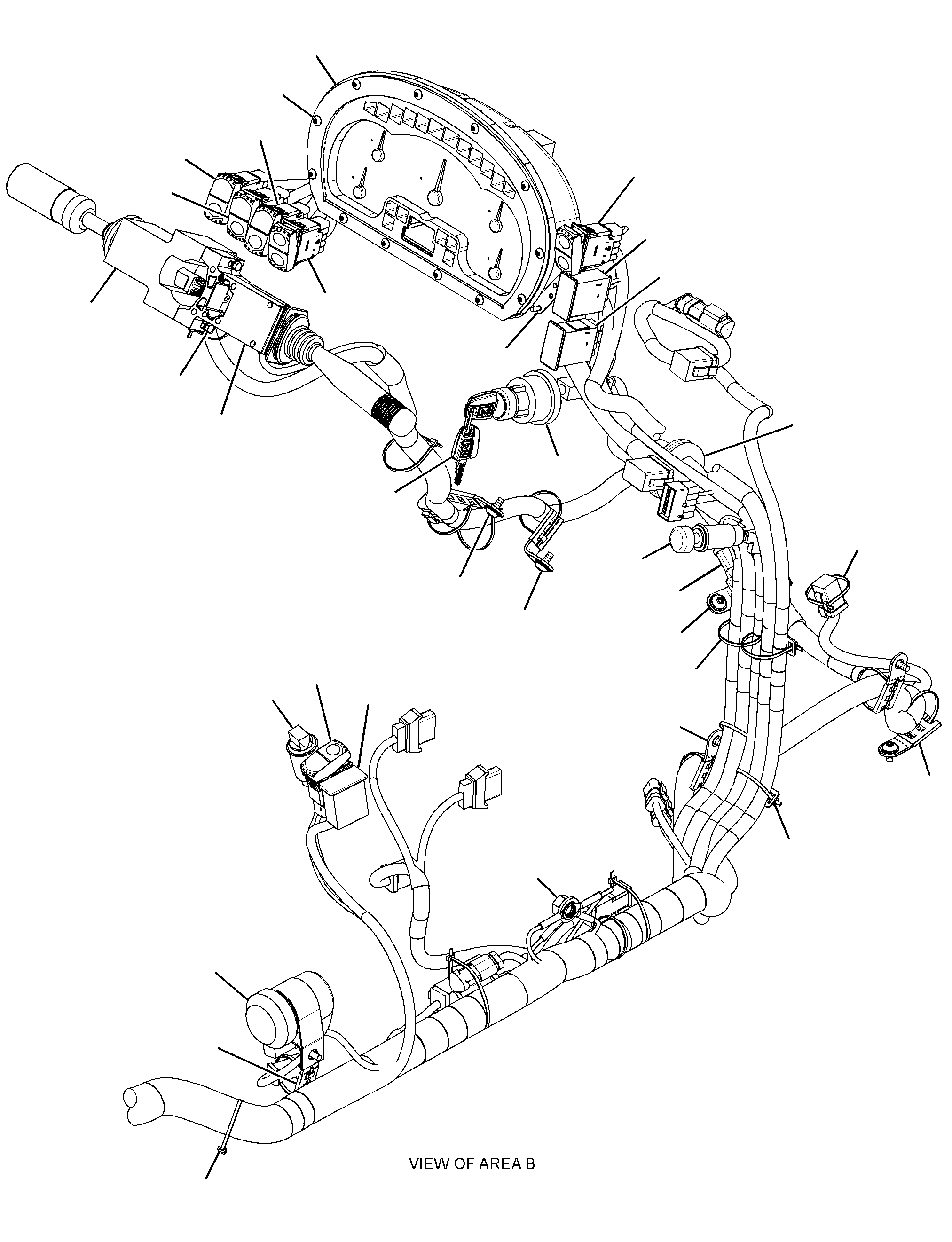

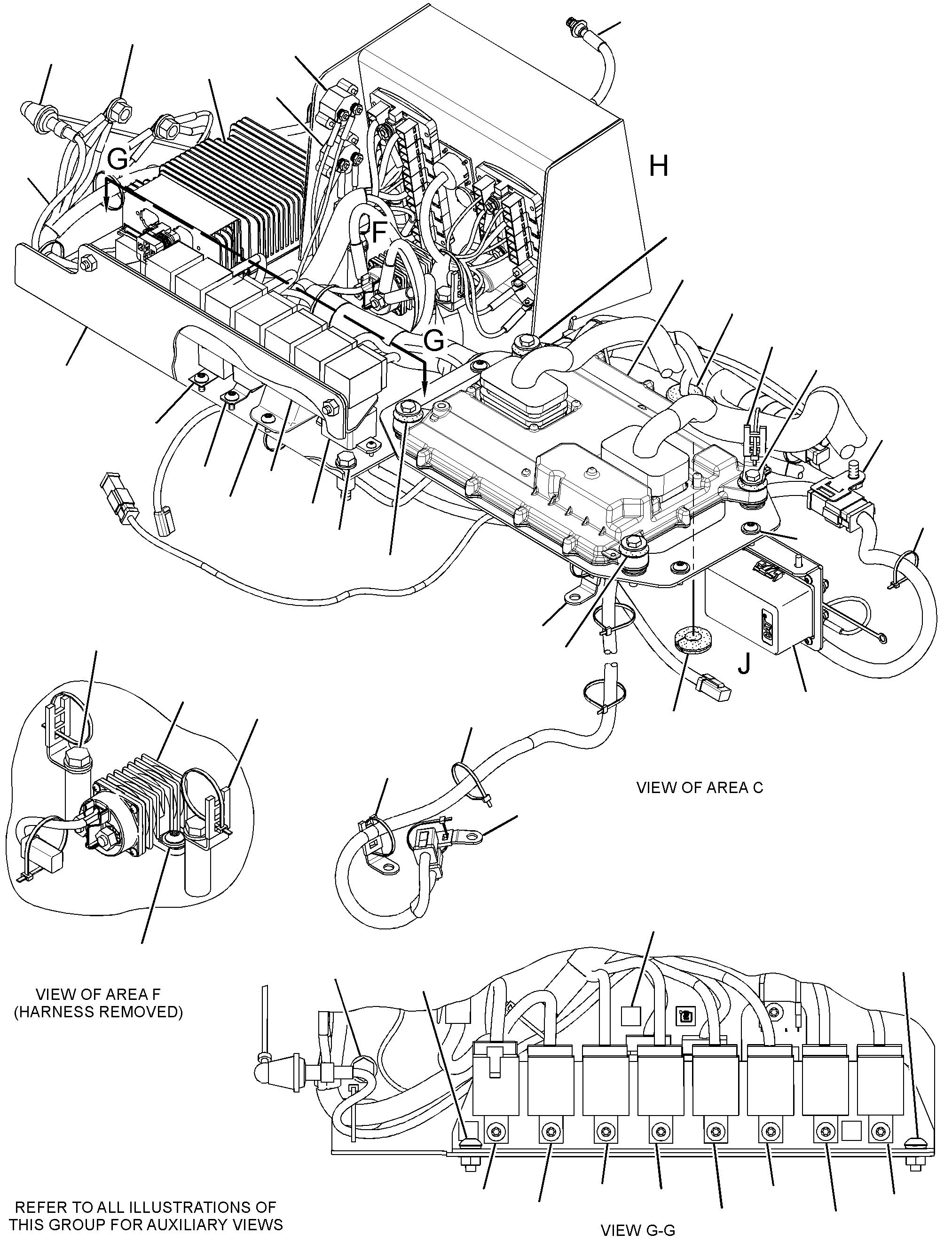

240-2340 WIRING GP-CABS/N EED1251-UP
Group No: 240-2340 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2483289 | 1 CIRCUIT BREAKER AS (20-AMPERE) | 2 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 8T0328 | WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 3E5239 | 2 RELAY AS (24-VOLT)(HIGH SPEED) | 1 | |
| 3E5239 | 2A RELAY AS (24-VOLT)(WIPER) | 1 | |
| 3E5239 | 2B RELAY AS (24-VOLT)(STOP LIGHT) | 1 | |
| 3E5239 | 2C RELAY AS (24-VOLT)(SECONDARY STEERING) | 1 | |
| 3E5239 | 2E RELAY AS (24-VOLT)(HIGH BEAM) | 1 | |
| 3E5239 | 2F RELAY AS (24-VOLT)(HEADLIGHTS) | 1 | |
| 3E5239 | 2G RELAY AS (24-VOLT)(AUTOLUBE) | 1 | |
| 3E5239 | 2H RELAY AS (24-VOLT)(PRECLEANER) | 1 | |
| 3E6328 | 3 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3E6389 | 4 LAMP GP-DOME (24-VOLT)(CAB) | 1 | |
| 5P8500 | 5 KEY | 2 | |
| 6I1418 | 6 SPACER (8.2X12.7X28.7-MM THK) | 8 | |
| 6T3644 | 7 CIRCUIT BREAKER AS (20-AMPERE)(BLOWER FAN) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6T7695 | 8 SPEAKER AS-RADIO | 2 | |
| 7G1060 | 9 STRAP AS-GROUND | 1 | |
| 7K1181 | 10 STRAP-CABLE | 75 | |
| 8E1118 | 11 ANTENNA AS | 1 | |
| 8L8413 | 12 STRAP-CABLE (WHITE) | 1 | |
| 8T9655 | 13 MOUNT-ISOLATION | 16 | |
| 8Y6335 | 14 LAMP-INTERIOR (24-VOLT) | 1 | |
| 9W1441 | 15 FUSE (15-AMPERE) | 9 | |
| 9W1442 | 16 FUSE (10-AMPERE) | 30 | |
| 9W1446 | 17 FUSE (20-AMPERE) | 9 | |
| 9X4494 | 18 LAMP (24-VOLT) | 1 | |
| 8T3426 | 19 CHANNEL-TRIM (0.4-M) | ||
| 1013055 | 20 COVER-SPEAKER | 2 | |
| 1058034 | 21 SWITCH AS-LIMIT (DOOR) | 1 | |
| 1080358 | 22 FLASHER AS (24-VOLT) | 1 | |
| 4678535 | 23 SWITCH AS-START (KEY) | 1 | |
| 7T6799 | NUT-MOUNTING (1-32-THD) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 1146658 | 24 WASHER (6.5X17X1-MM THK) | 11 | |
| 1172311 | 25 SOCKET-AUXILIARY POWER (12-VOLT) | 2 | |
| 1172932 | 26 CABLE AS-COAXIAL | 1 | |
| 1636088 | 27 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1809900 | 28 CAP AS | 1 | |
| 5P7958 | SLEEVE-CABLE SPLICE | 1 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 1799392 | LANYARD | 1 | |
| 1892512 | 29 PLATE | 1 | |
| 1986570 | 30 LIGHTER GP (12-VOLT) | 1 | |
| 1986571 | ELEMENT AS-HEATER (12-VOLT) | 1 | |
| 2246193 | 31 BOLT-SOCKET HEAD (M3X0.5X12-MM) | 4 | |
| 2286089 | 32 PLUG (ROCKER SWITCH) | 7 | |
| 2292580 | 33 SWITCH AS-ROCKER (24-VOLT)(ENGINE, HIGH IDLE, HOLD) | 1 | |
| 2364615 | 34 SWITCH AS-ROCKER (SECONDARY STEERING) | 1 | |
| 2364616 | 35 SWITCH AS-ROCKER (24-VOLT)(HAZARD LIGHT) | 1 | |
| 2364630 | 36 SWITCH AS-ROCKER (HEATED MIRRORS) | 1 | |
| 4436362 | 37 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 2418368 | 38 SWITCH GP-MAGNETIC (24-VOLT)(MAIN RELAY) | 1 | |
| 2430774 | 39 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS) | 1 | |
| 3486692 | 40 SWITCH AS-MULTIFUNCTION (TURN SIGNAL, WIPER, WASHER) | 1 | |
| 2513539 | 41 SWITCH AS-ROCKER (24-VOLT)(HEADLIGHT) | 1 | |
| 2516204 | 42 FILM-IDENTIFICATION (RELAY) | 1 | |
| 2532101 | 43 SWITCH AS-ROCKER (24-VOLT)(DOME LIGHT) | 1 | |
| 3045687 | 44 CONTROL GP-UNPROGRAMMED (CHASSIS) | 1 | |
| 3045687 | 44A CONTROL GP-UNPROGRAMMED (BRAKE) | 1 | |
| 7X7877 | 45 STRIP-EDGE (10-CM) | ||
| 2566467 | 46 PLATE | 1 | |
| 2578533 | 47 PLATE | 2 | |
| 2578534 | 48 PLATE AS | 1 | |
| 2578536 | 49 GASKET | 1 | |
| 3399365 | 50 SWITCH AS-CONTROL (RETARDER) | 1 | |
| 8T8737 | PLUG-SEAL | 3 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 3 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 2792561 | 51 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 11 | |
| 7T1099 | LINK | 5 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 1178721 | LUG (M10X1.5-THD) | 2 | |
| 2049734 | SPACER (11X18X25-MM THK) | 4 | |
| 2816720 | 52 BRACKET | 2 | |
| 2869022 | 53 RESISTOR AS (2-PIN) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 2877191 | 54 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 8 | |
| 2957965 | 55 PLATE | 1 | |
| 3132153 | 56 MODULE GP-DISPLAY (ELECTRONIC) | 1 | |
| 3209229 | 57 HARNESS AS-WINDOW WIPER | 1 | |
| 5C2890 | NUT (M6X1-THD) | 2 | |
| 7R2750 | SEAL-CONNECTOR | 13 | |
| 7R2751 | PLUG-CONNECTOR (1-PIN) | 22 | |
| 1H3244 | LOCKWASHER | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 12 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 12 | |
| 2L8077 | TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW) | 1 | |
| 1418061 | TAPE | ||
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 2757878 | BLOCK AS-FUSE | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 5C2890 | NUT (M6X1-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 3060350 | COVER | 1 | |
| 3060351 | SEAL-COVER | 1 | |
| 2020314 | TERMINAL AS (14-GA) | 13 | |
| 1284123 | SEAL-CABLE | 1 | |
| 3612515 | 58 HARNESS AS-CAB | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 2 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 3 | |
| 1779645 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1769299 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 3E5519 | PLUG AS-CONNECTOR (5-PIN) | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 2 | |
| 3T5433 | WIRE AS (1O-GA, BLACK) | 2 | |
| 1306797 | WIRE AS (14-GA, BLACK) | 2 | |
| 7K1181 | STRAP-CABLE | 4 | |
| 7R2750 | SEAL-CONNECTOR | 2 | |
| 7R2751 | PLUG-CONNECTOR (1-PIN) | 15 | |
| 7T0093 | PIN-CONNECTOR (12-GA TO 14-GA) | 2 | |
| 7T0094 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 6 | |
| 9X0196 | TERMINAL AS (16-GA) | 1 | |
| 5P5623 | WIRE-ELECTRICAL (16-GA, BLACK)(0.4-M) | ||
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 8N1548 | PIN-CONNECTOR (4-GA) | 1 | |
| 8T8737 | PLUG-SEAL | 258 | |
| 9R9806 | TERMINAL-BLADE (18-GA TO 20-GA) | 4 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 9 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 12 | |
| 9W1951 | RECEPTACLE AS-CONNECTOR (9-PIN) | 1 | |
| 9W2032 | TERMINAL-BLADE (10-GA TO 12-GA) | 2 | |
| 9W2033 | TERMINAL-BLADE (14-GA TO 16-GA) | 29 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X1054 | PLUG AS-CONNECTOR (4-PIN) | 1 | |
| 9X1055 | TERMINAL-RECEPTACLE (12-GA) | 2 | |
| 9X1056 | TERMINAL-RECEPTACLE (14-GA TO 16-GA) | 23 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 9X6772 | STRAP-CABLE | 8 | |
| 1005041 | TERMINAL-RECEPTACLE (18-GA TO 20-GA) | 12 | |
| 1030213 | RECEPTACLE AS-CONNECTOR (70-PIN) | 1 | |
| 1100203 | CONNECTOR AS (18-GA, BLACK) | 4 | |
| 1168528 | SLEEVE (26-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(182-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(115-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(100-CM) | ||
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 234 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 234 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 9 | |
| 1261774 | COVER-CONNECTOR | 4 | |
| 2L8066 | TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW) | 1 | |
| 1285016 | SEAL-CABLE | 2 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 10 | |
| 0977234 | TERMINAL-BLADE (18-GA TO 22-GA) | 2 | |
| 9G4343 | TERMINAL-RING (4-GA, 1/4-IN SCREW) | 2 | |
| 5P3454 | TERMINAL-RING (4-GA, 5/16-IN SCREW) | 3 | |
| 2L8066 | TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW) | 2 | |
| 2L8067 | TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW) | 4 | |
| 2L8071 | TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW) | 7 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 4 | |
| 2L8081 | TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW) | 6 | |
| 1342540 | RECEPTACLE AS-CONNECTOR (3-PIN) | 3 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 170 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 170 | |
| 1471445 | PLUG AS-CONNECTOR (70-PIN) | 2 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1471446 | PLUG AS-CONNECTOR (70-PIN) | 2 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1511396 | BLOCK AS-FUSE (16-POLE) | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 6V8185 | NUT (1/4-20-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 1511398 | KIT-TERMINAL (LOCK) | 2 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 5 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 3 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 6 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 6 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 2 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 7 | |
| 1740503 | KIT-CONNECTING PLUG (3-PIN) | 3 | |
| 1P0810 | TAPE-ELECTRICAL | ||
| 1779648 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1779656 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 2457434 | KIT-CONNECTING PLUG (10-PIN) | 15 | |
| 1851861 | SEAL-WIRE | 91 | |
| 1886210 | RECEPTACLE AS-CONNECTOR (1-PIN) | 1 | |
| 1886253 | BLOCK GP-JUNCTION | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 6V8185 | NUT (1/4-20-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 1511398 | KIT-TERMINAL (LOCK) | 4 | |
| 2008789 | SEAL | 1 | |
| 2020313 | TERMINAL AS (18-GA) | 2 | |
| 5P5677 | WIRE (18-GA, BLACK)(0.2-M) | ||
| 1285016 | SEAL-CABLE | 1 | |
| 2020314 | TERMINAL AS (14-GA) | 2 | |
| 5P5624 | WIRE (14-GA, BLACK)(0.2-M) | ||
| 1284123 | SEAL-CABLE | 1 | |
| 2025397 | PLUG | 59 | |
| 2041297 | TERMINAL AS-BLADE (18-GA TO 20-GA) | 69 | |
| 2354123 | TERMINAL (18-GA TO 20-GA) | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 2743774 | CAP-CONNECTOR | 1 | |
| 2743776 | CAP-SEAL | 1 | |
| 2743777 | CAP-CONNECTOR | 1 | |
| 2743778 | CAP-SEAL | 1 | |
| 2743779 | CAP-SEAL | 1 | |
| 2816728 | BRACKET | 2 | |
| 2818803 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 0966166 | 60 WASHER-HARD (4.5X9X1-MM THK) | 16 | |
| 1272170 | 61 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 2 | |
| 1305300 | 62 CLIP | 1 | |
| 1325789 | 63 CLIP (LADDER) | 6 | |
| 1748131 | 64 SCREW-TRUSS HEAD (M4X0.7X12-MM) | 6 | |
| 1934623 | 65 SCREW-BUTTON HEAD (10-32X0.5-IN) | 12 | |
| 2021129 | 66 SCREW-TRUSS HEAD (M4X0.7X18-MM) | 12 | |
| 2482841 | 67 RELAY AS (24-VOLT)(WINDOW WASHER) | 1 | |
| 2482841 | 67A RELAY AS (24-VOLT)(WINDOW WIPER) | 3 | |
| 2843621 | 68 SWITCH AS-ROCKER (24-VOLT)(PANEL LIGHT) | 1 | |
| 2843622 | 69 SWITCH AS-ROCKER (24-VOLT)(ARC ON, OFF) | 1 | |
| 4413637 | 70 RELAY AS-TIMER (24-VOLT)(HEATED MIRROR TIMER) | 1 | |
| 2G4815 | 72 PLUG | 1 | |
| 4B2041 | 74 NUT (6-32-THD) | 4 | |
| 4P7581 | 75 CLIP (LADDER) | 8 | |
| 4P8134 | 76 CLIP (LADDER) | 1 | |
| 5C7261 | 77 NUT (M8X1.25-THD) | 8 | |
| 6V8927 | 78 BOLT-SOCKET HEAD (6-32X0.5-IN) | 4 | |
| 7Y9099 | 80 SCREW-TRUSS HEAD (M8X1.25X25-MM) | 6 | |
| 8D1470 | 81 GROMMET | 1 | |
| 8T0328 | 82 WASHER-HARD (5.5X10X1-MM THK) | 13 | |
| 8T4121 | 83 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4137 | 84 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4182 | 85 BOLT (M10X1.5X45-MM) | 4 | |
| 8T4223 | 86 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4224 | 87 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T4244 | 88 NUT (M12X1.75-THD) | 3 | |
| 8T6912 | 89 BOLT (M8X1.25X50-MM) | 8 | |
| 8T9405 | 90 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 12 | |
| 8Y8606 | 91 GROMMET | 2 | |
| 9K5635 | 92 SCREW-TAPPING (8-18X1-IN) | 21 | |
| 9M1974 | 93 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9N0869 | 94 WASHER-HARD (8.8X25.5X2-MM THK) | 24 | |
| 9X2038 | 95 WASHER (7X19X2-MM THK) | 10 | |
| 9X2043 | 96 SCREW-TRUSS HEAD (M6X1X14-MM) | 19 | |
| 9X2044 | 97 SCREW-TRUSS HEAD (M6X1X16-MM) | 2 | |
| 9X2045 | 98 SCREW-TRUSS HEAD (M6X1X20-MM) | 14 | |
| 1608497 | 99 BOLT (M5X0.8X65-MM) | 2 | |
| 9X6016 | 100 SCREW-HEX SOCKET (8-32X0.875-IN) | 6 | |
| 9X8256 | 101 WASHER (6.6X12X2-MM THK) | 12 | |
| 3072655 | 102 PLATE | 1 | |
| 5C9553 | 103 BOLT (M6X1X16-MM) | 2 | |
| 2313930 | 104 RELAY AS (24-VOLT)(BACKUP LIGHT) | 1 |
