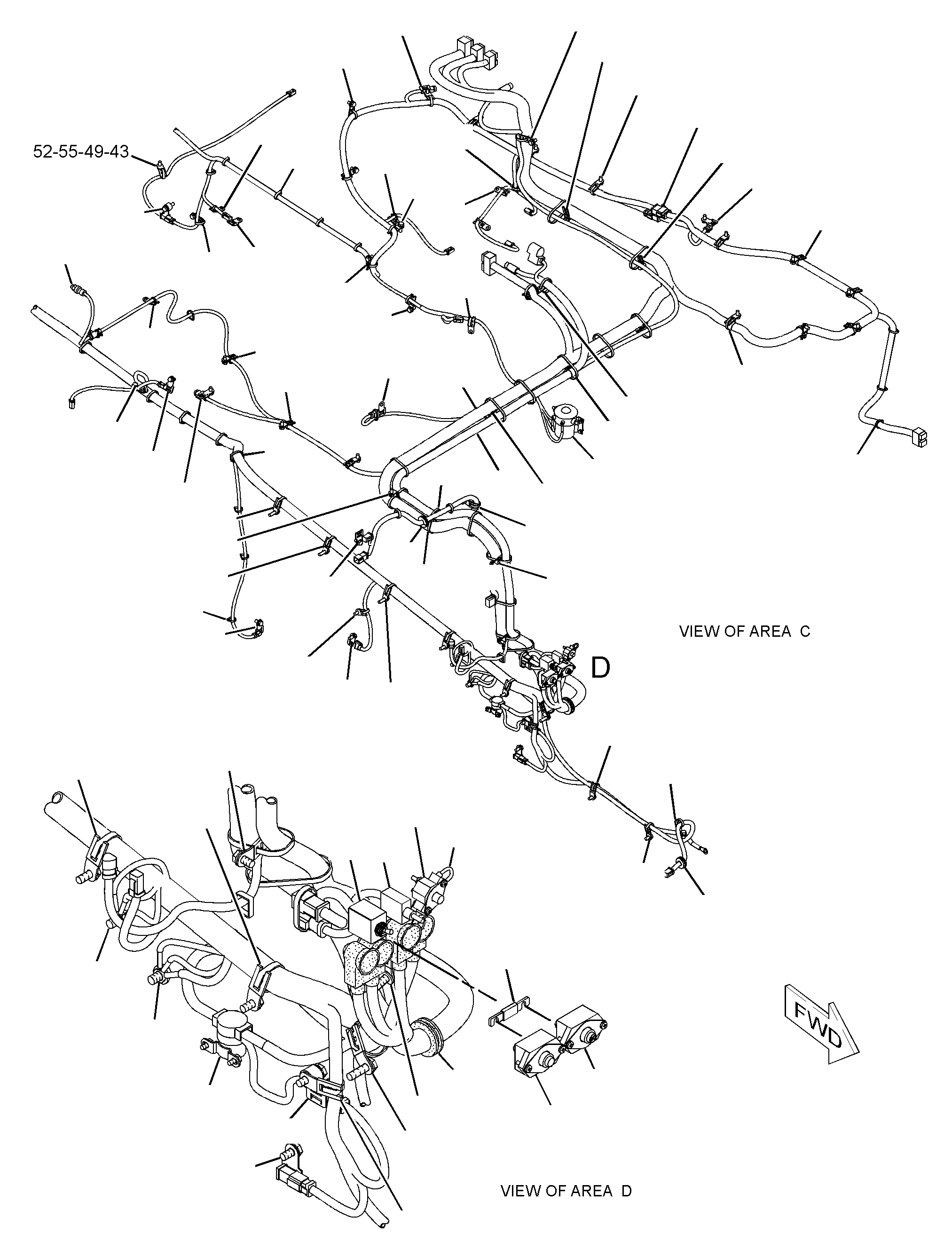

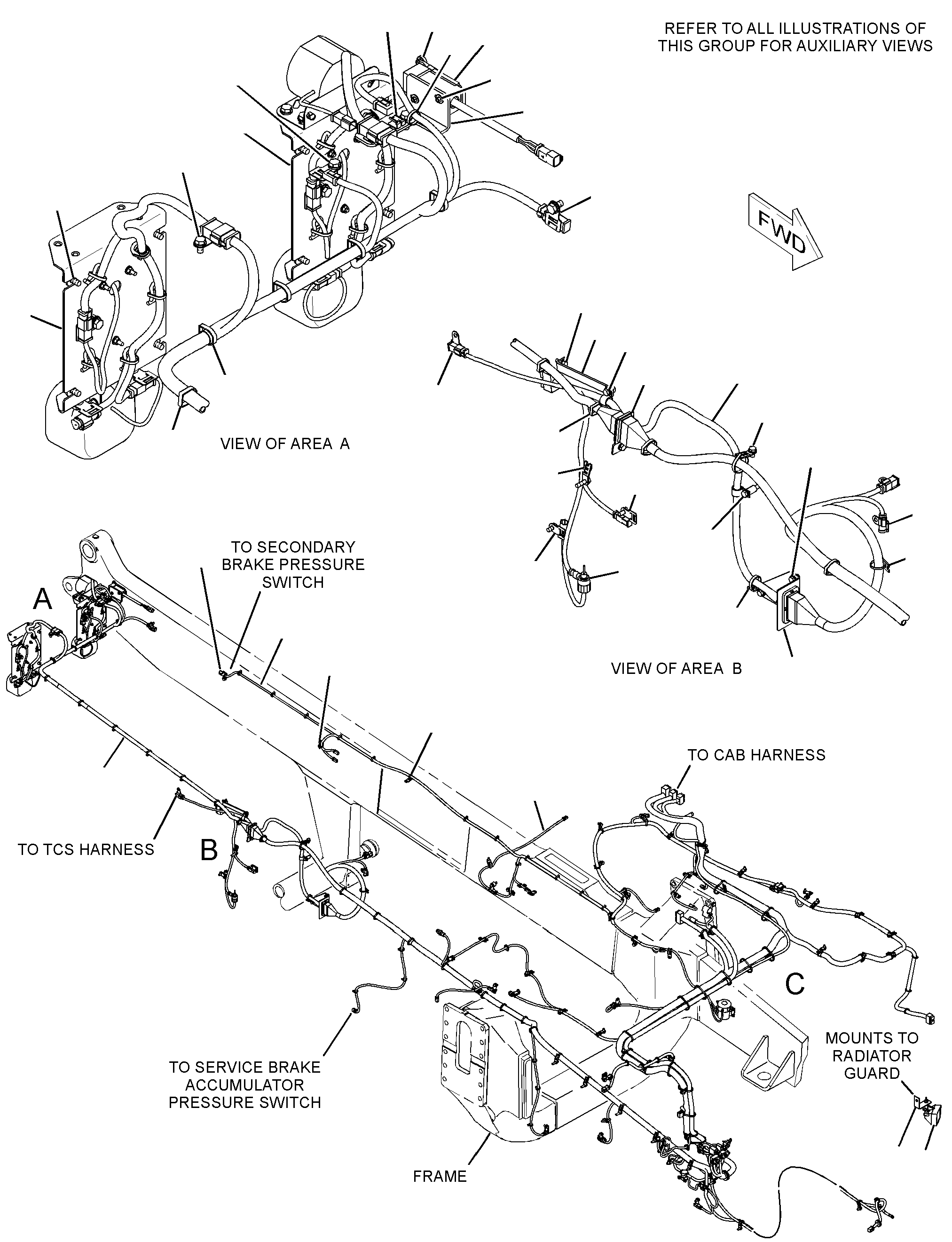

247-5540 WIRING GP-CHASSISS/N EED602-936

Group No: 247-5540 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE23
6V42832 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
9F81253 LOCKWASHER4
9N19094 BRACKET1
11601185 CLIP2
11835346 SWITCH GP-MAGNETIC (24-VOLT)(STARTING AID RELAY)1
12563907 PLATE-INFORMATION (ENGINE)1
13422528 SENSOR GP-TEMPERATURE (8-VOLT)(HYDRAULIC TANK OIL)1
13921169 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)1
171221010 CIRCUIT BREAKER AS (80-AMPERE)(LOAD)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
189010811 PLATE1
194672212 SENSOR GP-PRESSURE (ATMOSPHERIC AIR)1
209456213 PLATE AS1
230627814 SWITCH GP-MAGNETIC (SECONDARY STEERING)1
235009415 HARNESS AS-CHASSIS (MIDDLE)1
1028803KIT-RECEPTACLE (3-PIN)2
1028801KIT-RECEPTACLE (12-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)2
1552270KIT-CONNECTING PLUG (2-PIN)7
235009516 HARNESS AS-CHASSIS (REAR)1
1552272PLUG AS-CONNECTOR (4-PIN)1
1028802KIT-RECEPTACLE (2-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)3
235009617 HARNESS AS-TRANSMISSION1
1028804KIT-RECEPTACLE (4-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)1
9X0141PLUG AS-CONNECTOR (40-PIN)1
1552272PLUG AS-CONNECTOR (4-PIN)1
235011218 HARNESS AS-CHASSIS (FRONT)1
8T8827BOOT (RED)5
1275483PLUG AS-CONNECTOR (1-PIN)2
241848819 PLATE1
247563120 HARNESS AS-SENSOR (FUEL LEVEL)1
1028802KIT-RECEPTACLE (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
247564021 LIGHTING GP-FLOOD (REAR, LH)1
247564222 LIGHTING GP-FLOOD (REAR, RH)1
255249623 BRACKET1
261865224 SWITCH AS-LIMIT (ACCESS PLATFORM UPWARD TRAVEL)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1028804KIT-RECEPTACLE (4-PIN)1
270148925 WIRE AS1
276233226 SWITCH AS-TOGGLE (LOCKOUT)1
3E3383WEDGE-RECEPTACLE LOCK (6-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)6
5P5677WIRE (18-GA, BLACK)(1.8-M)
1028805KIT-RECEPTACLE (6-PIN)1
298612227 PLATE1
302450528 HARNESS AS-CHASSIS1
095064229 BOLT-SOCKET HEAD (M5X0.8X50-MM)2
117940930 GROMMET1
130143331 SPACER (11X25X17-MM THK)2
130530032 CLIP24
161698733 WASHER-HARD (5.2X16X1.5-MM THK)2
168993334 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)1
9X2032NUT-WELD (M4X0.7-THD)4
1689932PLATE1
171221135 CIRCUIT BREAKER AS (90-AMPERE)(MAIN)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
219648736 LAMP GP-FLOOD (24-VOLT, 70-WATT)1
230917437 CIRCUIT BREAKER AS (15-AMPERE)1
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
8T0328WASHER-HARD (5.5X10X1-MM THK)2
267882838 GROMMET1
1H439339 LOCKWASHER2
3E435340 WASHER-HARD (11X25X3-MM THK)8
3J190741 SEAL-O-RING1
4L645442 BOLT (3/8-16X1-IN)1
4P758143 CLIP (LADDER)56
4P813444 CLIP (LADDER)6
5M306245 BOLT (3/8-16X0.75-IN)2
5P626446 GROMMET1
6V797847 SCREW-MACHINE (10-32X0.375-IN)4
6V812748 NUT (M5X0.8-THD)2
7K118149 STRAP-CABLE94
7K337750 PIPE1
8D465651 LEVER1
8T412152 WASHER-HARD (11X21X2.5-MM THK)72
8T413353 NUT (M10X1.5-THD)1
8T413654 BOLT (M10X1.5X25-MM)6
8T413755 BOLT (M10X1.5X20-MM)63
8T417156 BOLT (M6X1X12-MM)6
8T417257 BOLT (M10X1.5X80-MM)1
8T417958 BOLT (M12X1.75X20-MM)2
8T418559 BOLT (M10X1.5X50-MM)1
8T418660 BOLT (M10X1.5X40-MM)1
8T419561 BOLT (M10X1.5X30-MM)1
8T419662 BOLT (M10X1.5X35-MM)5
8T422363 WASHER-HARD (13.5X25.5X3-MM THK)2
8T489664 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T940565 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
9X825666 WASHER (6.6X12X2-MM THK)6
9X848667 SCREW-MACHINE (8-32X0.75-IN)2
