System And Components

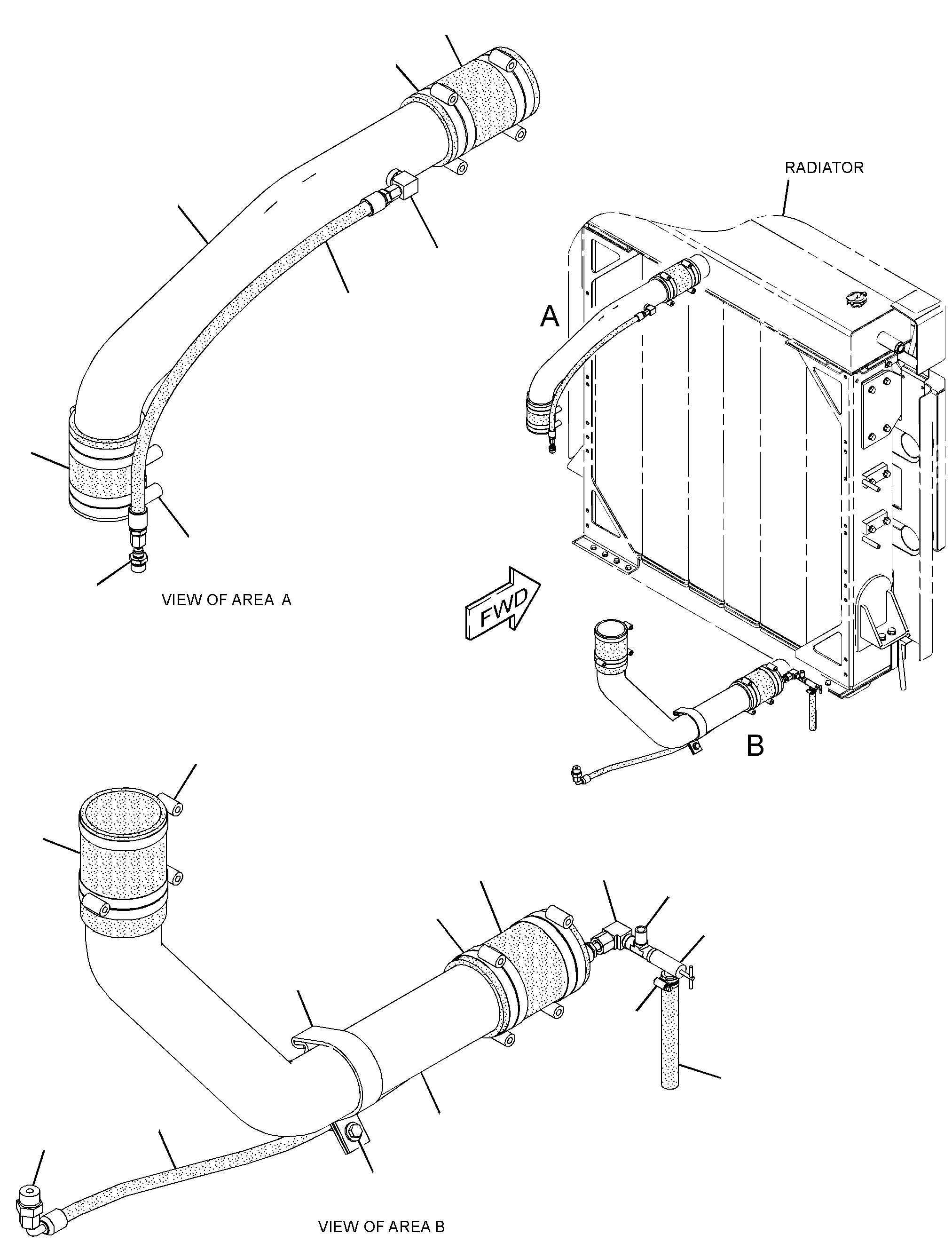

298-7188 LINES GP-WATERS/N DLS1064-UP
Group No: 298-7188 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2N8037 | 1 ELBOW | 1 | |
| 5D1026 | 2 CLAMP-BAND | 1 | |
| 8F8151 | 3 VALVE-SHUTOFF | 1 | |
| 9X2201 | 4 CLAMP-HOSE | 8 | |
| 0025299 | 5 TEE-PIPE | 1 | |
| 2081629 | 6 ELBOW AS | 1 | |
| 2T2396 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2403337 | 7 HOSE AS | 1 | |
| 2403338 | 8 TUBE AS | 1 | |
| 2810226 | 9 VALVE AS | 1 | |
| 7N7688 | FERRULE | 1 | |
| 9M5590 | BALL | 1 | |
| 2962720 | 10 TUBE | 1 | |
| 3149672 | 11 HOSE | 1 | |
| 3176426 | 12 HOSE | 2 | |
| 3399634 | 13 HOSE AS | 1 | |
| 3471725 | 14 HOSE | 1 | |
| 1488328 | 15 CONNECTOR AS | 1 | |
| 6V8633 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 3K0360 | 16 SEAL-O-RING | 1 | |
| 8T4986 | 17 CLAMP-HOSE | 7 | |
| 5P0743 | 18 HOSE (19-CM) | ||
| 1S6420 | 19 CLIP | 1 | |
| 6V6782 | 20 CLIP (SLOT) | 1 | |
| 6V6783 | 21 CLIP (TAB) | 1 | |
| 7X7729 | 22 WASHER (11X25X3-MM THK) | 2 | |
| 8T4133 | 23 NUT (M10X1.5-THD) | 1 | |
| 8T4196 | 24 BOLT (M10X1.5X35-MM) | 1 |
