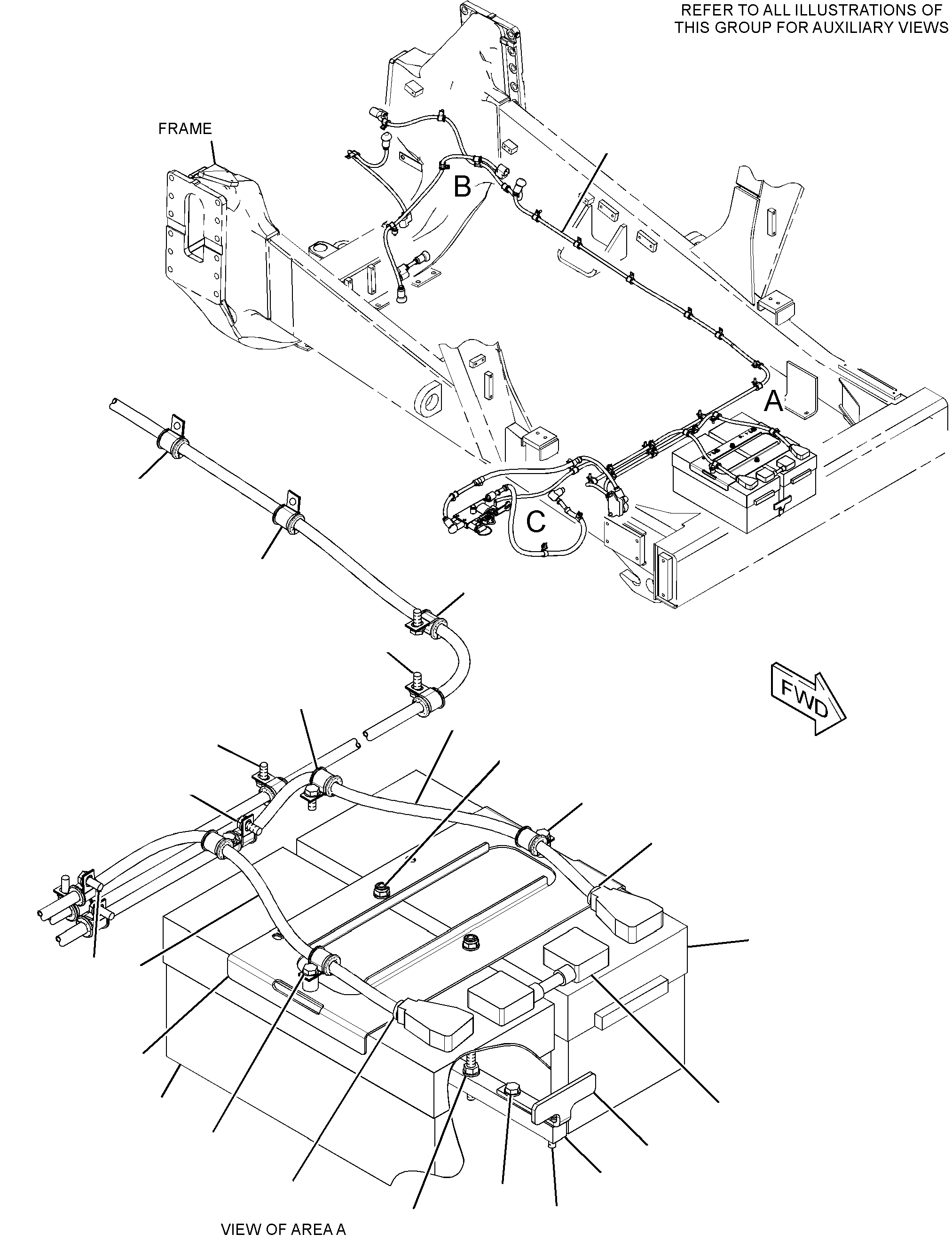

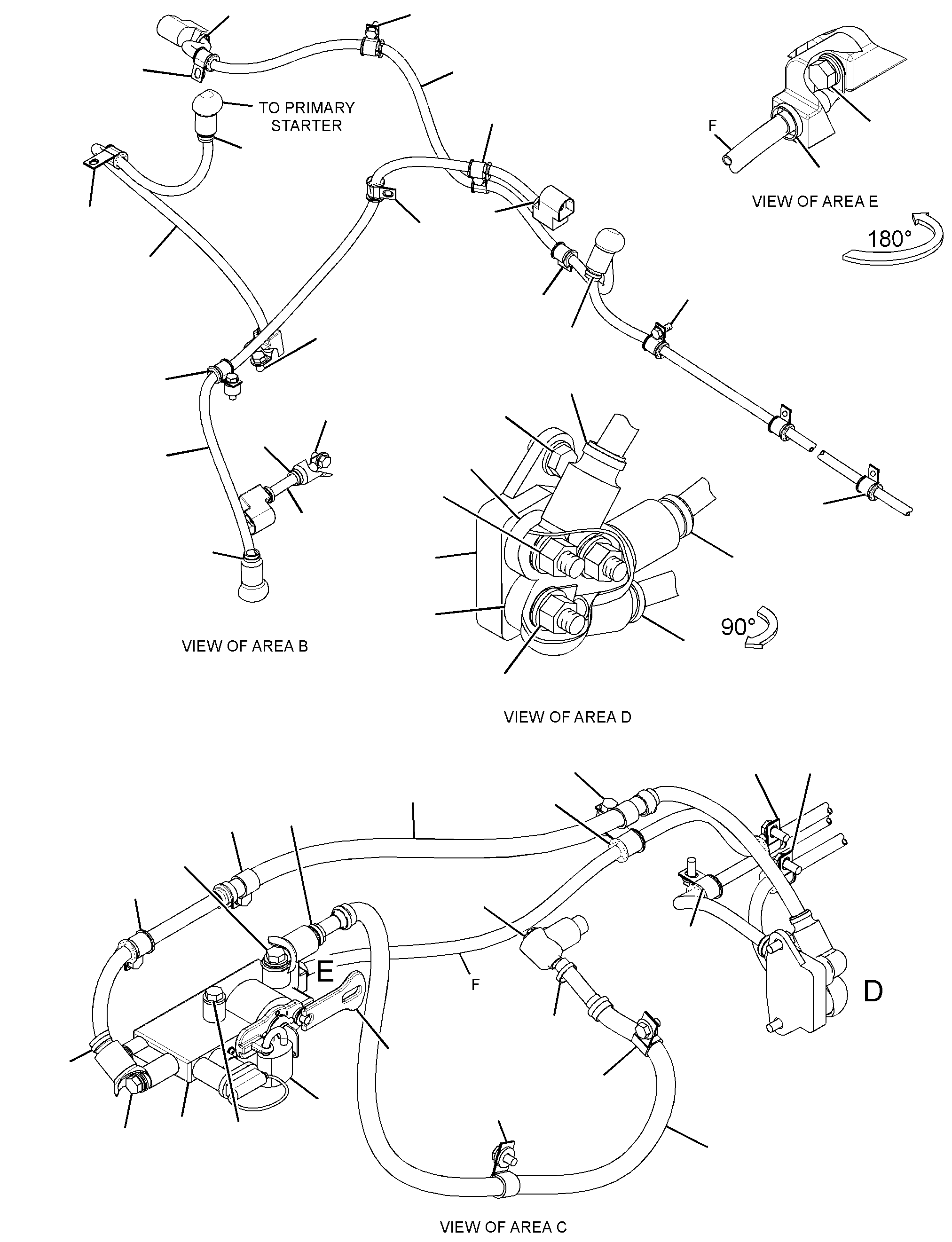

235-0109 BATTERY & WIRING GPS/N DLS1328-UP

Group No: 235-0109 · Commonality

Part Number	Part Name	Qty
3S2093	1 STRAP-CABLE	17
1181277	2 CABLE AS-BATTERY	1
8T9757	TERMINAL AS-BATTERY (NEGATIVE)	1
8C5917	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	2
1M6120	NUT (5/16-18-THD)	2
1598049	CABLE (00-GA, RED)(20-CM)
9G0003	COVER AS-TERMINAL (BLACK)	1
9G0004	COVER AS-TERMINAL (RED)	1
8L8413	STRAP-CABLE (WHITE)	1
9G2758	3 LOCKOUT-SWITCH (BATTERY DISCONNECT)	1
1535710	4 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)	2
2350110	5 CABLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
8N0869	COVER-TERMINAL (RED)	1
8N1725	COVER AS-TERMINAL (RED)	1
3S6049	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598049	CABLE (00-GA, RED)(144-CM)
2350111	6 CABLE AS	1
7N5274	COVER AS-TERMINAL (BLACK)	1
3S6050	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
9X5699	BOOT	1
9X9825	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1598050	CABLE (00-GA, BLACK)(184-CM)
2350113	7 CABLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
9X5699	BOOT	1
9X9825	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
9G8909	COVER-TERMINAL (BLACK)	2
1598050	CABLE (00-GA, BLACK)(86-CM)
2350125	8 CABLE AS	1
1S4915	LINER (CONDUIT)	2
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
5P0695	CONDUIT (69-CM)
8N0869	COVER-TERMINAL (RED)	2
8T2225	TUBE-HEAT SHRINK (25.4-MM DIA)(16-CM)
1598049	CABLE (00-GA, RED)(131-CM)
2377602	9 SWITCH GP-DISCONNECT (BATTERY)	1
2475546	10 CABLE AS	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
9X9120	BOOT (RED)	1
9X9825	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1598049	CABLE (00-GA, RED)(141-CM)
2502186	11 BRACKET	2
2503386	12 BAR	1
2657731	13 HOLD-DOWN AS	1
2660301	14 CABLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
9G8909	COVER-TERMINAL (BLACK)	1
9X5699	BOOT	1
9X9825	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1598050	CABLE (00-GA, BLACK)(25-CM)
3654483	15 CABLE GP-BATTERY	1
1S4915	LINER (CONDUIT)	2
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
5P0695	CONDUIT (84-CM)
8T2225	TUBE-HEAT SHRINK (25.4-MM DIA)(16-CM)
9G8909	COVER-TERMINAL (BLACK)	2
1598050	CABLE (00-GA, BLACK)(110-CM)
2672119	16 CABLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
8N0869	COVER-TERMINAL (RED)	1
9X9120	BOOT (RED)	1
9X9825	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1598049	CABLE (00-GA, RED)(123-CM)
2672120	17 CABLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
8N0869	COVER-TERMINAL (RED)	2
1598049	CABLE (00-GA, RED)(334-CM)
1301433	18 SPACER (11X25X17-MM THK)	2
6D4246	19 CLIP (LOOP)	27
5G6505	21 WASHER (25X38X14-MM THK)	3
5H1504	22 WASHER-HARD (20X33.5X5-MM THK)	1
2462641	24 PADLOCK GP	1
5P8500	KEY	1
6V8188	25 NUT (1/2-13-THD)	6
7X2549	26 BOLT (M12X1.75X100-MM)	2
8C6358	27 BLOCK AS-JUNCTION (BATTERY)	1
1D5117	NUT-JAM (1/2-13-THD)	3
8T3519	BOLT-BRONZE (1/2-13X2-IN)	3
8T0389	28 LOCKNUT (M10X1.5-THD)	2
8T4121	29 WASHER-HARD (11X21X2.5-MM THK)	32
8T4133	30 NUT (M10X1.5-THD)	2
8T4136	31 BOLT (M10X1.5X25-MM)	23
8T4179	32 BOLT (M12X1.75X20-MM)	5
8T4185	33 BOLT (M10X1.5X50-MM)	2
8T4223	34 WASHER-HARD (13.5X25.5X3-MM THK)	12
8T4196	35 BOLT (M10X1.5X35-MM)	1
9R6414	37 ROD	2
1S0994	38 CLIP (LOOP)	2
2V1771	39 GROMMET	29
4D7735	40 CLIP	1
8S0948	41 CLIP	1
8T4186	42 BOLT (M10X1.5X40-MM)	1
1S1015	43 CLIP (LOOP)	2
7X7729	44 WASHER (11X25X3-MM THK)	4
8T4137	45 BOLT (M10X1.5X20-MM)	2
