System And Components

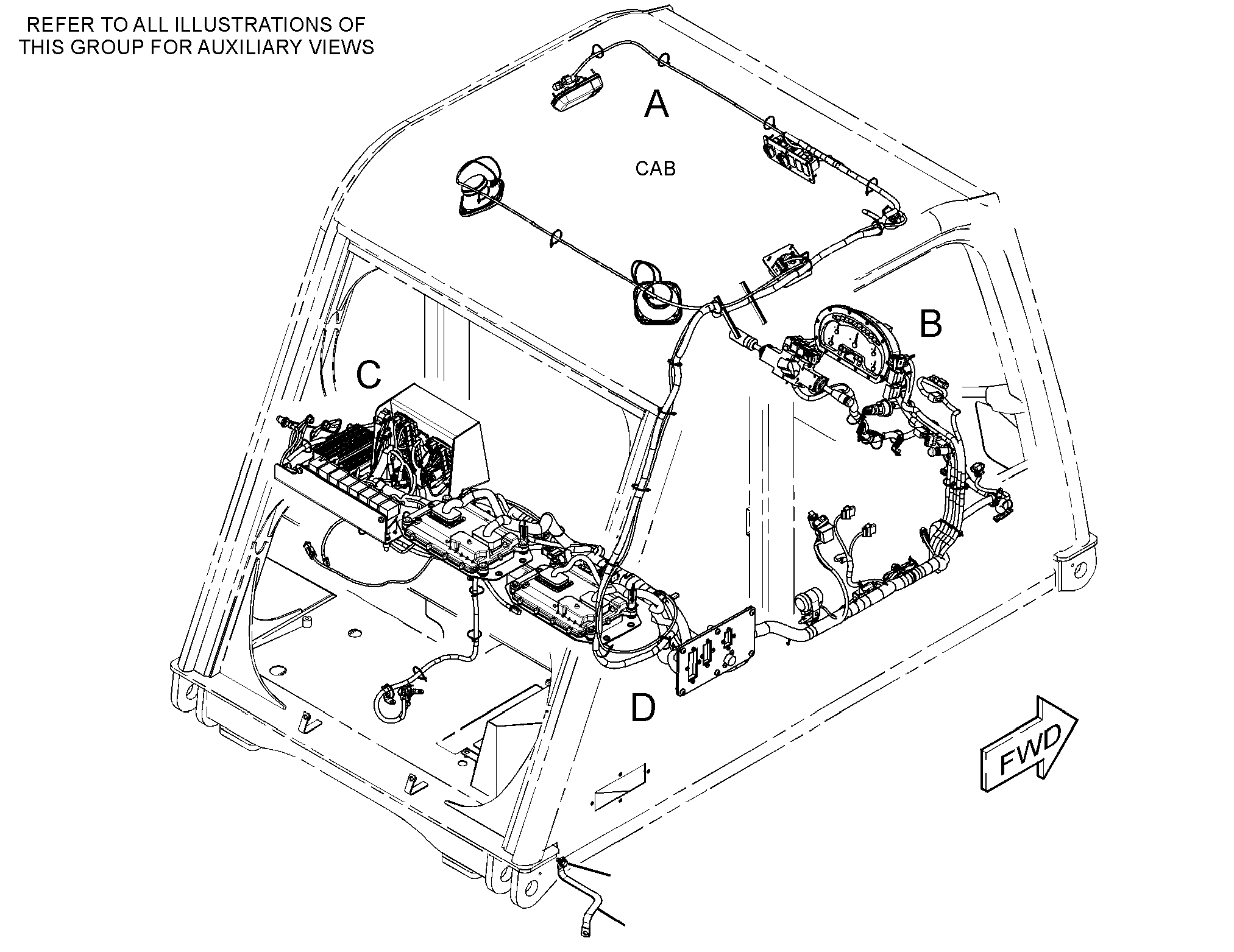

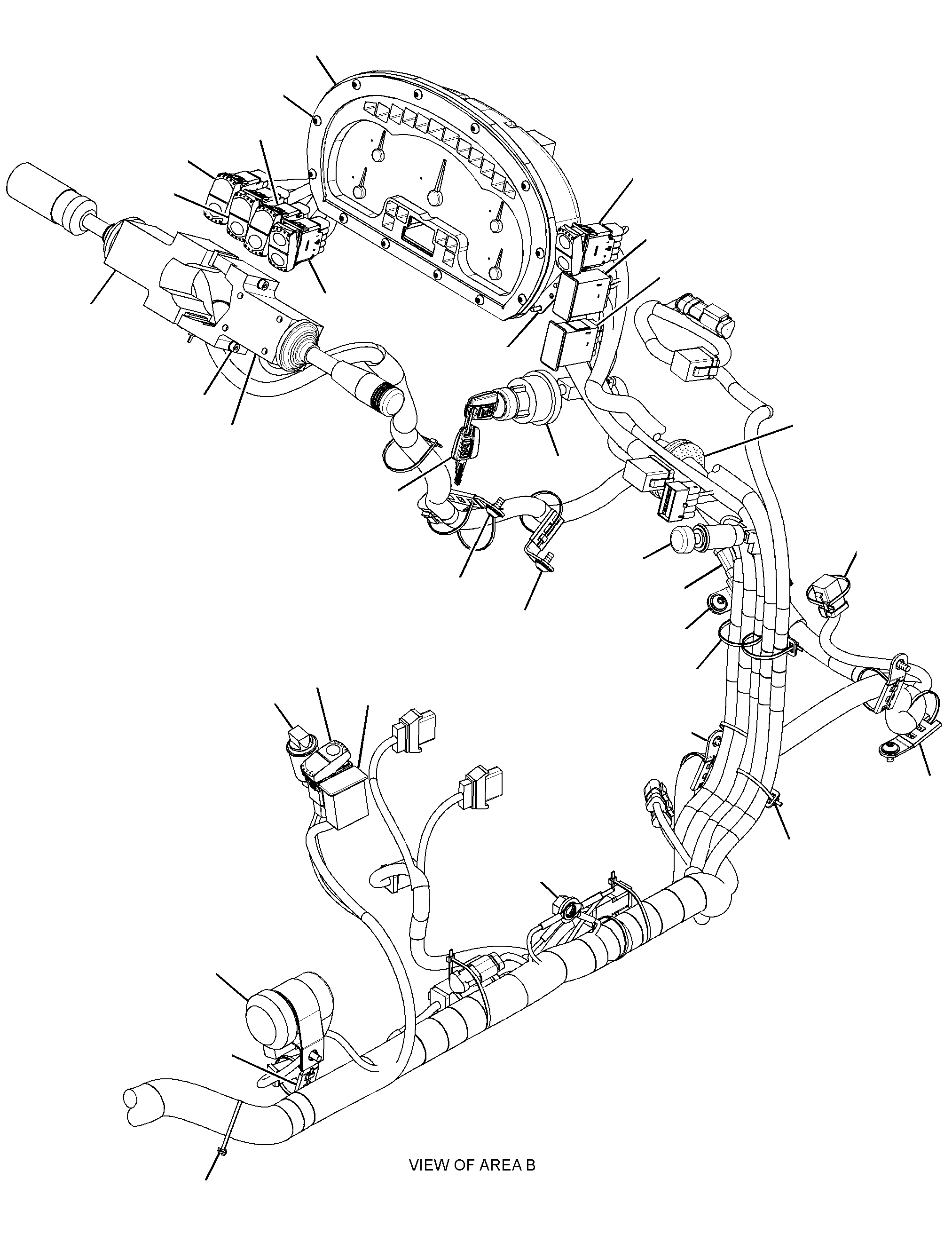

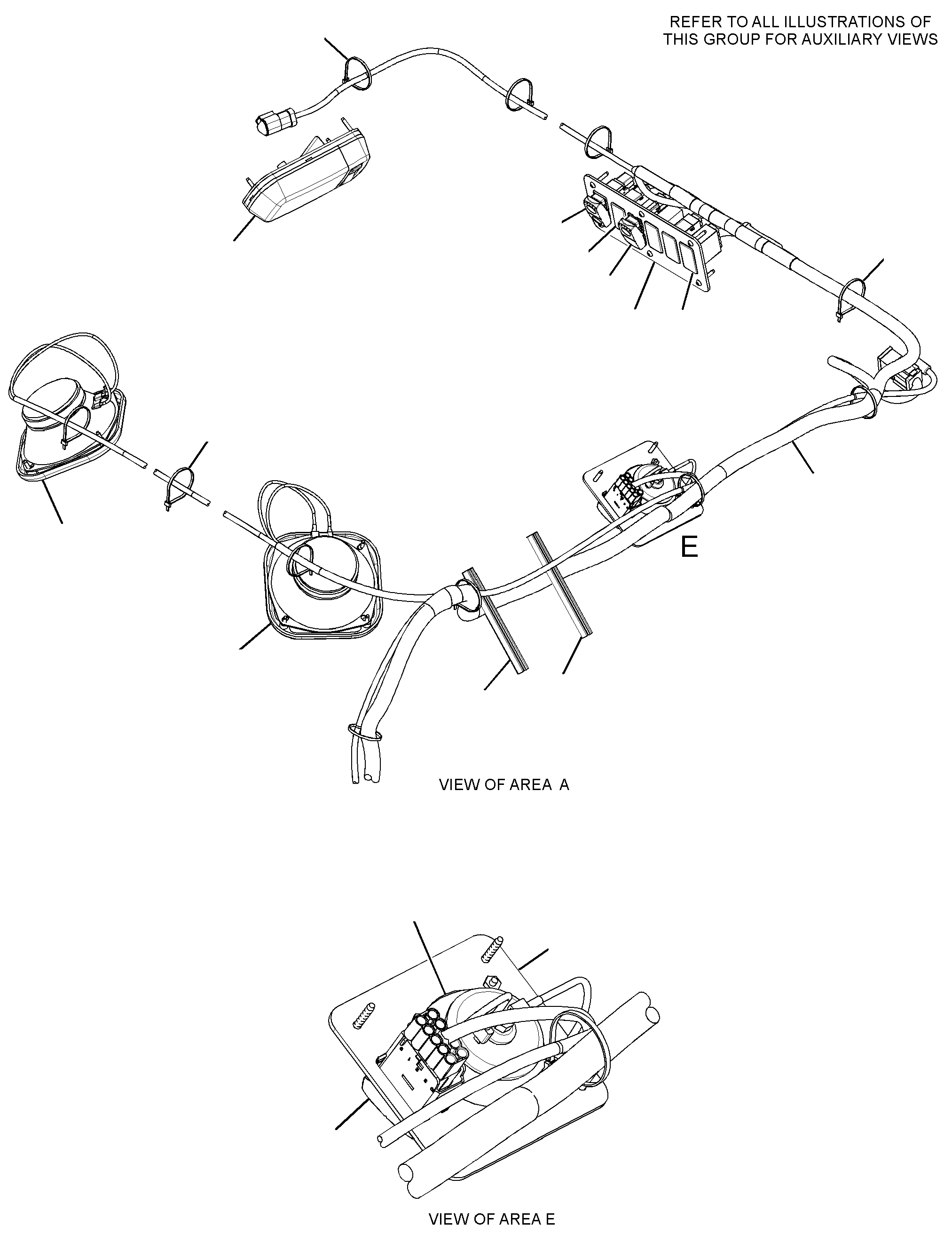

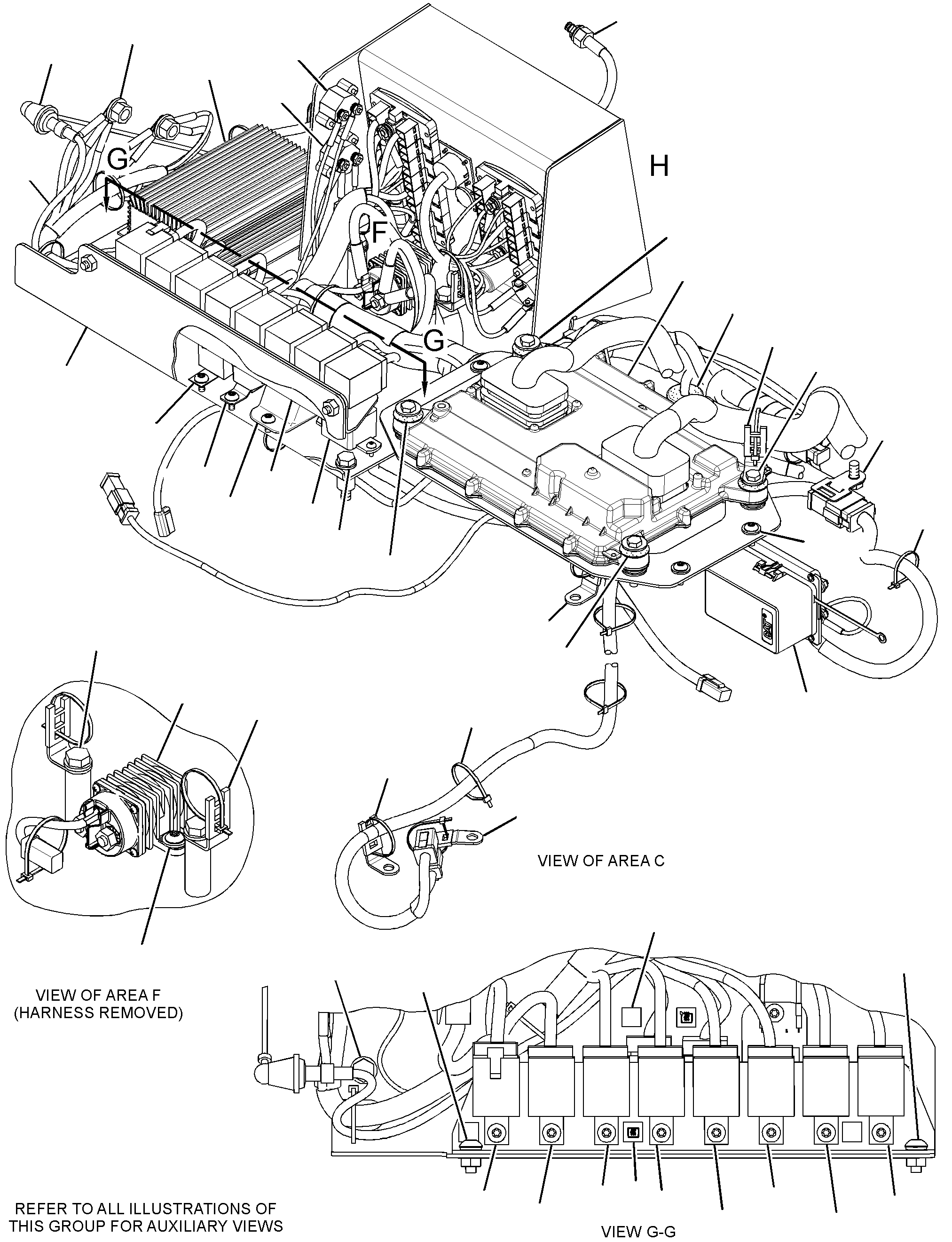

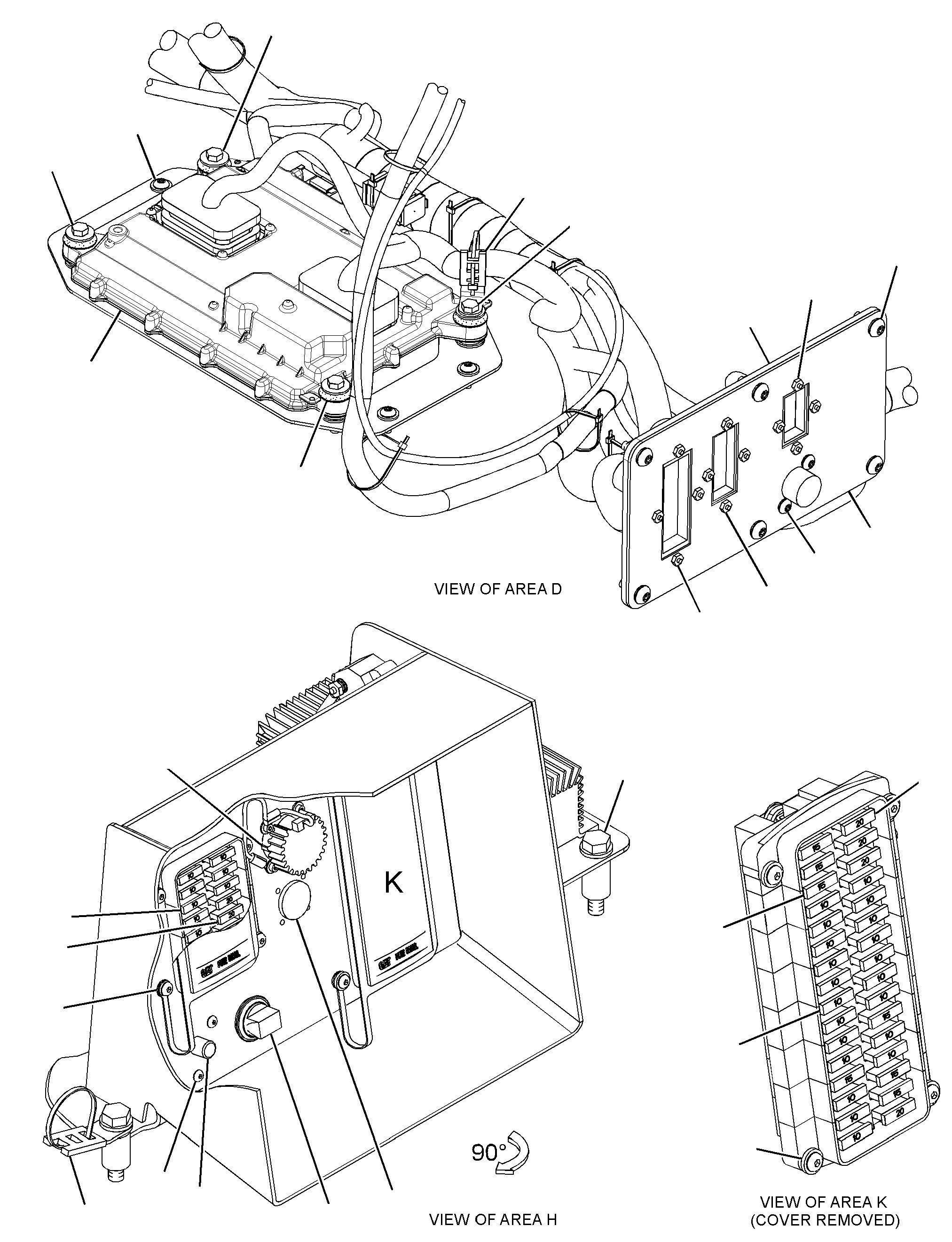

240-2340 WIRING GP-CABS/N DLS1-UP
Group No: 240-2340 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2483289 | 1 CIRCUIT BREAKER AS (20-AMPERE) | 2 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 8T0328 | WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 3E5239 | 2 RELAY AS (24-VOLT)(HIGH SPEED) | 1 | |
| 3E5239 | 2A RELAY AS (24-VOLT)(WIPER) | 1 | |
| 3E5239 | 2B RELAY AS (24-VOLT)(STOP LIGHT) | 1 | |
| 3E5239 | 2C RELAY AS (24-VOLT)(SECONDARY STEERING) | 1 | |
| 3E5239 | 2D RELAY AS (24-VOLT)(BACKUP ALARM) | 1 | |
| 3E5239 | 2E RELAY AS (24-VOLT)(HIGH BEAM) | 1 | |
| 3E5239 | 2F RELAY AS (24-VOLT)(HEADLIGHTS) | 1 | |
| 3E5239 | 2G RELAY AS (24-VOLT)(AUTOLUBE) | 1 | |
| 3E5239 | 2H RELAY AS (24-VOLT)(PRECLEANER) | 1 | |
| 3E6328 | 3 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3E6389 | 4 LAMP GP-DOME (24-VOLT)(CAB) | 1 | |
| 5P8500 | 5 KEY | 2 | |
| 6I1418 | 6 SPACER (8.2X12.7X28.7-MM THK) | 8 | |
| 6T3644 | 7 CIRCUIT BREAKER AS (20-AMPERE)(BLOWER FAN) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6T7695 | 8 SPEAKER AS-RADIO | 2 | |
| 7G1060 | 9 STRAP AS-GROUND | 1 | |
| 7K1181 | 10 STRAP-CABLE | 75 | |
| 8E1118 | 11 ANTENNA AS | 1 | |
| 8L8413 | 12 STRAP-CABLE (WHITE) | 1 | |
| 8T9655 | 13 MOUNT-ISOLATION | 16 | |
| 8Y6335 | 14 LAMP-INTERIOR (24-VOLT) | 1 | |
| 9W1441 | 15 FUSE (15-AMPERE) | 7 | |
| 9W1442 | 16 FUSE (10-AMPERE) | 32 | |
| 9W1446 | 17 FUSE (20-AMPERE) | 9 | |
| 9X4494 | 18 LAMP (24-VOLT) | 1 | |
| 8T3426 | 19 CHANNEL-TRIM (0.4-M) | ||
| 0950642 | 20 BOLT-SOCKET HEAD (M5X0.8X50-MM) | 2 | |
| 1013055 | 21 COVER-SPEAKER | 2 | |
| 1058034 | 22 SWITCH AS-LIMIT (DOOR) | 1 | |
| 1080358 | 23 FLASHER AS (24-VOLT) | 1 | |
| 1107887 | 24 SWITCH AS-START (KEY) | 1 | |
| 7T6799 | NUT-MOUNTING (1-32-THD) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1146658 | 25 WASHER (6.5X17X1-MM THK) | 4 | |
| 1172311 | 26 SOCKET-AUXILIARY POWER (12-VOLT) | 2 | |
| 1172932 | 27 CABLE AS-COAXIAL | 1 | |
| 1636088 | 28 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1809900 | 29 CAP AS | 1 | |
| 5P7958 | SLEEVE-CABLE SPLICE | 1 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 1799392 | LANYARD | 1 | |
| 1892512 | 30 PLATE | 1 | |
| 1986570 | 31 LIGHTER GP (12-VOLT) | 1 | |
| 1986571 | ELEMENT AS-HEATER (12-VOLT) | 1 | |
| 2246193 | 32 BOLT-SOCKET HEAD (M3X0.5X12-MM) | 4 | |
| 2286089 | 33 PLUG (ROCKER SWITCH) | 7 | |
| 2292580 | 34 SWITCH AS-ROCKER (24-VOLT)(ENGINE, HIGH IDLE, HOLD) | 1 | |
| 2364615 | 35 SWITCH AS-ROCKER (SECONDARY STEERING) | 1 | |
| 2364616 | 36 SWITCH AS-ROCKER (24-VOLT) | 1 | |
| 2364630 | 37 SWITCH AS-ROCKER (HEATED MIRRORS) | 1 | |
| 2393902 | 38 CONVERTER-ELECTRICAL (24-VOLT TO 12-VOLT) | 1 | |
| 2418368 | 39 SWITCH GP-MAGNETIC (24-VOLT)(MAIN RELAY) | 1 | |
| 2430774 | 40 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS) | 1 | |
| 2462669 | 41 SWITCH GP-MULTIFUNCTION (TURN SIGNAL, WIPER, WASHER) | 1 | |
| 2513539 | 42 SWITCH AS-ROCKER (24-VOLT)(HEADLIGHT) | 1 | |
| 2516204 | 43 FILM-IDENTIFICATION (RELAY) | 1 | |
| 2532101 | 44 SWITCH AS-ROCKER (24-VOLT)(DOME LIGHT) | 1 | |
| 3045687 | 45 CONTROL GP-UNPROGRAMMED (CHASSIS) | 1 | |
| 3045687 | 45A CONTROL GP-UNPROGRAMMED (BRAKE) | 1 | |
| 2566467 | 47 PLATE | 1 | |
| 2578533 | 48 PLATE | 2 | |
| 2578534 | 49 PLATE AS | 1 | |
| 2578536 | 50 GASKET | 1 | |
| 2792561 | 51 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 11 | |
| 7T1099 | LINK | 5 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 1178721 | LUG (M10X1.5-THD) | 2 | |
| 2049734 | SPACER (11X18X25-MM THK) | 4 | |
| 2816720 | 52 BRACKET | 2 | |
| 2869022 | 53 RESISTOR AS (2-PIN) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 2877191 | 54 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 8 | |
| 2957965 | 55 PLATE | 1 | |
| 3132153 | 56 MODULE GP-DISPLAY (ELECTRONIC) | 1 | |
| 3209229 | 57 HARNESS AS-WINDOW WIPER | 1 | |
| 3241323 | 58 HARNESS AS-CAB | 1 | |
| 0966166 | 59 WASHER-HARD (4.5X9X1-MM THK) | 16 | |
| 1272170 | 60 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 2 | |
| 1305300 | 61 CLIP | 1 | |
| 1325789 | 62 CLIP (LADDER) | 6 | |
| 1532869 | 63 FILM-IDENTIFICATION (RELAY) | 1 | |
| 1748131 | 64 SCREW-TRUSS HEAD (M4X0.7X12-MM) | 6 | |
| 1934623 | 65 SCREW-BUTTON HEAD (10-32X0.5-IN) | 8 | |
| 2021129 | 66 SCREW-TRUSS HEAD (M4X0.7X18-MM) | 12 | |
| 2428901 | 67 SWITCH AS-CONTROL (RETARDER)(BRAKE) | 1 | |
| 2843621 | 68 SWITCH AS-ROCKER (24-VOLT)(PANEL LIGHT) | 1 | |
| 2843622 | 69 SWITCH AS-ROCKER (24-VOLT)(ARC ON, OFF) | 1 | |
| 2970760 | 70 RELAY AS (24-VDC, 20-AMPERE)(HEATED MIRROR TIMER) | 1 | |
| 2G1133 | 71 GROMMET | 1 | |
| 2G4815 | 72 PLUG | 1 | |
| 4B2041 | 73 NUT (6-32-THD) | 4 | |
| 4P7581 | 74 CLIP (LADDER) | 8 | |
| 4P8134 | 75 CLIP (LADDER) | 1 | |
| 5C7261 | 76 NUT (M8X1.25-THD) | 8 | |
| 6V8927 | 77 BOLT-SOCKET HEAD (6-32X0.5-IN) | 4 | |
| 7X3374 | 78 NUT-FULL (1/2-20-THD) | 1 | |
| 7Y9099 | 79 SCREW-TRUSS HEAD (M8X1.25X25-MM) | 6 | |
| 8D1470 | 80 GROMMET | 1 | |
| 8T0328 | 81 WASHER-HARD (5.5X10X1-MM THK) | 3 | |
| 8T4121 | 82 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4137 | 83 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4182 | 84 BOLT (M10X1.5X45-MM) | 4 | |
| 8T4223 | 85 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4224 | 86 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T4244 | 87 NUT (M12X1.75-THD) | 3 | |
| 8T6912 | 88 BOLT (M8X1.25X50-MM) | 8 | |
| 8T9405 | 89 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 12 | |
| 9K5635 | 90 SCREW-TAPPING (8-18X1-IN) | 21 | |
| 9M1974 | 91 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9N0869 | 92 WASHER-HARD (8.8X25.5X2-MM THK) | 16 | |
| 9X2027 | 93 WASHER (11X18X2-MM THK) | 3 | |
| 9X2038 | 94 WASHER (7X19X2-MM THK) | 14 | |
| 9X2040 | 95 SCREW-TRUSS HEAD (M10X1.5X25-MM) | 3 | |
| 9X2043 | 96 SCREW-TRUSS HEAD (M6X1X14-MM) | 20 | |
| 9X2044 | 97 SCREW-TRUSS HEAD (M6X1X16-MM) | 2 | |
| 9X2045 | 98 SCREW-TRUSS HEAD (M6X1X20-MM) | 10 | |
| 9X6016 | 99 SCREW-HEX SOCKET (8-32X0.875-IN) | 6 | |
| 9X8256 | 100 WASHER (6.6X12X2-MM THK) | 14 |
