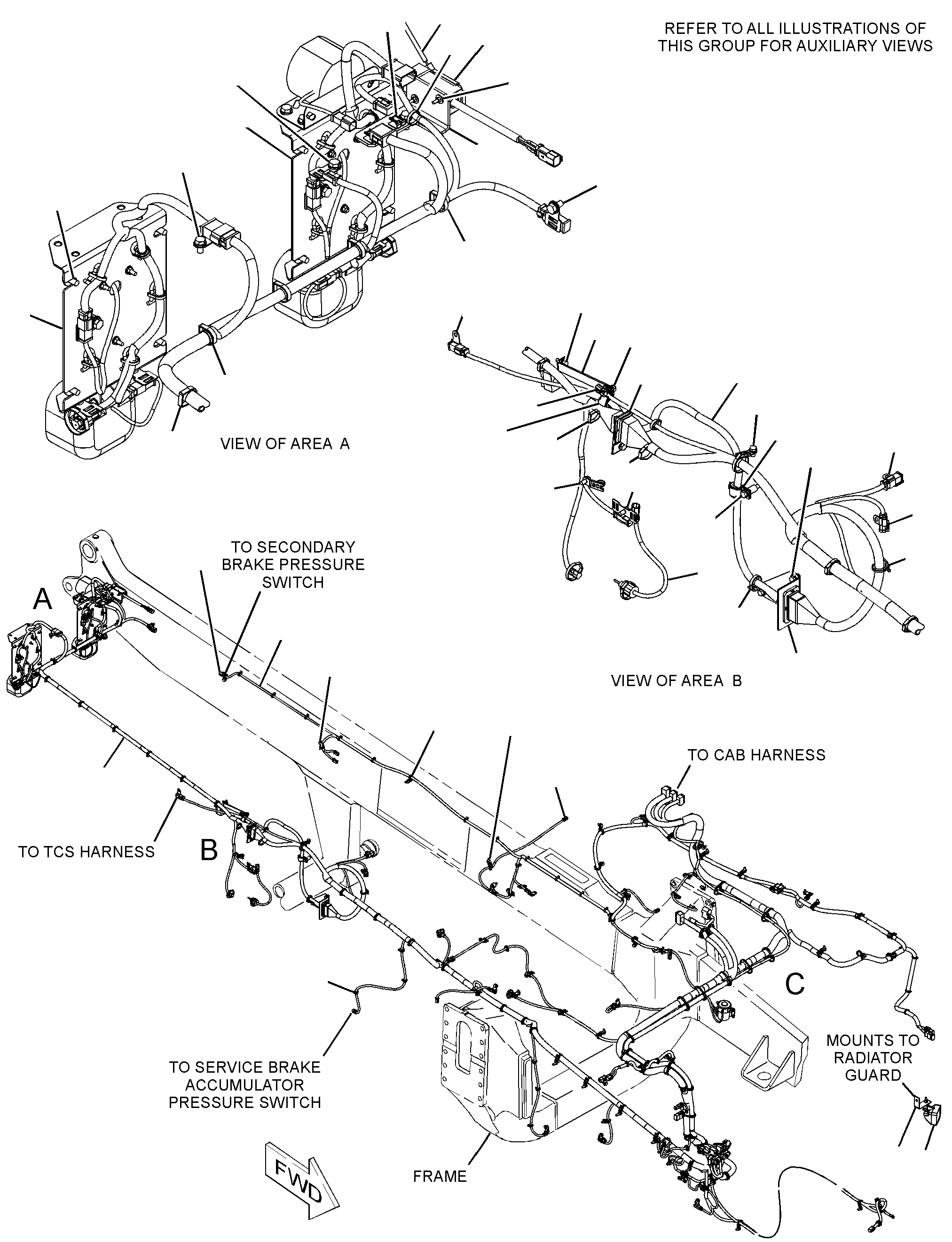

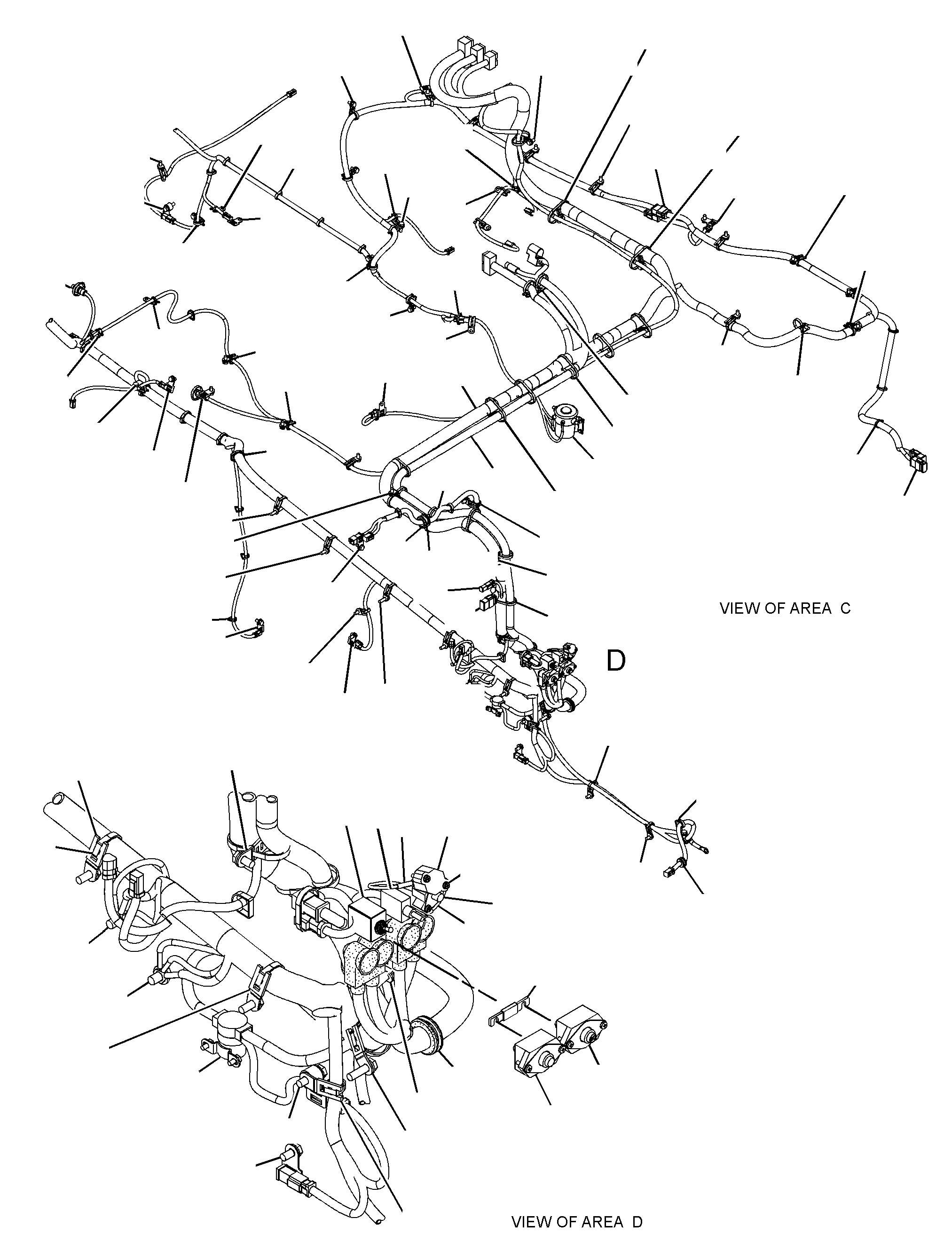

247-5540 WIRING GP-CHASSISS/N DLS905-1205

Group No: 247-5540 · Commonality
Part NumberPart NameQty
24832891 CIRCUIT BREAKER AS (20-AMPERE)1
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
8T0328WASHER-HARD (5.5X10X1-MM THK)2
3S20932 STRAP-CABLE24
6V42833 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
7K11814 STRAP-CABLE95
9F81255 LOCKWASHER4
9N19096 BRACKET1
11601187 CLIP2
11835348 SWITCH GP-MAGNETIC (24-VOLT)(STARTING AID RELAY)1
12563909 PLATE-INFORMATION (ENGINE)1
134225210 SENSOR GP-TEMPERATURE (8-VOLT)(HYDRAULIC TANK OIL)1
139211611 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)1
169541412 CLIP1
171221013 CIRCUIT BREAKER AS (80-AMPERE)(LOAD)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
189010814 PLATE1
194672215 SENSOR GP-PRESSURE (ATMOSPHERIC AIR)1
209456216 PLATE AS1
230627817 SWITCH GP-MAGNETIC (SECONDARY STEERING)1
235009418 HARNESS AS-CHASSIS (MIDDLE)1
1028803KIT-RECEPTACLE (3-PIN)2
1028801KIT-RECEPTACLE (12-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)17
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)26
8T8737PLUG-SEAL6
1148843SLEEVE-PLASTIC (235-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
2L8076TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)2
1552270KIT-CONNECTING PLUG (2-PIN)7
235009519 HARNESS AS-CHASSIS (REAR)1
1028802KIT-RECEPTACLE (2-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
1148845SLEEVE-PLASTIC (20-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
7X6222PLUG AS-CONNECTOR (24-PIN)1
3E4367RING-RETAINING1
3E8558BOLT (M5X0.8X39.37-MM)1
9X3265SEAL-CONNECTOR (24-PIN)2
1552255KIT-CONNECTING PLUG (12-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552271KIT-CONNECTING PLUG (4-PIN)2
235009620 HARNESS AS-TRANSMISSION1
1S0994CLIP (LOOP)2
1028804KIT-RECEPTACLE (4-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)1
3E4367RING-RETAINING1
3E8558BOLT (M5X0.8X39.37-MM)1
9X3265SEAL-CONNECTOR (24-PIN)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)48
8T8737PLUG-SEAL24
9X0141PLUG AS-CONNECTOR (40-PIN)1
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3490SEAL-CONNECTOR (40-PIN)2
1148843SLEEVE-PLASTIC (40-CM)
1148845SLEEVE-PLASTIC (40-CM)
1552271KIT-CONNECTING PLUG (4-PIN)1
235011221 HARNESS AS-CHASSIS (FRONT)1
8N1549SOCKET-CONNECTOR (4-GA)2
8T8827BOOT (RED)5
0301712TERMINAL-RING (2-GA, 1/4-IN SCREW)1
9X9120BOOT (RED)1
1148843SLEEVE-PLASTIC (80-CM)
1275483PLUG AS-CONNECTOR (1-PIN)2
1311478TERMINAL AS5
9G4344TERMINAL-RING (4-GA, 1/2-IN SCREW)1
241848822 PLATE1
247563123 HARNESS AS-SENSOR (FUEL LEVEL)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)2
8T8737PLUG-SEAL2
1148843SLEEVE-PLASTIC (40-CM)
1552270KIT-CONNECTING PLUG (2-PIN)1
247564024 LIGHTING GP-FLOOD (REAR, LH)1
247564225 LIGHTING GP-FLOOD (REAR, RH)1
255249626 BRACKET1
261865227 SWITCH AS-LIMIT (ACCESS PLATFORM UPWARD TRAVEL)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1028804KIT-RECEPTACLE (4-PIN)1
270148928 WIRE AS1
274377429 CAP-CONNECTOR1
276233230 SWITCH AS-TOGGLE (LOCKOUT)1
5P5677WIRE (18-GA, BLACK)(1.8-M)
1863735PIN-CONNECTOR (16-GA TO 18-GA)6
1028805KIT-RECEPTACLE (6-PIN)1
298612231 PLATE1
329824132 HARNESS AS-CHASSIS (MAIN)1
1028802KIT-RECEPTACLE (2-PIN)2
1028803KIT-RECEPTACLE (3-PIN)3
1028805KIT-RECEPTACLE (6-PIN)2
1028801KIT-RECEPTACLE (12-PIN)2
6I4348BOOT (40-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)1
3E4367RING-RETAINING1
3E8558BOLT (M5X0.8X39.37-MM)1
9X3265SEAL-CONNECTOR (24-PIN)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)70
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)197
8T8737PLUG-SEAL95
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)13
9X0141PLUG AS-CONNECTOR (40-PIN)2
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3490SEAL-CONNECTOR (40-PIN)2
9X0145RECEPTACLE AS-CONNECTOR (24-PIN)1
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
9X4391PLUG AS-CONNECTOR (70-PIN)1
1148843SLEEVE-PLASTIC (530-CM)
1148845SLEEVE-PLASTIC (80-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(50-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(110-CM)
2L8071TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW)2
2L8081TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW)4
1342540RECEPTACLE AS-CONNECTOR (3-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)3
1552260KIT-CONNECTING PLUG (3-PIN)7
1552270KIT-CONNECTING PLUG (2-PIN)8
1552271KIT-CONNECTING PLUG (4-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)3
1740503KIT-CONNECTING PLUG (3-PIN)1
1179409GROMMET1
332744433 WIRE AS1
346114934 LEVER1
120395635 BOLT-SOCKET HEAD (M5X0.8X60-MM)2
130143336 SPACER (11X25X17-MM THK)2
130530037 CLIP22
155225538 KIT-CONNECTING PLUG (12-PIN)1
161698739 WASHER-HARD (5.2X16X1.5-MM THK)2
162216540 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
168993341 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)1
9X2032NUT-WELD (M4X0.7-THD)4
1689932PLATE1
171221142 CIRCUIT BREAKER AS (90-AMPERE)(MAIN)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
218493543 SUPPRESSOR-ARC1
219648744 LAMP GP-FLOOD (24-VOLT, 70-WATT)1
230917445 CIRCUIT BREAKER AS (15-AMPERE)1
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
8T0328WASHER-HARD (5.5X10X1-MM THK)2
267882846 GROMMET1
1H439347 LOCKWASHER4
2V177148 GROMMET2
3E336449 RECEPTACLE (2-PIN)1
3E517950 RECEPTACLE AS-CONNECTOR (12-PIN)2
3J190751 SEAL-O-RING1
4L645452 BOLT (3/8-16X1-IN)1
4P758153 CLIP (LADDER)55
4P813454 CLIP (LADDER)7
5M306255 BOLT (3/8-16X0.75-IN)2
6V797856 SCREW-MACHINE (10-32X0.375-IN)4
6V812757 NUT (M5X0.8-THD)2
7K337758 PIPE1
7S391659 CLIP (TAB)2
7S391960 CLIP (SLOT)2
7X478061 GROMMET1
7X772962 WASHER (11X25X3-MM THK)8
8T412163 WASHER-HARD (11X21X2.5-MM THK)75
8T413364 NUT (M10X1.5-THD)1
8T413665 BOLT (M10X1.5X25-MM)5
8T413766 BOLT (M10X1.5X20-MM)63
8T417167 BOLT (M6X1X12-MM)6
8T417268 BOLT (M10X1.5X80-MM)1
8T417969 BOLT (M12X1.75X20-MM)2
8T418670 BOLT (M10X1.5X40-MM)1
8T419571 BOLT (M10X1.5X30-MM)2
8T419672 BOLT (M10X1.5X35-MM)4
8T422373 WASHER-HARD (13.5X25.5X3-MM THK)2
8T489674 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T646675 BOLT (M10X1.5X60-MM)1
9K070076 GROMMET1
9X825677 WASHER (6.6X12X2-MM THK)6
9X848678 SCREW-MACHINE (8-32X0.75-IN)4
