System And Components

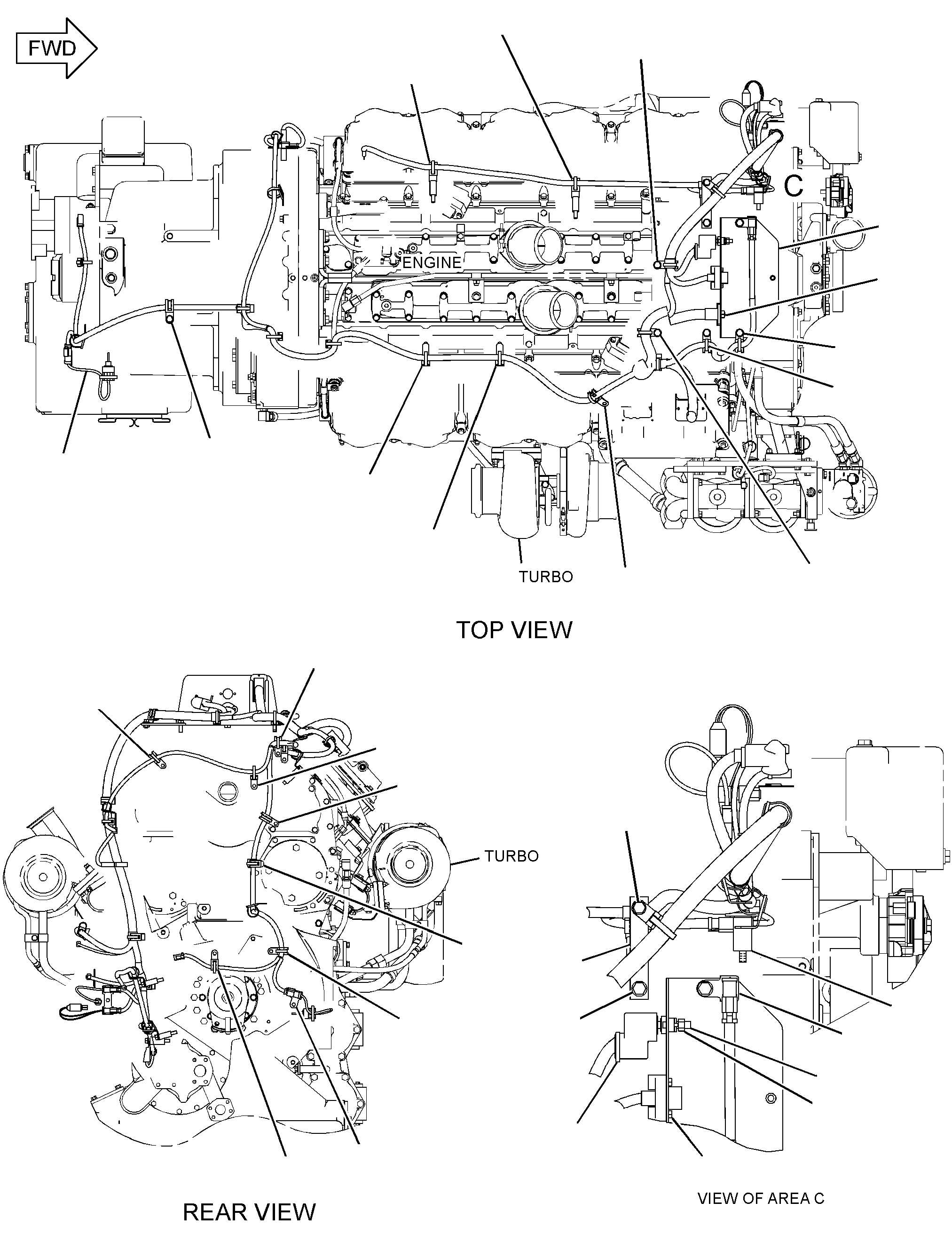

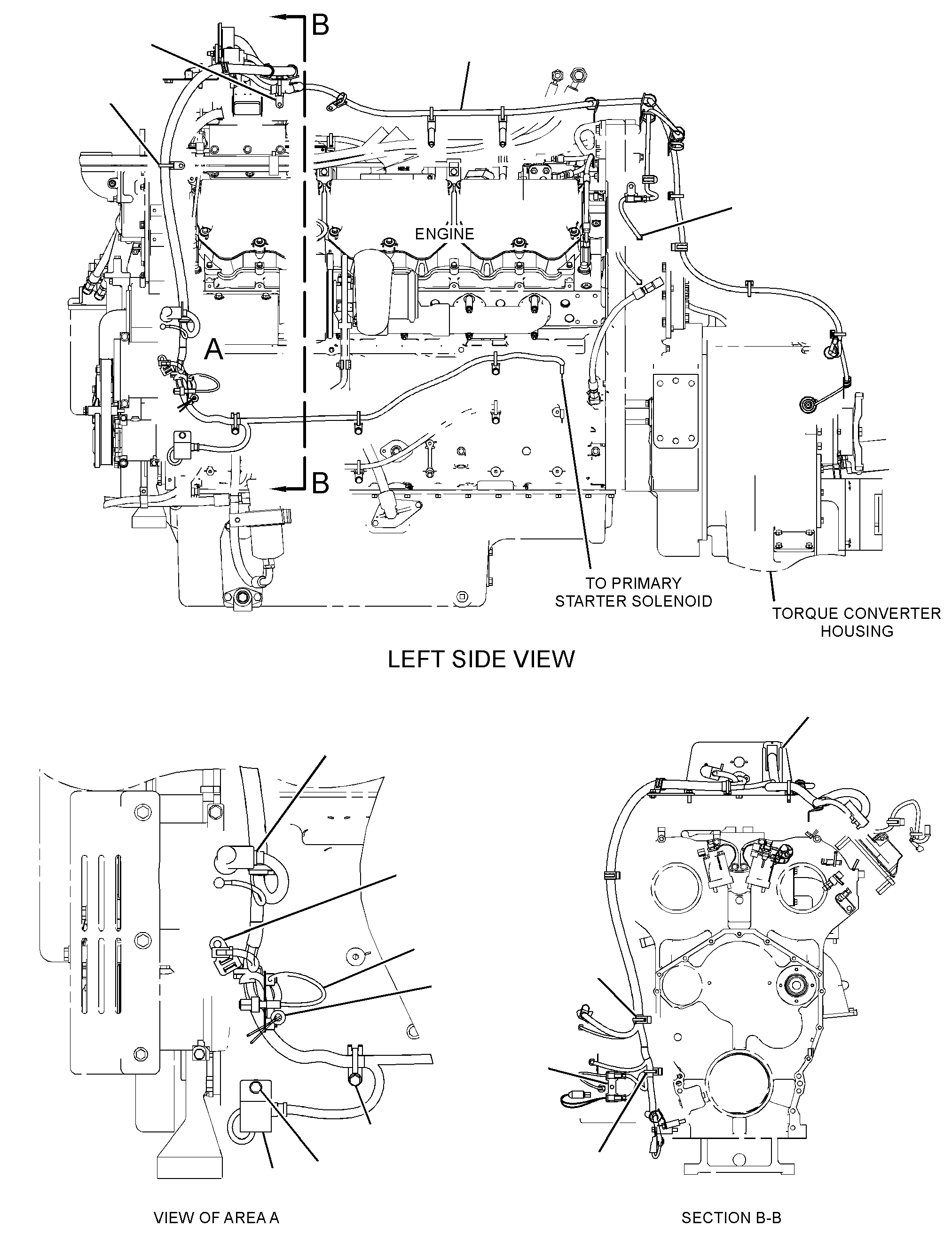

235-0107 WIRING GP-ENGINES/N DLS375-1186
Group No: 235-0107 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 2 | |
| 7T0266 | 2 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 4I7889 | 3 SPACER (11X25X45-MM THK) | 1 | |
| 2M8545 | 4 SPACER (1.56-IN THK) | 3 | |
| 1145333 | 5 SWITCH AS-PRESSURE (AIR CONDITIONER) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X1386 | SLEEVE (25-CM) | ||
| 1342252 | 6 SENSOR GP-TEMPERATURE (8-VOLT)(ENGINE OIL) | 1 | |
| 1496371 | 7 SWITCH AS-PRESSURE (A/C COMPRESSOR CLUTCH)(REFRIGERANT COMPR, LOW SIDE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 3181181 | 8 SENSOR GP-SPEED (MAGNETIC)(ENGINE) | 1 | |
| 2350108 | 9 HARNESS AS-ENGINE | 1 | |
| 6T5598 | TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW) | 1 | |
| 9G4342 | TERMINAL-RING (4-GA, NO. 10 SCREW) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 3E3383 | WEDGE-RECEPTACLE LOCK (6-PIN) | 1 | |
| 8N1548 | PIN-CONNECTOR (4-GA) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 23 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 34 | |
| 8T8737 | PLUG-SEAL | 58 | |
| 8T8827 | BOOT (RED) | 1 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 15 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X6772 | STRAP-CABLE | 2 | |
| 9X9120 | BOOT (RED) | 1 | |
| 1148843 | SLEEVE-PLASTIC (180-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 1261774 | COVER-CONNECTOR | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 10 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 2 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1552263 | WEDGE-PLUG LOCK (6-PIN) | 1 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1886210 | RECEPTACLE AS-CONNECTOR (1-PIN) | 1 | |
| 2418488 | 10 PLATE | 1 | |
| 2500363 | 11 STUD-TERMINAL | 1 | |
| 2663749 | 12 PLATE AS | 1 | |
| 1305300 | 13 CLIP | 5 | |
| 1697443 | 14 TIMER AS-ON DELAY (24-VOLT) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 3J1907 | 15 SEAL-O-RING | 1 | |
| 4P7428 | 16 CLIP (LADDER) | 1 | |
| 4P7429 | 17 CLIP (LADDER) | 1 | |
| 4P7581 | 18 CLIP (LADDER) | 12 | |
| 4P8134 | 19 CLIP (LADDER) | 11 | |
| 5C2874 | 20 NUT (M5X0.8-THD) | 2 | |
| 5C9553 | 21 BOLT (M6X1X16-MM) | 2 | |
| 5M3062 | 22 BOLT (3/8-16X0.75-IN) | 1 | |
| 3H3244 | 23 SPACER (12.52X17.14X57-MM THK) | 2 | |
| 6V8801 | 24 NUT (3/8-16-THD) | 2 | |
| 7K1181 | 25 STRAP-CABLE | 26 | |
| 8C8580 | 26 BOLT-SOCKET HEAD (M5X0.8X16-MM) | 2 | |
| 8T4121 | 27 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4136 | 28 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 29 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4195 | 30 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4896 | 31 WASHER-HARD (10.2X18.5X2.5-MM THK) | 9 | |
| 8T9101 | 32 BOLT (3/8-16X2.75-IN) | 3 | |
| 4L6459 | 33 BOLT (3/8-16X2.5-IN) | 3 | |
| 9X7378 | 34 SEAL-O-RING | 1 | |
| 8F3590 | 35 LOCKWASHER | 1 | |
| 1695414 | 36 CLIP | 1 | |
| 7X0342 | 37 BOLT (5/8-11X0.75-IN) | 1 | |
| 8T4122 | 38 WASHER-HARD (17X32X3.5-MM THK) | 1 |
