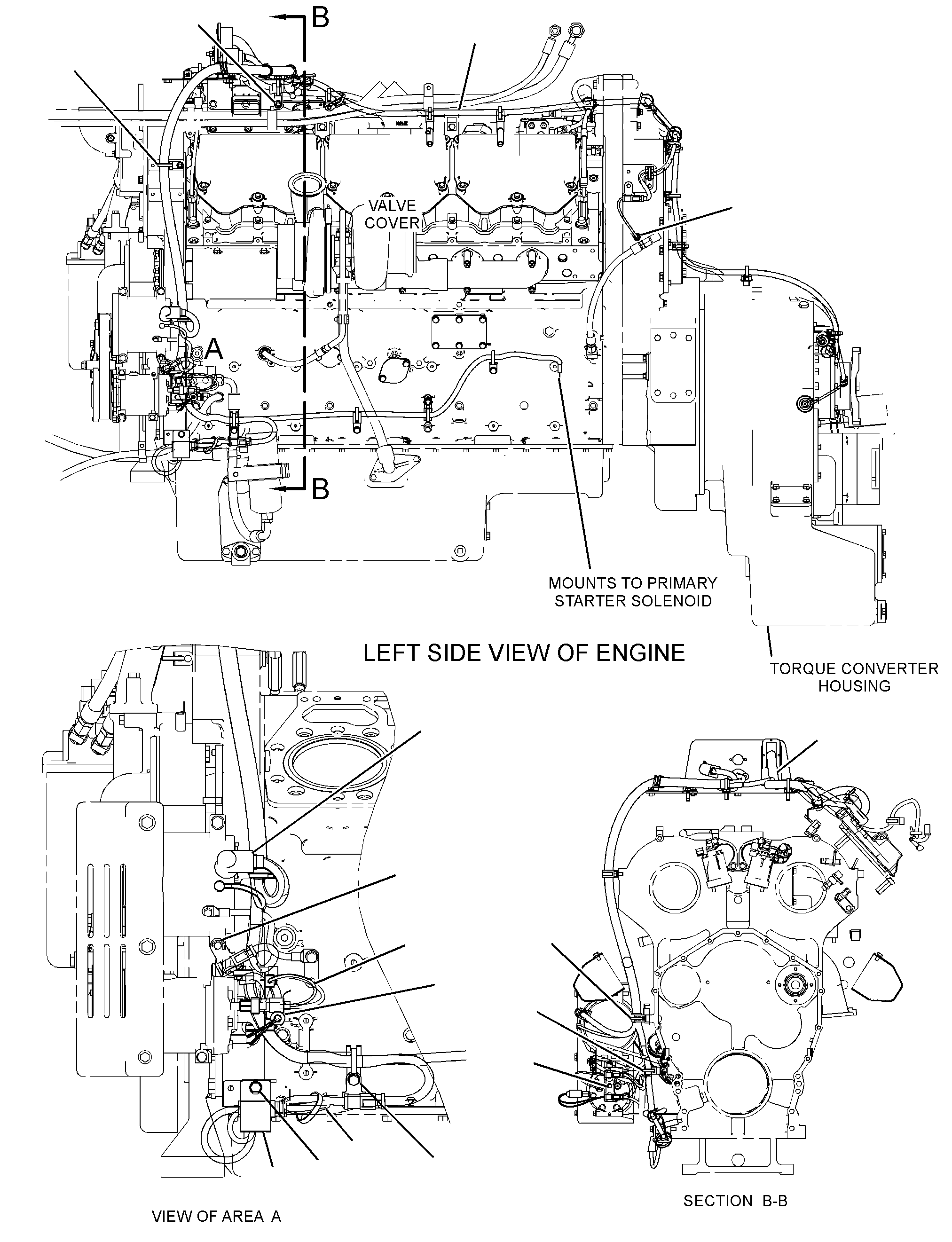

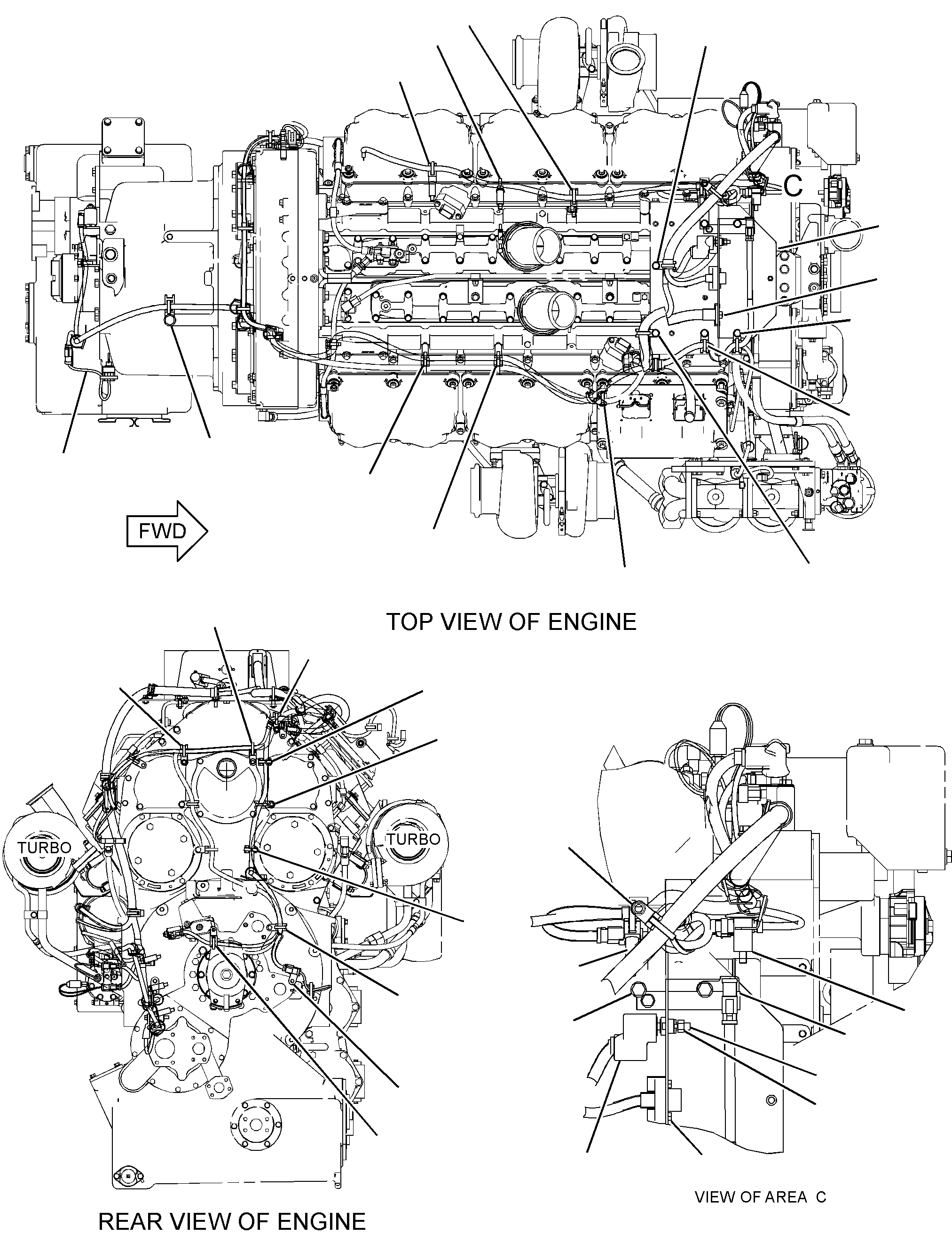

235-0107 WIRING GP-ENGINES/N DLS1187-UP

Group No: 235-0107 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE2
7T02662 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)1
4I78893 SPACER (11X25X45-MM THK)1
2M85454 SPACER (1.56-IN THK)4
35531485 SWITCH AS-PRESSURE (HIGH, LOW)(AIR CONDITIONER)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
13422526 SENSOR GP-TEMPERATURE (8-VOLT)(ENGINE OIL)1
14963717 SWITCH AS-PRESSURE (A/C COMPRESSOR CLUTCH)(REFRIGERANT COMPR, LOW SIDE)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
31811818 SENSOR GP-SPEED (MAGNETIC)(ENGINE)1
23501089 HARNESS AS-ENGINE1
241848810 PLATE1
250036311 STUD-TERMINAL1
266374912 PLATE AS1
130530013 CLIP6
338194214 TIMER AS-ON DELAY (24-VOLT)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1261767PIN-CONNECTOR (14-GA TO 16-GA)4
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
3J190715 SEAL-O-RING1
4P742816 CLIP (LADDER)1
4P742917 CLIP (LADDER)1
4P758118 CLIP (LADDER)15
4P813419 CLIP (LADDER)10
5C287420 NUT (M5X0.8-THD)2
5C955321 BOLT (M6X1X16-MM)2
5M306222 BOLT (3/8-16X0.75-IN)2
3H324423 SPACER (12.52X17.14X57-MM THK)2
6V880124 NUT (3/8-16-THD)4
7K118125 STRAP-CABLE30
8C858026 BOLT-SOCKET HEAD (M5X0.8X16-MM)2
8T412127 WASHER-HARD (11X21X2.5-MM THK)7
8T413628 BOLT (M10X1.5X25-MM)3
8T413729 BOLT (M10X1.5X20-MM)1
8T419530 BOLT (M10X1.5X30-MM)3
8T489631 WASHER-HARD (10.2X18.5X2.5-MM THK)13
8T910132 BOLT (3/8-16X2.75-IN)3
9X737834 SEAL-O-RING1
8F359035 LOCKWASHER1
169541436 CLIP1
7X034237 BOLT (5/8-11X0.75-IN)1
8T412238 WASHER-HARD (17X32X3.5-MM THK)1
8T937739 BOLT (3/8-16X2.25-IN)4
360960540 HARNESS AS-HEATER & AIR COND1
4P758241 CLIP (LADDER)1
