System And Components

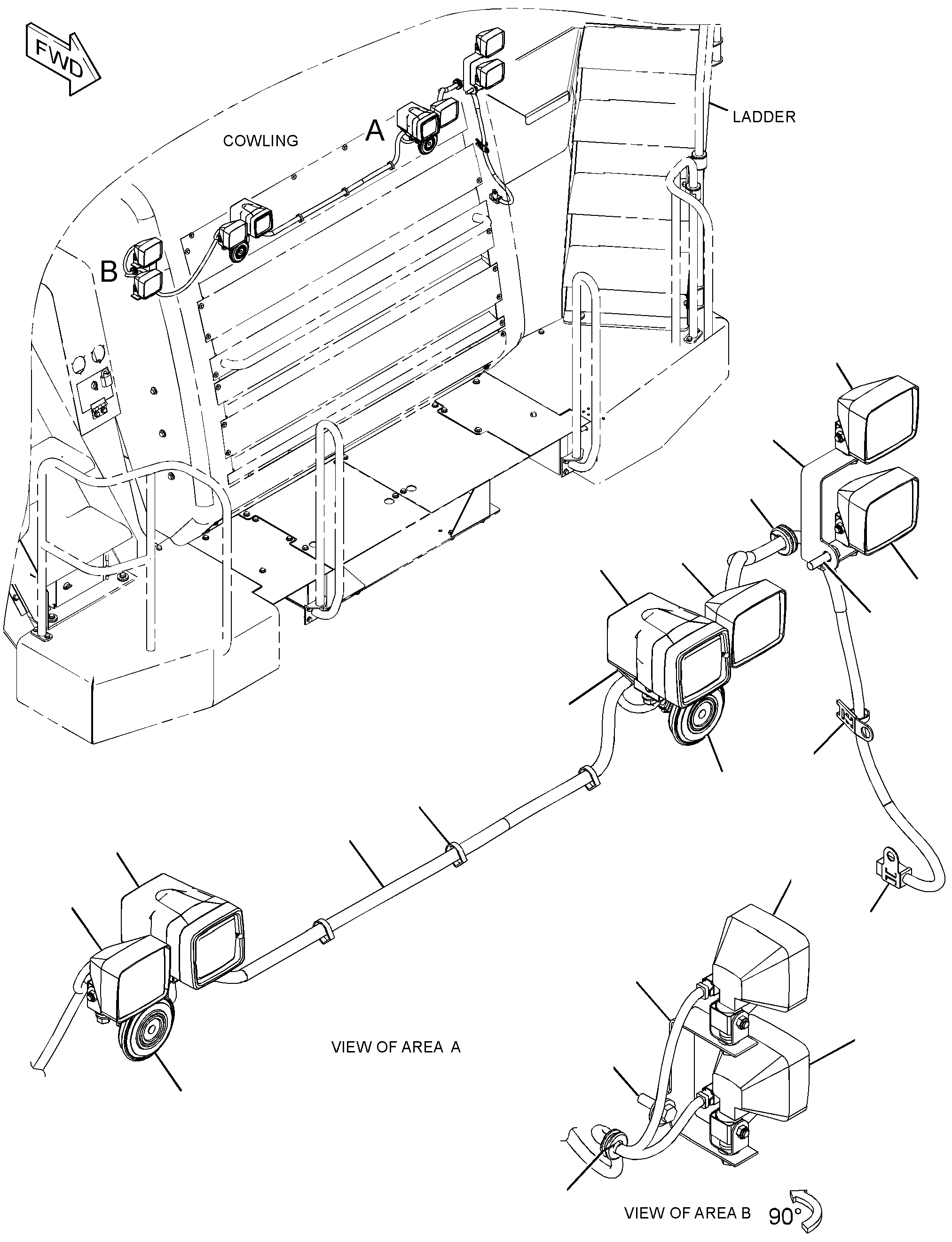

286-9972 WIRING GP-LIGHTING -HID, FRONTS/N DLS604-1186
Group No: 286-9972 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 7 | |
| 1747875 | 2 HORN AS (24-VOLT, HIGH TONE) | 1 | |
| 2196485 | 3 LAMP GP-FLOOD (24-VOLT) | 2 | |
| 2196486 | 4 LAMP GP-FLOOD (24-VOLT) | 4 | |
| 3112524 | 5 BRACKET | 2 | |
| 3217576 | 6 HARNESS AS-PLATFORM | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 8 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 8T8737 | PLUG-SEAL | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 16 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 3378081 | 7 LAMP GP-FLOOD (24-VOLT, 35-WATT, HID) | 2 | |
| 1305301 | 8 CLIP | 1 | |
| 1631201 | 9 HORN AS (24-VOLT, LOW TONE) | 1 | |
| 1M4543 | 10 GROMMET | 1 | |
| 4H2558 | 11 GROMMET | 1 | |
| 4P7581 | 12 CLIP (LADDER) | 3 | |
| 4P7582 | 13 CLIP (LADDER) | 1 | |
| 5P1076 | 14 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 8T4121 | 15 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 16 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4183 | 17 BOLT (M12X1.75X40-MM) | 2 |
