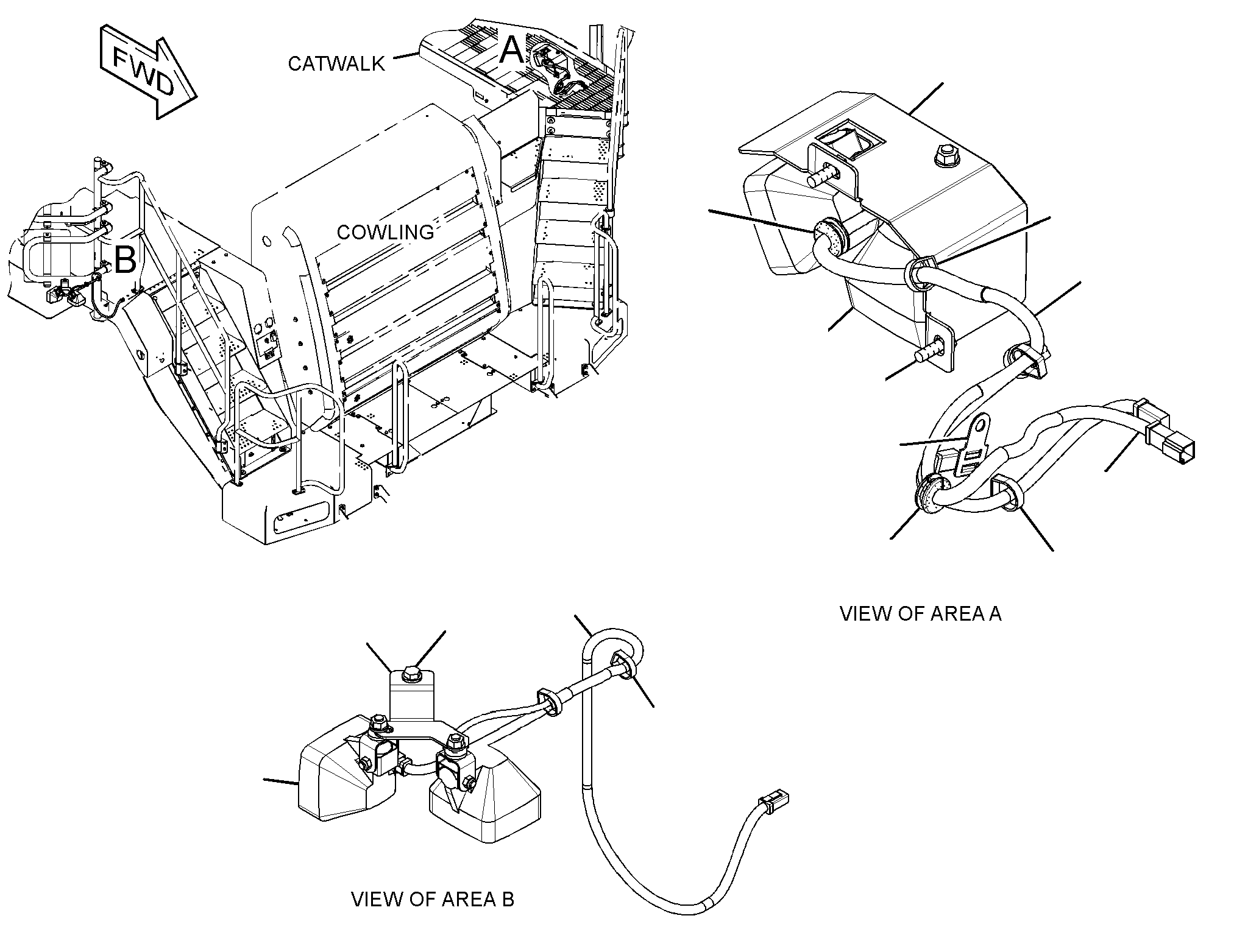

293-8632 WIRING GP-LIGHTINGS/N DLS1-1186

Group No: 293-8632 · Commonality
Part NumberPart NameQty
21964871 LAMP GP-FLOOD (24-VOLT, 70-WATT)4
32174342 HARNESS AS-LIGHTING (LH)1
32174353 HARNESS AS-LIGHTING (RH)1
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)6
1148843SLEEVE-PLASTIC (60-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
1552270KIT-CONNECTING PLUG (2-PIN)3
33265684 PLATE1
33265715 PLATE AS1
33392226 HARNESS AS-WIRING (MIRROR)1
1028802KIT-RECEPTACLE (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)4
1148843SLEEVE-PLASTIC (40-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
1552270KIT-CONNECTING PLUG (2-PIN)2
13053007 CLIP1
5P10758 WASHER-HARD (10.2X22.5X3-MM THK)1
7G70539 GROMMET2
7K118110 STRAP-CABLE6
8T412111 WASHER-HARD (11X21X2.5-MM THK)2
8T413712 BOLT (M10X1.5X20-MM)1
8T419513 BOLT (M10X1.5X30-MM)2
