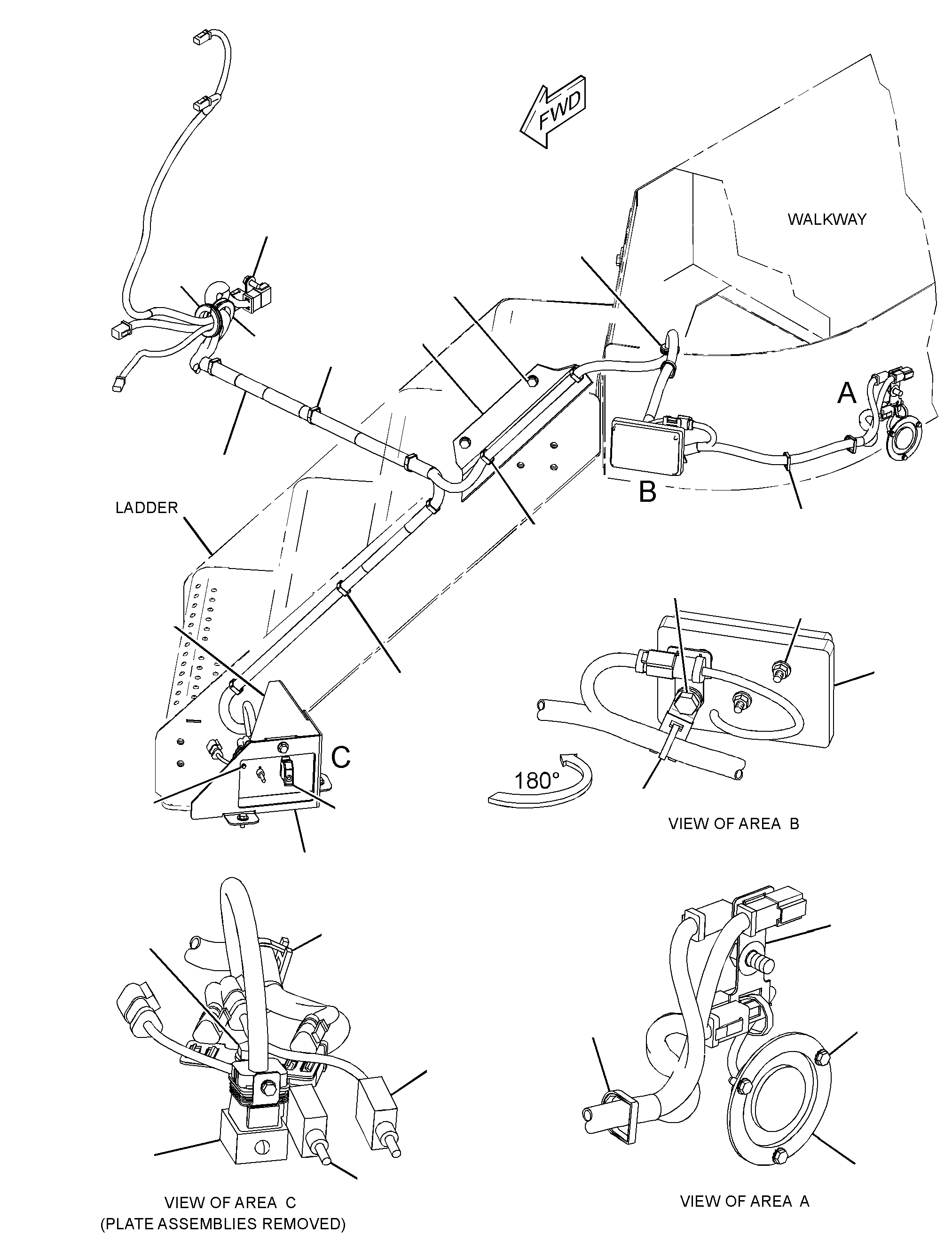

247-5622 WIRING GP-PLATFORM -LHS/N DLS905-UP

Group No: 247-5622 · Commonality

Part Number	Part Name	Qty
3E5239	1 RELAY AS (24-VOLT)	1
3S2093	2 STRAP-CABLE	3
9F8125	3 LOCKWASHER	3
1350427	4 LAMP GP-SIGNAL (24-VOLT, PARK, TURN)	1
3534515	5 SWITCH GP-TOGGLE (LADDER LIGHTS)	1
3534515	5A SWITCH GP-TOGGLE (GROUND LEVEL SHUTDOWN)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1695414	6 CLIP	2
1794324	7 LOCKNUT (M5X0.8-THD)	1
2469871	8 LAMP GP-MARKER (24-VOLT, AMBER)	1
3131330	9 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
3248151	10 PLATE AS	1
3248152	11 PLATE AS	1
8T3612	NUT-WELD (M8X1.25-THD)	2
3597751	12 HARNESS AS-PLATFORM	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	13
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	38
8T8737	PLUG-SEAL	7
9W0844	SOCKET-CONNECTOR (14-GA TO 16-GA)	1
9W0852	PIN-CONNECTOR (14-GA TO 16-GA)	1
9X1056	TERMINAL-RECEPTACLE (14-GA TO 16-GA)	4
1148843	SLEEVE-PLASTIC (200-CM)
1148844	SLEEVE-PLASTIC (40-CM)
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	10
1552271	KIT-CONNECTING PLUG (4-PIN)	2
1552274	KIT-CONNECTING PLUG (6-PIN)	2
1552260	KIT-CONNECTING PLUG (3-PIN)	6
2743774	CAP-CONNECTOR	3
2743775	CAP-CONNECTOR	3
2743776	CAP-SEAL	1
2743777	CAP-CONNECTOR	1
0309612	13 SCREW-FORMING (10-24X0.5-IN)	3
1305300	14 CLIP	6
3E5169	15 GUARD-SWITCH	1
2D1290	16 GROMMET	1
4P7581	17 CLIP (LADDER)	1
4P8134	18 CLIP (LADDER)	1
5C2890	19 NUT (M6X1-THD)	3
5P4116	20 WASHER-HARD (8.8X20.5X2-MM THK)	4
6K8180	21 GROMMET	1
6V4298	22 BOLT (M5X0.8X16-MM)	1
7K1181	23 STRAP-CABLE	11
8T0328	24 WASHER-HARD (5.5X10X1-MM THK)	1
8T4121	25 WASHER-HARD (11X21X2.5-MM THK)	6
8T4136	26 BOLT (M10X1.5X25-MM)	3
8T4137	27 BOLT (M10X1.5X20-MM)	3
8T4205	28 WASHER-HARD (7.2X14.5X2-MM THK)	3
8T4908	29 BOLT (M8X1.25X25-MM)	4
3K5178	30 GROMMET	1
