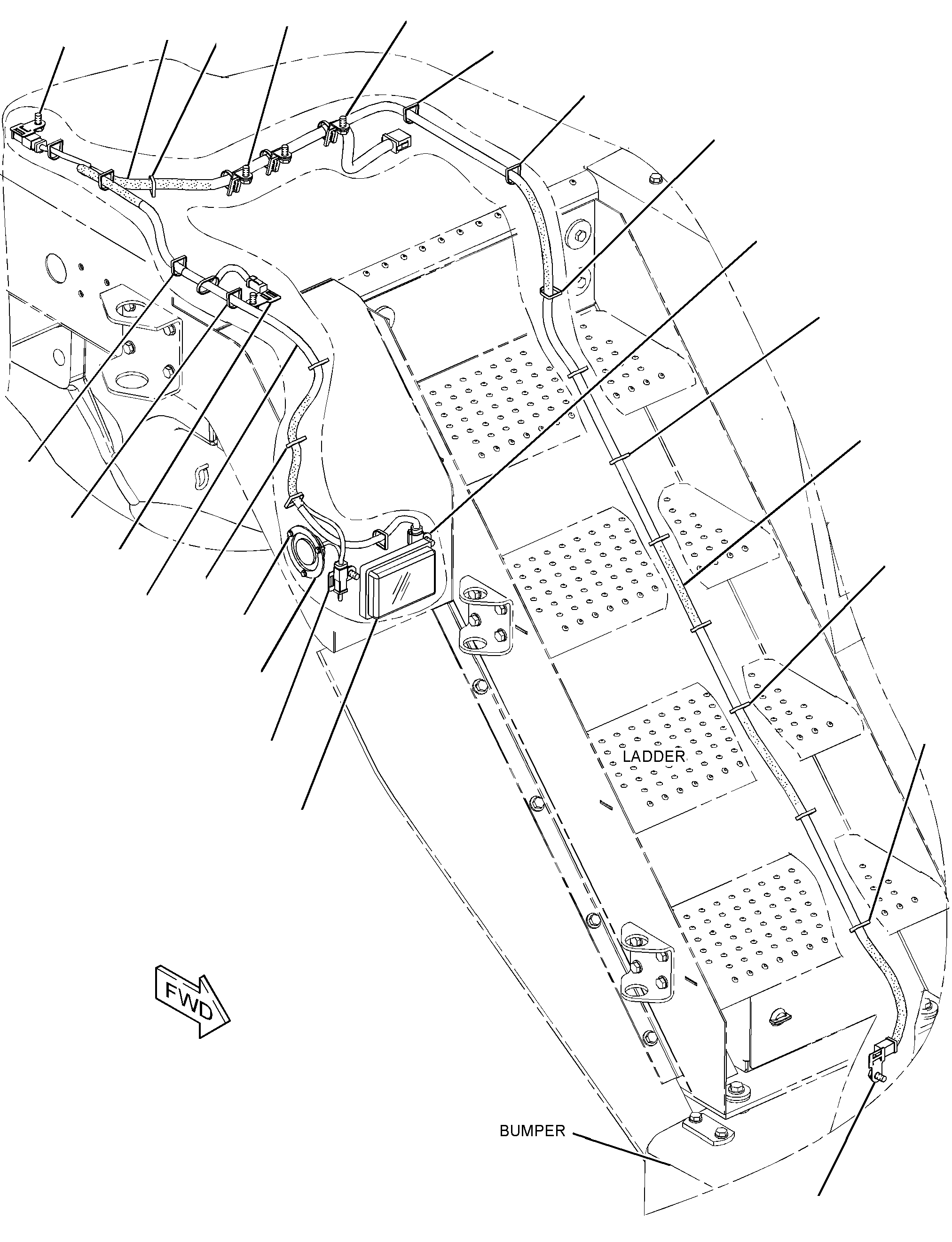

247-5623 WIRING GP-PLATFORM -RHS/N DLS1-332

Group No: 247-5623 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE23
9F81252 LOCKWASHER3
23501013 HARNESS AS-PLATFORM (RH)1
1028804KIT-RECEPTACLE (4-PIN)1
1552272PLUG AS-CONNECTOR (4-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)1
03096124 SCREW-FORMING (10-24X0.5-IN)3
13053005 CLIP5
13504276 LAMP GP-SIGNAL (24-VOLT, PARK, TURN)1
24698717 LAMP GP-MARKER (24-VOLT, AMBER)1
4P81348 CLIP (LADDER)3
5C28909 NUT (M6X1-THD)3
8T412110 WASHER-HARD (11X21X2.5-MM THK)8
8T413711 BOLT (M10X1.5X20-MM)8
8T420512 WASHER-HARD (7.2X14.5X2-MM THK)3
5P076713 HOSE (80-CM)
9X238914 HOSE (46-CM)
9X238914A HOSE (208-CM)
