System And Components

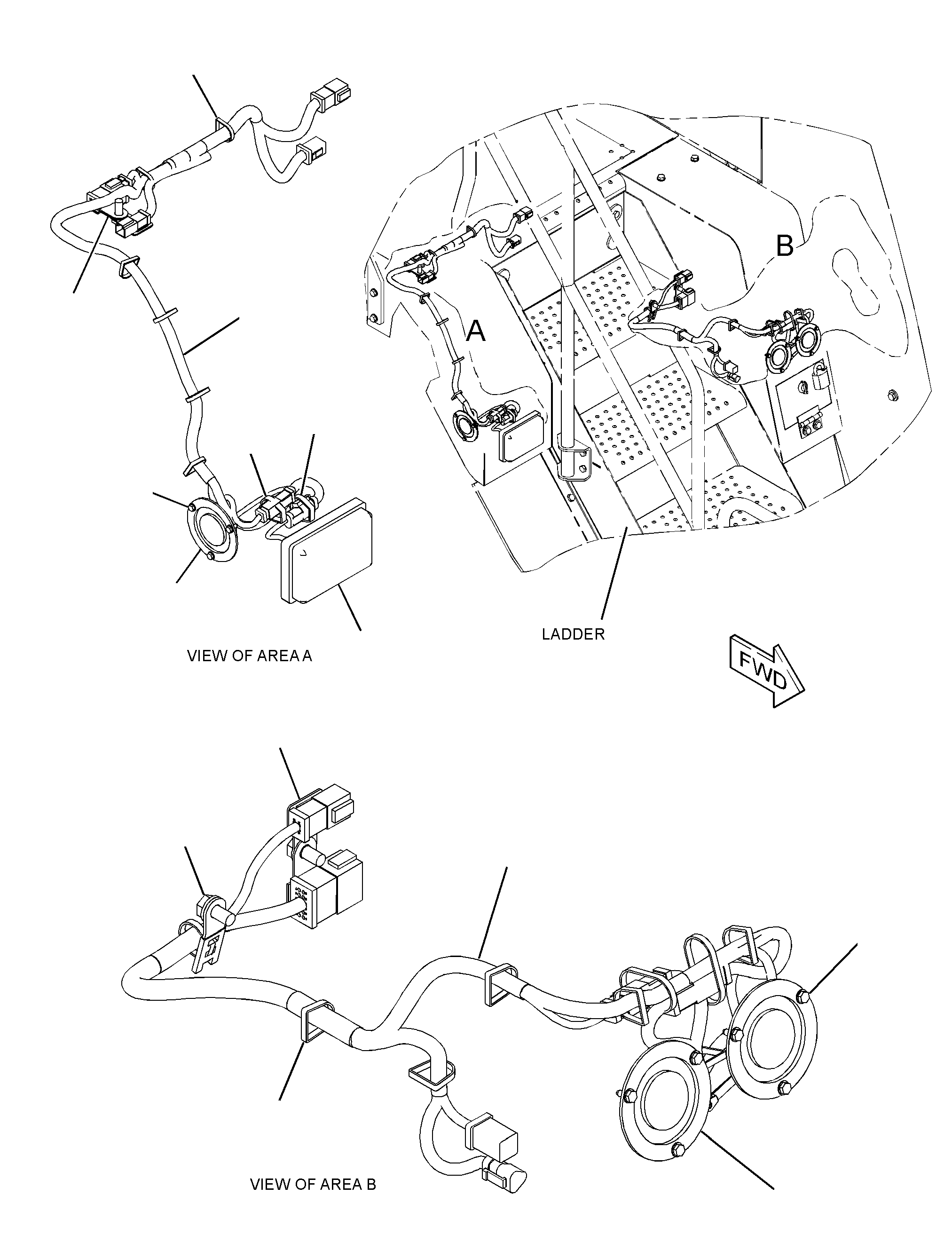

247-5623 WIRING GP-PLATFORM -RHS/N DLS1187-UP
Group No: 247-5623 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 15 | |
| 9F8125 | 2 LOCKWASHER | 9 | |
| 3603038 | 3 HARNESS AS-PLATFORM | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 8 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 9 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 2 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 3035906 | 4 HARNESS AS-PLATFORM (LIGHTS, MIRRORS) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 8 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1148843 | SLEEVE-PLASTIC (140-CM) | ||
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 16 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 0309612 | 5 SCREW-FORMING (10-24X0.5-IN) | 9 | |
| 1305300 | 6 CLIP | 5 | |
| 3345409 | 7 LAMP GP-SIGNAL (24-VOLT, PARK, TURN) | 1 | |
| 2469871 | 8 LAMP GP-MARKER (24-VOLT, AMBER) | 3 | |
| 8T4205 | 9 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 4P7581 | 10 CLIP (LADDER) | 1 | |
| 5C2890 | 11 NUT (M6X1-THD) | 3 | |
| 7K1181 | 12 STRAP-CABLE | 2 | |
| 8T4121 | 13 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4136 | 14 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4137 | 15 BOLT (M10X1.5X20-MM) | 2 |
