System And Components

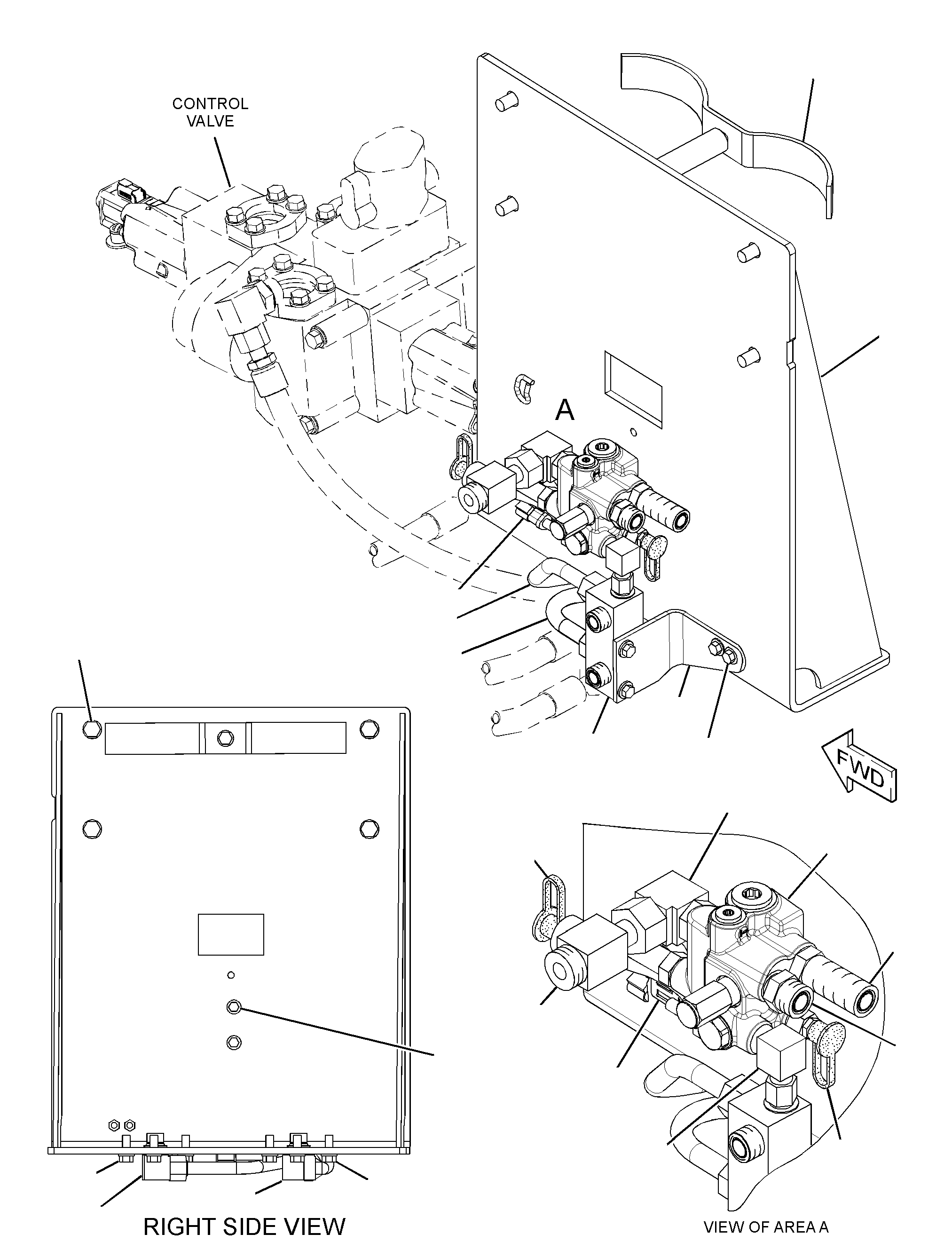

274-7854 ACCUMULATOR & MTG GP-BRAKES/N DLS1080-UP
Group No: 274-7854 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3697507 | 1 SWITCH AS-PRESSURE (BRAKE ACCUMULATOR CHARGE) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 6V0852 | 2 CAP-DUST | 2 | |
| 1488425 | 3 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING (SWIVEL) | 1 | |
| 8T4834 | TEE-SWIVEL-ORFS | 1 | |
| 2286815 | 4 VALVE GP-ACCUMULATOR CHARGING (BRAKE) | 1 | |
| 1376259 | VALVE-RELIEF | 1 | |
| 2419551 | 5 TUBE AS | 1 | |
| 2495521 | 6 VALVE GP-CHECK (BRAKE ACCUMULATOR) | 1 | |
| 2502935 | 7 CLIP | 1 | |
| 2644017 | 8 BRACKET | 1 | |
| 2674726 | 9 TUBE AS | 1 | |
| 3526253 | 10 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 7T1099 | LINK | 1 | |
| 1305300 | 11 CLIP | 1 | |
| 1488313 | 12 ADAPTER AS | 1 | |
| 5P6944 | ADAPTER | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1488324 | 13 CONNECTOR AS | 1 | |
| 6V9874 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488347 | 14 ELBOW AS | 2 | |
| 6V9007 | ELBOW (90-DEG) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1645567 | 15 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1716728 | 16 ELBOW AS | 1 | |
| 8T0249 | ELBOW (SWIVEL) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1852271 | 17 CONNECTOR AS | 1 | |
| 8T9023 | CONNECTOR-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3J1907 | 19 SEAL-O-RING | 1 | |
| 4L6454 | 20 BOLT (3/8-16X1-IN) | 6 | |
| 5P1075 | 21 WASHER-HARD (10.2X22.5X3-MM THK) | 6 | |
| 6V8398 | 22 SEAL-O-RING | 1 | |
| 6V9746 | 23 SEAL-O-RING | 4 | |
| 7X3195 | 24 BOLT (1/2-20X1.25-IN)(1/2-20X1.25-IN) | 6 | |
| 8T4121 | 25 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4191 | 26 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4223 | 27 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 8T4779 | 28 BOLT (M16X2X35-MM) | 4 | |
| 8T8917 | 29 BOLT (1/2-13X1.25-IN) | 1 | |
| 9X8257 | 30 WASHER (17.5X30X3.5-MM THK) | 4 | |
| 1488352 | 31 ELBOW AS | 1 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488317 | 32 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8714 | CONNECTOR | 1 | |
| 2491208 | KIT-REPAIR | 1 |
