System And Components

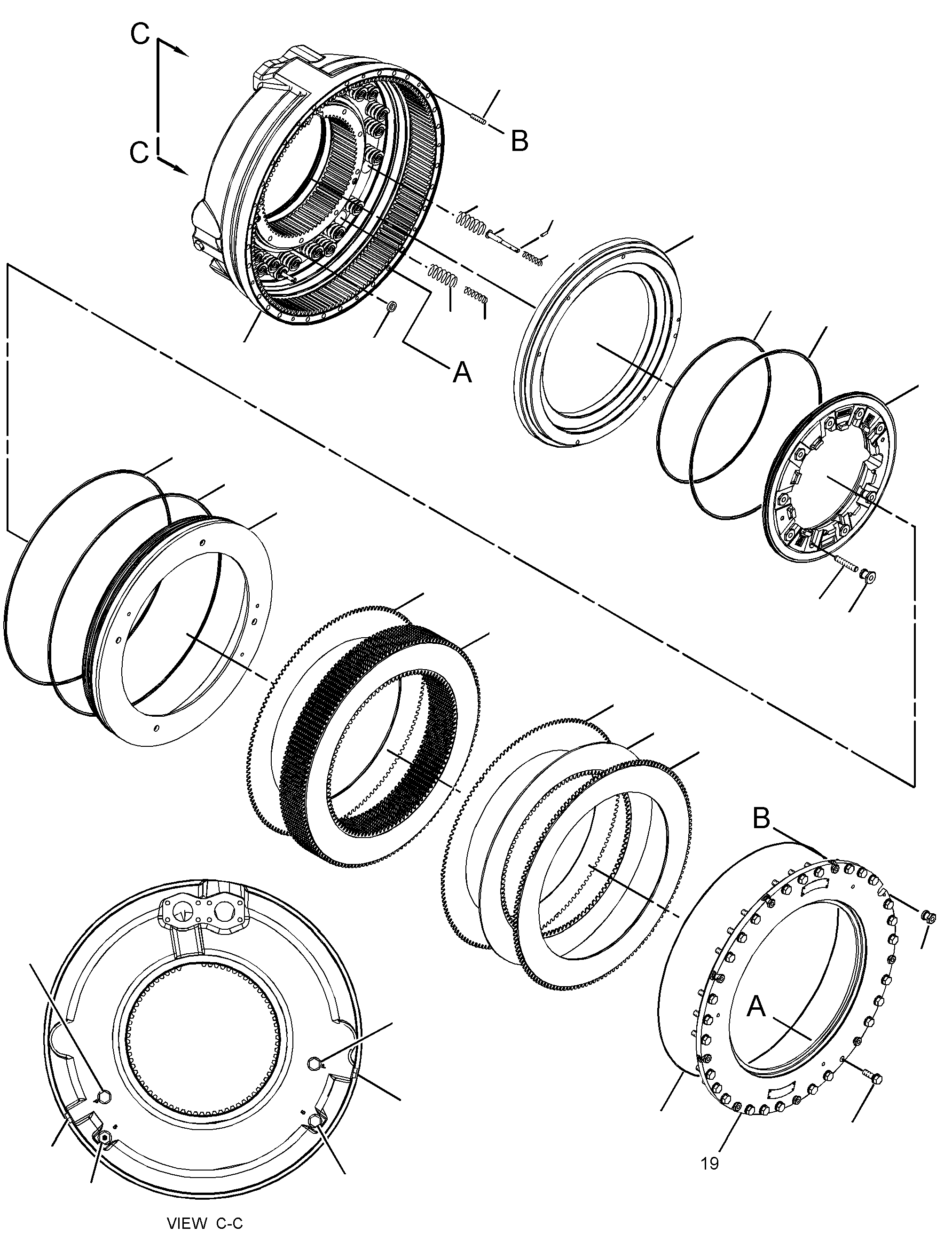

247-5524 BRAKE GP-SERVICE & PARKING -REARS/N DLS280-281
Group No: 247-5524 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2M9780 | 1 SEAL-O-RING | 5 | |
| 7D3013 | 2 DAMPER AS | 2 | |
| 9D6093 | 3 SPRING | 28 | |
| 1504046 | 4 ADAPTER AS | 1 | |
| 5P1404 | ADAPTER | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 9D6135 | 5 SPRING | 24 | |
| 9D7986 | 6 SEAL | 1 | |
| 9D7987 | 7 SEAL | 1 | |
| 9D7988 | 8 SEAL | 1 | |
| 9D9118 | 9 SPRING-GUIDE | 4 | |
| 9D9121 | 10 SPRING | 4 | |
| 9W7017 | 11 DISC-FRICTION | 9 | |
| 1237268 | 12 SEAL-RING | 1 | |
| 1237271 | 13 SEAL-RING | 2 | |
| 1243520 | 14 SEAL-RING | 1 | |
| 1639366 | 15 PLATE-OUTER | 8 | |
| 2442306 | 16 NUT (M12X1.75-THD) | 9 | |
| 2567768 | 17 PISTON | 1 | |
| 2567770 | 18 HOUSING | 1 | |
| 2896397 | 19 PLATE AS | 1 | |
| 2567774 | PLATE | 1 | |
| 7B3028 | SCREW-DRIVE (NO 4X 3/16-IN) | 8 | |
| 2531347 | PLATE-WARNING (RECOIL SPRING) | 2 | |
| 2567799 | 20 PISTON | 1 | |
| 2610679 | 21 NUT (M16X2-THD) | 9 | |
| 2664594 | 22 RING-SEAL | 1 | |
| 2783528 | 23 ANCHOR-BRAKE | 1 | |
| 1516286 | 24 STUD-TAPERLOCK (M16X2X85-MM) | 9 | |
| 5P4076 | 25 SEAL-O-RING | 1 | |
| 6M9155 | 26 PIN | 4 | |
| 6V5686 | 27 BOLT (M16X2X50-MM) | 27 | |
| 8T5414 | 28 STUD (M12X1.75X50-MM) | 9 | |
| 9D7984 | 29 SEAL | 2 | |
| 9S4190 | 31 PLUG-O-RING (7/8-14-THD) | 5 | |
| 9X8268 | 32 WASHER (17.5X30X3.5-MM THK) | 27 | |
| 1645567 | 33 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V0852 | 34 CAP-DUST | 1 |
