System And Components

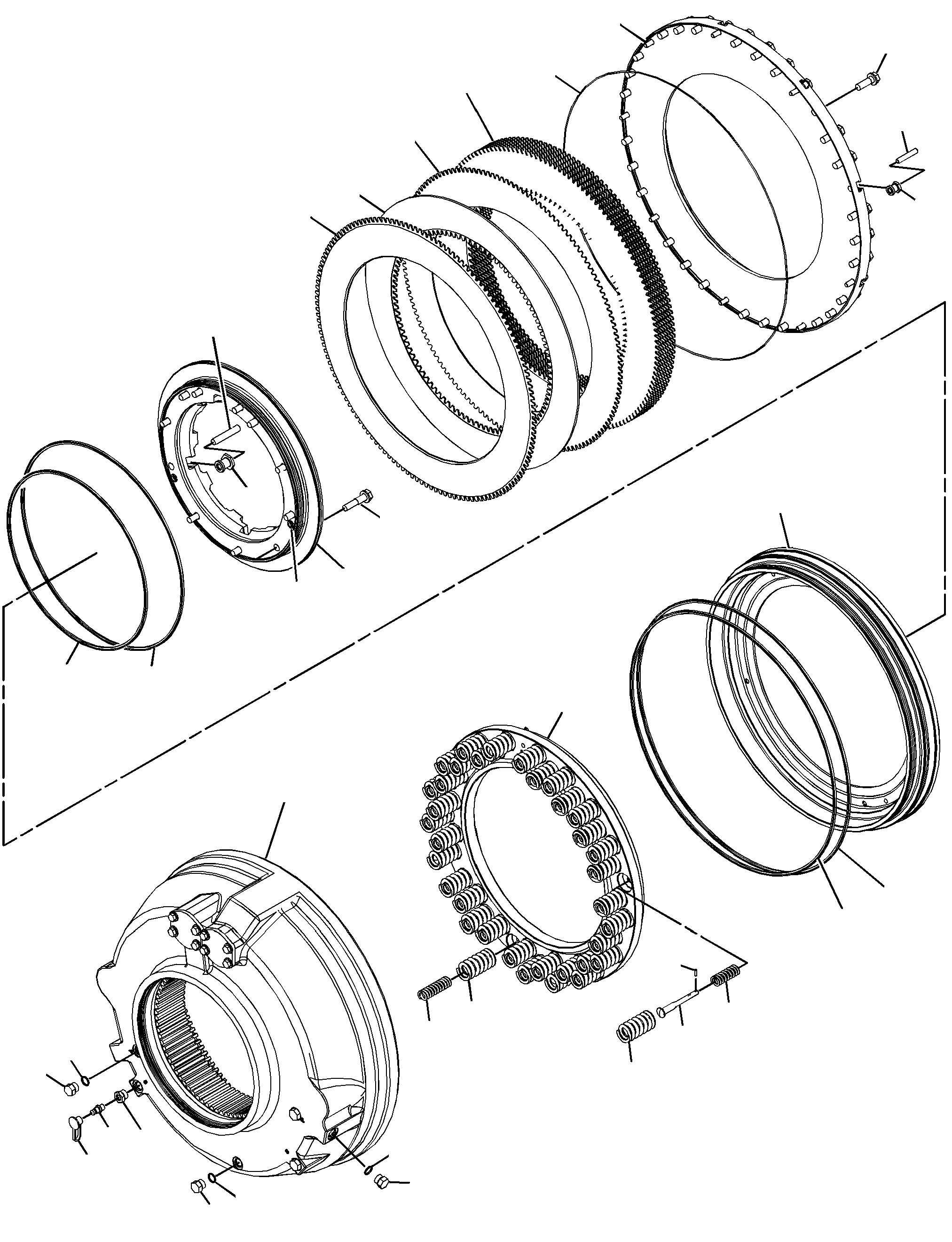

308-3237 BRAKE GP-SERVICE & PARKINGS/N DLS1253-UP
Group No: 308-3237 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2M9780 | 1 SEAL-O-RING | 4 | |
| 7D3013 | 2 DAMPER AS | 2 | |
| 9D6093 | 3 SPRING | 36 | |
| 9D6135 | 4 SPRING | 32 | |
| 9D7986 | 5 SEAL | 1 | |
| 9D7987 | 6 SEAL | 1 | |
| 9D7988 | 7 SEAL | 1 | |
| 9D9118 | 8 SPRING-GUIDE | 4 | |
| 9D9121 | 9 SPRING | 4 | |
| 1237268 | 10 SEAL-RING | 1 | |
| 1237271 | 11 SEAL-RING | 2 | |
| 1243520 | 12 SEAL-RING | 1 | |
| 1639366 | 13 PLATE-OUTER | 8 | |
| 1967866 | 14 DISC-FRICTION (EXTENDED LIFE) | 9 | |
| 2442306 | 15 NUT (M12X1.75-THD) | 9 | |
| 2567768 | 16 PISTON | 1 | |
| 2567769 | 17 PISTON | 1 | |
| 2610679 | 18 NUT (M16X2-THD) | 5 | |
| 2664594 | 19 RING-SEAL | 1 | |
| 2965175 | 20 STUD-TAPERLOCK (M16X2X85-MM) | 5 | |
| 3234672 | 21 PLATE AS | 1 | |
| 7B3028 | SCREW-DRIVE (NO 4X 3/16-IN) | 8 | |
| 2531347 | PLATE-WARNING (RECOIL SPRING) | 2 | |
| 3305670 | 22 ANCHOR-BRAKE | 1 | |
| 3371943 | 23 SEAL-RECTANGULAR | 2 | |
| 3590854 | 24 SEAL-O-RING | 1 | |
| 3646486 | 25 HOUSING | 1 | |
| 1187313 | 26 BOLT (M16X2X70-MM) | 6 | |
| 1504046 | 27 ADAPTER AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 5P1404 | ADAPTER | 1 | |
| 1645567 | 28 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2465451 | 29 STUD-TAPERLOCK (M12X1.75X65-MM) | 9 | |
| 6M9155 | 30 PIN | 4 | |
| 6V0852 | 31 CAP-DUST | 1 | |
| 6V5686 | 32 BOLT (M16X2X50-MM) | 27 | |
| 9S4190 | 33 PLUG-O-RING (7/8-14-THD) | 6 | |
| 9X8268 | 34 WASHER (17.5X30X3.5-MM THK) | 33 |
