System And Components

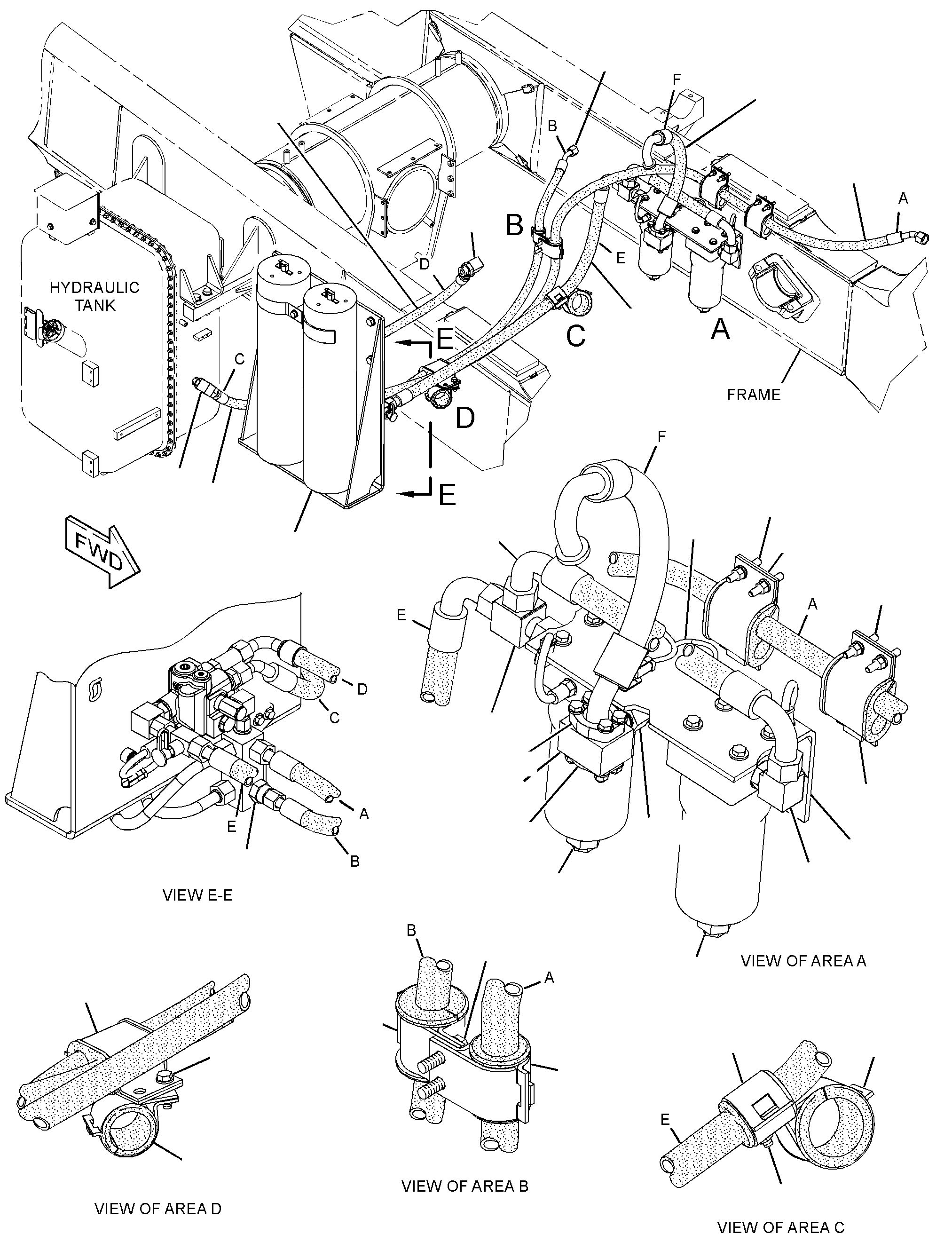

225-8210 LINES GP-ACCUMULATOR -BRAKES/N DLS822-1229
Group No: 225-8210 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1556061 | 1 FILTER GP-OIL (PARKING, SERVICE BRAKES) | 2 | |
| 2747854 | 2 ACCUMULATOR & MTG GP-BRAKE | 1 | |
| 2858034 | 3 HOSE AS | 1 | |
| 2900481 | 4 HOSE AS | 1 | |
| 2929759 | 5 HOSE AS | 1 | |
| 2938255 | 6 BRACKET AS | 1 | |
| 2975605 | 7 HOSE AS | 1 | |
| 3112488 | 8 HOSE AS | 1 | |
| 3288309 | 9 HARNESS AS-SENSOR (BRAKE FILTER) | 1 | |
| 3288781 | 10 HOSE AS | 1 | |
| 3288782 | 11 HOSE AS | 1 | |
| 1061793 | 12 STUD-TAPERLOCK (3/8-16X2.36-IN) | 4 | |
| 1305300 | 13 CLIP | 3 | |
| 1488317 | 14 CONNECTOR AS | 1 | |
| 6V8714 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488347 | 15 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488360 | 16 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488362 | 17 ELBOW AS | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488429 | 18 TEE AS | 1 | |
| 6V9840 | TEE-SWIVEL | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 1645574 | 19 TEE AS | 1 | |
| 6V8784 | TEE-FACE SEAL | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1932120 | 20 GROMMET | 1 | |
| 1P4577 | 21 FLANGE-HALF | 2 | |
| 1S2176 | 22 COVER | 1 | |
| 3D2824 | 23 SEAL-O-RING | 2 | |
| 4J0520 | 24 SEAL-O-RING | 3 | |
| 5P7464 | 25 CLIP (SLOT) | 1 | |
| 5P7465 | 26 CLIP (TAB) | 1 | |
| 5P7468 | 27 CLIP (SLOT) | 1 | |
| 5P7469 | 28 CLIP (TAB) | 1 | |
| 5P7470 | 29 CLIP (SLOT) | 1 | |
| 5P7471 | 30 CLIP (TAB) | 1 | |
| 5P7703 | 31 GROMMET (52-MM ID) | 1 | |
| 5P8112 | 32 GROMMET | 1 | |
| 5P8444 | 33 GROMMET (37-MM ID) | 1 | |
| 6V1867 | 34 CLIP (SLOT) | 1 | |
| 6V1868 | 35 CLIP (TAB) | 1 | |
| 6V8801 | 36 NUT (3/8-16-THD) | 4 | |
| 6V8943 | 37 REDUCER | 1 | |
| 7G3832 | 38 GROMMET | 3 | |
| 7G3833 | 39 CLIP (TAB) | 3 | |
| 7G3834 | 40 CLIP (SLOT) | 3 | |
| 7J9108 | 41 SEAL-O-RING | 1 | |
| 7X3166 | 42 ADAPTER-SWIVEL | 2 | |
| 7X7729 | 43 WASHER (11X25X3-MM THK) | 8 | |
| 8E1042 | 44 CLIP (SLOT) | 1 | |
| 8E1043 | 45 CLIP (TAB) | 1 | |
| 8T2920 | 46 GROMMET (27-MM ID) | 1 | |
| 8T4121 | 47 WASHER-HARD (11X21X2.5-MM THK) | 14 | |
| 8T4133 | 48 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 49 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4139 | 50 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4178 | 51 BOLT (M10X1.5X90-MM) | 4 | |
| 8T4186 | 52 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4223 | 53 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4896 | 54 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 9D2095 | 55 BLOCK | 1 |
