System And Components

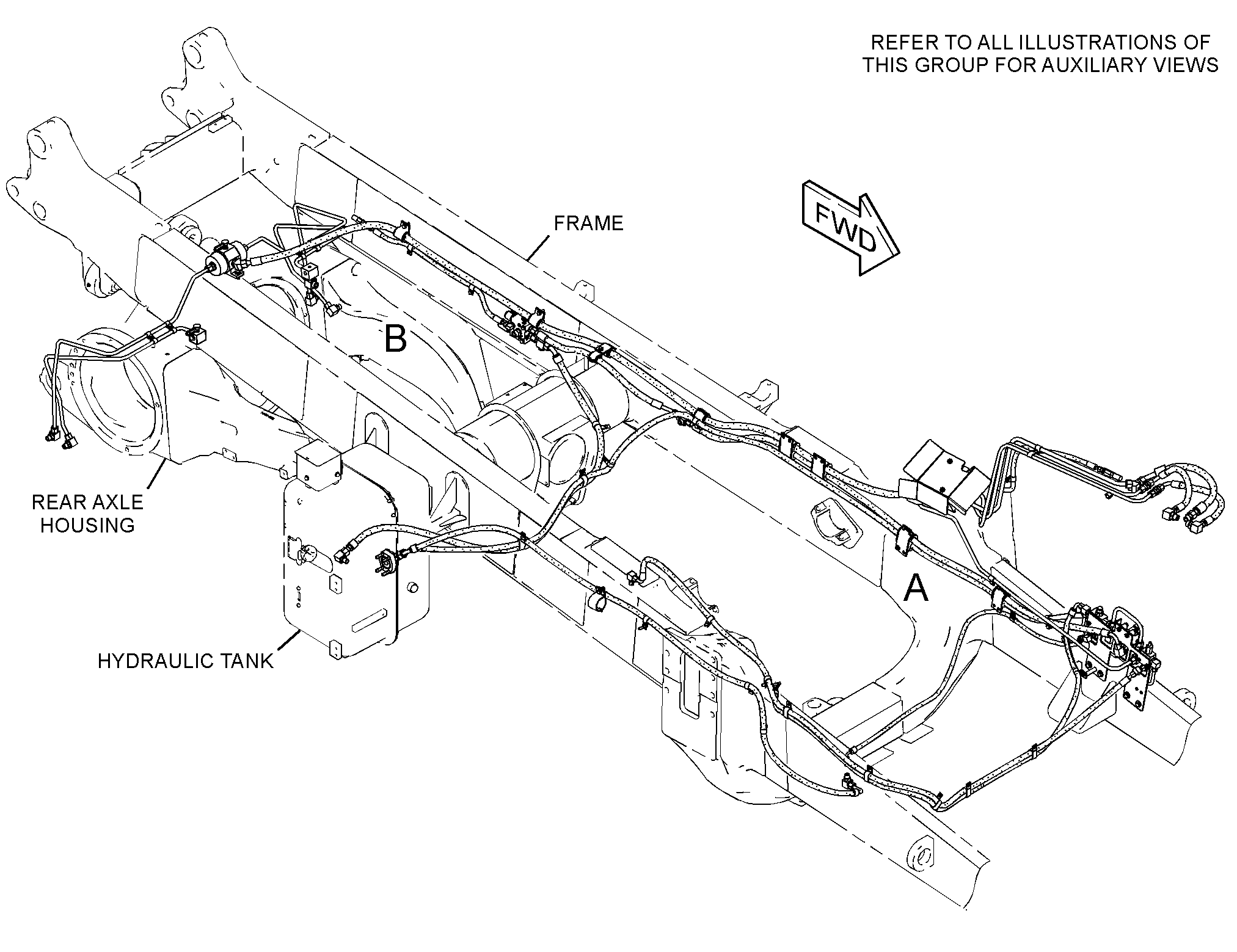

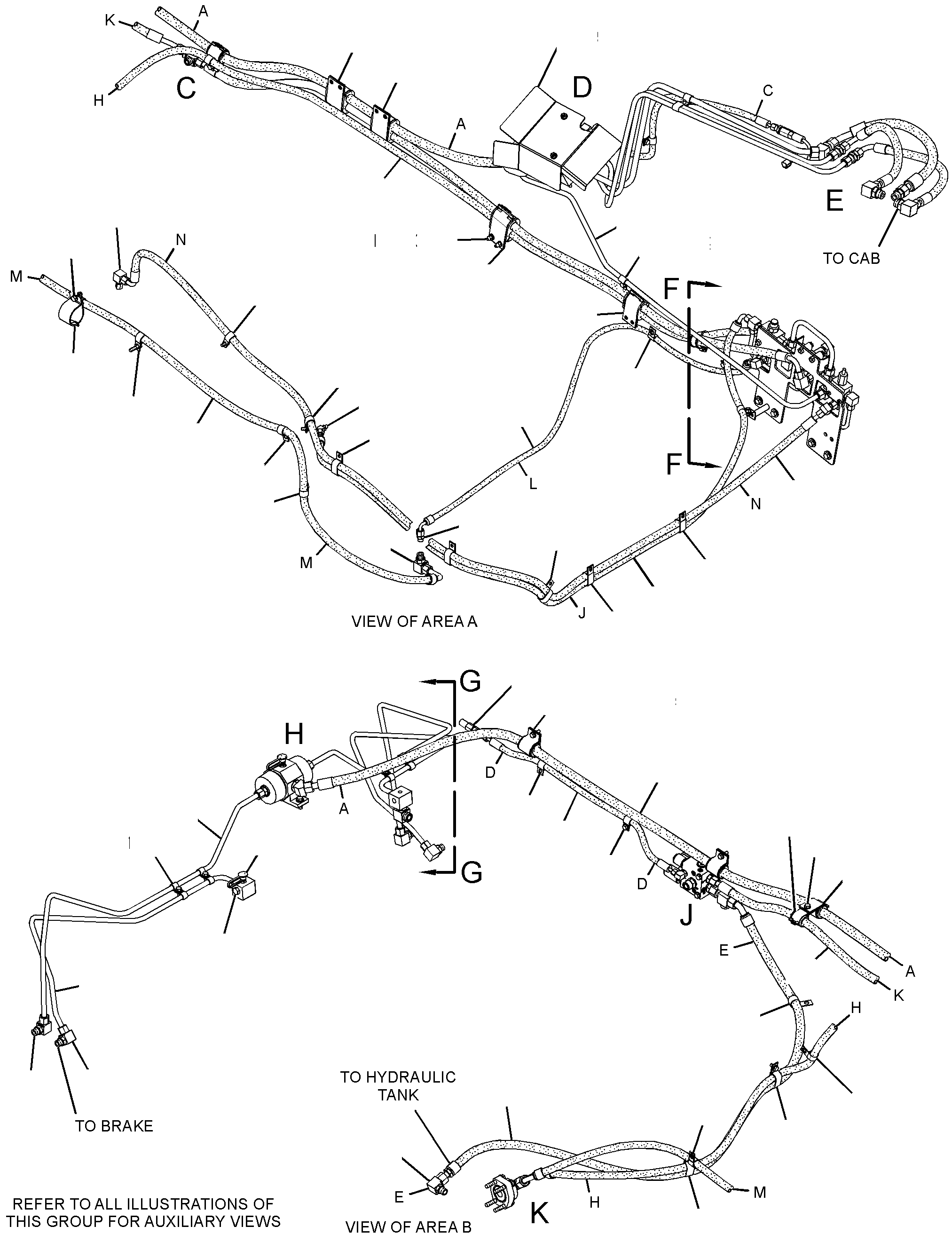

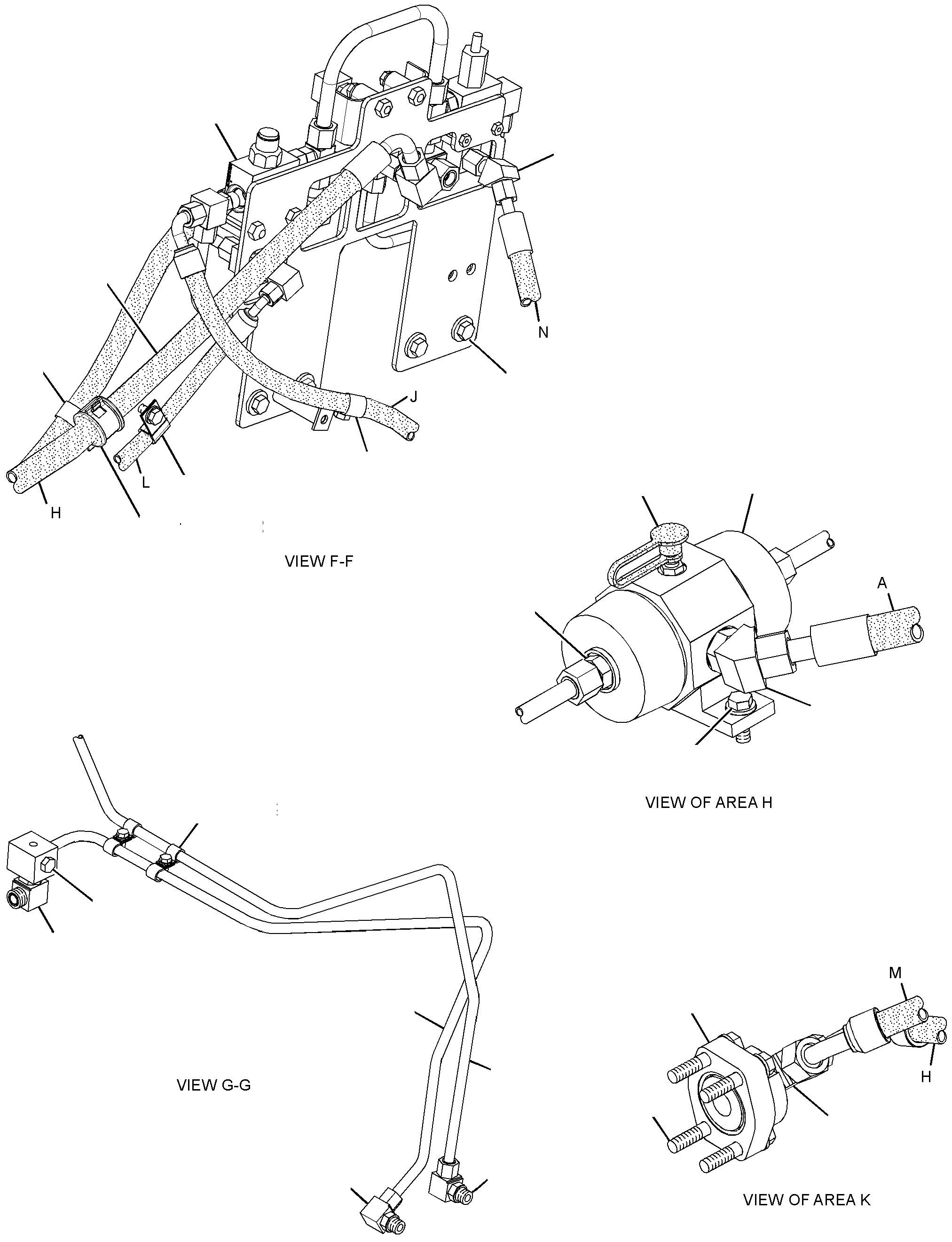

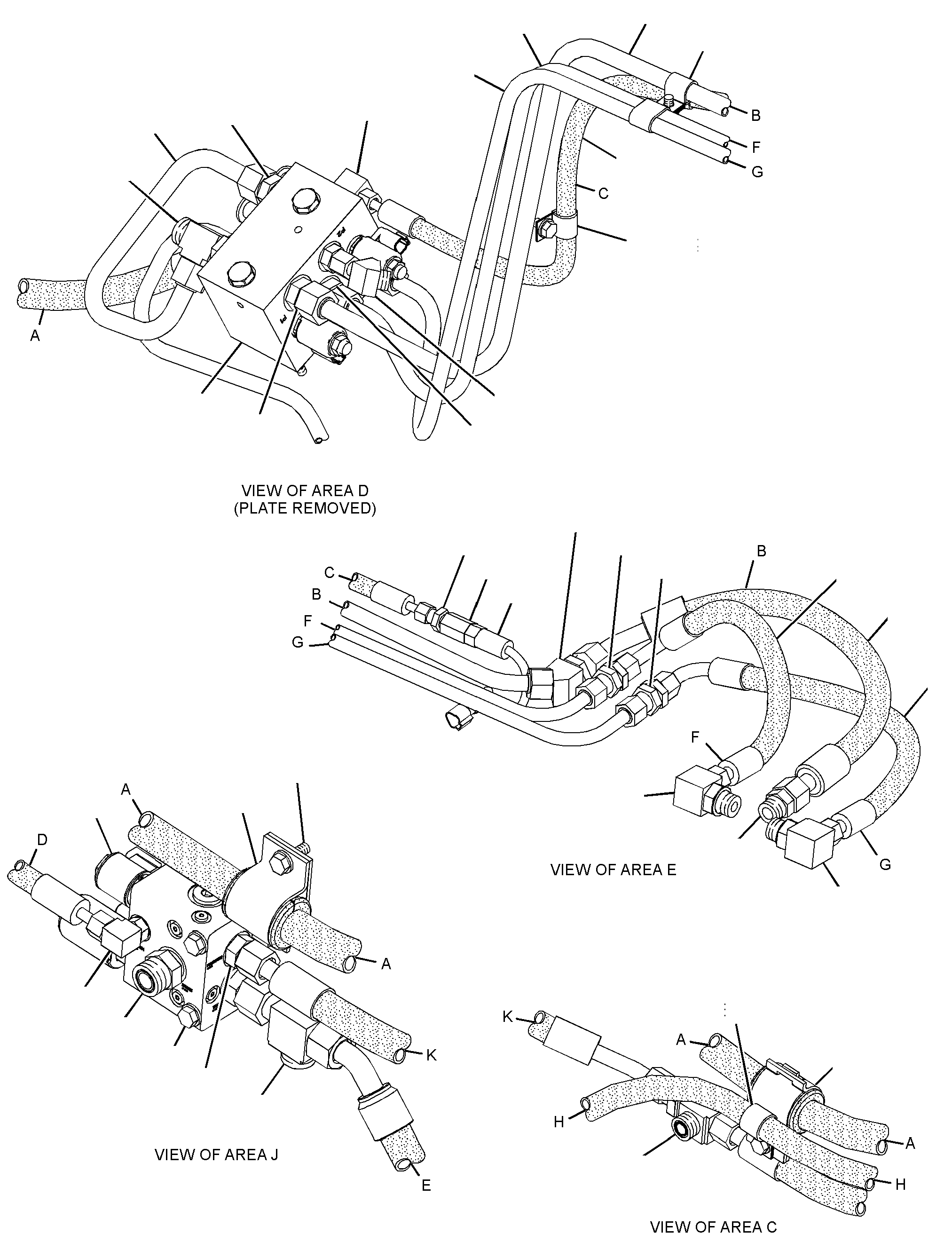

229-2088 LINES GP-BRAKES/N DLS1-1094
Group No: 229-2088 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 8V0442 | 2 ANGLE | 1 | |
| 3373404 | 3 SWITCH AS-PRESSURE (BRAKE SYSTEM) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (28-CM) | ||
| 1436373 | 4 HOSE AS | 2 | |
| 1445194 | 5 HOSE AS | 1 | |
| 2186543 | 6 HOSE AS | 1 | |
| 1475607 | 7 HOSE AS | 1 | |
| 1602609 | 8 SWITCH AS-PRESSURE (BRAKE) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1645567 | 9 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2495636 | 10 STUD (M10X1.5X200-MM) | 2 | |
| 2501454 | 11 TEE AS (ORFS) | 1 | |
| 1184569 | TEE | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 2522148 | 12 SLACK ADJUSTER GP (REAR BRAKES) | 1 | |
| 2609187 | 13 CONNECTOR AS | 1 | |
| 8T9358 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2611316 | 14 VALVE & MTG GP-BRAKE (FRONT BRAKE, RETARDER CONTROL) | 1 | |
| 2655675 | 15 TUBE AS | 1 | |
| 2655677 | 16 TUBE AS | 1 | |
| 2666775 | 17 VALVE GP-BRAKE (PARKING) | 1 | |
| 2755185 | 18 TUBE AS | 1 | |
| 2755186 | 19 TUBE AS | 1 | |
| 2877258 | 20 FLANGE | 1 | |
| 2882843 | 21 TUBE AS | 1 | |
| 2882844 | 22 TUBE AS | 1 | |
| 2882845 | 23 TUBE AS | 1 | |
| 2882846 | 24 TUBE AS | 1 | |
| 2889292 | 25 HOSE AS | 1 | |
| 2889913 | 26 HOSE AS | 1 | |
| 2889935 | 27 HOSE AS | 1 | |
| 2890585 | 28 MANIFOLD GP-CONTROL (PARKING BRAKE RELEASE)(PARKING) | 1 | |
| 2898481 | 29 HOSE AS | 1 | |
| 2900997 | 30 HOSE AS | 1 | |
| 2902056 | 32 HOSE AS | 1 | |
| 2929758 | 33 HOSE AS | 1 | |
| 2930718 | 34 TUBE AS | 1 | |
| 1488315 | 35 CONNECTOR AS | 3 | |
| 6V8642 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488322 | 36 CONNECTOR AS | 3 | |
| 6V8640 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488327 | 37 CONNECTOR AS | 2 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488341 | 38 CONNECTOR AS | 3 | |
| 6V8713 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488345 | 39 CONNECTOR AS | 1 | |
| 6V8638 | CONNECTOR (O-RING) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488347 | 40 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488374 | 41 ELBOW AS (90-DEG) | 1 | |
| 6V8723 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488378 | 42 ELBOW AS (90-DEG) | 1 | |
| 6V8724 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488382 | 43 ELBOW AS | 2 | |
| 8T0404 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488388 | 44 ELBOW AS | 1 | |
| 6V8629 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488390 | 45 ELBOW AS | 5 | |
| 6V8626 | ELBOW (FACE SEAL) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488411 | 46 PLUG AS | 2 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1488449 | 47 TEE AS-SWIVEL | 1 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1512167 | 48 HOSE AS | 1 | |
| 1536237 | 49 ELBOW AS | 2 | |
| 6V9004 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1536241 | 50 ELBOW AS | 2 | |
| 8C8989 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645544 | 51 ELBOW AS | 1 | |
| 3E2333 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645574 | 52 TEE AS | 1 | |
| 6V8784 | TEE-FACE SEAL | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1646860 | 53 TEE AS | 1 | |
| 6V9350 | TEE-BULKHEAD | 1 | |
| 7J9108 | SEAL-O-RING | 3 | |
| 1654933 | 54 ELBOW AS | 1 | |
| 6V8990 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1697409 | 55 UNION AS | 2 | |
| 6V8996 | UNION | 1 | |
| 7J9108 | SEAL-O-RING | 2 | |
| 1842420 | 56 ADAPTER AS (BULKHEAD) | 1 | |
| 3E7401 | ADAPTER | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1854026 | 57 VALVE GP-CHECK (PARKING BRAKE RELEASE) | 1 | |
| 1S6420 | 58 CLIP | 1 | |
| 2P1293 | 60 LOCKNUT (1-3/16-12-THD) | 1 | |
| 3G8054 | 61 CLIP (TAB) | 1 | |
| 3G8057 | 62 CLIP (SLOT) | 1 | |
| 3H4656 | 63 SPACER (1.5-IN THK) | 2 | |
| 3J1907 | 64 SEAL-O-RING | 1 | |
| 3J7354 | 65 SEAL-O-RING | 1 | |
| 3P2404 | 66 CLIP | 1 | |
| 3S8664 | 67 CLIP | 4 | |
| 4D7735 | 68 CLIP | 1 | |
| 4J0527 | 69 SEAL-O-RING | 1 | |
| 2636342 | 70 CLIP | 1 | |
| 5D0718 | 72 CLIP (LOOP) | 2 | |
| 5K8451 | 73 CLIP (LOOP) | 1 | |
| 5P1076 | 74 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5P7464 | 75 CLIP (SLOT) | 1 | |
| 5P7465 | 76 CLIP (TAB) | 1 | |
| 5P7466 | 77 CLIP (SLOT) | 4 | |
| 5P7467 | 78 CLIP (TAB) | 4 | |
| 5P7470 | 79 CLIP (SLOT) | 1 | |
| 5P7471 | 80 CLIP (TAB) | 1 | |
| 5P8112 | 81 GROMMET | 4 | |
| 6D1641 | 82 CLIP (LOOP) | 5 | |
| 6D4246 | 83 CLIP (LOOP) | 1 | |
| 6D4636 | 84 CLIP (LOOP) | 7 | |
| 6V8397 | 85 SEAL-O-RING | 1 | |
| 6V9168 | 86 NUT (11/16-16-THD) | 2 | |
| 6V9170 | 87 NUT-BULKHEAD (1-14-THD) | 3 | |
| 6V9990 | 88 GROMMET | 1 | |
| 7G3832 | 89 GROMMET | 3 | |
| 7G3833 | 90 CLIP (TAB) | 3 | |
| 7G3834 | 91 CLIP (SLOT) | 3 | |
| 8S0948 | 92 CLIP | 1 | |
| 8T2920 | 93 GROMMET (27-MM ID) | 1 | |
| 8T4121 | 94 WASHER-HARD (11X21X2.5-MM THK) | 29 | |
| 8T4133 | 95 NUT (M10X1.5-THD) | 4 | |
| 8T4137 | 96 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4139 | 97 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4172 | 98 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4186 | 99 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4191 | 100 BOLT (M10X1.5X16-MM) | 2 | |
| 8T4192 | 101 BOLT (M12X1.75X25-MM) | 4 | |
| 8T4195 | 102 BOLT (M10X1.5X30-MM) | 8 | |
| 8T4223 | 103 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4956 | 104 BOLT (M12X1.75X35-MM) | 2 | |
| 8T7546 | 105 ELBOW | 1 | |
| 8T9389 | 106 BOLT (1/2-13X2.75-IN) | 4 | |
| 9M8406 | 107 CLIP (LOOP) | 8 | |
| 9X8250 | 108 CLIP (LOOP) | 3 | |
| 2M4779 | 109 STUD-TAPERLOCK (3/8-16X1.75-IN) | 2 | |
| 3K0360 | 110 SEAL-O-RING | 1 | |
| 6V3341 | 111 GROMMET | 1 | |
| 6V8801 | 112 NUT (3/8-16-THD) | 4 | |
| 8T1899 | 113 CLIP (SLOT) | 1 | |
| 8T1900 | 114 CLIP (TAB) | 1 | |
| 8T4896 | 115 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 2153316 | 116 HOSE AS | 1 | |
| 2901919 | 117 PLATE | 1 | |
| 6V8367 | 118 LOCKWASHER | 2 |
