System And Components
348-8628 LINES GP-BRAKES/N DLS1275-UP
Group No: 348-8628 · Commonality

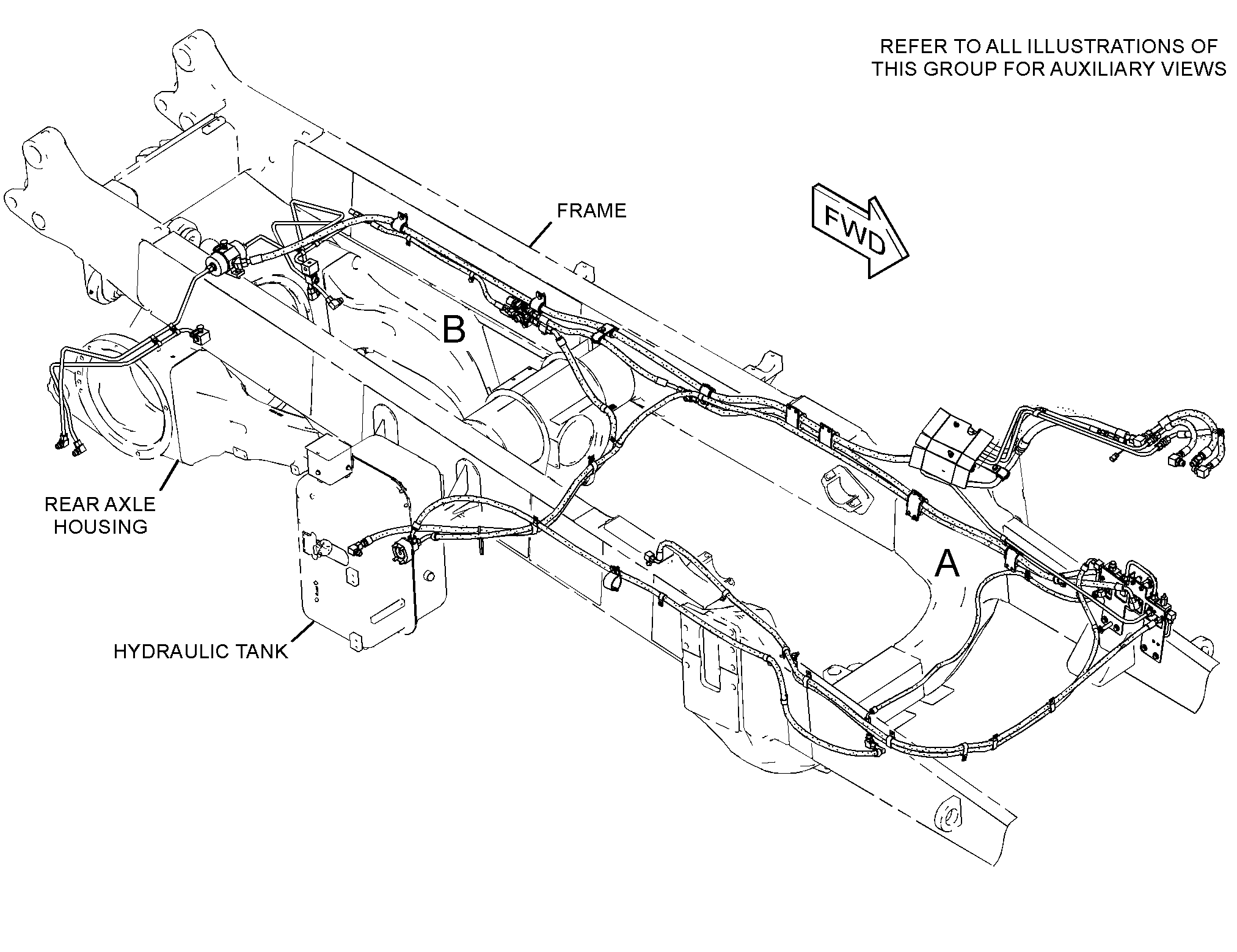

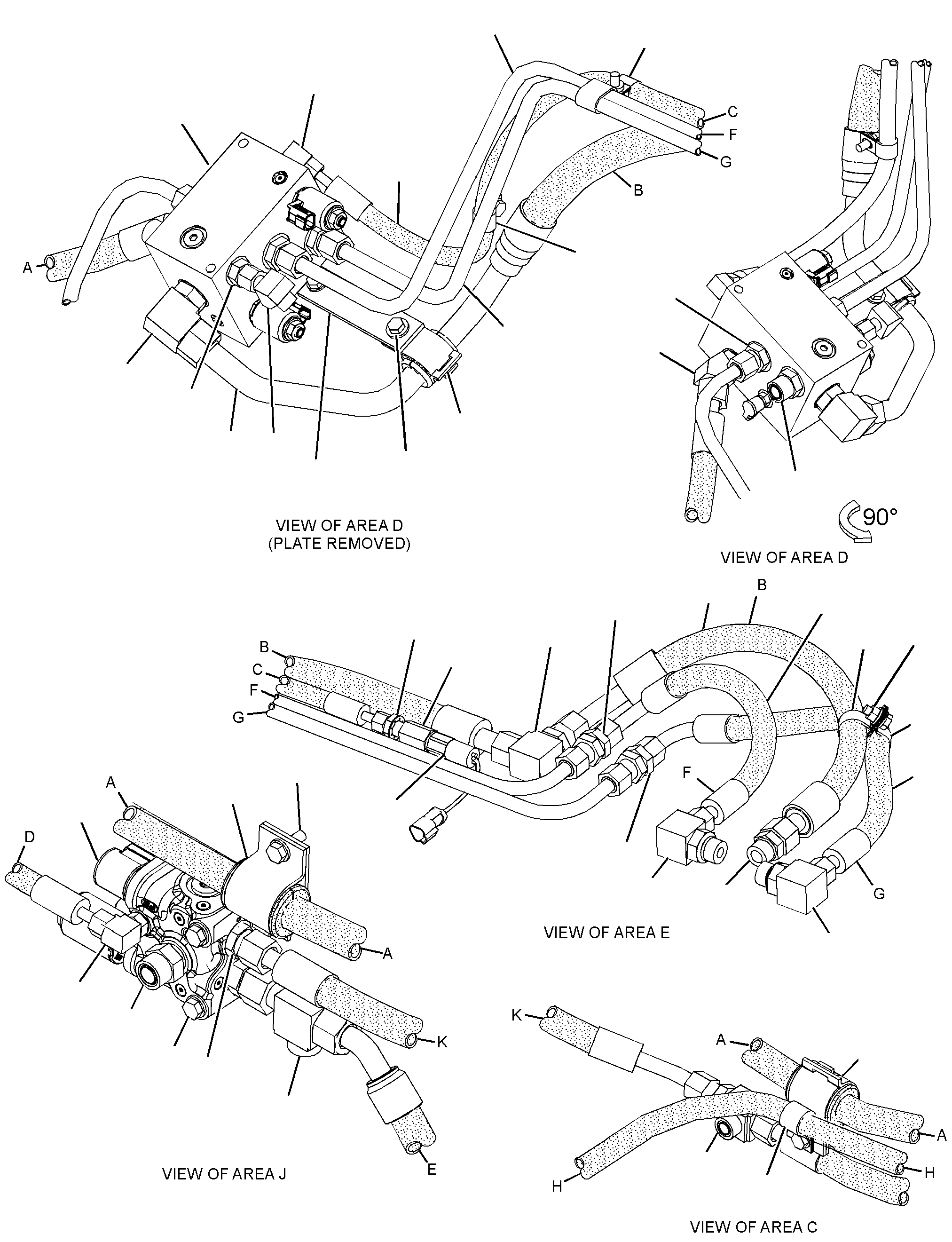

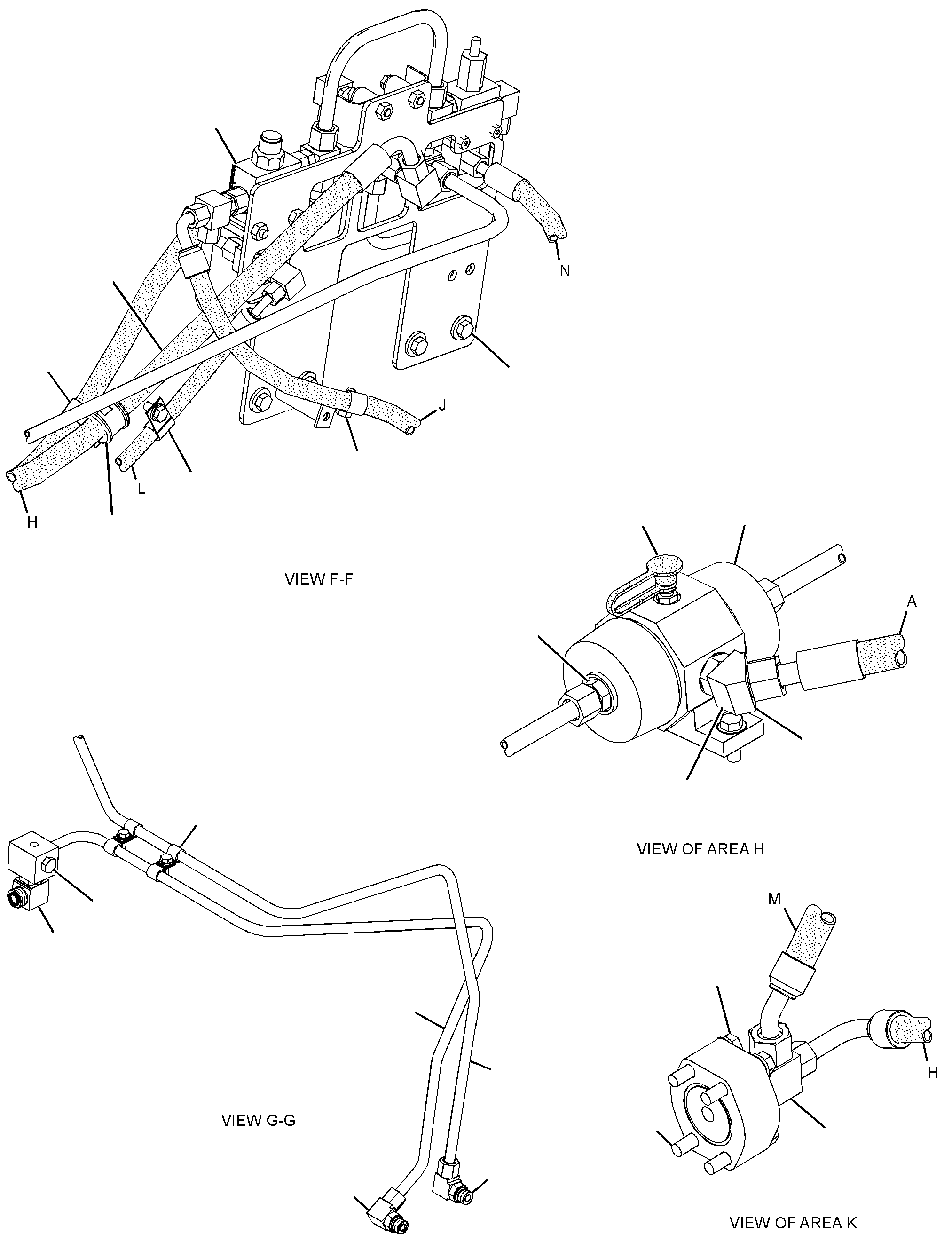

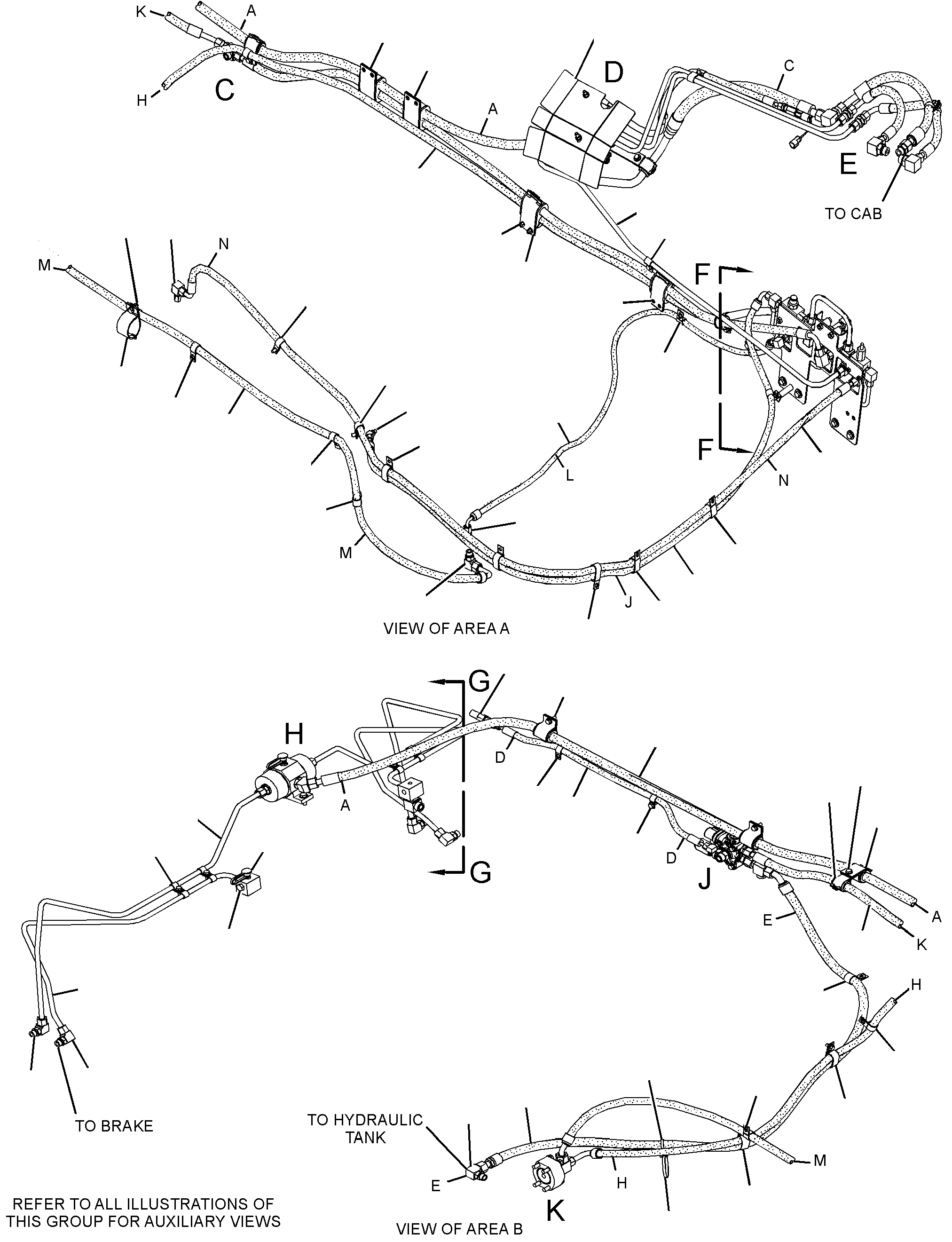

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 8V0442 | 2 ANGLE | 1 | |
| 1340747 | 3 HOSE AS | 1 | |
| 1436373 | 4 HOSE AS | 2 | |
| 2186543 | 5 HOSE AS | 1 | |
| 1475607 | 6 HOSE AS | 1 | |
| 1602609 | 7 SWITCH AS-PRESSURE (BRAKE) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1645567 | 8 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2342967 | 9 GROMMET | 1 | |
| 2495636 | 10 STUD (M10X1.5X200-MM) | 2 | |
| 2501454 | 11 TEE AS | 1 | |
| 1184569 | TEE | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 2522148 | 12 SLACK ADJUSTER GP (REAR BRAKE) | 1 | |
| 2609187 | 13 CONNECTOR AS | 1 | |
| 8T9358 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2636342 | 14 CLIP | 1 | |
| 2655675 | 15 TUBE AS | 1 | |
| 2655677 | 16 TUBE AS | 1 | |
| 2666775 | 17 VALVE GP-BRAKE (PARKING) | 1 | |
| 2755185 | 18 TUBE AS | 1 | |
| 2755186 | 19 TUBE AS | 1 | |
| 2877258 | 20 FLANGE | 1 | |
| 2889292 | 21 HOSE AS | 1 | |
| 2889913 | 22 HOSE AS | 1 | |
| 2889935 | 23 HOSE AS | 1 | |
| 3612239 | 24 VALVE GP-PARKING BRAKE (PARKING BRAKE RELEASE) | 1 | |
| 2898481 | 25 HOSE AS | 1 | |
| 2900997 | 26 HOSE AS | 1 | |
| 2929758 | 27 HOSE AS | 1 | |
| 3004112 | 28 VALVE & MTG GP-BRAKE (FRONT BRAKE, RETARDER CONTROL) | 1 | |
| 3714359 | 29 HOSE & TUBE AS | 1 | |
| 5P0181 | HOSE (70-CM) | ||
| 3714360 | TUBE AS | 1 | |
| 3112109 | 30 TUBE AS | 1 | |
| 3112110 | 31 TUBE AS | 1 | |
| 3112111 | 32 TUBE AS | 1 | |
| 3373404 | 33 SWITCH AS-PRESSURE (BRAKE SYSTEM) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (28-CM) | ||
| 3516971 | 34 PLATE AS | 1 | |
| 1445194 | 35 HOSE AS | 1 | |
| 1488315 | 36 CONNECTOR AS | 3 | |
| 6V8642 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488322 | 37 CONNECTOR AS | 2 | |
| 6V8640 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488327 | 38 CONNECTOR AS | 2 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488341 | 39 CONNECTOR AS | 3 | |
| 6V8713 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488345 | 40 CONNECTOR AS | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488347 | 41 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488374 | 42 ELBOW AS | 1 | |
| 6V8723 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488378 | 43 ELBOW AS | 1 | |
| 6V8724 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488382 | 44 ELBOW AS | 2 | |
| 8T0404 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488388 | 45 ELBOW AS | 1 | |
| 6V8629 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488390 | 46 ELBOW AS | 5 | |
| 6V8626 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488411 | 47 PLUG AS | 2 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1488449 | 48 TEE AS-SWIVEL | 1 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1512167 | 49 HOSE AS | 1 | |
| 1536237 | 50 ELBOW AS | 2 | |
| 6V9004 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1536241 | 51 ELBOW AS | 1 | |
| 8C8989 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645544 | 52 ELBOW AS | 1 | |
| 3E2333 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1646860 | 53 TEE AS | 1 | |
| 6V9350 | TEE-BULKHEAD | 1 | |
| 7J9108 | SEAL-O-RING | 3 | |
| 1488376 | 54 ELBOW AS | 1 | |
| 6V8983 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1697409 | 55 UNION AS | 2 | |
| 6V8996 | UNION | 1 | |
| 7J9108 | SEAL-O-RING | 2 | |
| 1842420 | 56 ADAPTER AS | 1 | |
| 3E7401 | ADAPTER | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1854026 | 57 VALVE GP-CHECK (PARKING BRAKE RELEASE) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1S6420 | 58 CLIP | 1 | |
| 2153316 | 59 HOSE AS | 1 | |
| 2P1293 | 60 LOCKNUT (1-3/16-12-THD) | 1 | |
| 3G8054 | 61 CLIP (TAB) | 1 | |
| 3G8057 | 62 CLIP (SLOT) | 1 | |
| 3J1907 | 63 SEAL-O-RING | 1 | |
| 3J7354 | 64 SEAL-O-RING | 1 | |
| 3K0360 | 65 SEAL-O-RING | 1 | |
| 3P2404 | 66 CLIP | 1 | |
| 4D7735 | 68 CLIP | 1 | |
| 4J0527 | 69 SEAL-O-RING | 1 | |
| 5D0718 | 70 CLIP (LOOP) | 2 | |
| 5K8451 | 71 CLIP (LOOP) | 1 | |
| 5P1076 | 72 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5P7464 | 73 CLIP (SLOT) | 2 | |
| 5P7465 | 74 CLIP (TAB) | 2 | |
| 5P7466 | 75 CLIP (SLOT) | 4 | |
| 5P7467 | 76 CLIP (TAB) | 4 | |
| 5P7470 | 77 CLIP (SLOT) | 1 | |
| 5P7471 | 78 CLIP (TAB) | 1 | |
| 5P8112 | 79 GROMMET | 4 | |
| 6D1641 | 80 CLIP (LOOP) | 5 | |
| 6D4246 | 81 CLIP (LOOP) | 5 | |
| 6D4636 | 82 CLIP (LOOP) | 7 | |
| 6V3341 | 83 GROMMET | 1 | |
| 6V8367 | 84 LOCKWASHER | 2 | |
| 6V8397 | 85 SEAL-O-RING | 1 | |
| 6V8801 | 86 NUT (3/8-16-THD) | 2 | |
| 6V9168 | 87 NUT (11/16-16-THD) | 2 | |
| 6V9170 | 88 NUT-BULKHEAD (1-14-THD) | 3 | |
| 7G3832 | 89 GROMMET | 3 | |
| 7G3833 | 90 CLIP (TAB) | 3 | |
| 7G3834 | 91 CLIP (SLOT) | 3 | |
| 8T1899 | 93 CLIP (SLOT) | 1 | |
| 8T1900 | 94 CLIP (TAB) | 1 | |
| 8T2920 | 95 GROMMET (27-MM ID) | 1 | |
| 8T4121 | 96 WASHER-HARD (11X21X2.5-MM THK) | 28 | |
| 8T4133 | 97 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 98 BOLT (M10X1.5X25-MM) | 5 | |
| 8T4137 | 99 BOLT (M10X1.5X20-MM) | 8 | |
| 8T4139 | 100 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4172 | 101 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4186 | 102 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4192 | 104 BOLT (M12X1.75X25-MM) | 4 | |
| 8T4195 | 105 BOLT (M10X1.5X30-MM) | 8 | |
| 8T4223 | 106 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4896 | 107 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T4956 | 108 BOLT (M12X1.75X35-MM) | 2 | |
| 8T5409 | 109 STUD-TAPERLOCK (3/8-16X1.57-IN) | 2 | |
| 8T7546 | 110 ELBOW | 1 | |
| 8T9389 | 111 BOLT (1/2-13X2.75-IN) | 4 | |
| 9M8406 | 112 CLIP (LOOP) | 8 | |
| 9X8250 | 113 CLIP (LOOP) | 3 | |
| 7K1181 | 114 STRAP-CABLE | 2 | |
| 7X7729 | 115 WASHER (11X25X3-MM THK) | 7 | |
| 2006345 | 116 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 3196223 | 117 ELBOW AS | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 6V1889 | 118 CLIP (LOOP) | 1 | |
| 6V7359 | 119 GROMMET (25-MM ID, 37-MM OD) | 1 | |
| 7C4354 | 120 CLIP | 1 | |
| 7G1239 | 121 SPACER (10.5X19X4.5-MM THK) | 1 | |
| 8T4196 | 122 BOLT (M10X1.5X35-MM) | 1 | |
| 3714778 | 123 PLATE | 1 |
