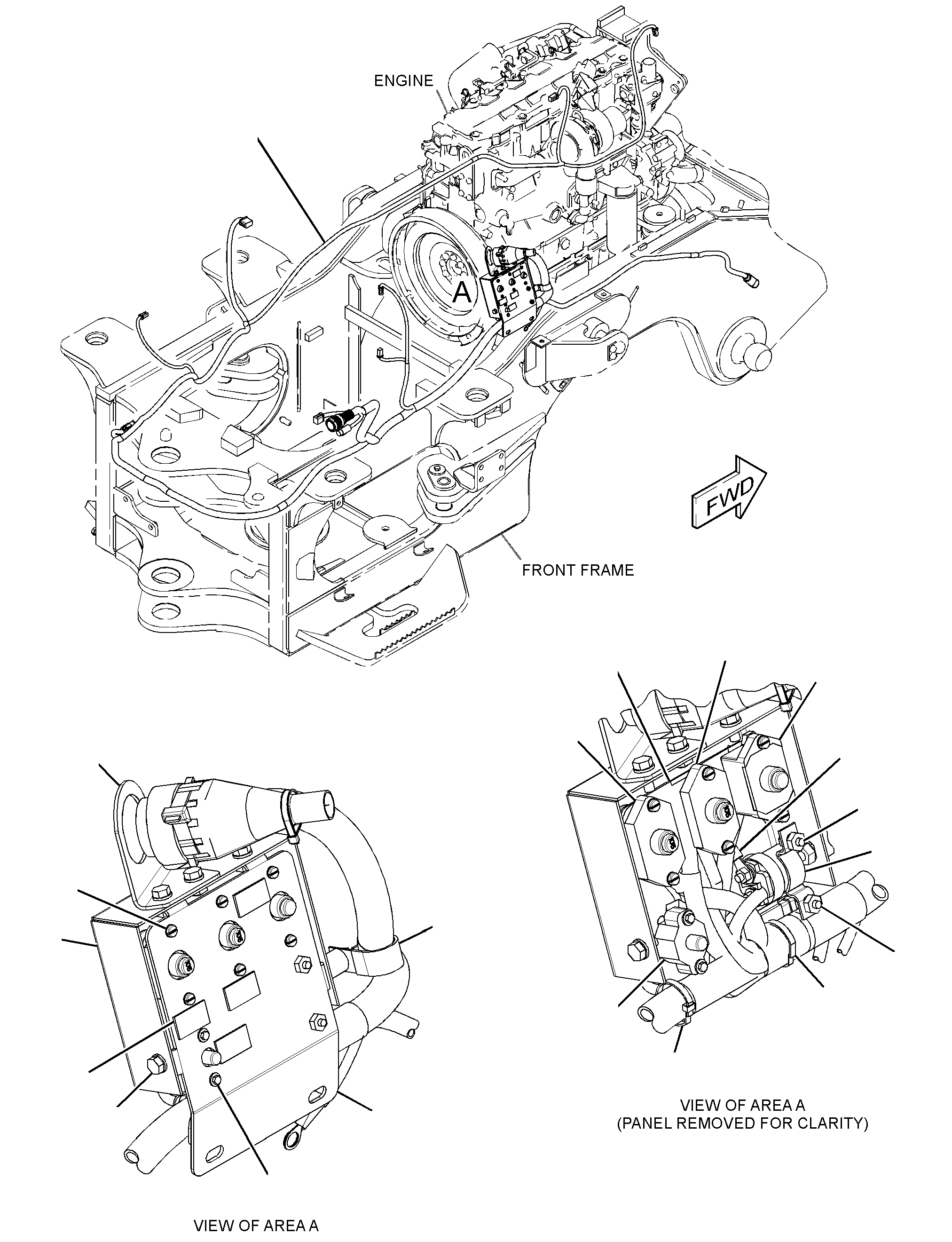

314-5449 PANEL GP-CIRCUIT BREAKERS/N 535291-499
Group No: 314-5449 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6T3644 | 1 CIRCUIT BREAKER AS (20-AMPERE)(MACHINE CONTROL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 1251302 | 2 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY) | 1 | |
| 1712210 | 3 CIRCUIT BREAKER AS (80-AMPERE)(AIR INLET HEATER) | 1 | |
| 1712212 | 4 CIRCUIT BREAKER AS (105-AMPERE)(MAIN) | 1 | |
| 1712212 | 4A CIRCUIT BREAKER AS (105-AMPERE)(ALTERNATOR) | 1 | |
| 6V8187 | NUT (1/4-28-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 2532111 | LOCKWASHER | 2 | |
| 2575124 | 5 WIRE AS | 1 | |
| 2577147 | 6 WIRE AS | 1 | |
| 2731743 | 7 PANEL AS | 1 | |
| 2731750 | 8 STRAP | 1 | |
| 2769535 | 9 FILM-IDENTIFICATION (CIRCUIT PANEL) | 1 | |
| 3000500 | 10 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 3144042 | 11 HARNESS AS-PANEL (CIRCUIT BREAKER) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 6V5817 | CONDUIT-FLEXIBLE (26.1-MM ID, SPLIT)(1-M) | ||
| 7G7917 | PLUG-SEAL | 1 | |
| 7G7919 | PLUG-SEAL | 1 | |
| 7T9346 | TERMINAL AS-BATTERY | 1 | |
| 3L6513 | TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW) | 1 | |
| 6V9023 | TUBE-HEAT SHRINK (12.7-MM DIA)(3-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 8N1518 | PLUG AS-CONNECTOR (25-PIN) | 1 | |
| 8N1521 | BELL AS-END | 1 | |
| 8N1523 | LOCKWASHER | 1 | |
| 9X6857 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 15 | |
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 4 | |
| 8N1543 | SOCKET-CONNECTOR (10-GA) | 1 | |
| 8N1545 | SOCKET-CONNECTOR (8-GA) | 1 | |
| 8N1547 | SOCKET-CONNECTOR (6-GA) | 1 | |
| 8N1549 | SOCKET-CONNECTOR (4-GA) | 2 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 62 | |
| 8T8737 | PLUG-SEAL | 15 | |
| 0301712 | TERMINAL-RING (2-GA, 1/4-IN SCREW) | 1 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 9X6772 | STRAP-CABLE | 1 | |
| 1123587 | BOOT (40-PIN) | 1 | |
| 1148843 | SLEEVE-PLASTIC (140-CM) | ||
| 1148845 | SLEEVE-PLASTIC (40-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 1275483 | PLUG AS-CONNECTOR (1-PIN) | 1 | |
| 1311478 | TERMINAL AS | 2 | |
| 1311488 | TERMINAL AS-RING (6-GA TO 8-GA) | 2 | |
| 2L8071 | TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW) | 1 | |
| 2L8081 | TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW) | 1 | |
| 1352543 | BOOT (RED) | 1 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1P0810 | TAPE-ELECTRICAL (43-CM) | ||
| 2042281 | STRAP-CABLE | 1 | |
| 0301193 | 12 SCREW-MACHINE (10-32X19.05-MM) | 6 | |
| 0961357 | 13 CLIP | 1 | |
| 1336934 | 14 SPACER (11X20X25-MM THK) | 1 | |
| 4B4863 | 15 WASHER (4.7X11X1.2-MM THK) | 2 | |
| 5C9553 | 16 BOLT (M6X1X16-MM) | 2 | |
| 5P8394 | 17 SCREW-MACHINE (8-32X0.75-IN) | 2 | |
| 7K1181 | 18 STRAP-CABLE | 2 | |
| 7X0818 | 19 BOLT (M8X1.25X45-MM) | 1 | |
| 8T0328 | 20 WASHER-HARD (5.5X10X1-MM THK) | 6 | |
| 8T4200 | 21 BOLT (M8X1.25X16-MM) | 3 | |
| 8T4224 | 22 WASHER-HARD (8.8X16X2-MM THK) | 5 | |
| 9X8256 | 23 WASHER (6.6X12X2-MM THK) | 2 | |
| 8T4189 | 24 BOLT (M8X1.25X20-MM) | 1 | |
| 3057990 | 25 PLATE | 1 |
