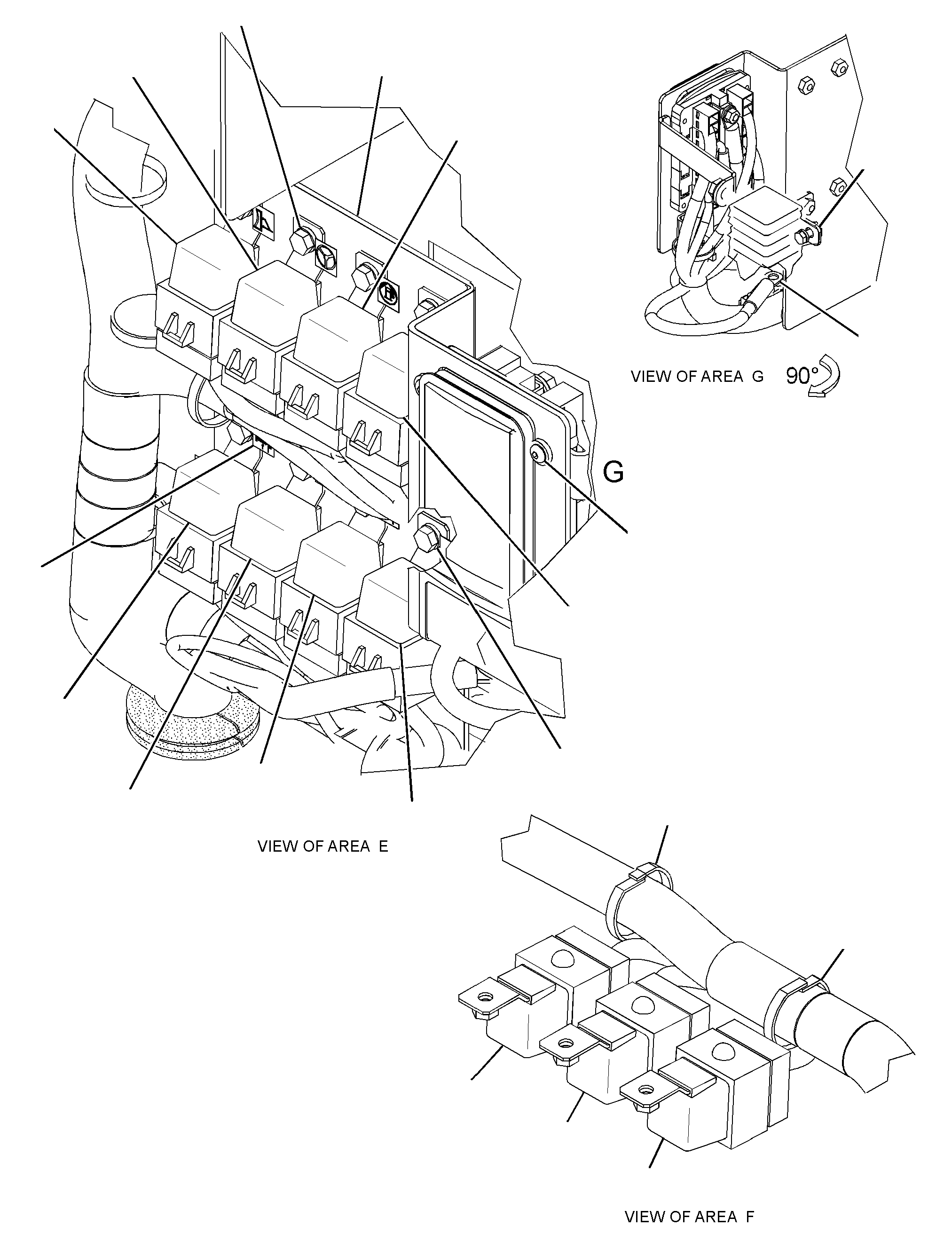

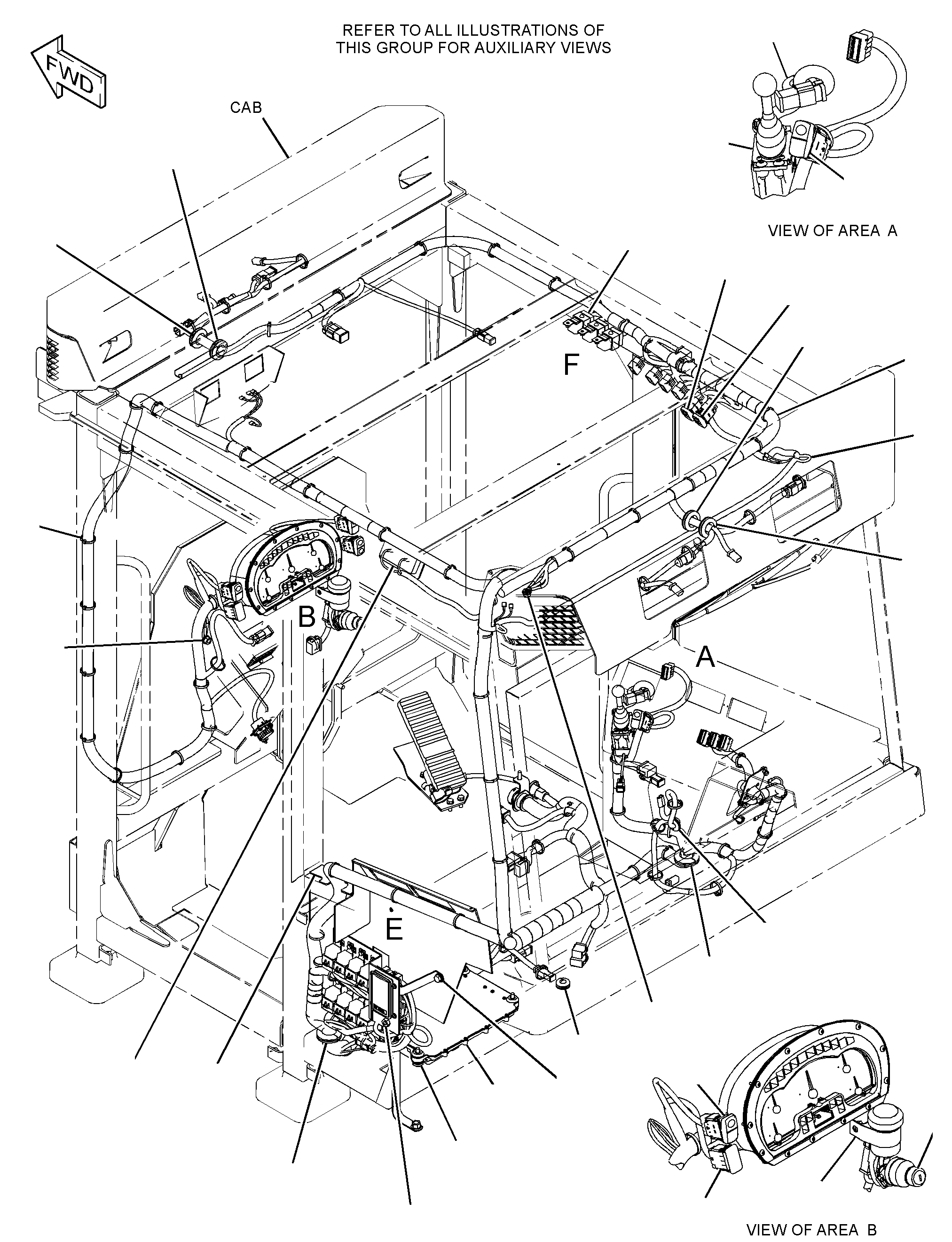

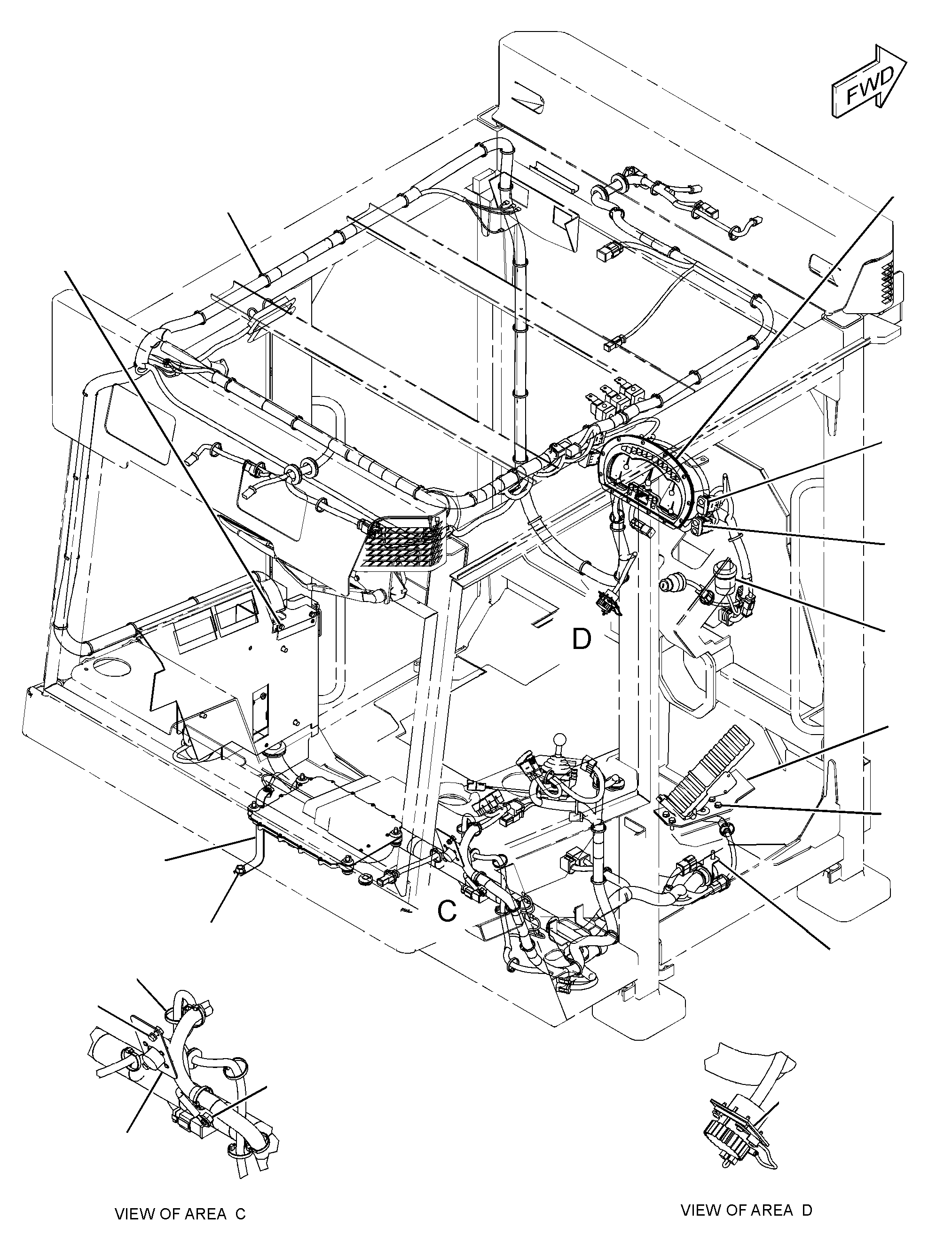

314-4040 WIRING GP-CABS/N 535275-311

Group No: 314-4040 · Commonality
Part NumberPart NameQty
3E52391 RELAY AS (24-VOLT)(DECKING BLADE RETURN)1
3E52391A RELAY AS (24-VOLT)(SECONDARY STEER INTERMEDIATE)1
3E52391B RELAY AS (24-VOLT)(FUEL TRANSFER PUMP)1
3E52391C RELAY AS (24-VOLT)(GRAPPLE RETURN)1
3E52391D RELAY AS (24-VOLT)(WINCH REEL IN)1
3E52391E RELAY AS (24-VOLT)(WINCH FREESPOOL)1
3E52391F RELAY AS (24-VOLT)(WINCH SOLENOID RETURN)1
3E52391G RELAY AS (24-VOLT)(WINCH REEL OUT)1
3E52391H RELAY AS (24-VOLT)(LIGHTS)3
3E63282 ALARM GP (24-VOLT)1
6I14183 SPACER (8.2X12.7X28.7-MM THK)4
6Y65844 STRAP AS-GROUND1
8T96555 MOUNT-ISOLATION8
10760326 LAMP AS-DOME (24-VOLT)(CAB)1
2591286LAMP (24-VOLT, 10-WATT)1
11078877 SWITCH AS-START (KEY)1
1028804KIT-RECEPTACLE (4-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)4
7T6799NUT-MOUNTING (1-32-THD)1
12337268 HARNESS AS-RADIO (SPEAKERS)1
1028805KIT-RECEPTACLE (6-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
5P4571TERMINAL-BLADE (14-GA TO 16-GA)2
5P2957TERMINAL-BLADE (14-GA TO 16-GA)2
5P5602TERMINAL-BLADE (18-GA TO 22-GA)2
15341739 PLATE AS1
6V9632NUT-WELD (M6X1-THD)2
180990010 CAP AS1
5P7958SLEEVE-CABLE SPLICE1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
1799392LANYARD1
201102411 BRACKET1
222789012 SWITCH AS-ROCKER (PARKING BRAKE ON, OFF)1
236460813 SWITCH AS-ROCKER (MODE SELECT)1
241836814 SWITCH GP-MAGNETIC (24-VOLT)(MAIN RELAY)1
251119515 SWITCH AS-ROCKER (24-VOLT)(FRONT FLOODLIGHTS)1
251202916 SWITCH AS-ROCKER (TORQUE CONVERTER LOCKUP)1
251433917 SWITCH AS-ROCKER (24-VOLT)(REAR FLOODLIGHTS)1
253613918 SWITCH AS-ROCKER (DIFFERENTIAL LOCK)1
258754019 BRACKET AS1
262140820 CONTROL GP-UNPROGRAMMED (MACHINE)1
265702521 PLATE1
268328922 BRACKET AS1
304862923 FILM-IDENTIFICATION (RELAY PANEL)1
307467324 CONTROL GP-HANDLE (WINCH)1
313215525 MODULE GP-DISPLAY (GAUGE CLUSTER)1
314403926 HARNESS AS-CAB1
1028801KIT-RECEPTACLE (12-PIN)2
1028802KIT-RECEPTACLE (2-PIN)3
1028803KIT-RECEPTACLE (3-PIN)2
1028804KIT-RECEPTACLE (4-PIN)3
1028805KIT-RECEPTACLE (6-PIN)4
1028806KIT-RECEPTACLE (8-PIN)2
5P4571TERMINAL-BLADE (14-GA TO 16-GA)2
9X0196TERMINAL AS (16-GA)1
7X2639TUBE-HEAT SHRINK (50.8-MM DIA)(1-CM)
7X6222PLUG AS-CONNECTOR (24-PIN)1
8N1548PIN-CONNECTOR (4-GA)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)51
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)223
8T8737PLUG-SEAL137
9R9806TERMINAL-BLADE (18-GA TO 20-GA)6
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)30
9W0852PIN-CONNECTOR (14-GA TO 16-GA)11
9W1441FUSE (15-AMPERE)12
9W1442FUSE (10-AMPERE)7
9W1446FUSE (20-AMPERE)1
9W1951RECEPTACLE AS-CONNECTOR (9-PIN)1
9W2033TERMINAL-BLADE (14-GA TO 16-GA)12
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)8
9X4814RECEPTACLE AS-CONNECTOR (6-PIN)1
9X6772STRAP-CABLE4
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)36
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(143-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(105-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(60-CM)
1261774COVER-CONNECTOR2
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
1284249LOCKWASHER1
5P4571TERMINAL-BLADE (14-GA TO 16-GA)8
1311478TERMINAL AS1
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)2
2L8050TERMINAL-RING (6-GA, 1/4-IN SCREW)1
2L8058TERMINAL-RING (8-GA, 1/4-IN SCREW)1
2L8051TERMINAL-RING (6-GA, 5/16-IN SCREW)1
5P3455TERMINAL-RING (8-GA, 5/16-IN SCREW)1
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)2
2L8071TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW)1
2L8081TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW)1
1342540RECEPTACLE AS-CONNECTOR (3-PIN)1
1471445PLUG AS-CONNECTOR (70-PIN)1
1471446PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
1552255KIT-CONNECTING PLUG (12-PIN)5
1552265KIT-CONNECTING PLUG (8-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)4
1552270KIT-CONNECTING PLUG (2-PIN)8
1552271KIT-CONNECTING PLUG (4-PIN)5
1552274KIT-CONNECTING PLUG (6-PIN)5
1617337BLOCK AS (FUSE)1
1H3244LOCKWASHER2
6V8185NUT (1/4-20-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
1511398KIT-TERMINAL (LOCK)3
1996590BLOCK AS-FUSE1
1H3244LOCKWASHER2
6V8185NUT (1/4-20-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
1617338COVER1
2008788SEAL (FUSE BLOCK)1
1P0810TAPE-ELECTRICAL (0.1-M)
2025397PLUG52
2110052NUT (1-11/16-18-THD)1
2457434KIT-CONNECTING PLUG (10-PIN)15
3086732RECEPTACLE-CONNECTOR1
314861827 PEDAL GP-GOVERNOR1
096616628 WASHER-HARD (4.5X9X1-MM THK)4
128615729 PLATE1
132578930 CLIP (LADDER)1
193462331 SCREW-BUTTON HEAD (10-32X0.5-IN)4
228608932 PLUG (ROCKER SWITCH)1
3S955733 SCREW-PAN HEAD (4-40X0.5-IN)4
4H255834 GROMMET1
5C289035 NUT (M6X1-THD)3
5C955336 BOLT (M6X1X16-MM)3
5S424537 SCREW-MACHINE (4-40X0.5-IN)4
6B454038 NUT (4-40-THD)4
7K118139 STRAP-CABLE94
7M336140 GROMMET1
7T738841 GUIDE4
7X061342 WASHER-HARD (8.8X25.5X5-MM THK)4
7X081843 BOLT (M8X1.25X45-MM)4
7Y816944 GROMMET4
8C966045 WASHER (4.6X7.9X0.8-MM THK)8
8D147046 GROMMET2
8T412147 WASHER-HARD (11X21X2.5-MM THK)8
8T413348 NUT (M10X1.5-THD)4
8T413749 BOLT (M10X1.5X20-MM)3
8T413850 BOLT (M6X1X20-MM)4
8T417151 BOLT (M6X1X12-MM)7
8T419152 BOLT (M10X1.5X16-MM)1
8T422353 WASHER-HARD (13.5X25.5X3-MM THK)2
8T422454 WASHER-HARD (8.8X16X2-MM THK)5
8T424455 NUT (M12X1.75-THD)2
8T490856 BOLT (M8X1.25X25-MM)5
9X104657 SCREW (M4X0.7X18-MM)12
9X204558 SCREW-TRUSS HEAD (M6X1X20-MM)4
9X734559 GROMMET1
9X825660 WASHER (6.6X12X2-MM THK)17
