System And Components

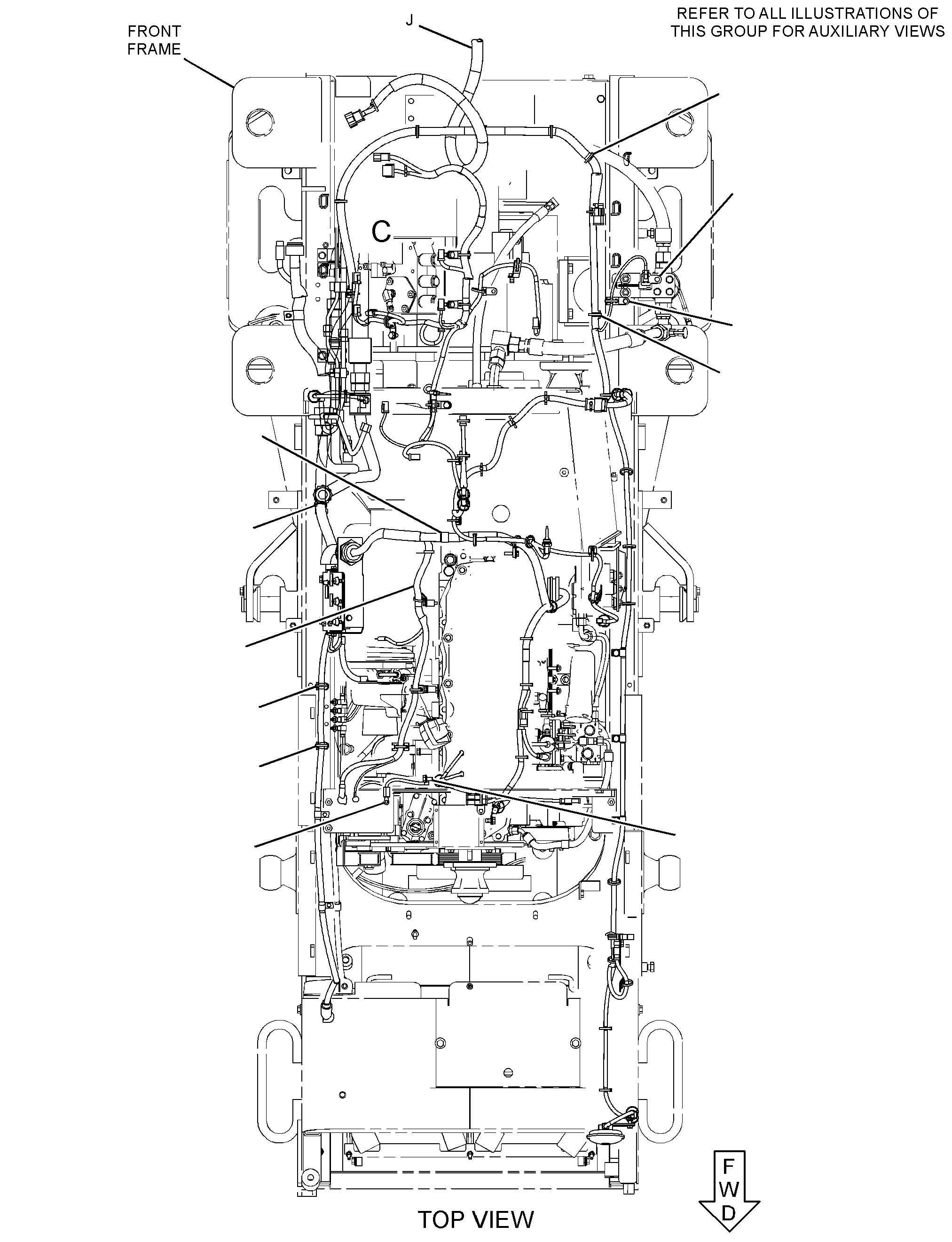

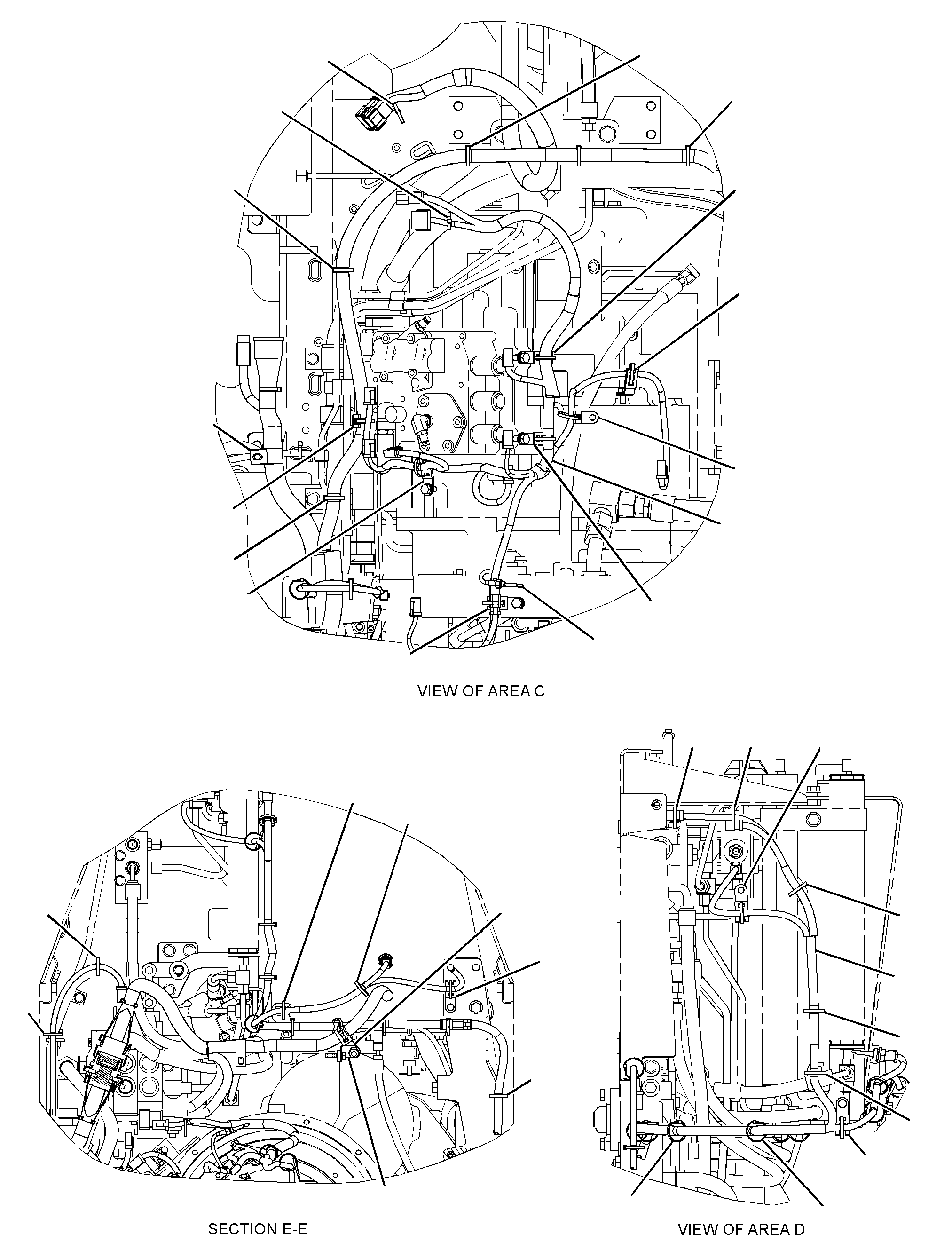

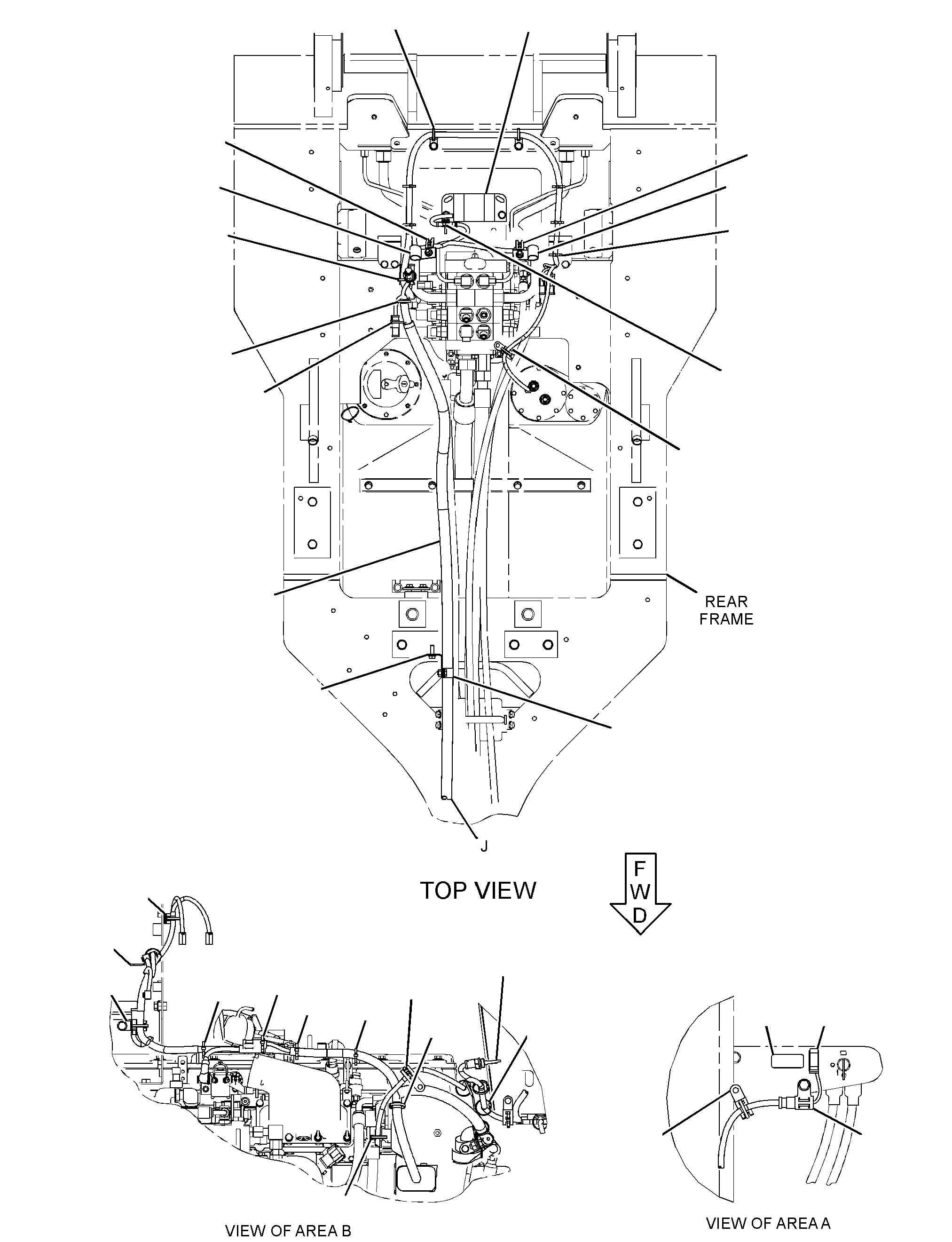

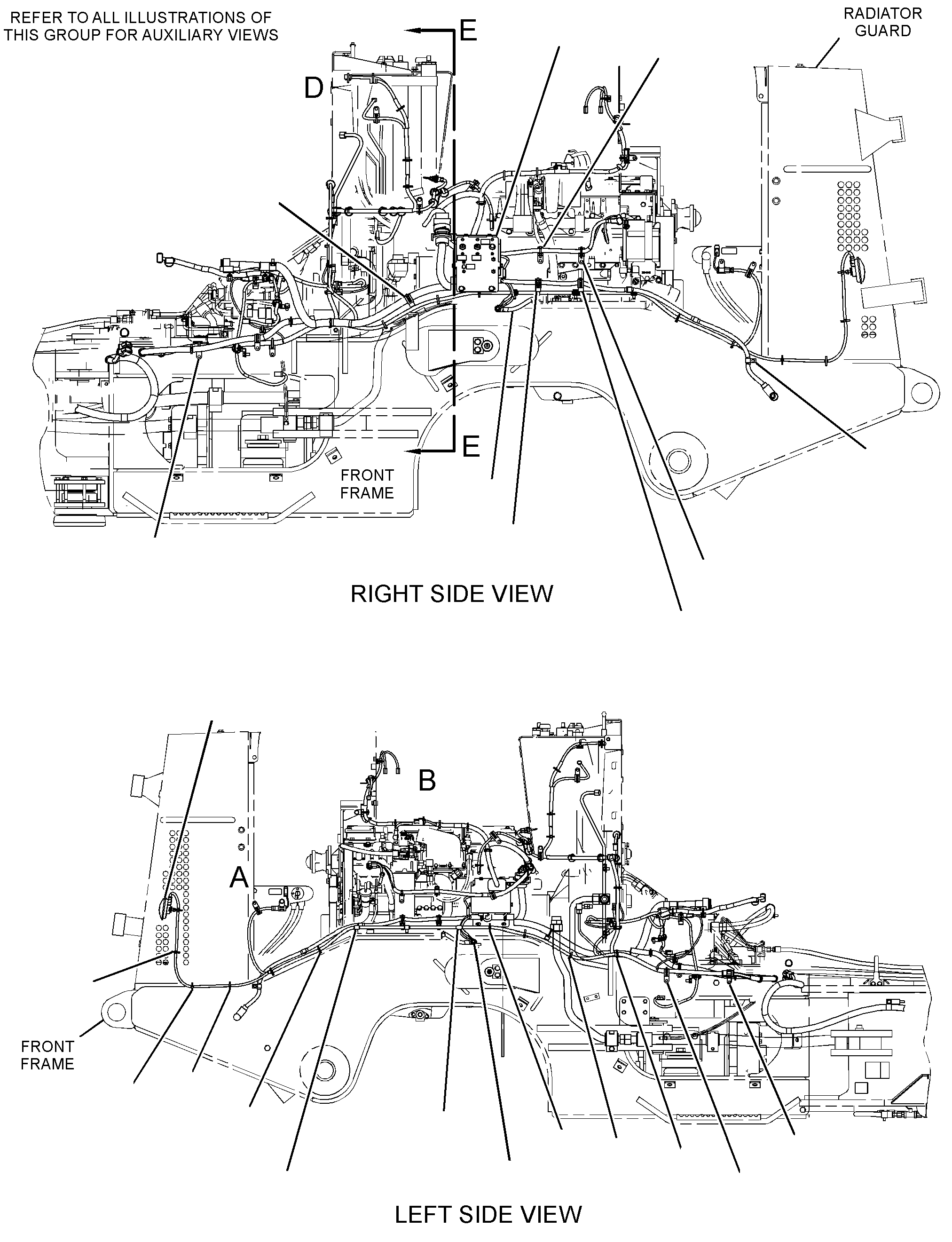

258-6841 WIRING GP-MACHINES/N 5351-274
Group No: 258-6841 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E5169 | 1 GUARD-SWITCH | 1 | |
| 4H1225 | 2 WASHER (11X22X6-MM THK) | 1 | |
| 4K8864 | 3 CLIP (LOOP) | 3 | |
| 4P7751 | 4 WIRE AS | 1 | |
| 1243019 | 5 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1279323 | 6 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1310359 | 7 PLATE-IDENTIFICATION (ENGINE STOP, RUN) | 1 | |
| 1457028 | 8 SENSOR GP-TEMPERATURE (TORQUE CONVERTER OIL) | 1 | |
| 1586634 | 9 SWITCH GP-TOGGLE (GROUND LEVEL SHUTDOWN) | 1 | |
| 1631201 | 10 HORN AS (24-VOLT, LOW TONE) | 1 | |
| 2139100 | 11 ALARM AS (BACKUP) | 1 | |
| 5P5623 | WIRE-ELECTRICAL (16-GA, BLACK)(0.4-M EACH) | ||
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X1813 | SLEEVE (31-CM) | ||
| 2558099 | 12 HARNESS AS-TRANSMISSION | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 9 | |
| 2566007 | 13 HARNESS AS-HYDRAULIC TANK | 1 | |
| 1148843 | SLEEVE-PLASTIC (100-CM) | ||
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN)(10-CM) | 3 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 2 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 4S5719 | 14 SPACER (10.31X25X12.7-MM THK) | 2 | |
| 2602019 | 15 HARNESS AS-WORK TOOL (GRAPPLE, WINCH) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 7 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 5 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 5P0765 | HOSE (245-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 2735789 | 16 HARNESS AS-ENGINE | 1 | |
| 1342540 | RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 2042281 | STRAP-CABLE | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 4 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 8N1518 | PLUG AS-CONNECTOR (25-PIN) | 1 | |
| 8N1521 | BELL AS-END | 1 | |
| 9X6772 | STRAP-CABLE | 3 | |
| 1148845 | SLEEVE-PLASTIC (20-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM) | ||
| 1261774 | COVER-CONNECTOR | 1 | |
| 1352543 | BOOT (RED) | 2 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 1123587 | BOOT (40-PIN) | 1 | |
| 2824220 | 17 PANEL GP-CIRCUIT BREAKER | 1 | |
| 1305300 | 18 CLIP | 2 | |
| 1325789 | 19 CLIP (LADDER) | 3 | |
| 3K0360 | 20 SEAL-O-RING | 1 | |
| 4P7428 | 21 CLIP (LADDER) | 3 | |
| 4P7581 | 22 CLIP (LADDER) | 17 | |
| 4P8134 | 23 CLIP (LADDER) | 6 | |
| 7X2621 | 24 BOLT (M10X1.5X12-MM) | 2 | |
| 4S1962 | 25 CLIP (LOOP) | 2 | |
| 5C7261 | 26 NUT (M8X1.25-THD) | 1 | |
| 6D4244 | 27 CLIP (LOOP) | 1 | |
| 7J0204 | 28 SEAL-O-RING | 1 | |
| 7K1181 | 29 STRAP-CABLE | 82 | |
| 8M2769 | 30 CLIP | 2 | |
| 8T4136 | 31 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4121 | 32 WASHER-HARD (11X21X2.5-MM THK) | 25 | |
| 8T4133 | 33 NUT (M10X1.5-THD) | 3 | |
| 8T4137 | 34 BOLT (M10X1.5X20-MM) | 17 | |
| 8T4195 | 35 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4223 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 37 WASHER-HARD (8.8X16X2-MM THK) | 5 | |
| 8T4244 | 38 NUT (M12X1.75-THD) | 1 | |
| 8T4908 | 39 BOLT (M8X1.25X25-MM) | 1 | |
| 1B5964 | 40 SPACER | 2 | |
| 7X2537 | 41 BOLT (M8X1.25X35-MM) | 3 | |
| 0338248 | 42 CLIP (LOOP) | 3 | |
| 1400860 | 43 STRAP AS-GROUND | 1 | |
| 2644297 | 44 SENSOR AS-TEMPERATURE (2-PIN)(HYDRAULIC OIL) | 1 | |
| 1376645 | PAD-CONNECTOR | 1 |
