System And Components

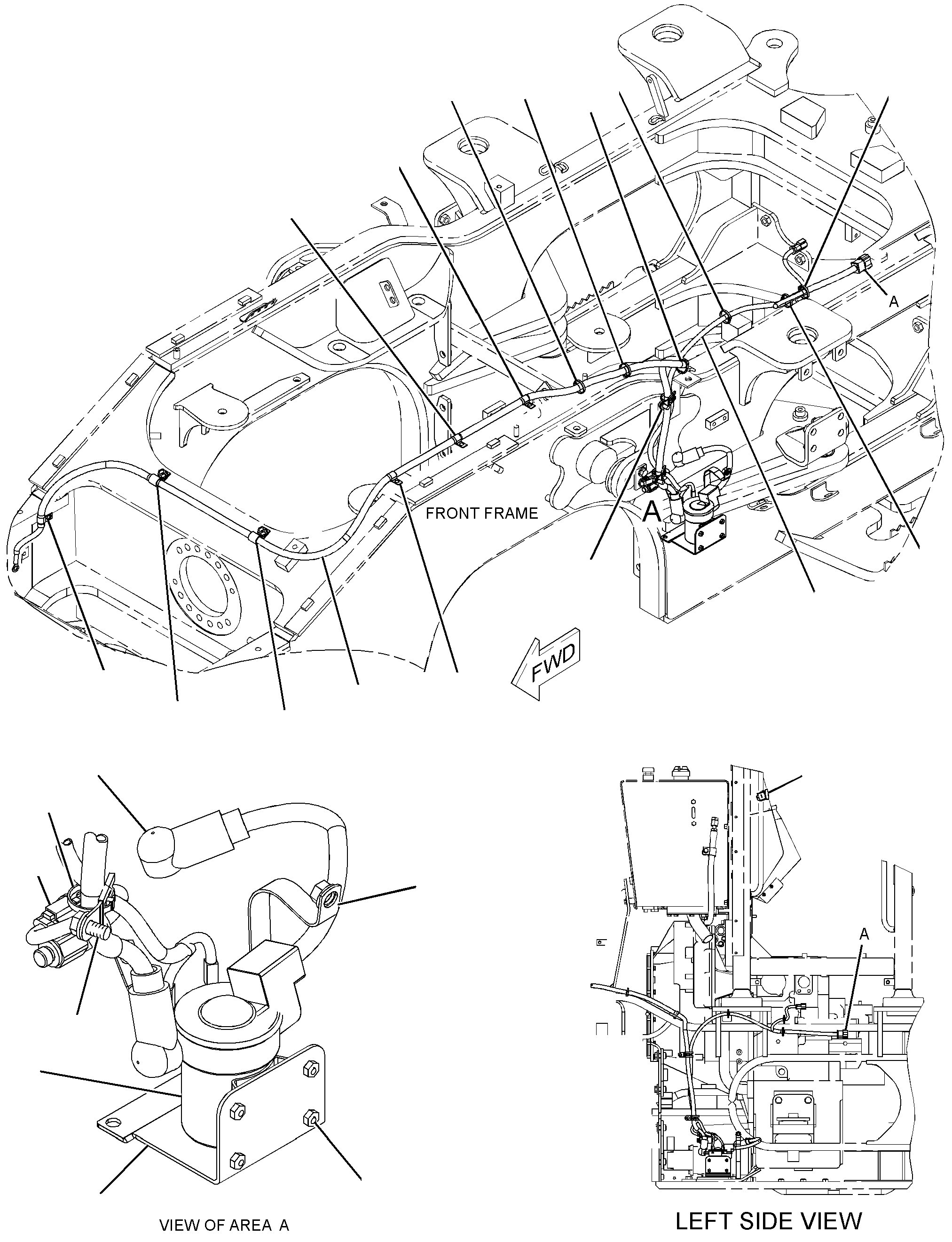

255-8106 WIRING GP-SECONDARY STEERINGS/N 5351-UP
Group No: 255-8106 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6Y6584 | 1 STRAP AS-GROUND | 1 | |
| 1790006 | 2 SWITCH GP-MAGNETIC (24-VOLT TO 32-VOLT)(SECONDARY STEERING RELAY) | 1 | |
| 2558107 | 3 HARNESS AS-STEERING (SECONDARY) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 2558108 | 4 CABLE AS | 1 | |
| 3L6513 | TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW) | 1 | |
| 5P0760 | CABLE (0-GA, RED)(318-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 0301707 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 2558109 | 5 CABLE AS | 1 | |
| 5P0760 | CABLE (0-GA, RED)(32-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 9X9120 | BOOT (RED) | 1 | |
| 0301707 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 2587613 | 6 BRACKET AS | 1 | |
| 4K8864 | 7 CLIP (LOOP) | 4 | |
| 4P7581 | 8 CLIP (LADDER) | 2 | |
| 7I2272 | 9 BOLT (M5X0.8X12-MM) | 4 | |
| 7K1181 | 10 STRAP-CABLE | 9 | |
| 8T0328 | 11 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4133 | 13 NUT (M10X1.5-THD) | 1 | |
| 8T4137 | 14 BOLT (M10X1.5X20-MM) | 2 | |
| 2364615 | 15 SWITCH AS-ROCKER (SECONDARY STEERING) | 1 | |
| 3E7808 | 16 SWITCH AS-PRESSURE (SECONDARY STEERING OIL) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 4K8302 | 17 CLIP (LOOP) | 2 | |
| 8T4223 | 18 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4244 | 19 NUT (M12X1.75-THD) | 2 |
