System And Components

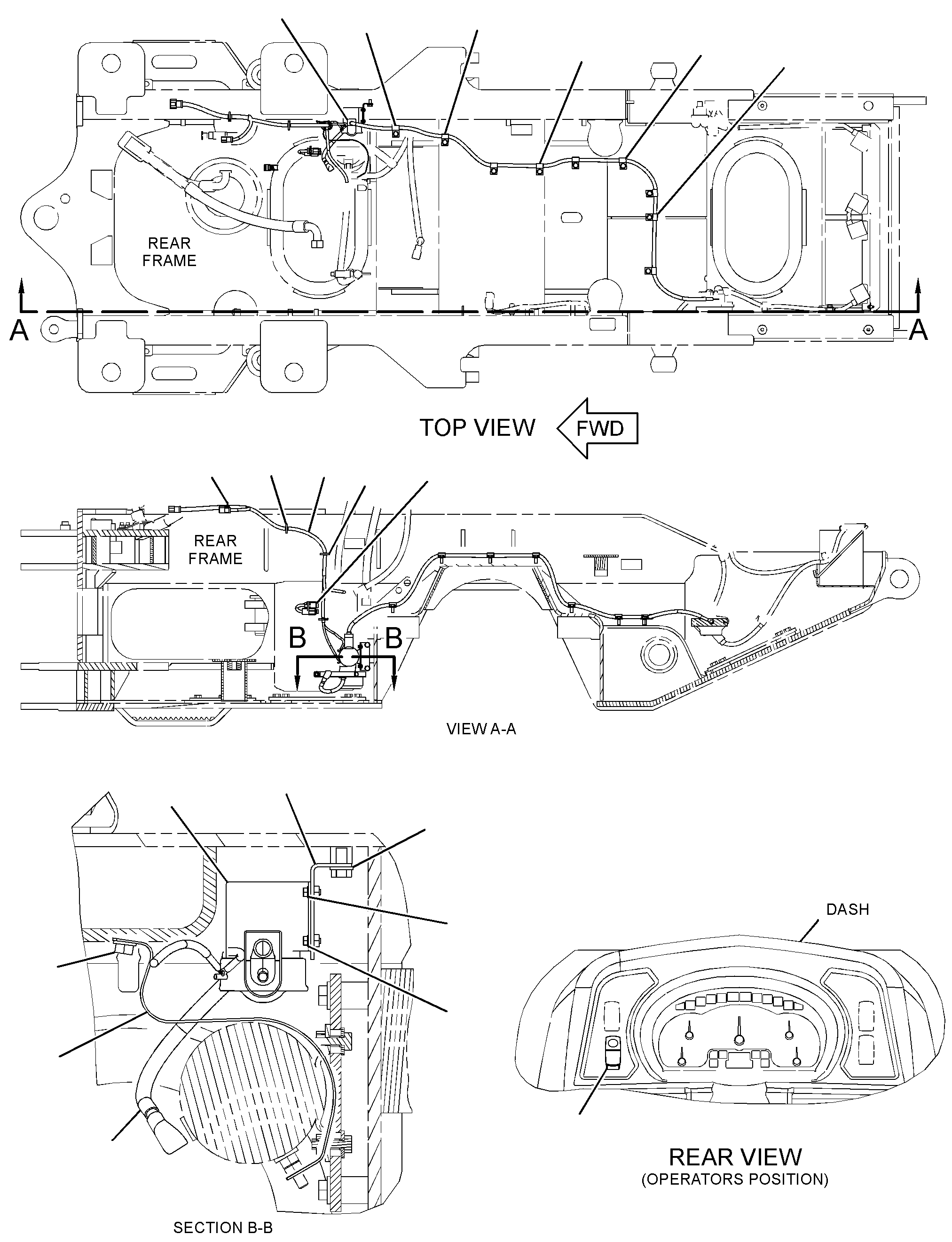

258-6843 WIRING GP-SECONDARY STEERINGS/N 535500-UP
Group No: 258-6843 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6Y6584 | 1 STRAP AS-GROUND | 1 | |
| 1790006 | 2 SWITCH GP-MAGNETIC (24-VOLT TO 32-VOLT)(SECONDARY STEERING MOTOR RELAY) | 1 | |
| 2364615 | 3 SWITCH AS-ROCKER (SECONDARY STEERING RELAY) | 1 | |
| 2558109 | 4 CABLE AS | 1 | |
| 5P0760 | CABLE (0-GA, RED)(32-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 9X9120 | BOOT (RED) | 1 | |
| 0301707 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 2940412 | 5 BRACKET AS | 1 | |
| 8T8874 | NUT-WELD (M5X0.8-THD) | 4 | |
| 2602020 | 6 HARNESS AS-STEERING (SECONDARY) | 1 | |
| 3E3371 | WEDGE-RECEPTACLE LOCK (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 2602021 | 7 CABLE AS | 1 | |
| 3010091 | COVER-TERMINAL (RED) | 1 | |
| 1M4986 | TERMINAL-RING (0-GA, 1/2-IN SCREW) | 1 | |
| 5P0760 | CABLE (0-GA, RED)(221-CM) | ||
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 9X9120 | BOOT (RED) | 1 | |
| 3E6909 | 8 CLIP (LOOP) | 9 | |
| 7I2272 | 9 BOLT (M5X0.8X12-MM) | 4 | |
| 7K1181 | 10 STRAP-CABLE | 5 | |
| 8T0328 | 11 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 8T4133 | 13 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 14 BOLT (M10X1.5X25-MM) | 9 | |
| 8T4137 | 15 BOLT (M10X1.5X20-MM) | 2 | |
| 3E7808 | 16 SWITCH AS-PRESSURE (SECONDARY STEERING OIL) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 3J1907 | 17 SEAL-O-RING | 1 |
