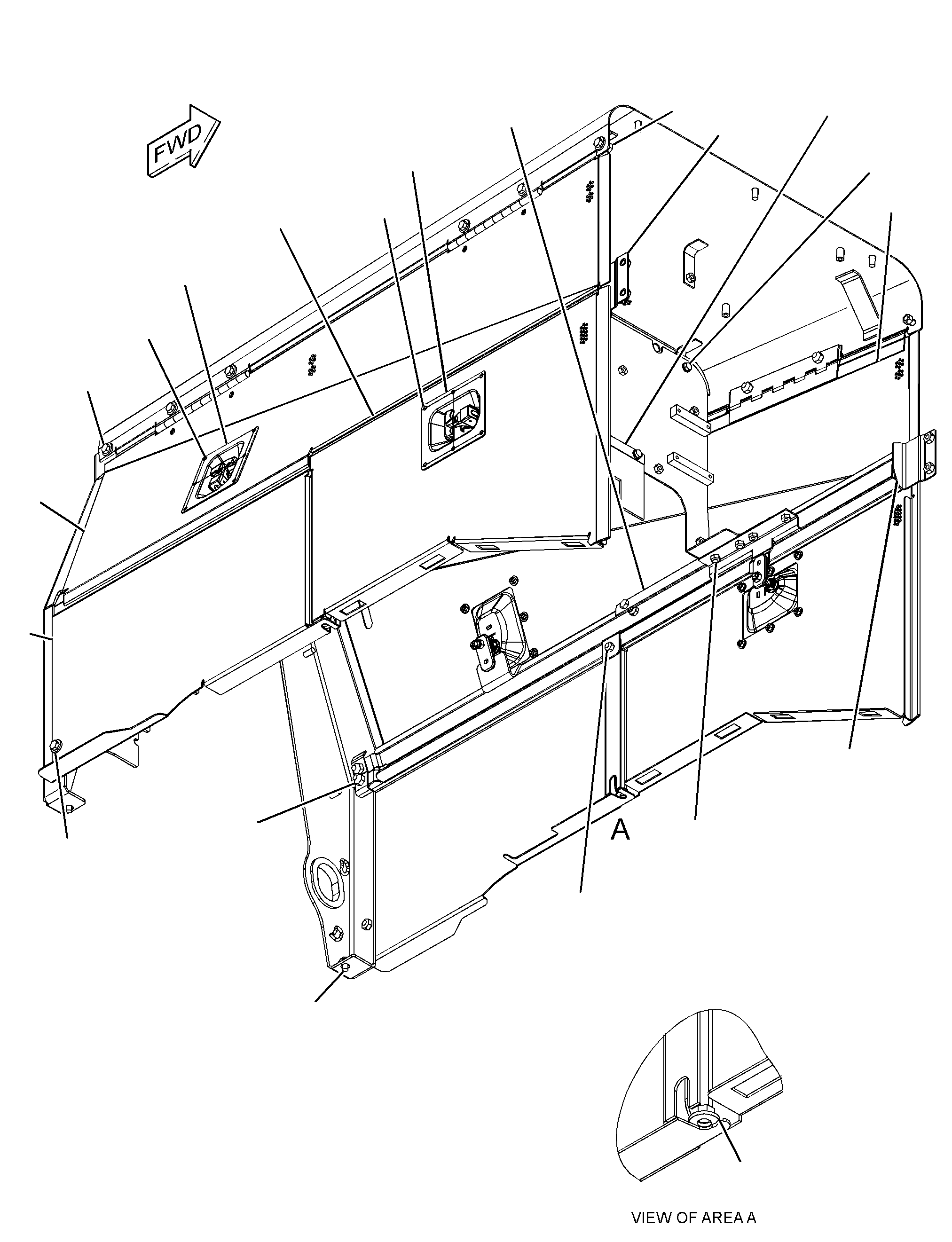

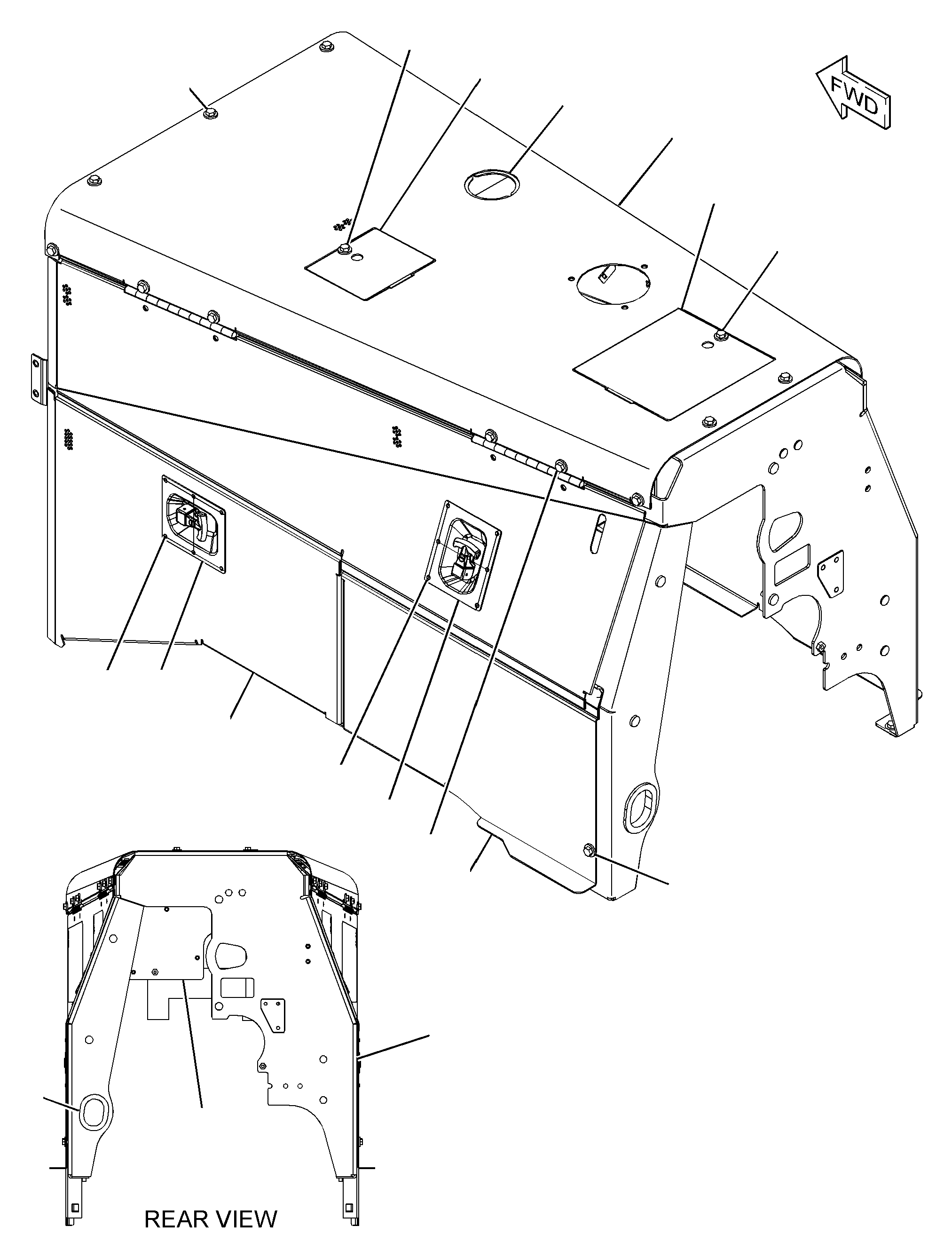

249-8137 HOOD & GUARD GPS/N 5351-274

Group No: 249-8137 · Commonality
Part NumberPart NameQty
28177441 LATCH AS2
4I39532 GROMMET1
7X77293 WASHER (11X25X3-MM THK)4
28177454 LATCH AS2
28205835 PAWL4
24981396 HOOD AS (TOP)1
24987207 SUPPORT AS1
24991138 SUPPORT AS1
24991809 SHEET (HOOD SIDE, FRONT, LH)1
249921510 SHEET (HOOD SIDE, FRONT, RH)1
249928311 SHEET1
249924512 SHEET1
250018713 DOOR AS-ACCESS (HOOD SIDE, LH)1
2499421HINGE1
8T3597NUT-WELD (M12X1.75-THD)4
250021614 DOOR AS-ACCESS (HOOD SIDE, RH)1
2499421HINGE1
8T3597NUT-WELD (M12X1.75-THD)4
250022015 PLATE AS1
250189916 PLATE1
250355417 STRIP2
251588718 PLATE1
254702519 PLATE AS1
8T854920 LOCKNUT (M12X1.75-THD)2
5P411621 WASHER-HARD (8.8X20.5X2-MM THK)26
255087922 SEAL1
255092723 PLATE1
256389324 STRIP2
5C726125 NUT (M8X1.25-THD)24
5P107626 WASHER-HARD (13.5X30X4-MM THK)29
8T417927 BOLT (M12X1.75X20-MM)8
8T412128 WASHER-HARD (11X21X2.5-MM THK)5
8T413329 NUT (M10X1.5-THD)4
8T413730 BOLT (M10X1.5X20-MM)5
8T422331 WASHER-HARD (13.5X25.5X3-MM THK)4
8T413932 BOLT (M12X1.75X30-MM)27
8T424433 NUT (M12X1.75-THD)4
